Arven 354 (GEN20)
ARVEN 354 (GEN20)

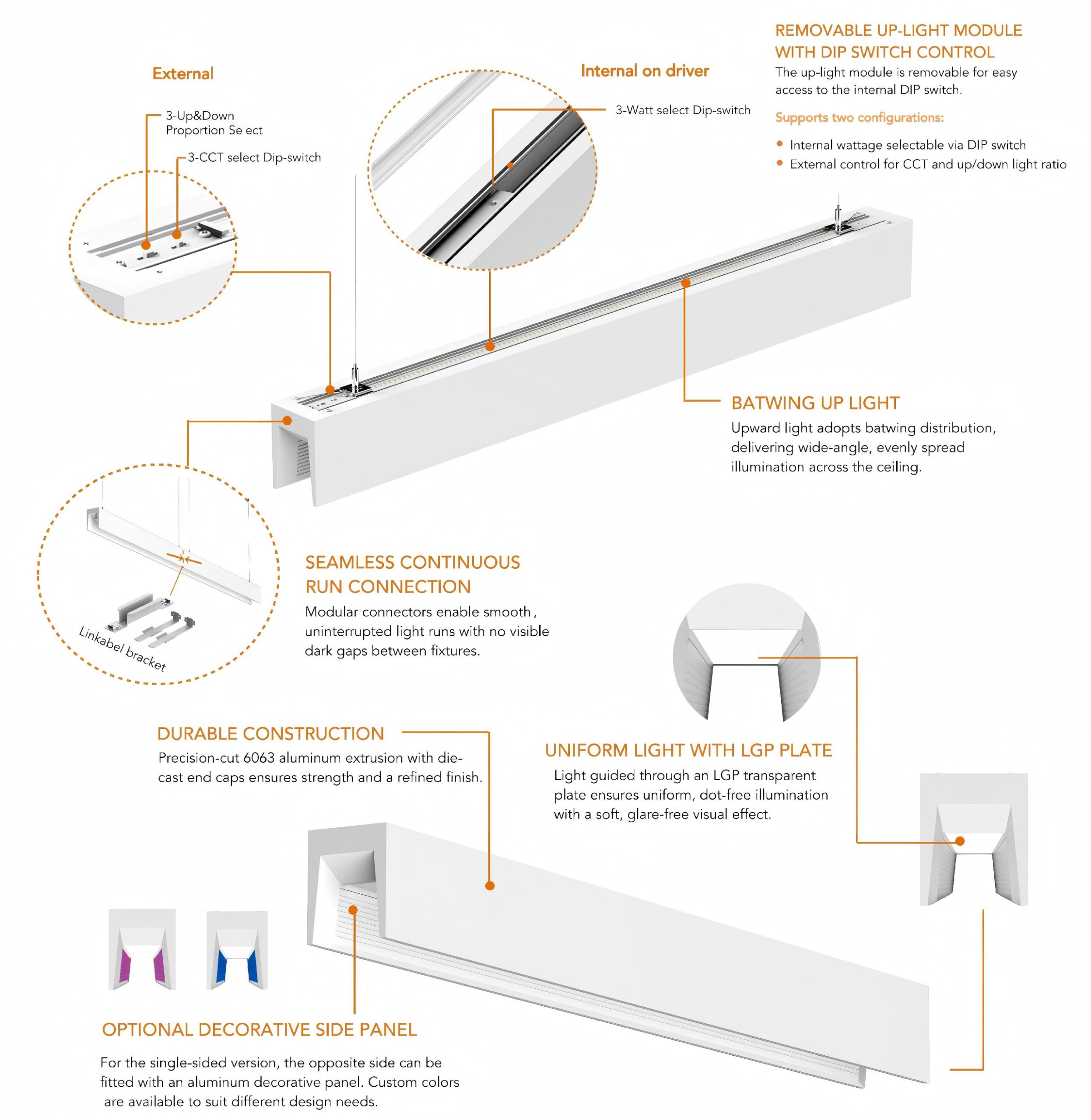

Arven 354 features a refined, low-glare diffusion system,offering soft, broad illumination through its unique arch-shaped profile. It is available in 4' and 8' lengths, supporting continuous runs for seamless integration into architectural spaces.
Arven 354 is designed to deliver sculptural presence and seamless lighting performance for modern architectural spaces.
| Arven 354 | Length/Pattem | Wattage | Luminous Efficacy | Luminous Flux | Up & Down Proportion | CCT Select | Voltage | Dimming | CRI | Flicker |
|---|---|---|---|---|---|---|---|---|---|---|
| WL-20LSUD4FT50WA2D1HV | 4FT(1178 mm) | 30/40/50W | 65-115 Lm/W | 1950-5750 Lm | 50%+50% / 30%+70% / 0%+100% | 30/35/40K | AC120-277V | 0-10V(1%-100%) | >90 | <5% |
| WL-20LSUD8FT100WA2D1HV | 8FT(2295.6mm) | 60/80/100W | 65-115lm/W | 3900-11500 Lm | 50%+50%/30%+70%/0%+100% | 30/35/40K | AC120-277V | 0-10V(1%-100%) | >90 | <5% |
Run Lengths
Standalone fixtures are available in 4FT(1178mm) and 8FT(2295.6mm) nominal lengths.
ACCESSORIES (ORDERED SEPARATELY)
Expand installation possibilities and adapt to different project requirements.

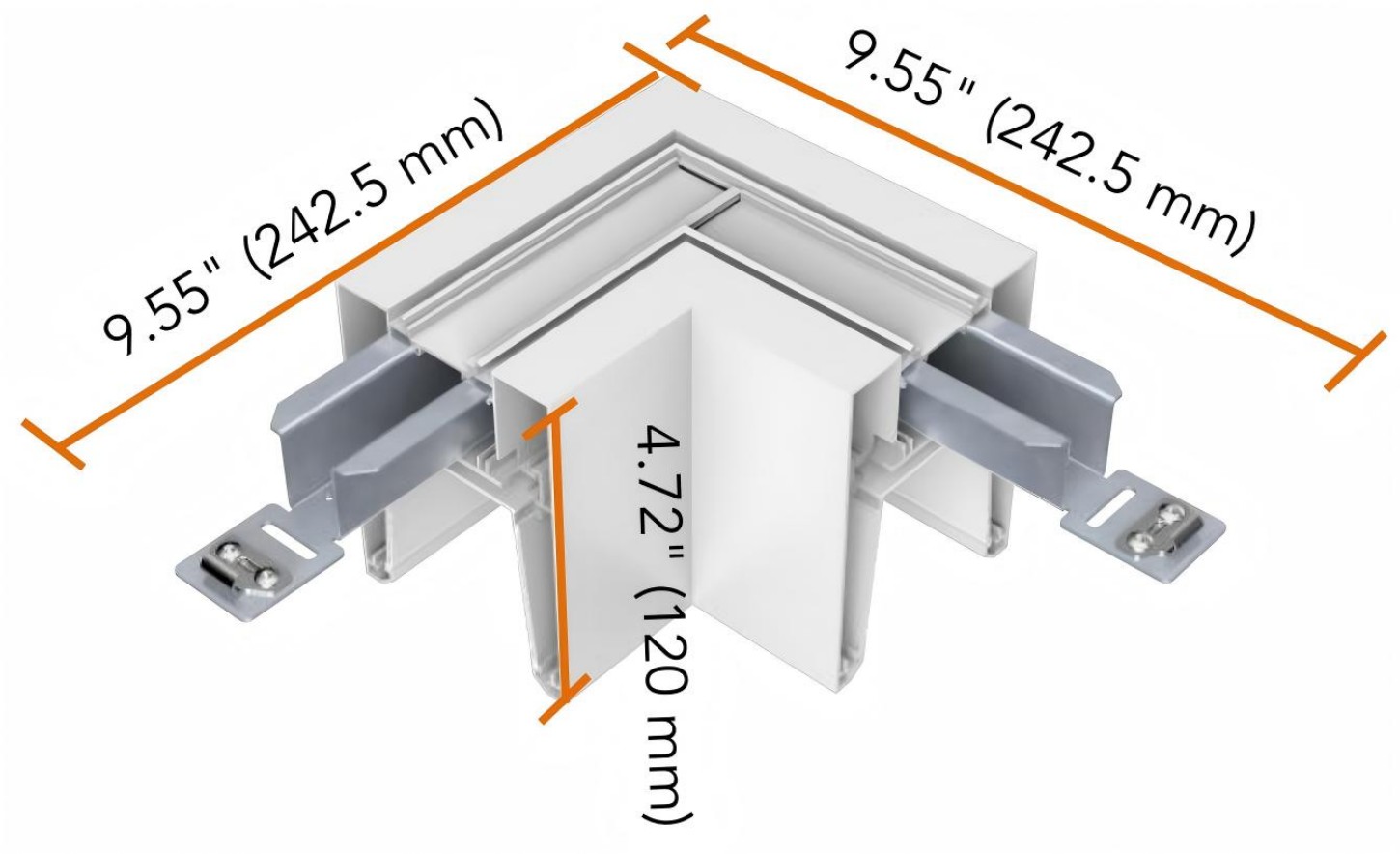

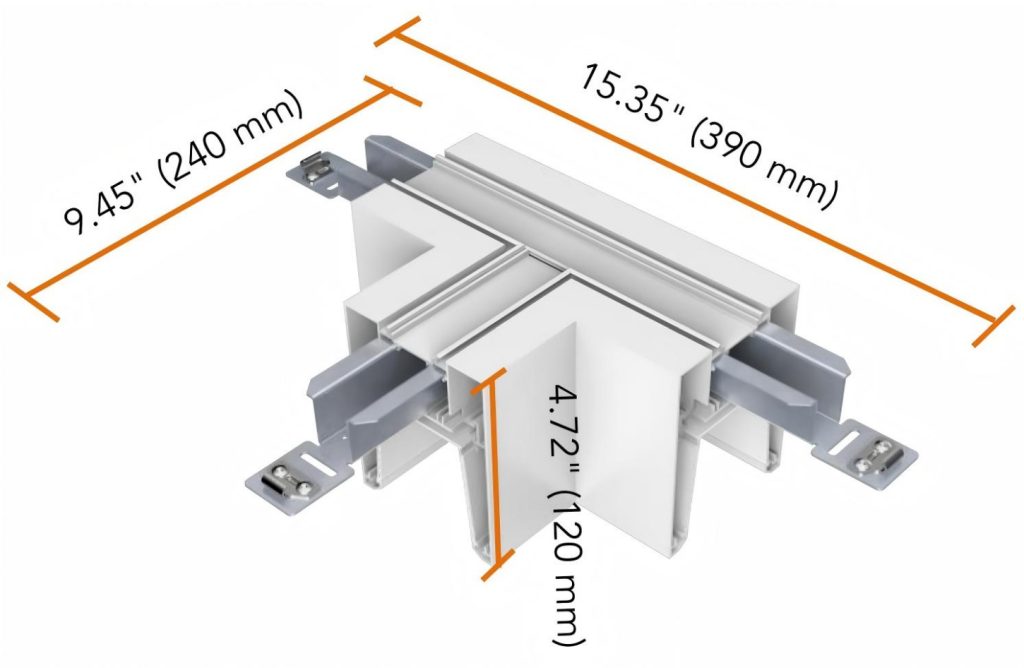

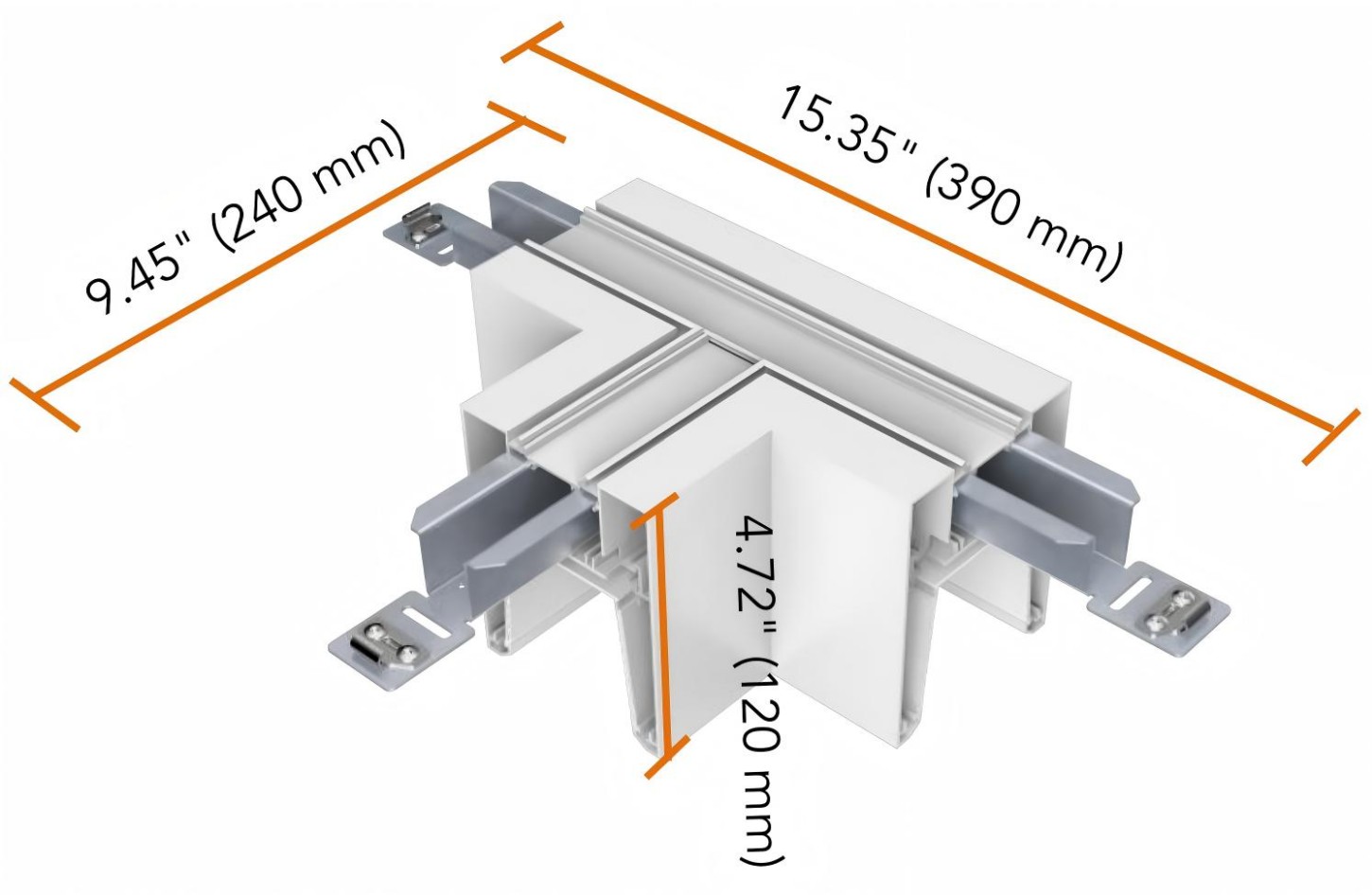

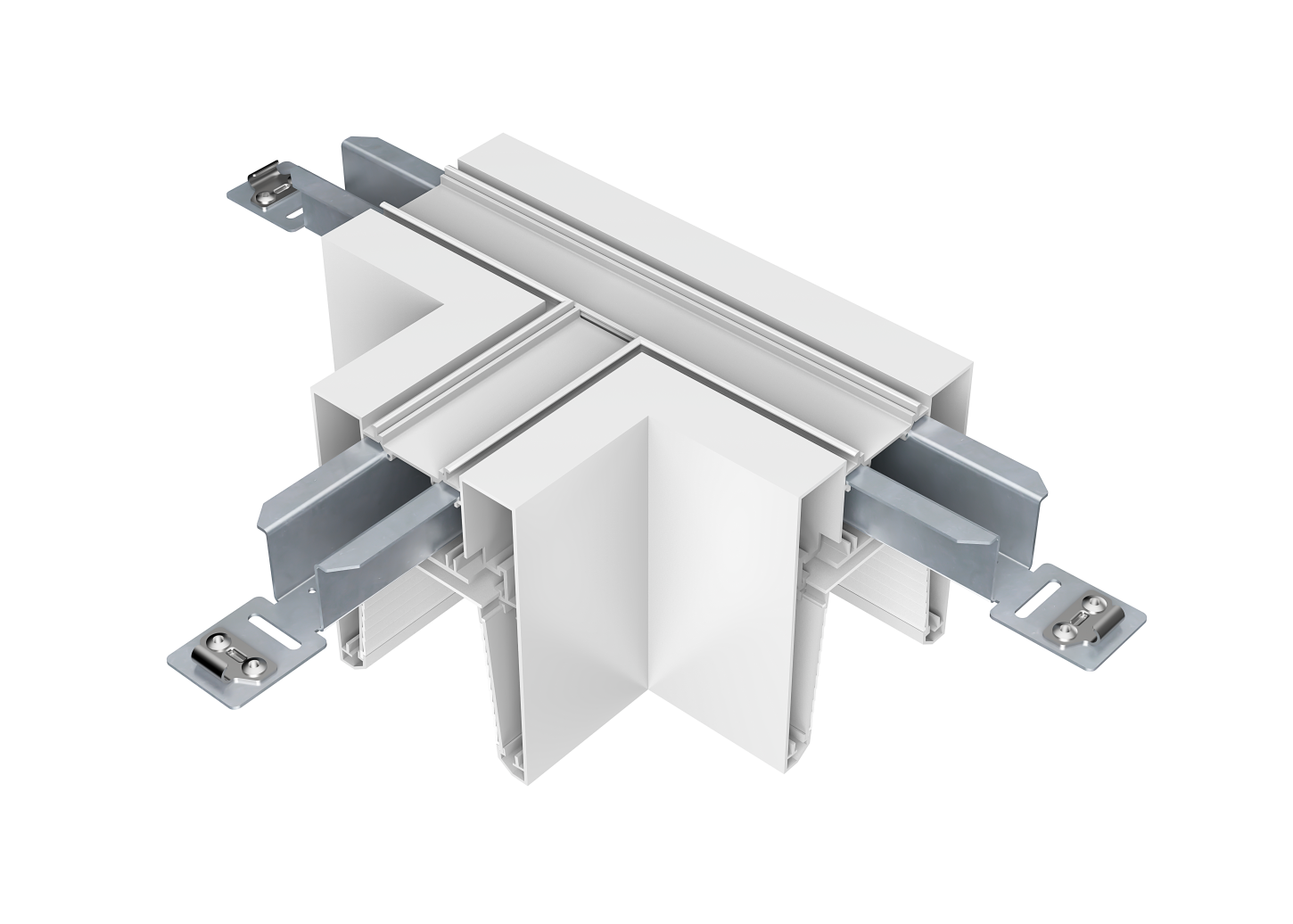

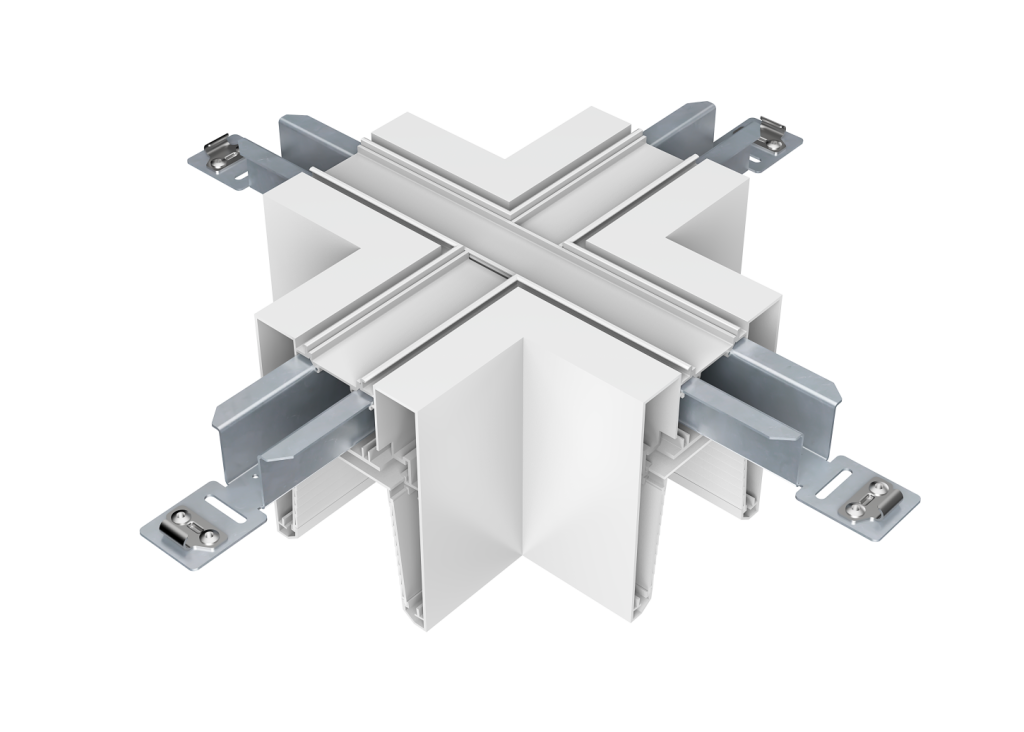

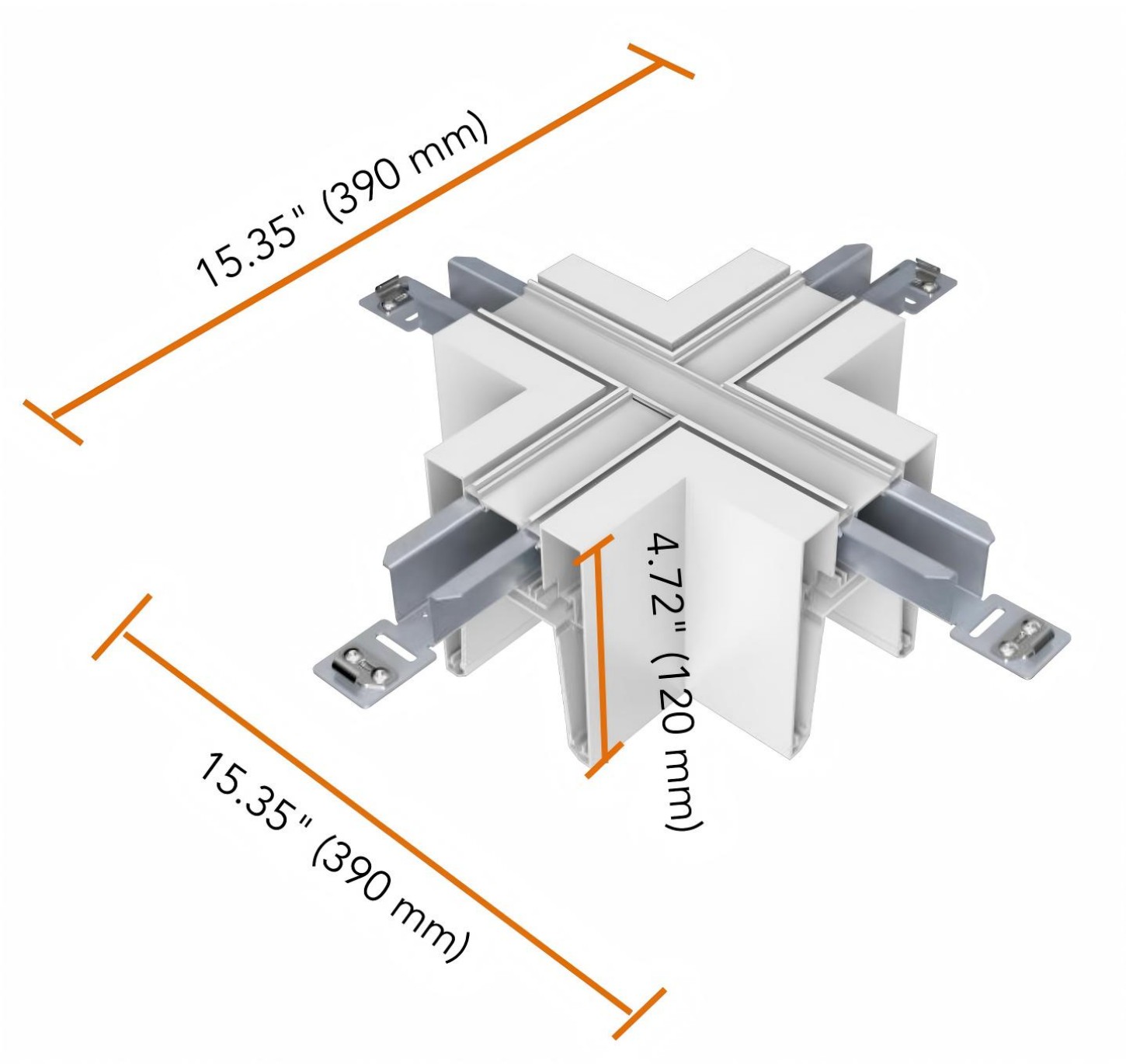

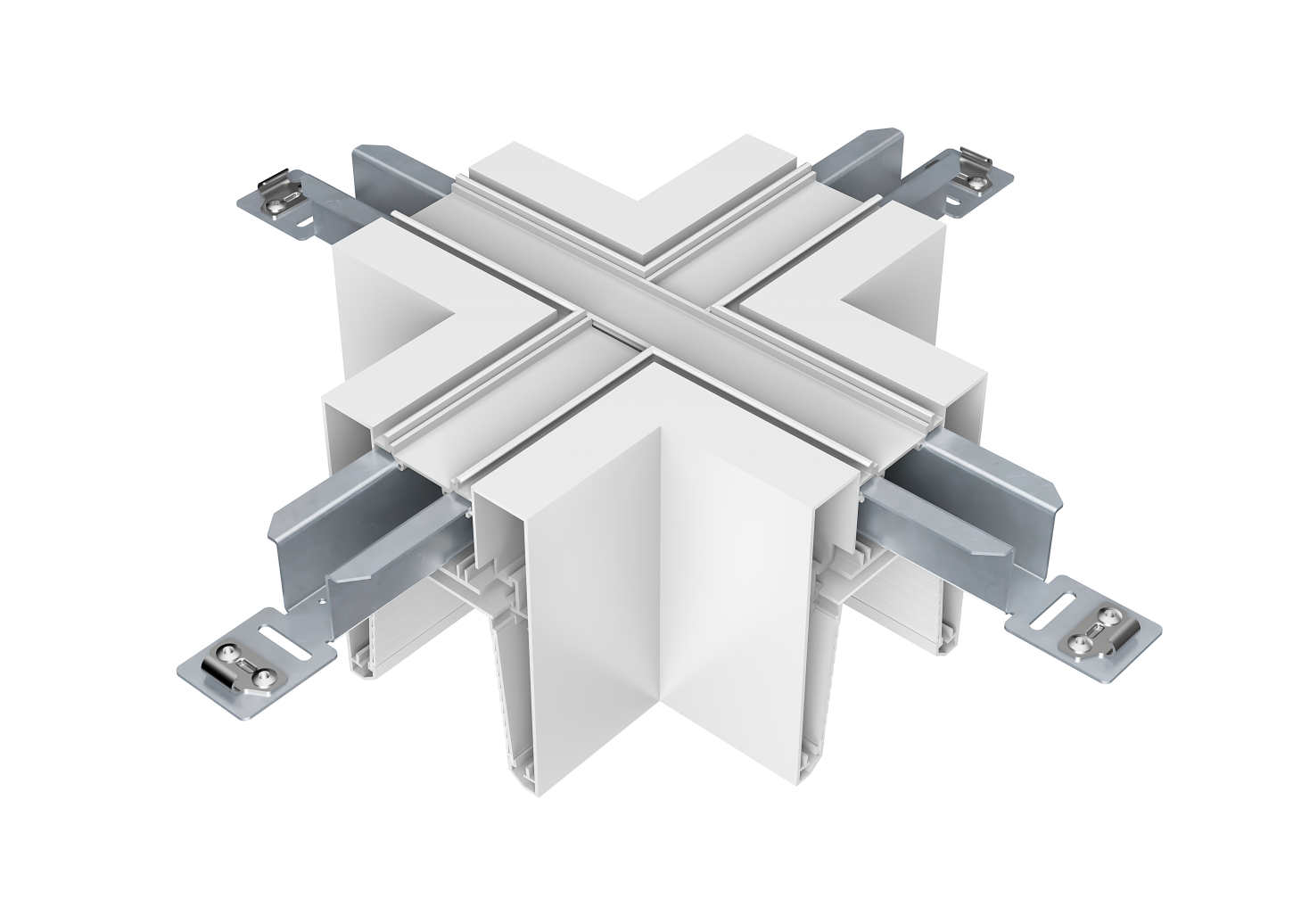

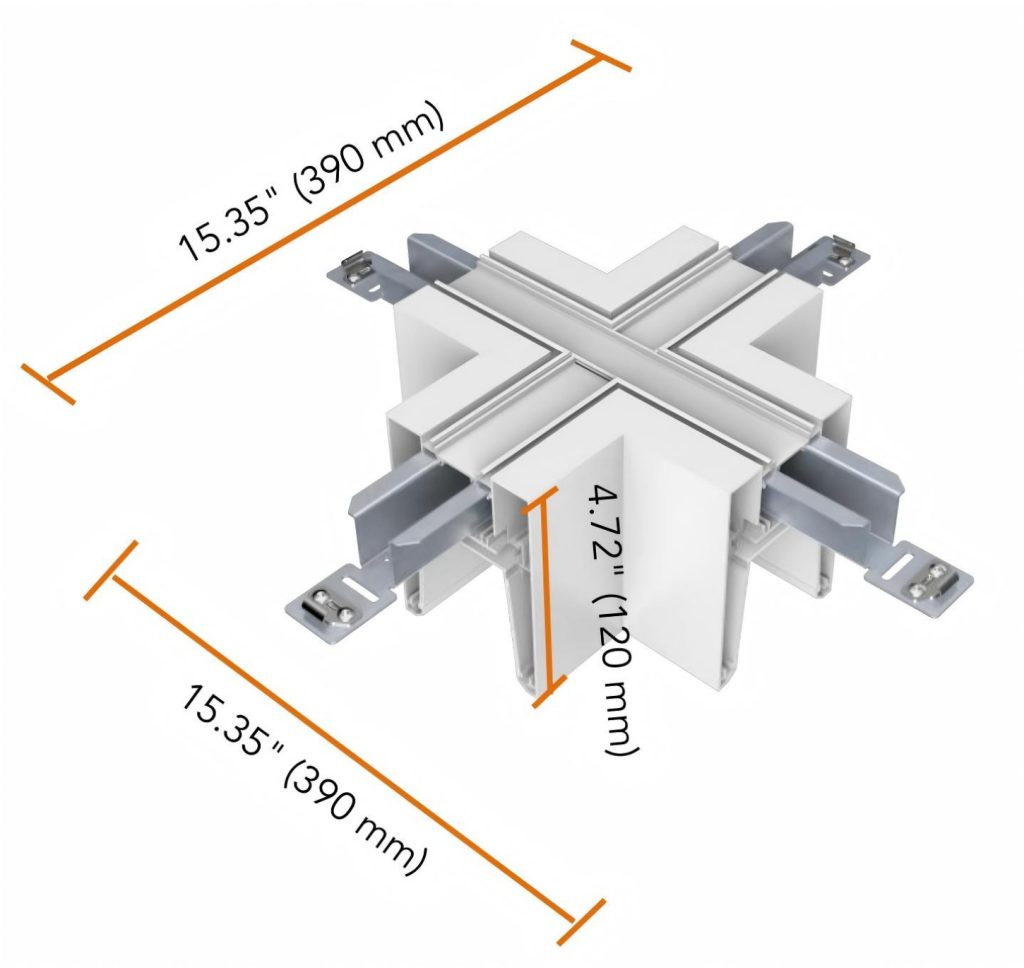

Non-Powered Connection Components
These connectors provide robust mechanical linkage for seamless and precise fixture alignment. Designed without integrated power modules, they offer flexible and reliable structural connectivity, enabling versatile lighting configurations while maintaining streamlined system design.
HEXAGONAL FORMATION
Y-Shape lit connectors enable seamless hexagonal patterns with continuous illumination—ideal for sculptural ceilings and immersive installations.
SUSPENDED SCULPTURE
With LYTX suspension, lighting becomes part of the architecture—lightweight, geometric, and spatially expressive.
GRID CONFIGURATION

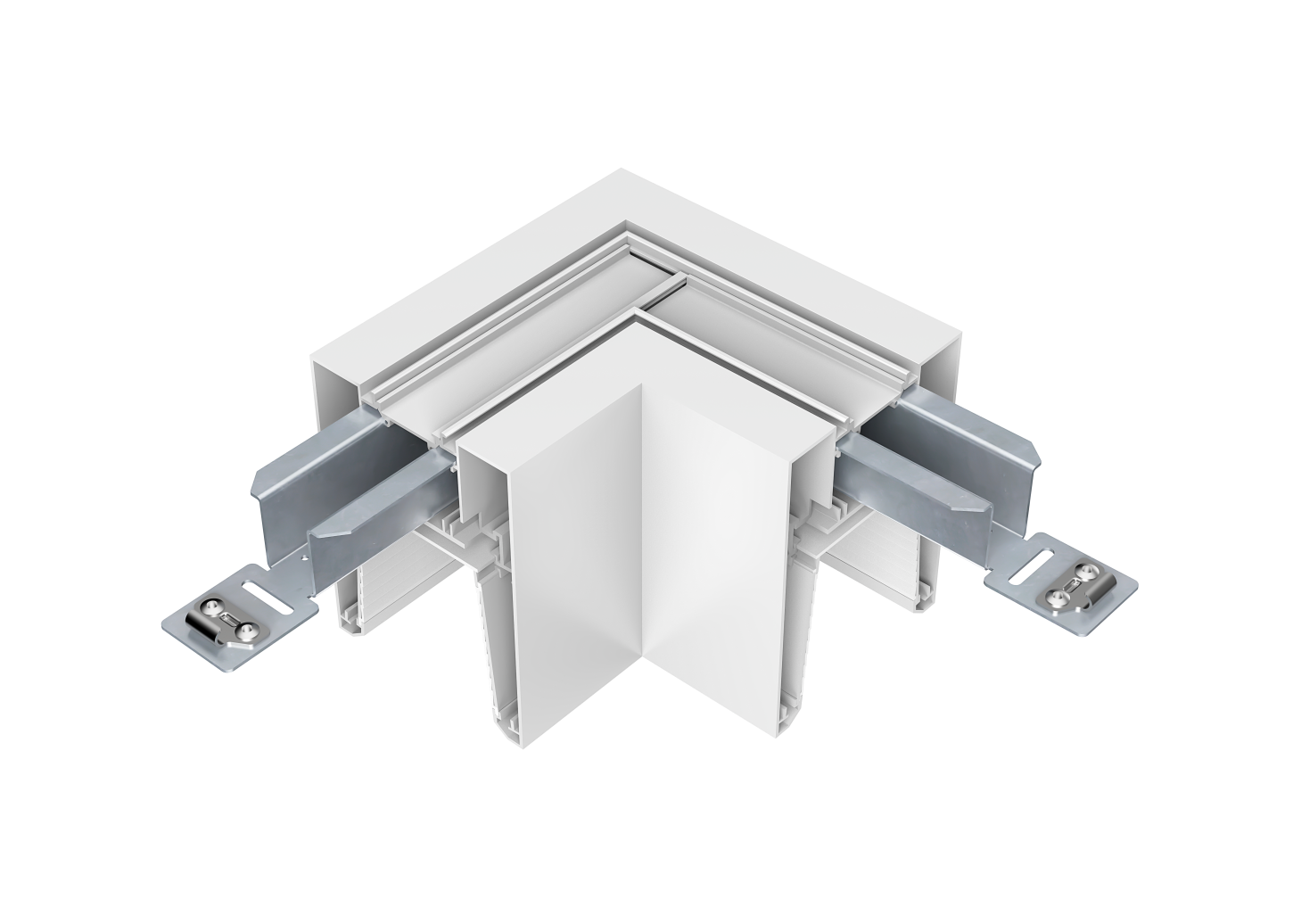

Square layouts built with L-Shape connectors deliver a clean, organized aesthetic—ideal for structured, modular ceiling designs.
Flexible Design

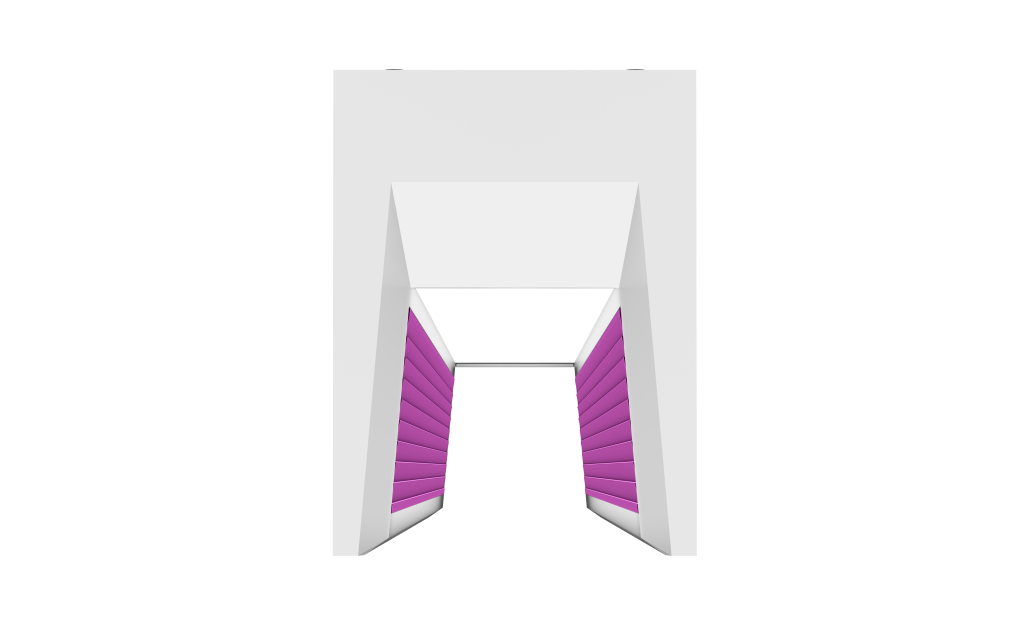

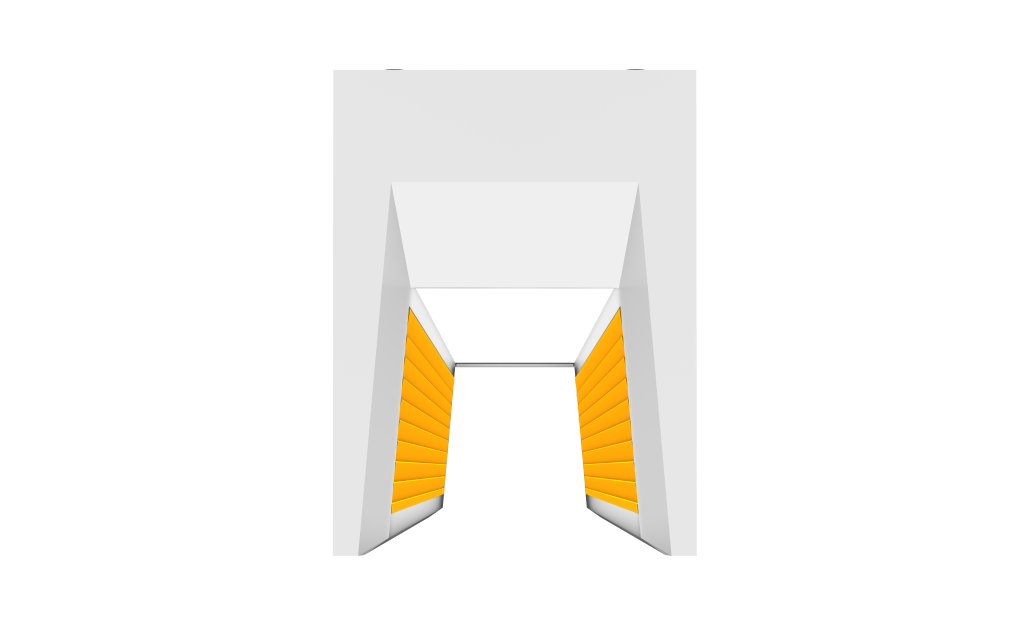

Customizable Decorative Side Panel Options
Available for the single-sided version; aluminum panels offered in multiple finishes and colors to suit interior aesthetics

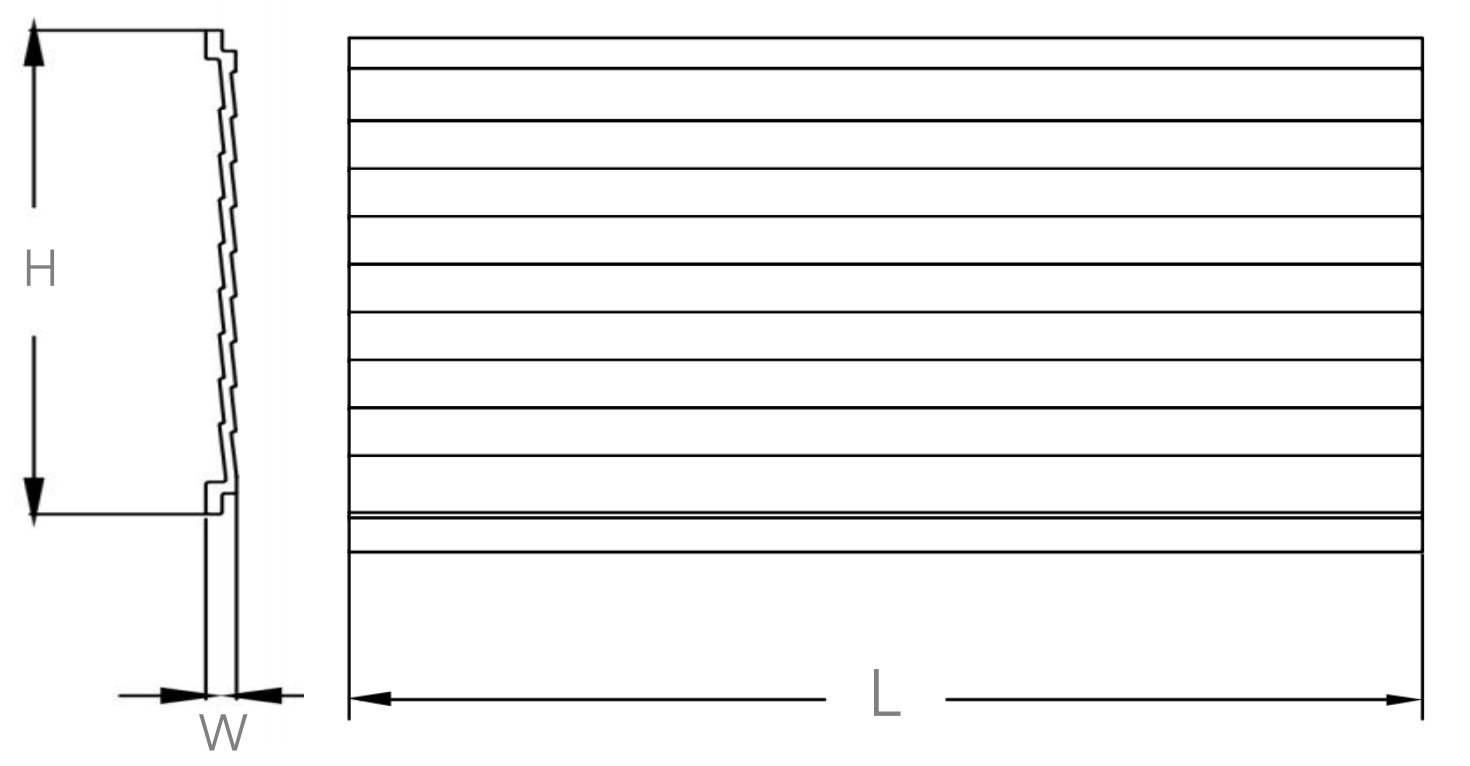

SIDE PANEL DIMENSIONS
The aluminum side panels are defined by clean lines and consistent geometry, precisely proportioned to complement the fixture’s architectural silhouette. Their refined form enhances spatial rhythm and visual harmony across applications.
| Decorative Side Panel Dimensions | |||
|---|---|---|---|
| Model | L=Length | H= Height | W=Width |
| WL-20LSUD4FT | 44.02" (1118 mm) | 2.06" (52.3 mm) | 0.11" (2.8 mm) |

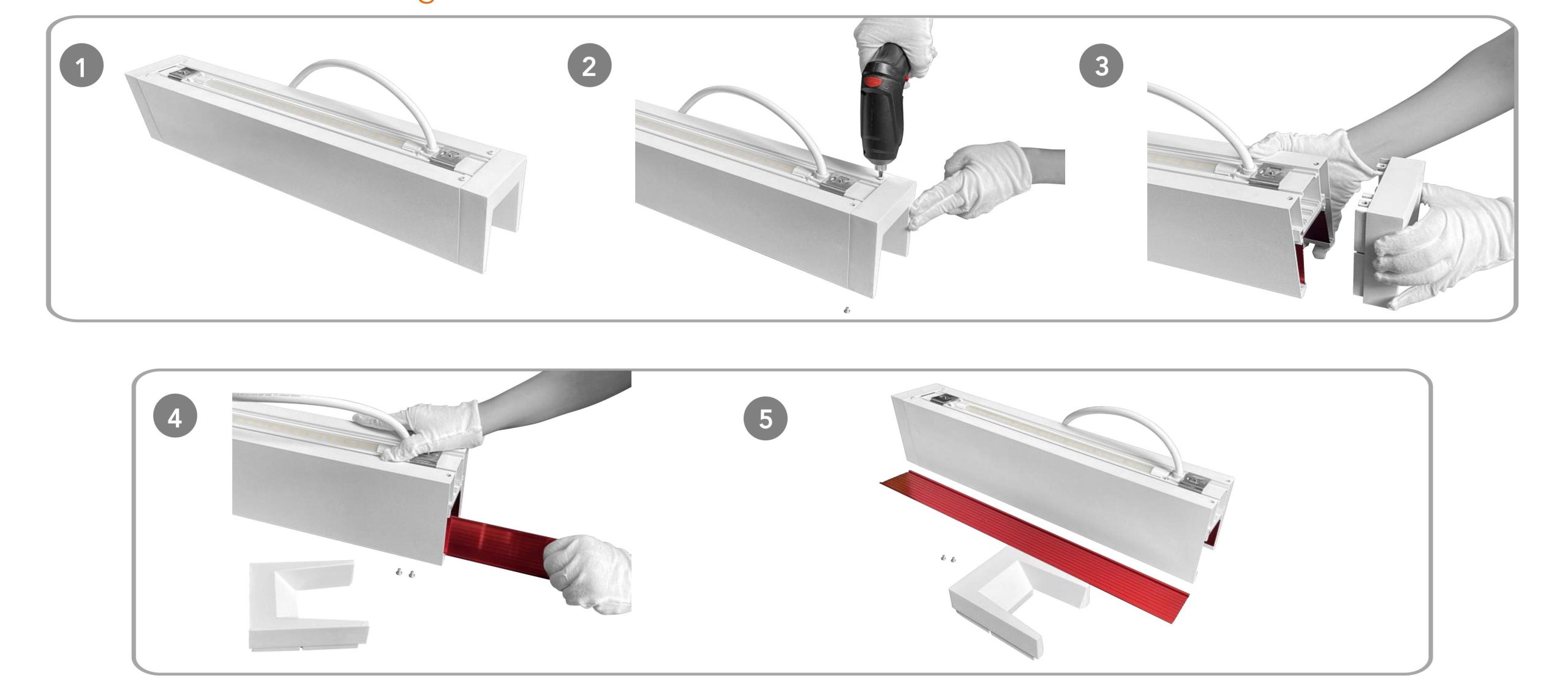

Quick Guide: Installing the Decorative Side Panel
