IP65 Cleanroom lighting

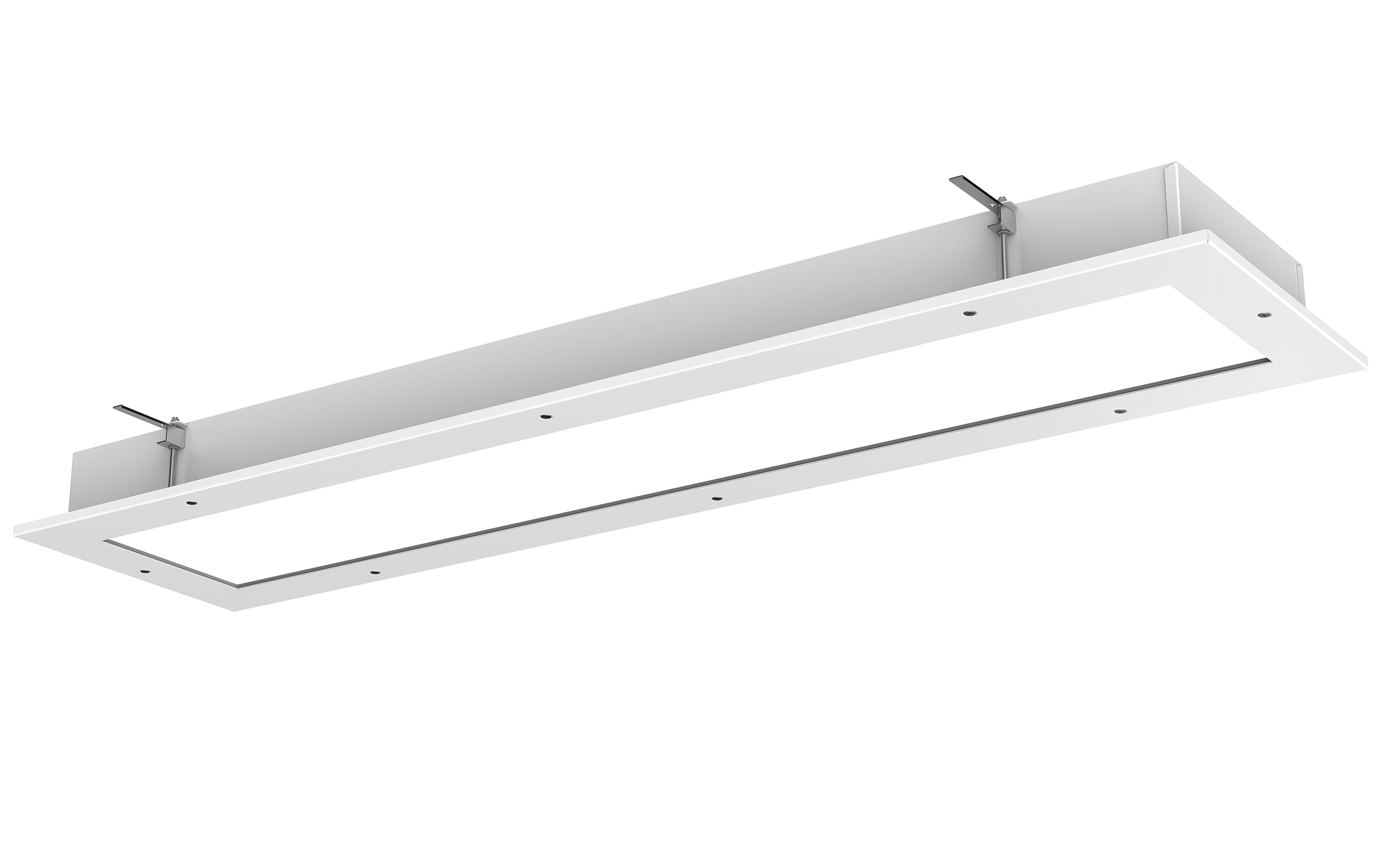

Engineered for hygienic environments where cleanliness, durability, and reliability are essential. Designed for food processing, pharmaceutical manufacturing, and semiconductor facilities, this cleanroom luminaire features a seamless stainless steel housing with a one-piece door frame to minimize contamination and simplify cleaning.

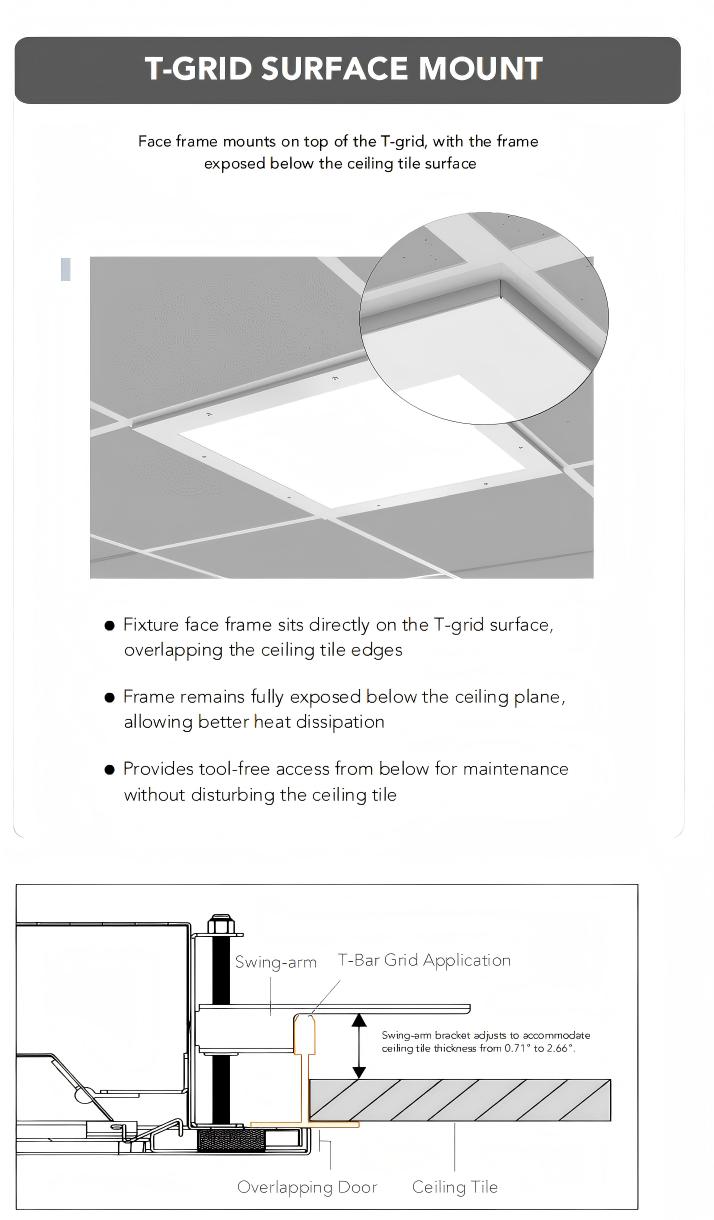

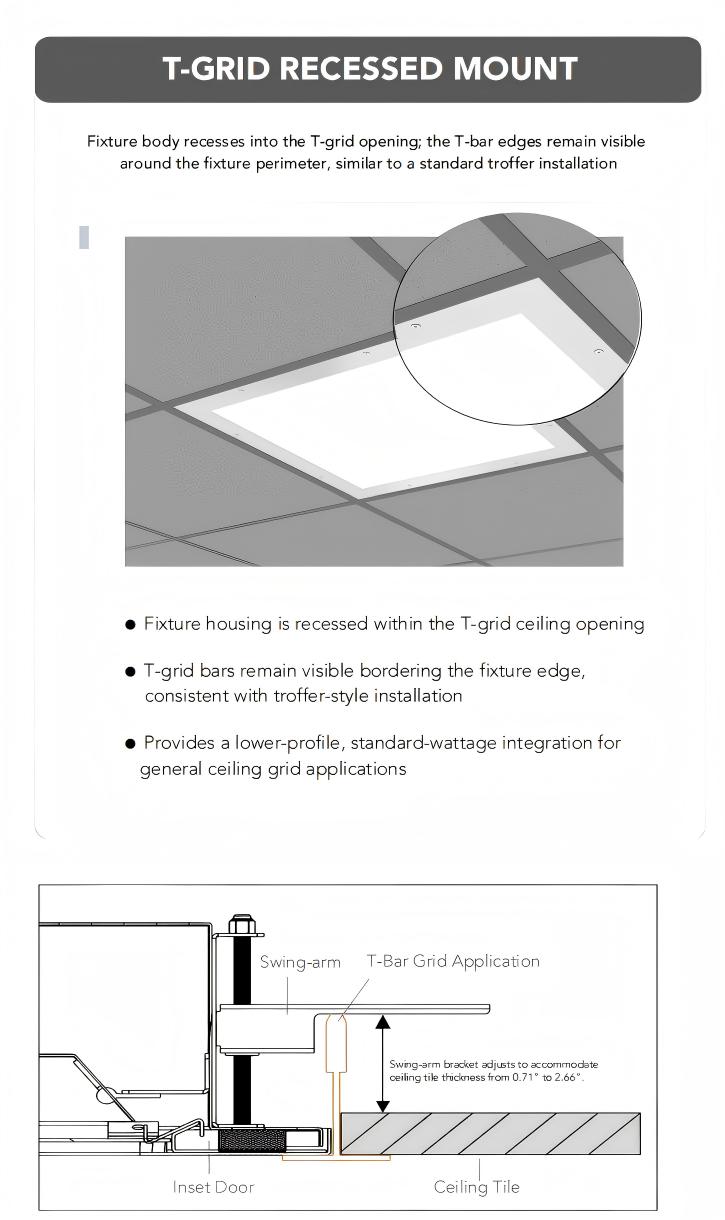

Tool-free hinged access, flexible grid or flange mounting, and a choice of IK10 polycarbonate or IK08 tempered glass lenses make installation and maintenance effortless.

Delivering up to 145 lm/W, CRI 80+, 0-10V/DALI dimming, and certified to ETL, NSF, DLC, and ISO 14644-1 for cleanroom classes 3–9, it provides dependable performance in the industry's most demanding controlled environments.

Clear IP65 Cleanroom lighting Spec Sheet

FEATURES

SPECS

DOWNLOADS

ACCESSORIES

Model	Dimension	Watt Select	Efficacy	Lumens	CCT Select	Input Voltage	Dimming	CRI	UGR
WL-2CR14B224/30/36W30K-35K-40K	1'X4'	24W/30W/36W	135-145Lm/W	3240-5220 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22
WL-2CR14B230/45/60W30K-35K-40K	1'X4'	30W/45W/60W	135-145Lm/W	4050-8700 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22

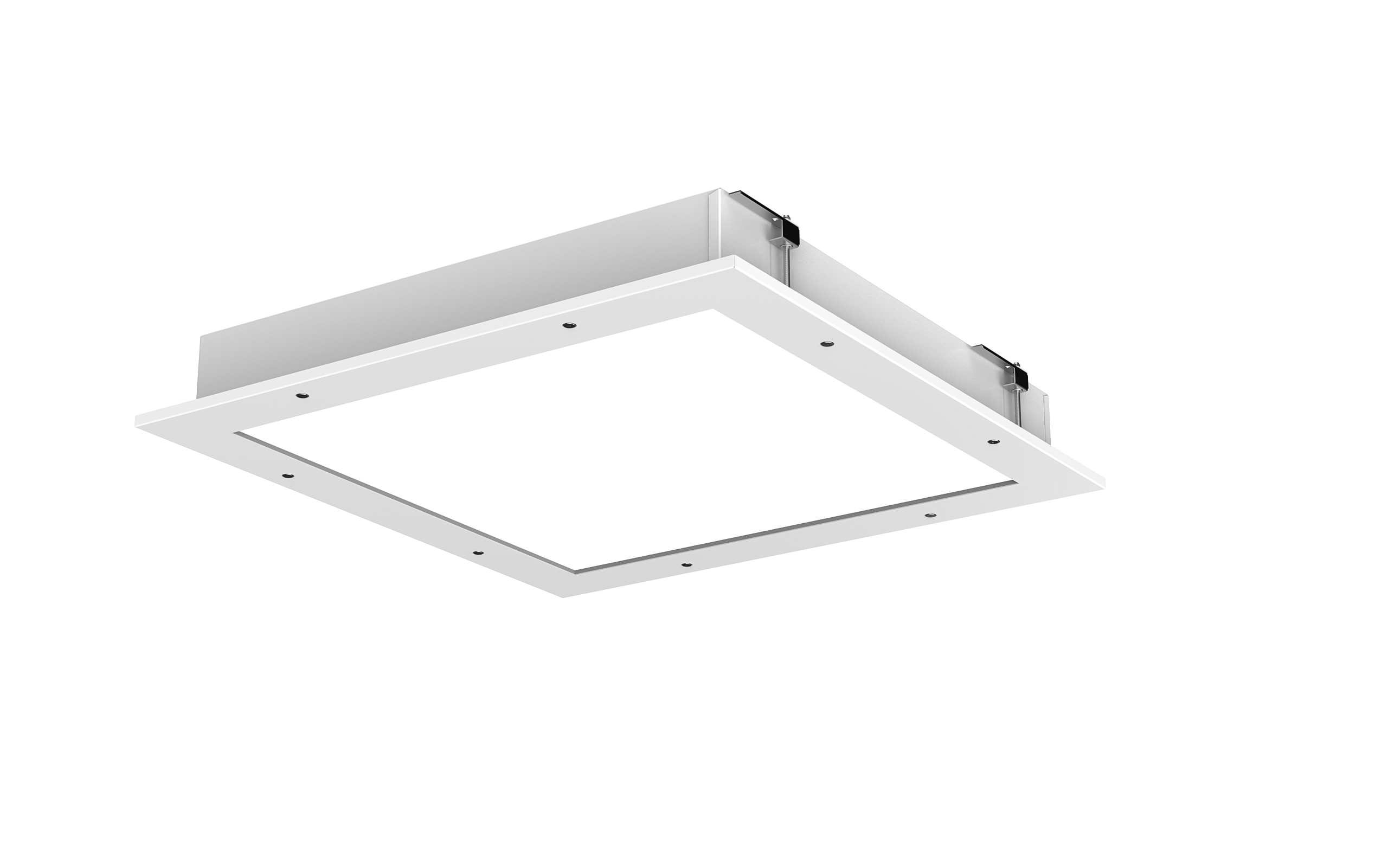

WL-2CR22B224/30/36W30K-35K-40K	2'X2'	24W/30W/36W	135-145Lm/W	3240-5220 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22
WL-2CR22B230/45/60W30K-35K-40K	2'X2'	30W/45W/60W	135-145Lm/W	4050-8700 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22

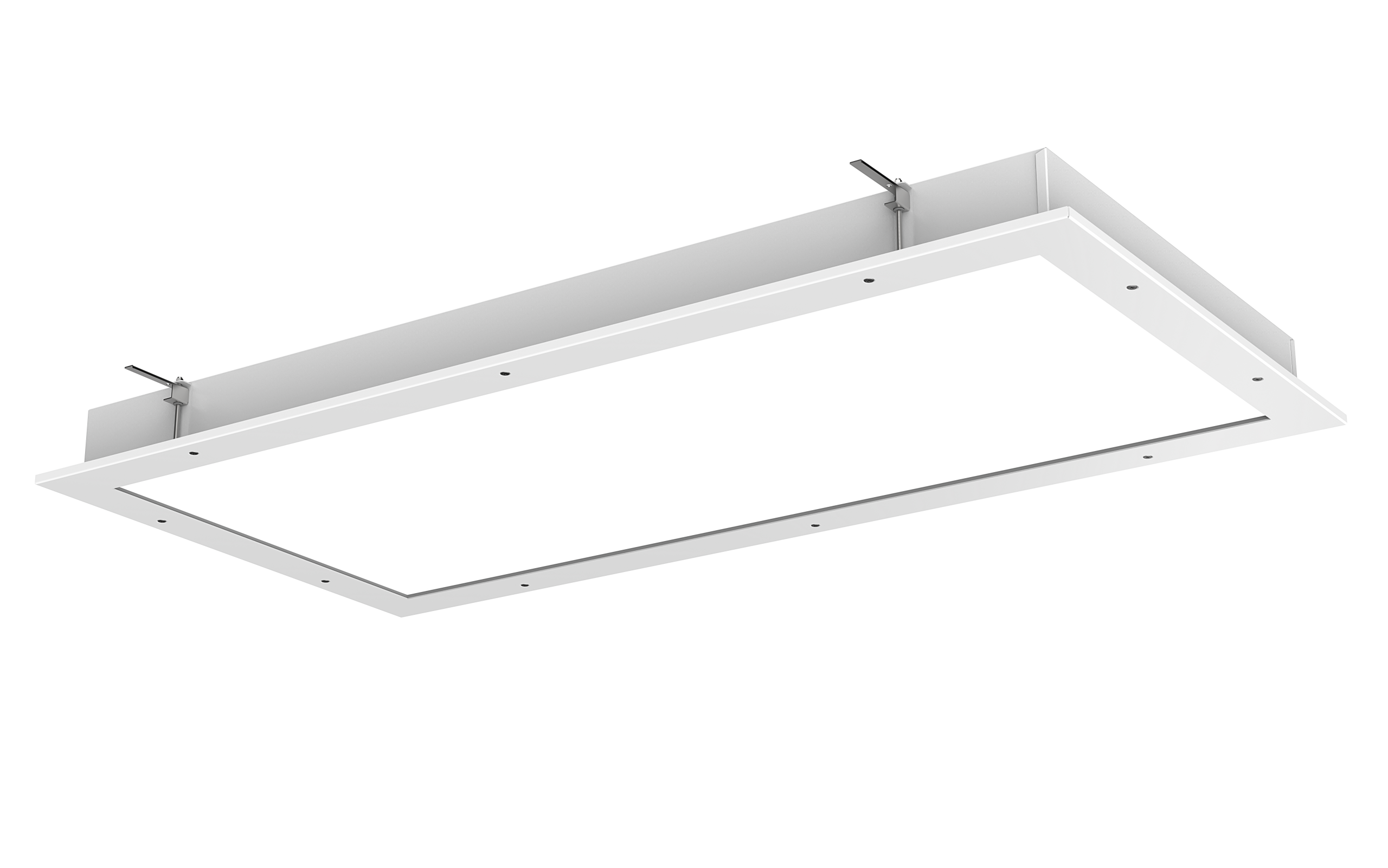

WL-2CR24B230/45/60W30K-35K-40K	2'X4'	30W/45W/60W	135-145Lm/W	4050-8700 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22
WL-2CR24B245/67/90W30K-35K-40K	2'X4'	45W/67W/90W	135-145Lm/W	6075-13050 Im	30K-35K-40K / 35K-40K-50K / 30K-40K-50K	AC120-347V	0-10V / DALI	>80	<22

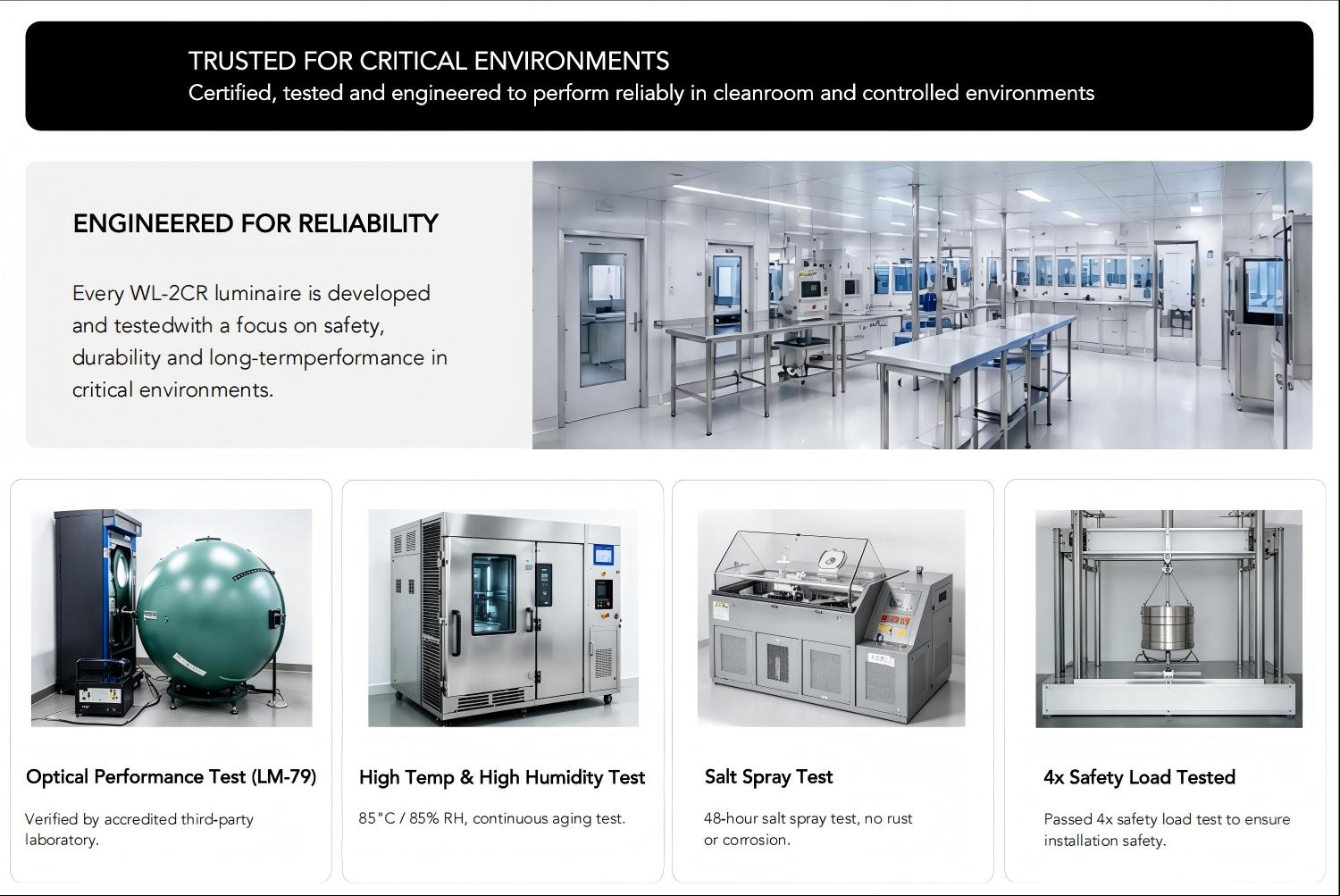

ENGINEERED FOR RELIABILITY

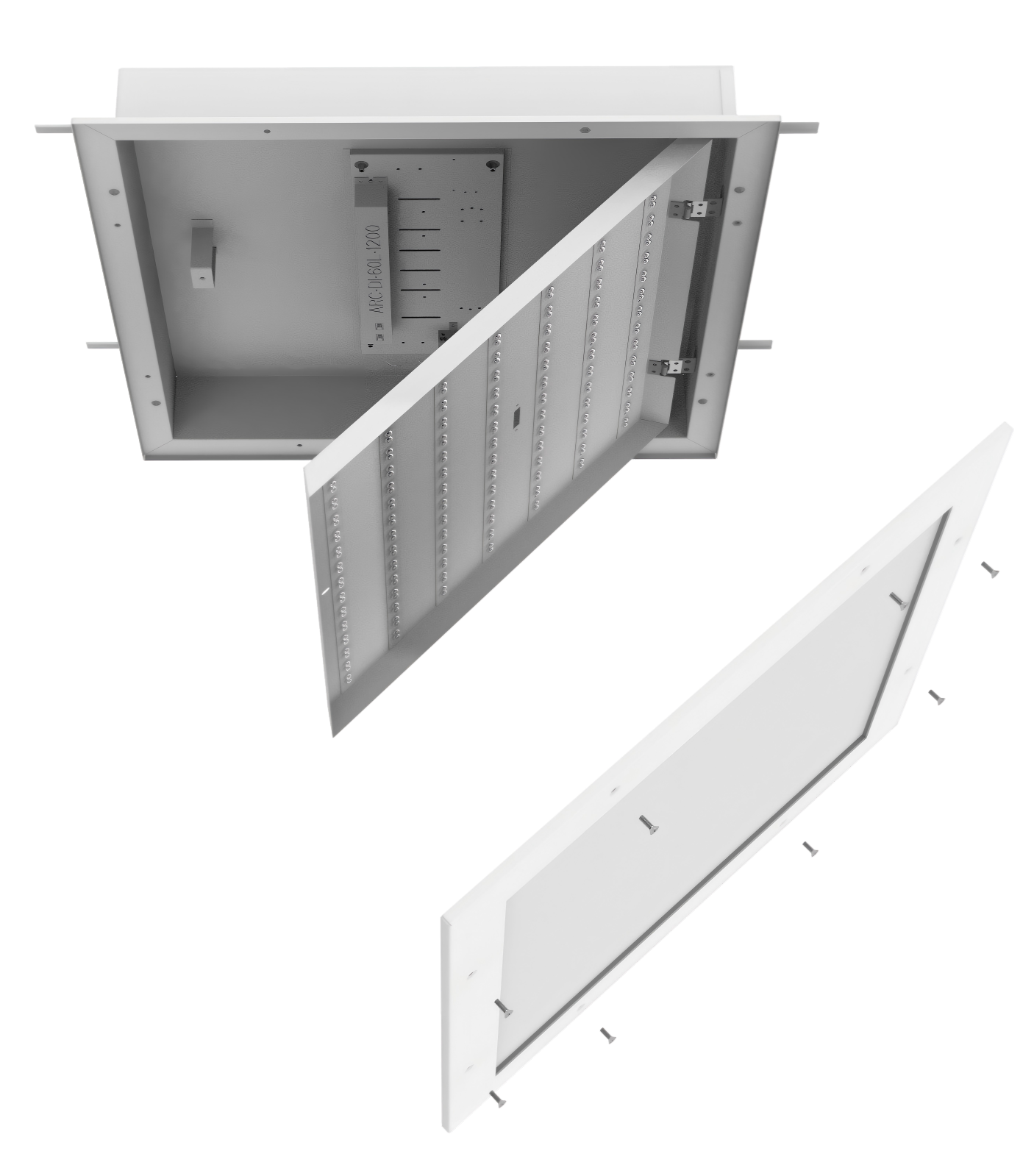

Thoughtful Construction. Easy Maintenance.

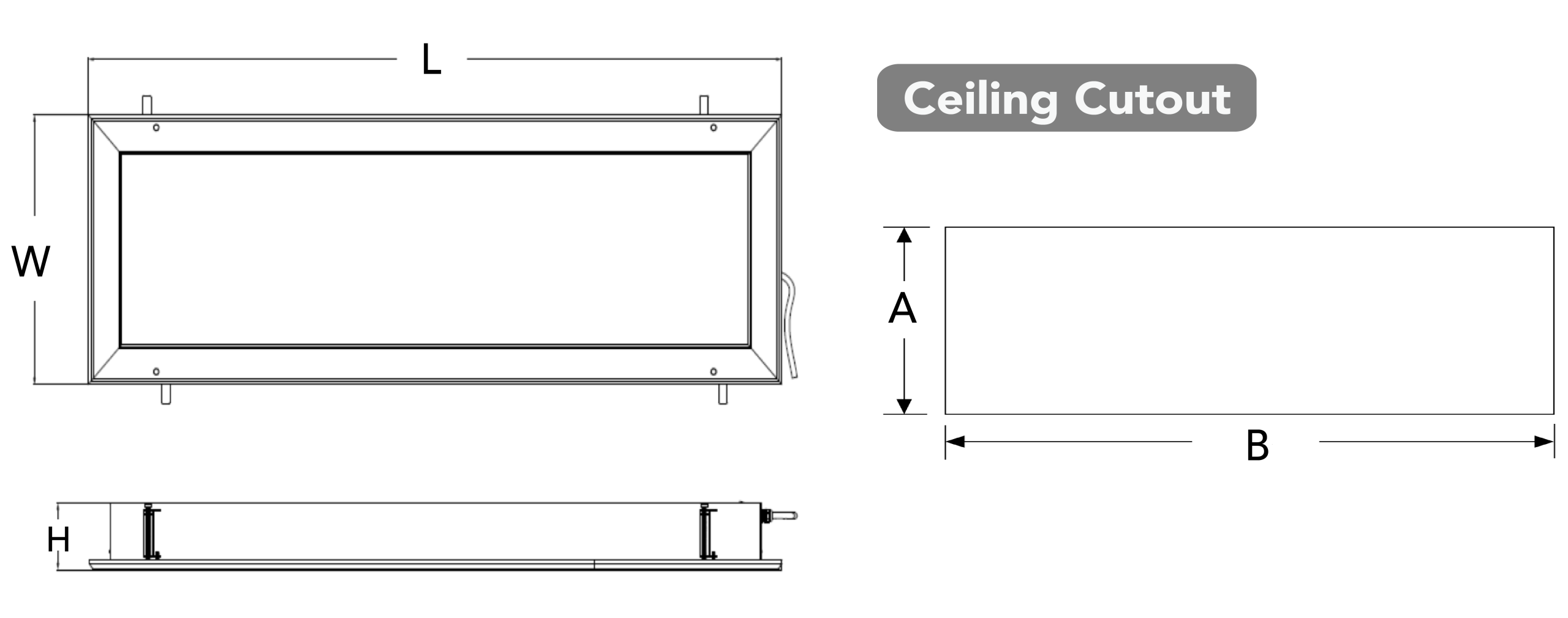

DIMENSIONS

SIZE	L	W	H	A	B	Weight
1x4FT	47.75"(1213mm)	11.93"(303mm)	3.54"(90mm)	11.22(285mm)	46.85(1190mm)	17.6 lbs (8.0 kg)
2X2FT	23.74"(603mm)	23.74"(603mm)	3.54"(90mm)	23.03(585mm)	23.03(585mm)	18.7 lbs (8.5 kg)
2X4FT	47.75"(1213mm)	23.74"(603mm)	3.54"(90mm)	23.03(585mm)	46.85(1190mm)	33.4 lbs (15.15 kg)

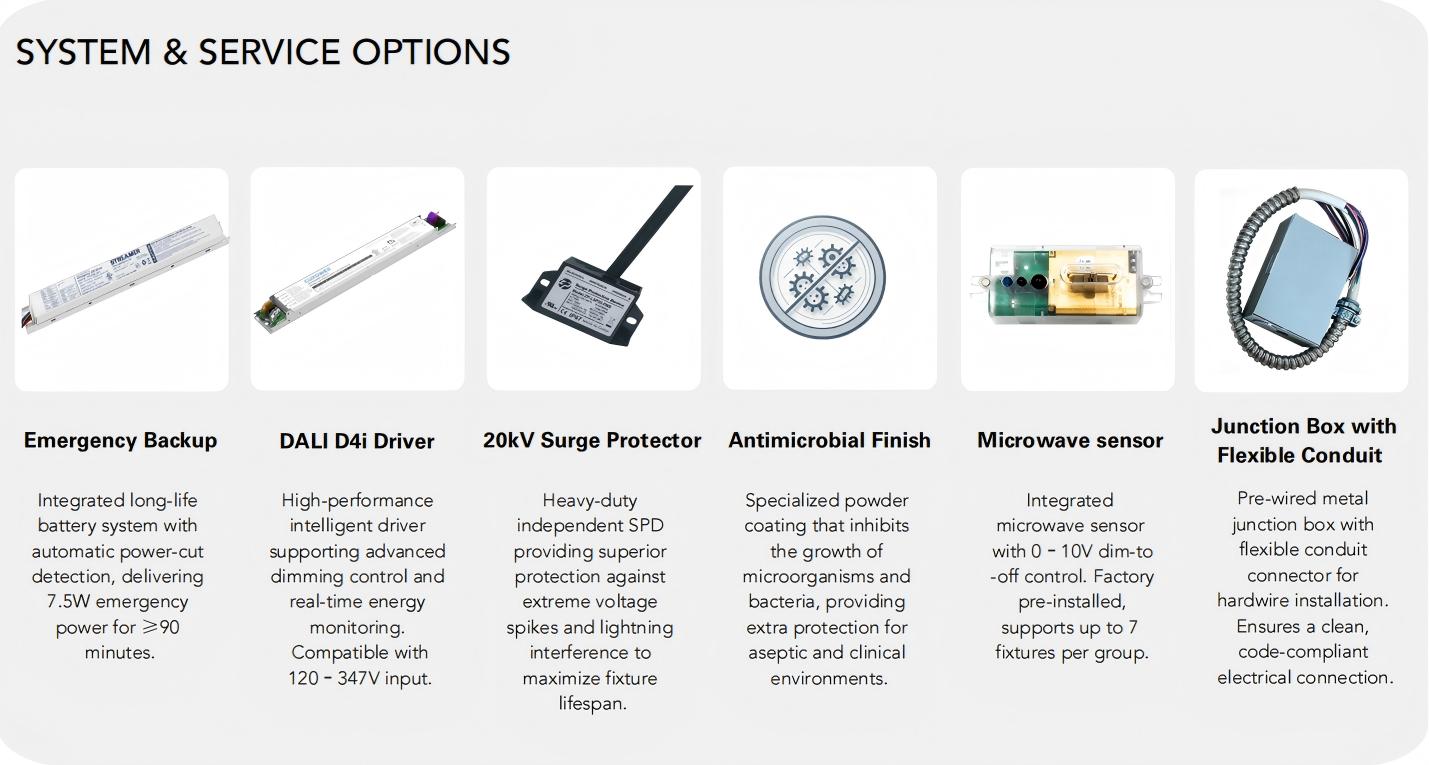

ACCESSORIES

Configurable options for every application

Every WL-2CR luminaire can be tailored to the demands of critical environments. An integrated emergency backup module delivers 90+ minutes of power during outages, while the DALI D4i driver enables intelligent dimming with real-time energy monitoring. A 20kV surge protector and antimicrobial powder coating add extra protection against electrical interference and microbial growth, and a factory pre-installed microwave sensor supports dim-to-off control across grouped fixtures. For clean, code-compliant installation, a pre-wired junction box with flexible conduit is also available.
