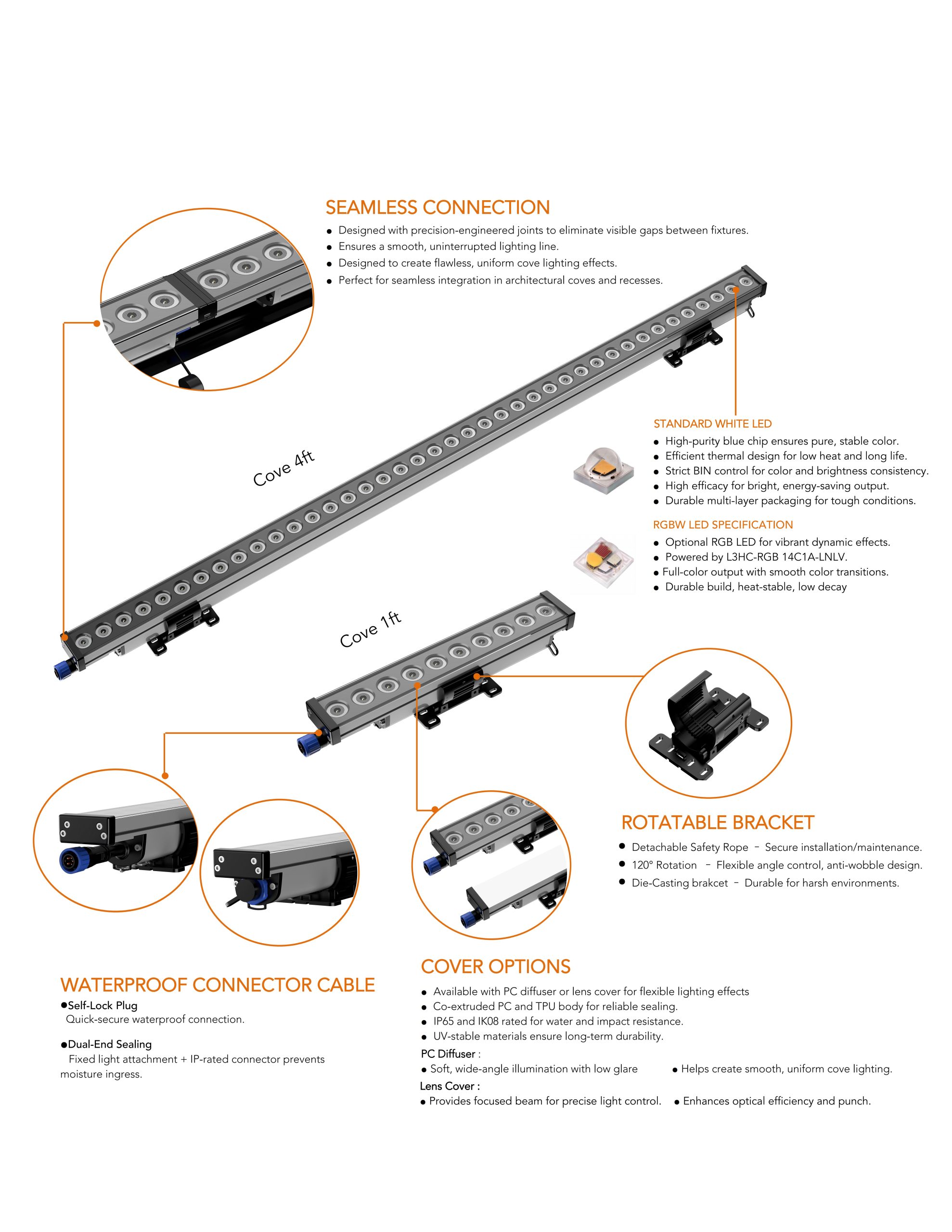

CLEAVER G3 IP65 COVE LIGHT

Designed for humid environments, this IP65-rated cove light supports wall, ceiling, and surface mounting. Its ±60° rotatable bracket, anti-wobble design, and detachable safety rope ensure quick and secure installation.

With 12 beam options, high CRI (90+), and 0-10V dimming, it adapts to various lighting needs. Durable materials ensure consistent performance and reliable light quality over time.

1(1)(2)
Mode Size Watt LED Beam Angle Single CCT Efficacy Voltage Dimming CRI UGR
WL-3COV1FT10WAD1UV-90-110(XXK)-YY1FT10WRUNLUX110°(PC Difuser)27/30/35/40/50K95-110 Lm/WDC12V/120-277V0-10V (1%-100%)>90<28
WL-3COV4FT10WAD1UV-90-110(XXK)-YY4FT40WRUNLUX110°(PC Difuser)27/30/35/40/50K100-110 Lm/WDC12V/120-277V0-10V (1%-100%)>90<28
WL-3COV1FT10WAD1UV-90-VVV(XXK)-YY1FT10WLUMISEE7×7°,10×10°,15×15°,18x18°24×24°,36x36°, 60x60°,12X24°,15×40°,15×55°, Asymmetric 25°(Lens)27/30K70 Lm/WDC12V/120-277V0-10V (1%-100%)>90<16
WL-3COV1FT10WAD1UV-90-VVV(XXK)-YY1FT10WLUMISEE7×7°,10×10°,15×15°,18x18°24×24°,36x36°, 60x60°,12X24°,15×40°,15×55°, Asymmetric 25°(Lens)35/40/50K80-85 Lm/WDC12V/120-277V0-10V (1%-100%)>90<16
WL-3COV4FT40WAD1UV-XX-VVV(XXK)-YY4FT40WLUMISEE7×7°,10×10°,15×15°,18x18°24×24°,36x36°, 60x60°,12X24°,15×40°,15×55°, Asymmetric 25°(Lens)27/30K70 Lm/WDC12V/120-277V0-10V (1%-100%)>90<16
WL-3COV4FT40WAD1UV-XX-VVV(XXK)-YY4FT40WLUMISEE7×7°,10×10°,15×15°,18x18°24×24°,36x36°, 60x60°,12X24°,15×40°,15×55°, Asymmetric 25°(Lens)35/40/50K80-85 Lm/WDC12V/120-277V0-10V (1%-100%)>90<16
WL-3COV1FT10WAMUV-XX-VVV(RGBW)-YY1FT10WCERAMIC 353515×15°,24×24°,36x36°,60x60°, 15×40°,15×55°(Lens/PC Diffuser)RGBW60 Lm/WDC12V/120-277VDMX512>90/
WL-3COV4FT40WAMUV-XX-VVV(RGBW)-YY4FT40WCERAMIC 353515×15°,24×24°,36x36°,60x60°, 15×40°,15×55°(Lens/PC Diffuser)RGBW60 Lm/WDC12V/120-277VDMX512>90/

CLEAVER G3 IP65 Cove Light Video

ROTATABLE BRACKET

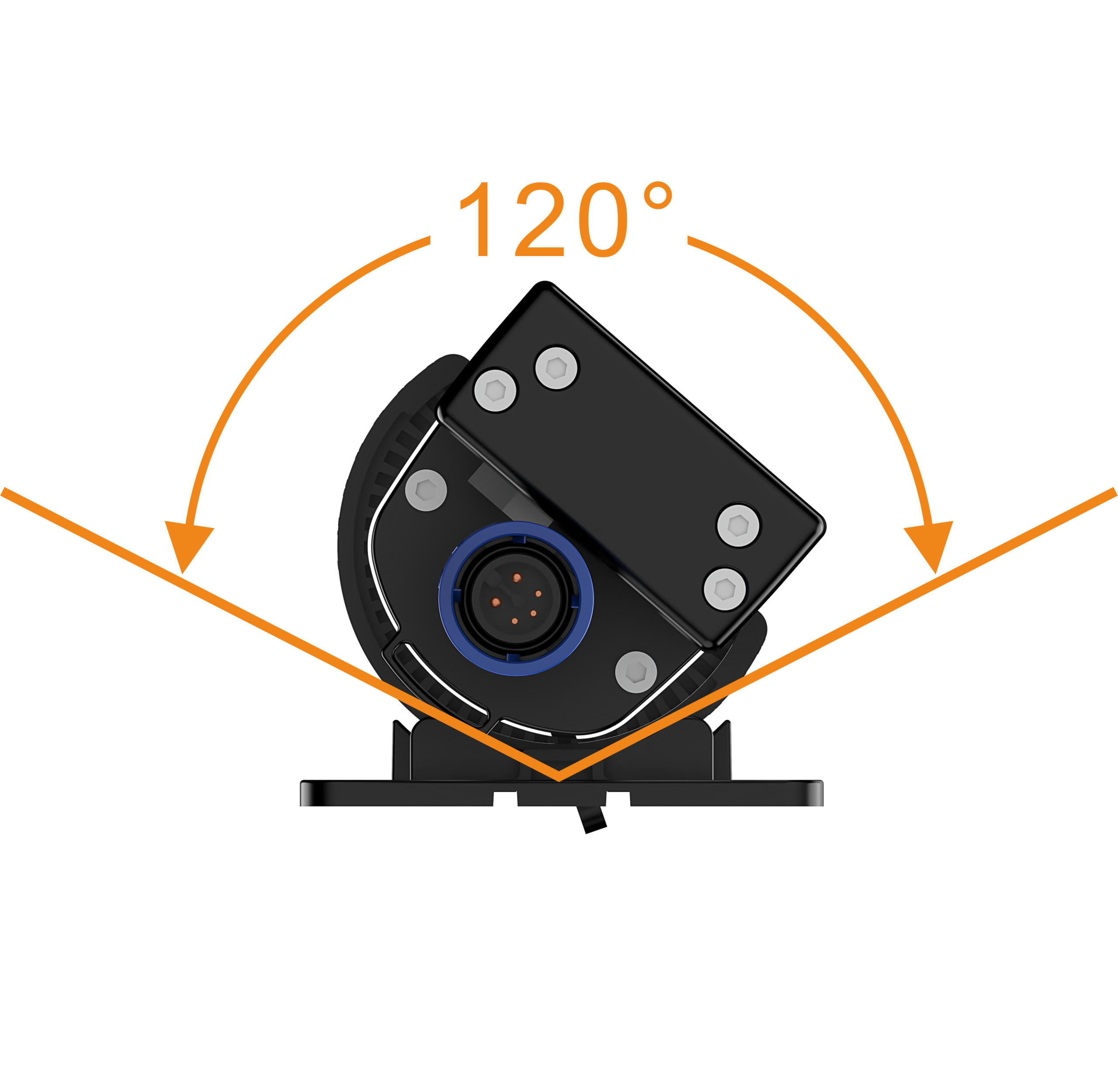

Up to 120° adjustable rotation for flexible aiming and precise angle control.

Reinforced anti-wobble design ensures stable positioning and long-term reliability.Smooth adjustment mechanism protects the fixture surface without scratching or wear.

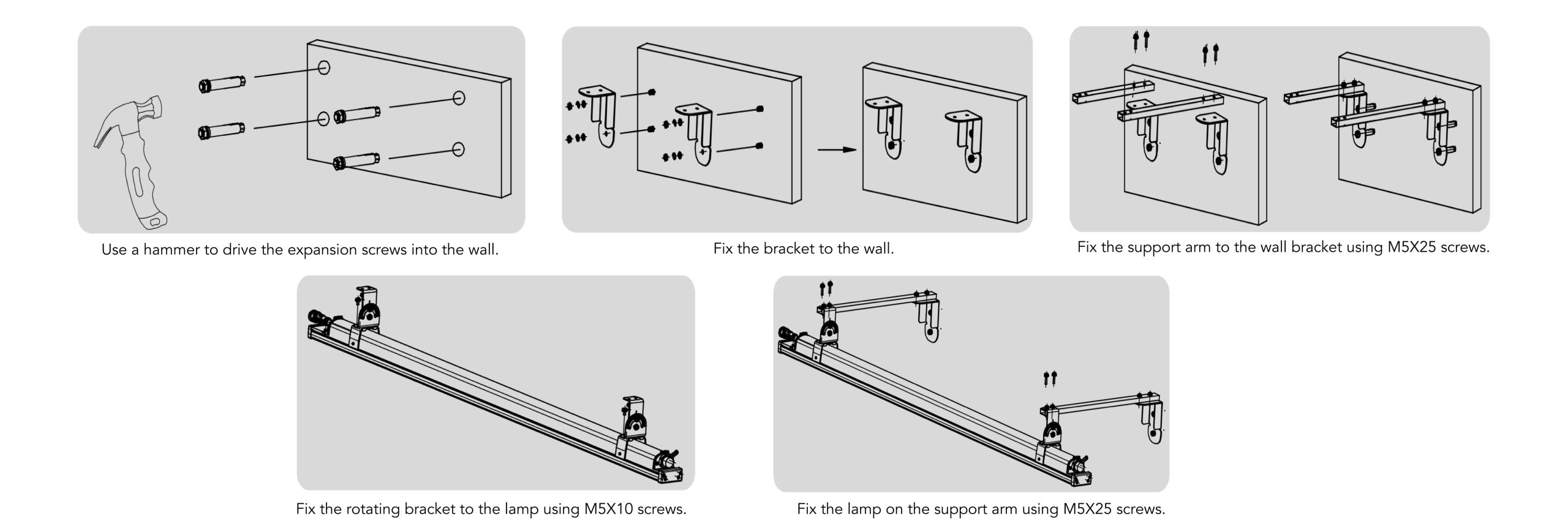

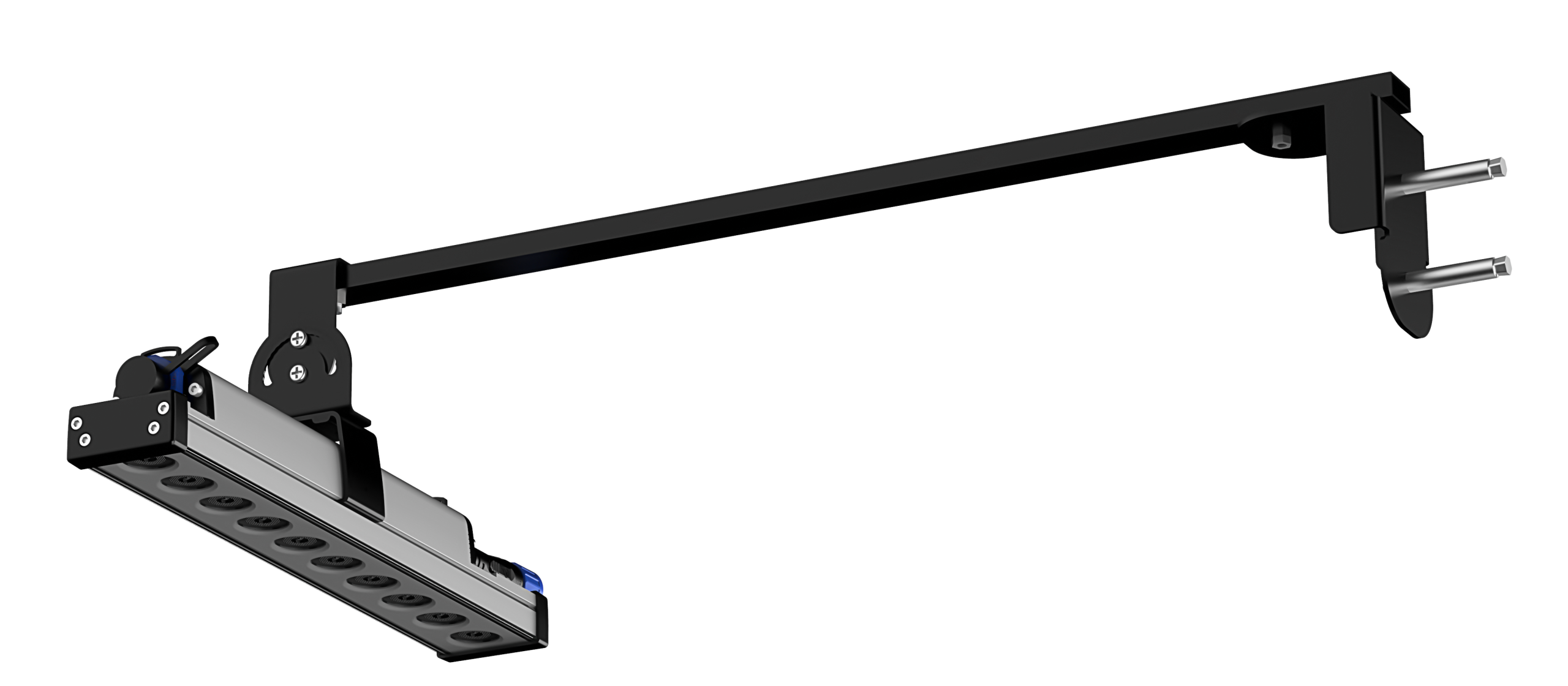

WALL-MOUNTED INSTALLATION

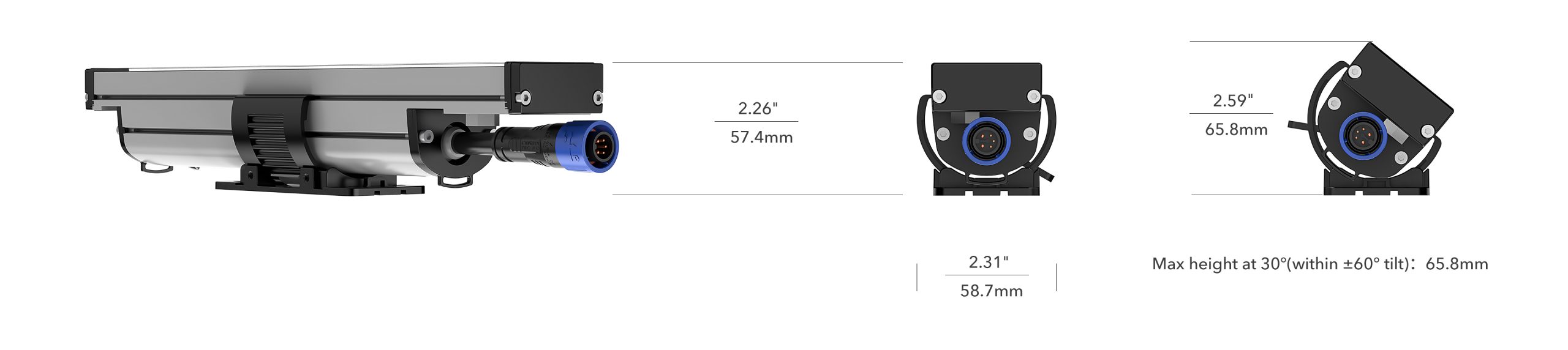

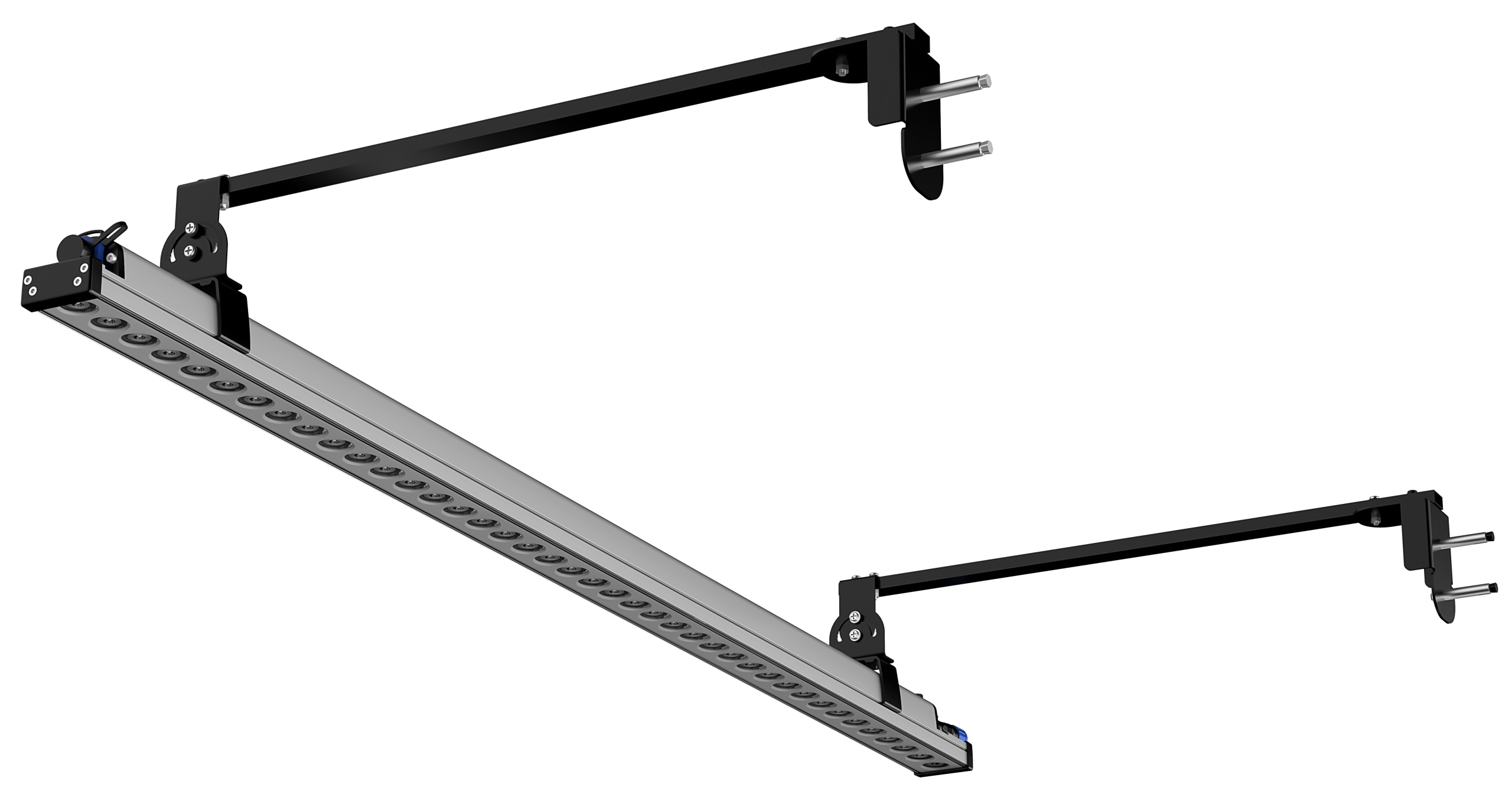

1ft & 4ft Installation Views

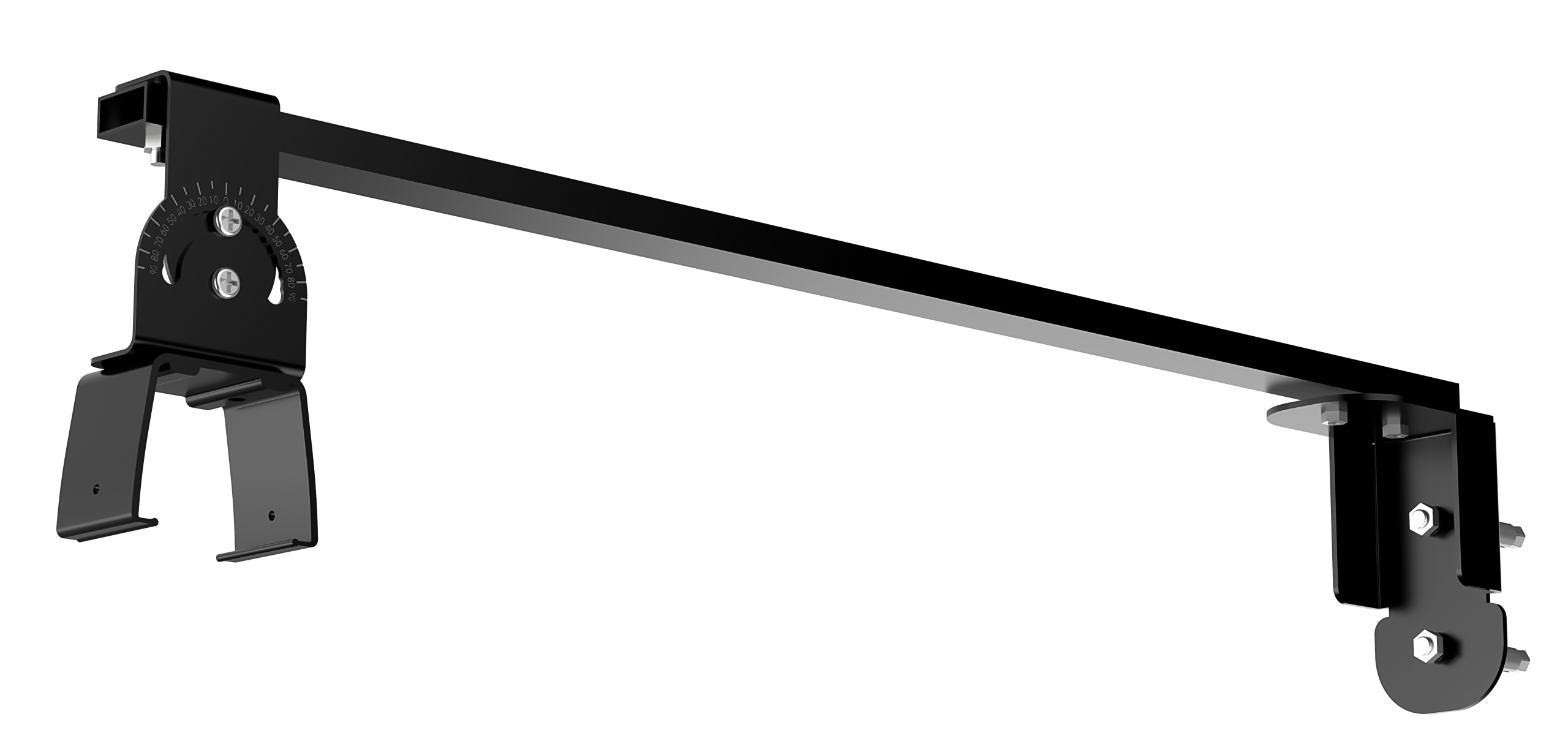

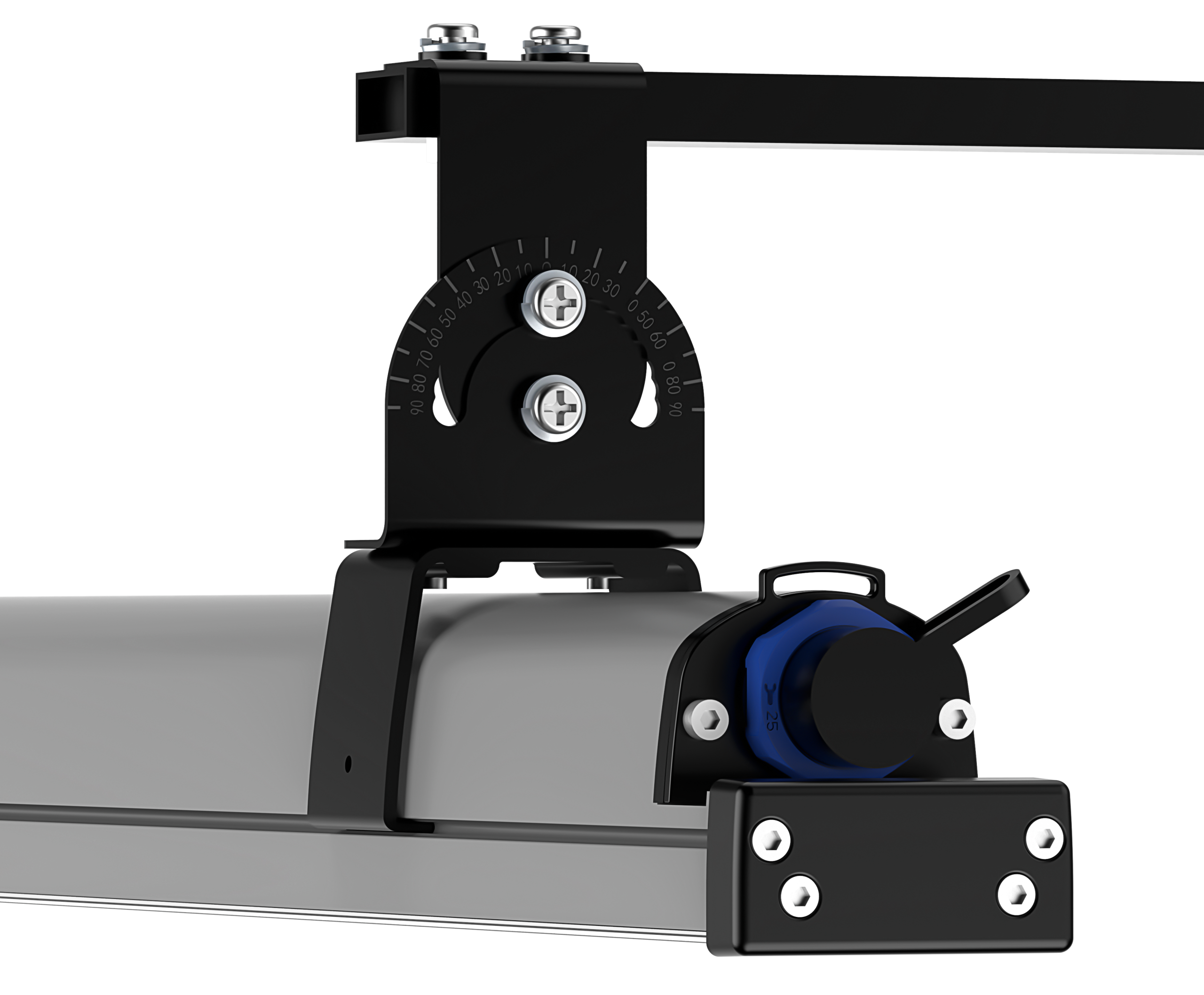

Adjustable Wall Bracket for Flexible Beam Anglee

Wall-mount bracket allows precise angle adjustment

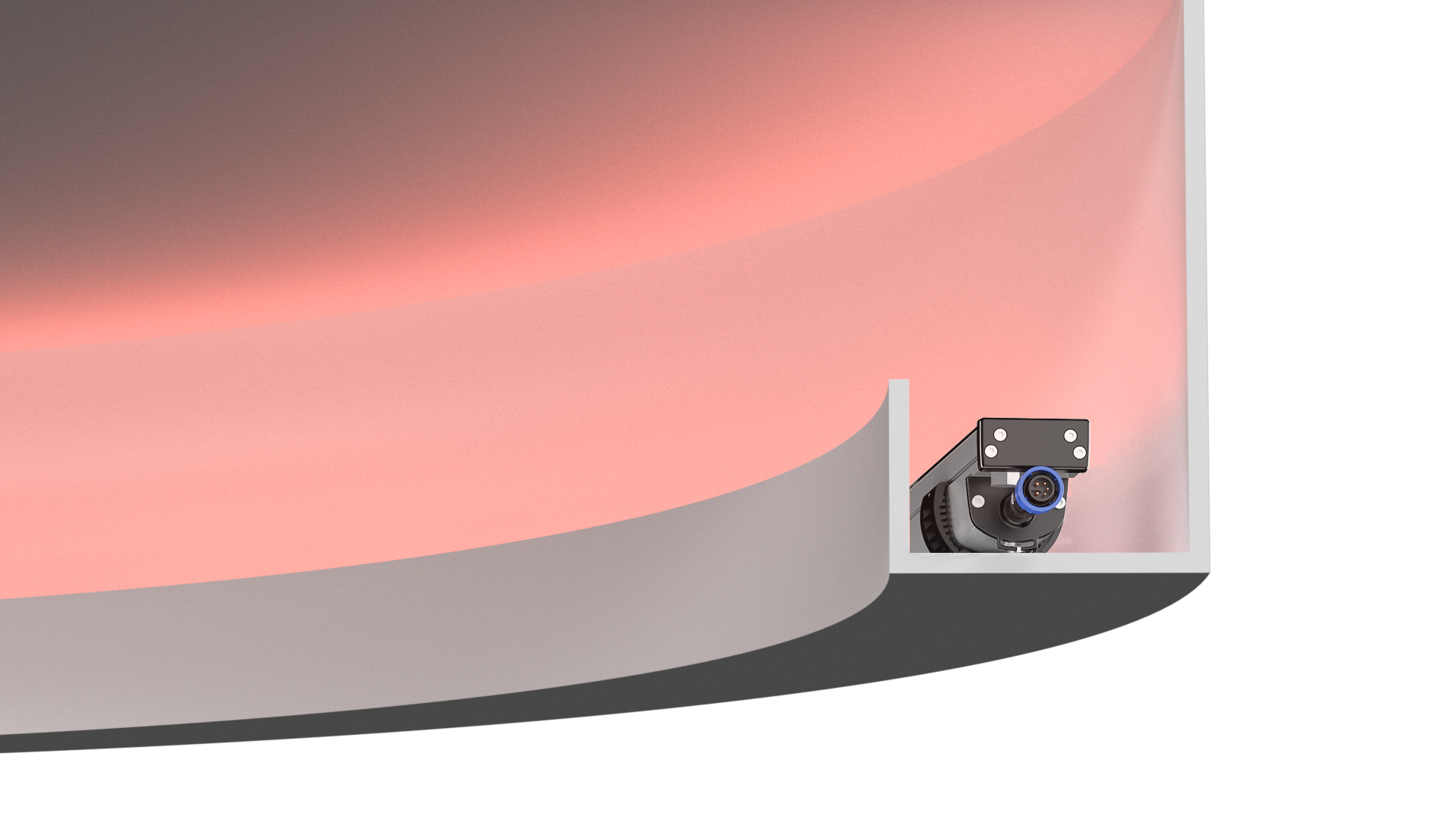

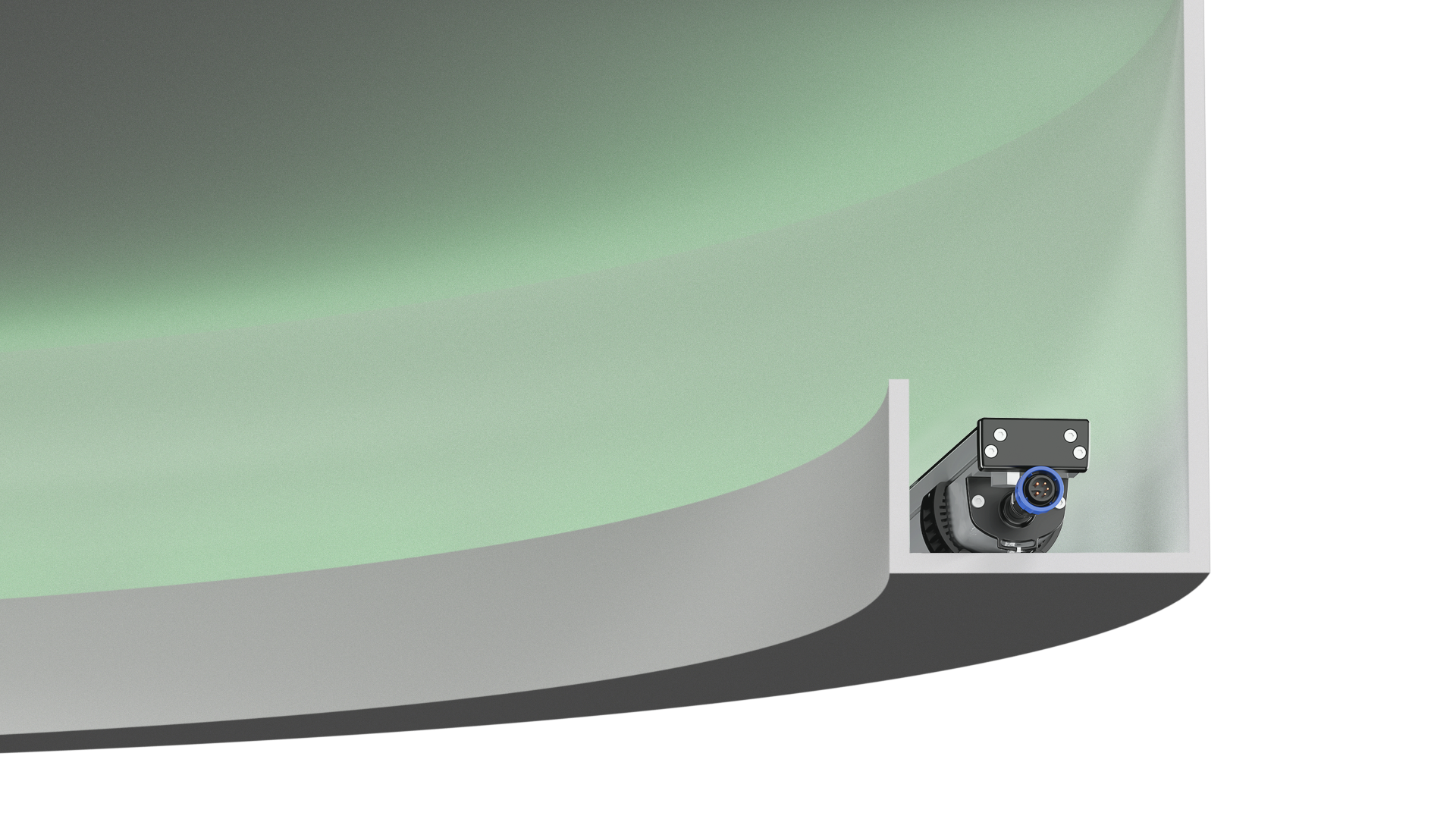

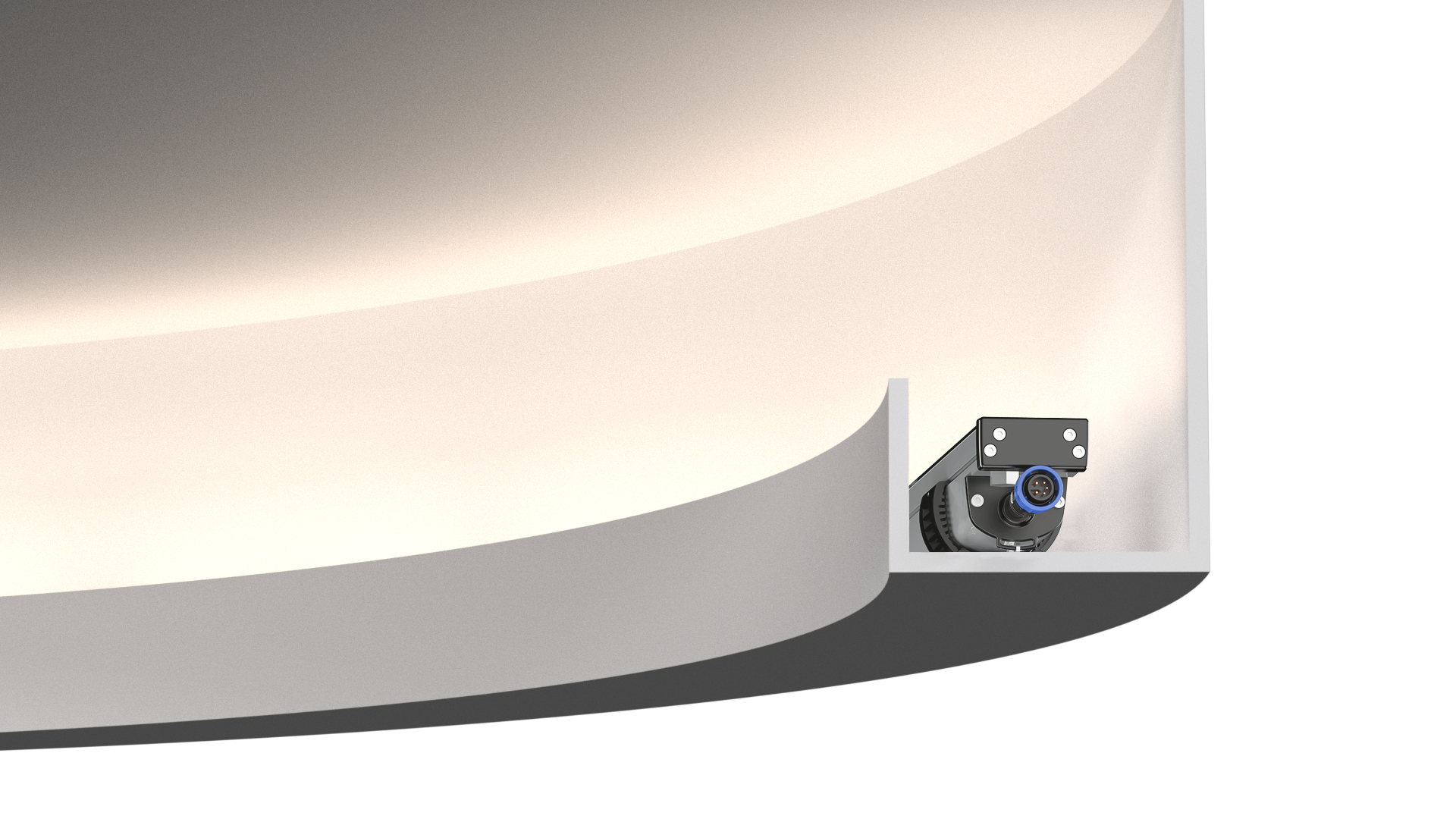

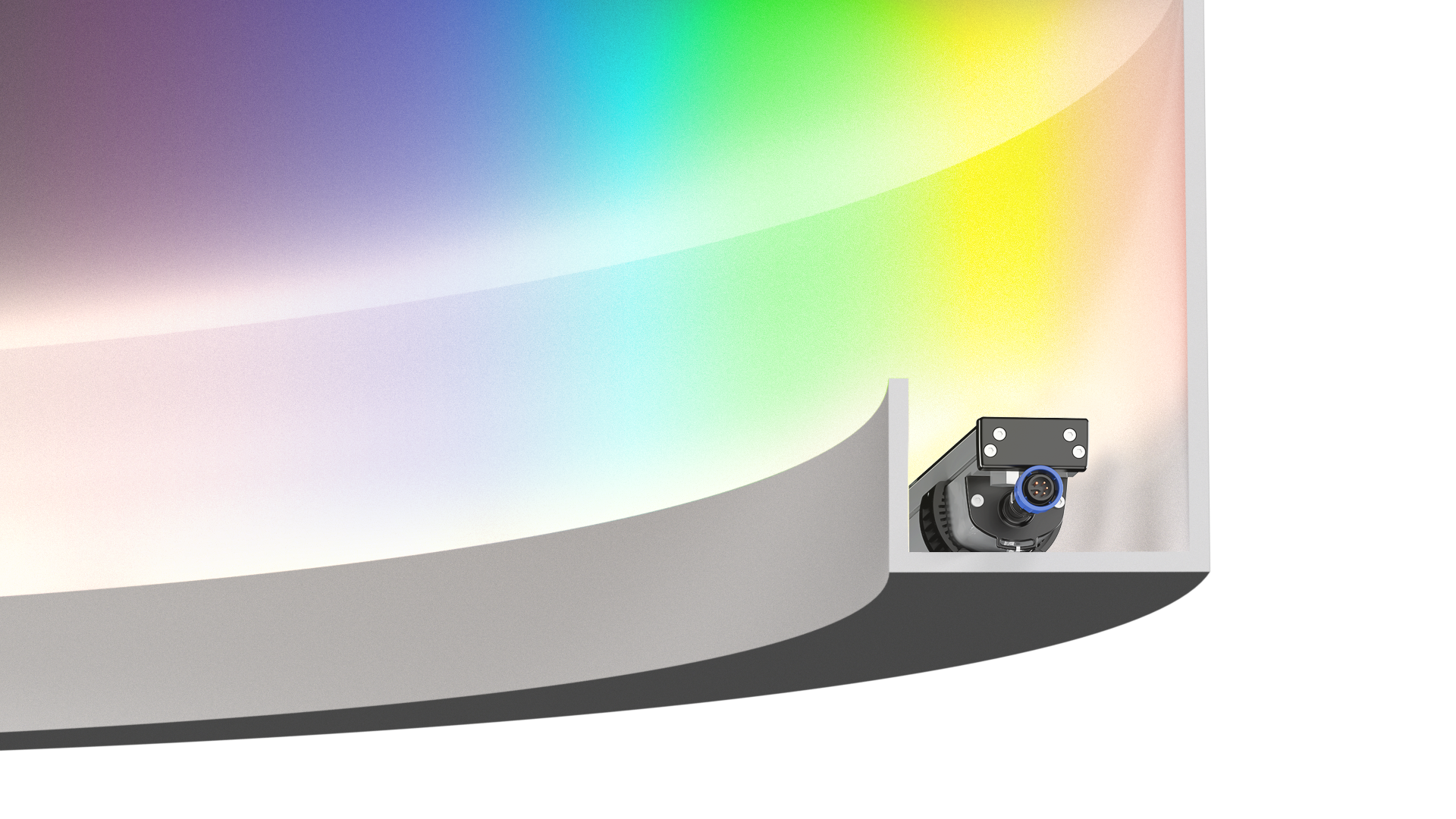

RGB BLUETOOTH CONTROL

Supports RGBW lighting with optional control systems:

Bluetooth panel or DMX controller, suitable for dynamic lighting effects and multi-scene applications.

Run Length Limits

Run Length Limits(ft)1FT4FT
Fixture Input Wattage10W40W
Maximum Run Length(ft)@120V72'72'
Maximum Run Length(ft)@277V165′165′

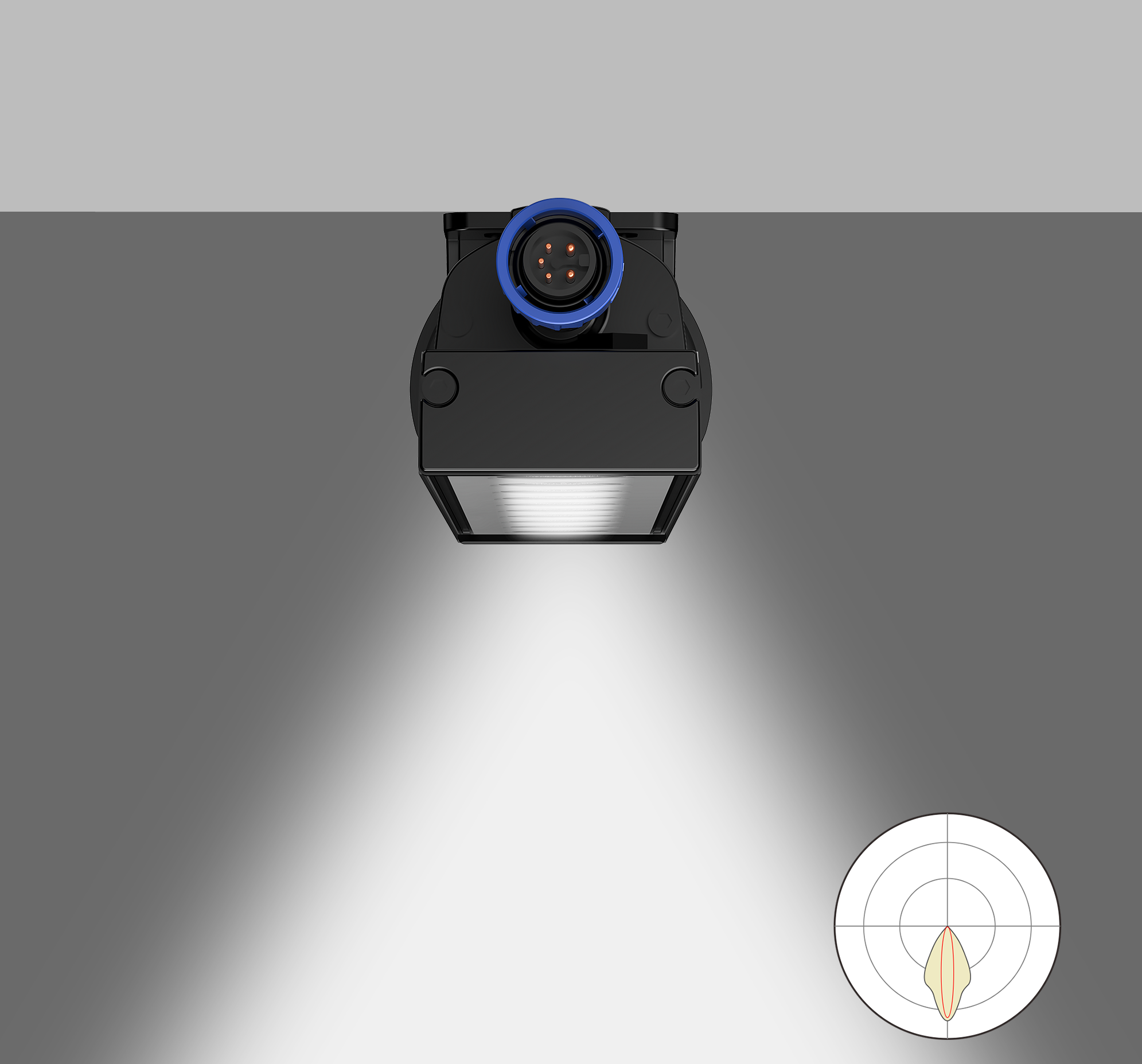

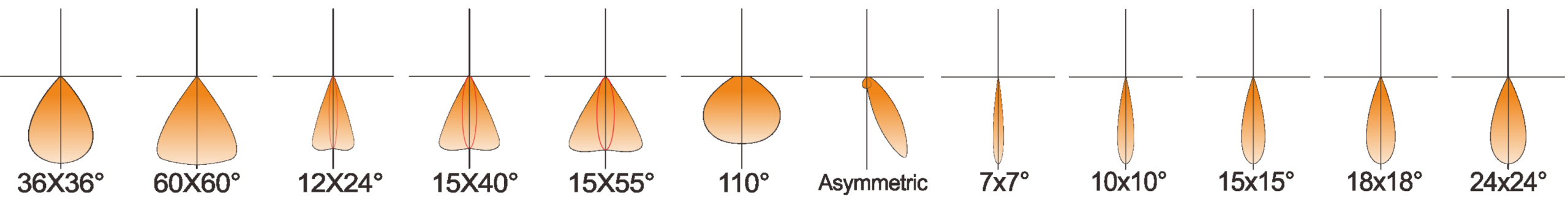

Distribution

Lighting Effect: 15×55° (IES Beam)

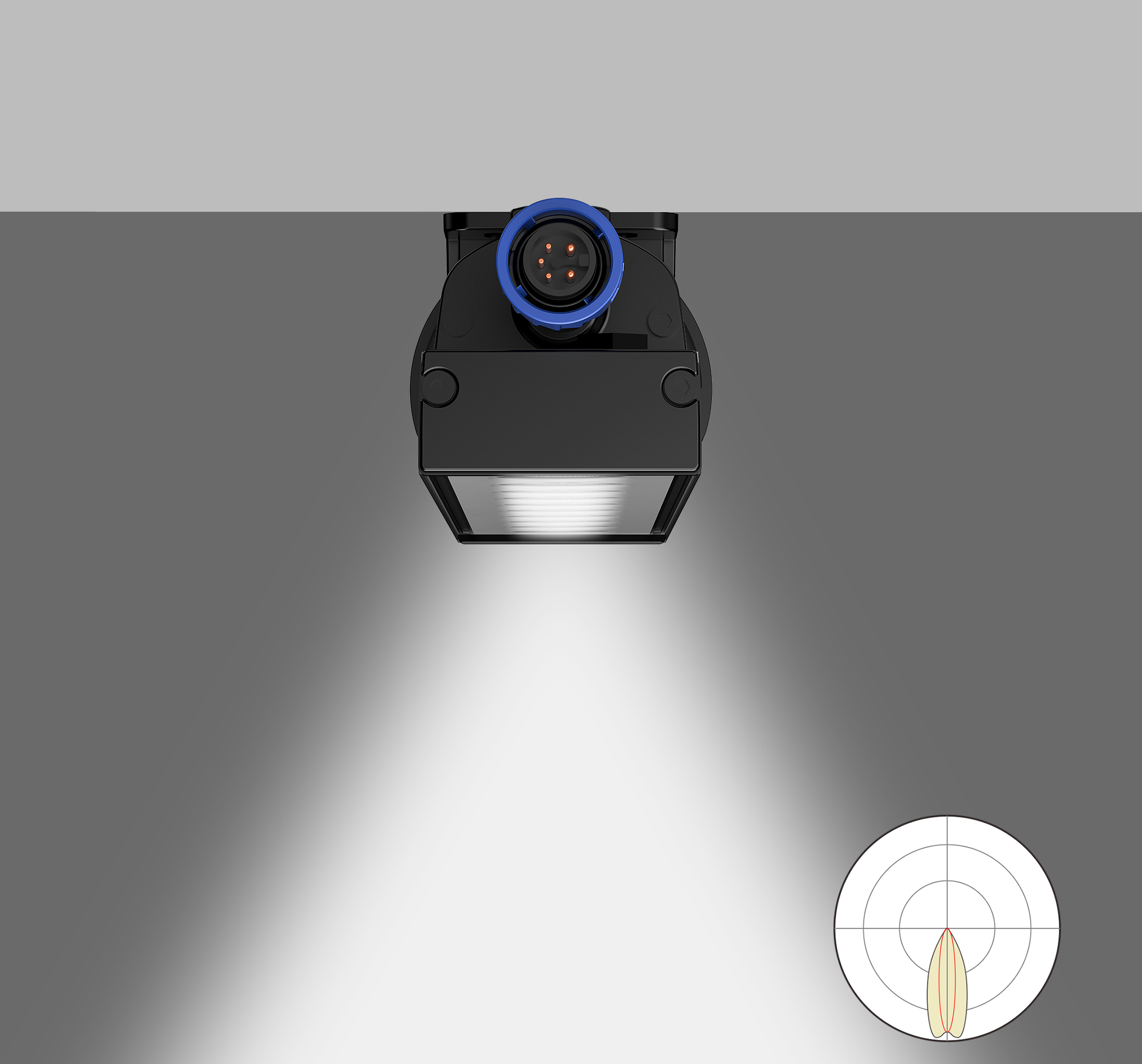

Lighting Effect: 15×40° (IES Beam)

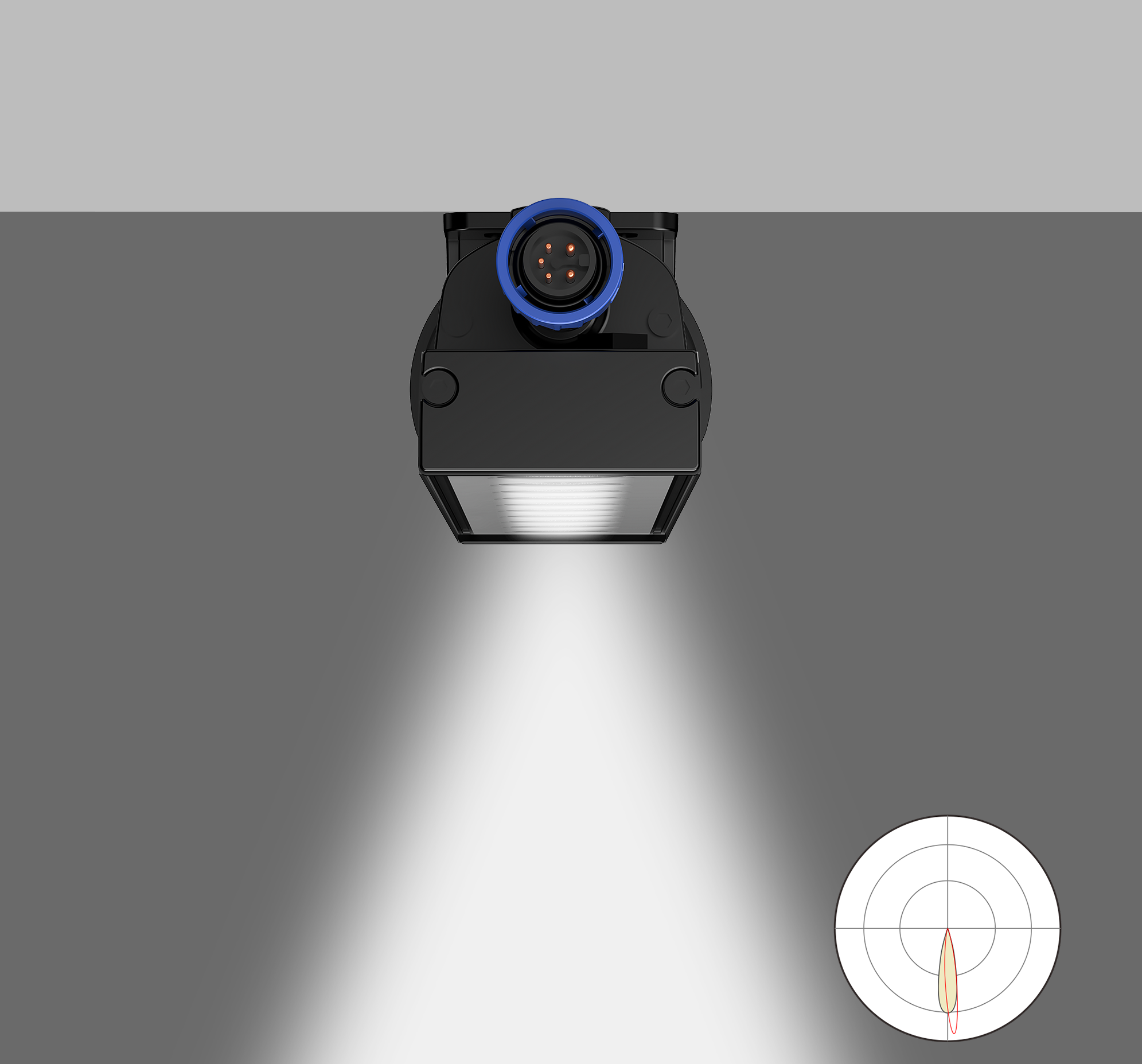

Lighting Effect: 12×24°(IES Beam)

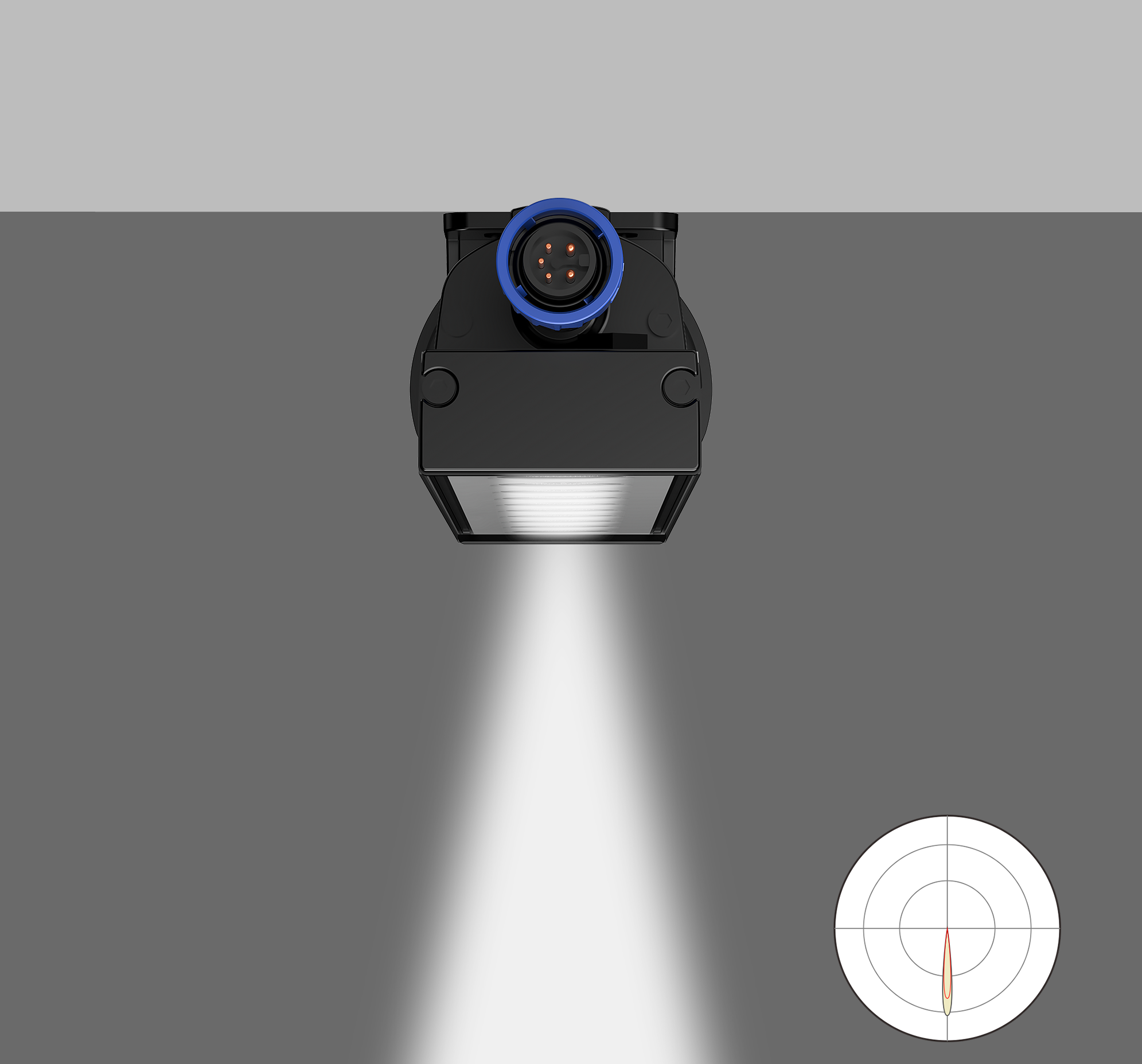

Lighting Effect:10×10° (IES Beam)

Documentation

Spec Sheets + Photometry

FamilyVersionContentDownload
CLEAVER G3 EXTERIOR COVE LIGHTV10-24Cleaver G3 Specification Sheet
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-7×7°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-10×10°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-10×24°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-15×15°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-15×40°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-15×55°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-18×18°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-24×24°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-24×24°-Anodized-Gray-2-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-36×36°-Anodized-Gray-IES
CLEAVER G3 EXTERIOR COVE LIGHTIESCleaver-G3-1FT-10W-CRI80-4000K-60×60°-Anodized-Gray-IES

Install Docs

FamilyVersionContentDownload
