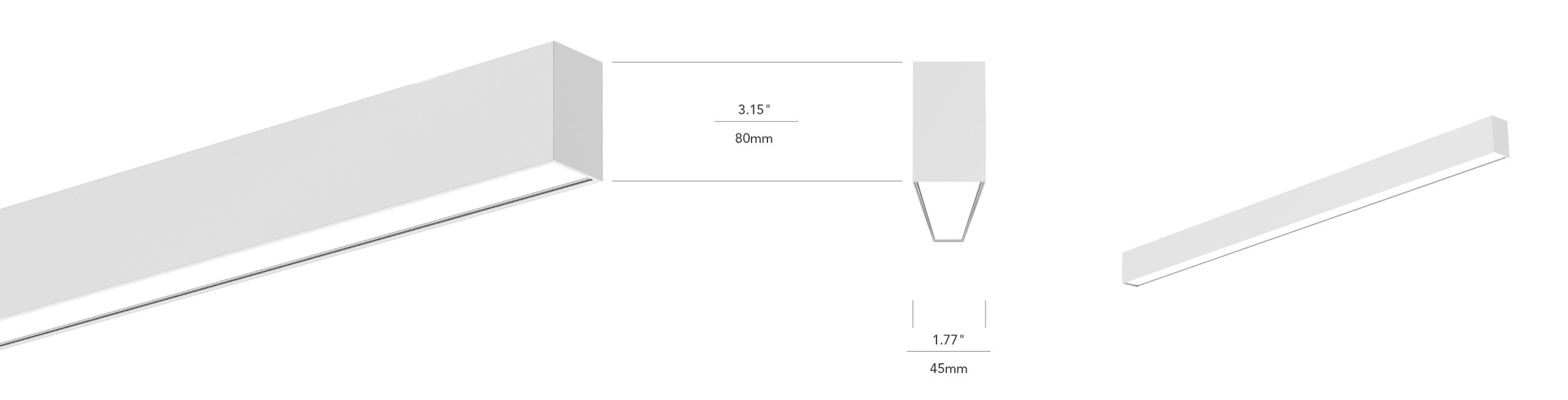

Dense 177
Dense 177
The Dense series epitomizes minimalist elegance, offering sleek, consistent lines of light that complement any architectural setting. Leveraging cutting-edge linear LED technology, the Dense series excels in efficiency and offers full customization, including aperture options, seamless continuous installations, and limitless length possibilities. Its sturdy construction and adaptable modular elements simplify installation, ensuring precise and straight configurations. Available in recessed, surface mount, or suspended versions, the Dense 177 model features adjustable wattage and CCT selection, making it the ultimate solution for various lighting challenges.
| Standard PC Series | Length/Pattem | Wattage | Efficacy | Lumens | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL -MSD2FT20WBDHV | 2FT(576mm) | 20W | 100lm/W | 2000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSD4FT40WBDHV | 4FT(1146mm) | 40W | 100lm/W | 4000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSD6FT60WBDHV | 6FT(1716mm) | 60W | 100lm/W | 6000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSD8FT80WBDHV | 8FT(2286mm) | 80W | 100lm/W | 8000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSDL20WBDHV | L Pattern | 20W | 100lm/W | 2000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSDT30WBDHV | T Pattern | 30W | 100lm/W | 3000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSDC40WBDHV | X Pattern | 40W | 100lm/W | 4000lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| Optical Lens Series | Length/Pattem | Wattage | Efficacy | Lumens | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-MSD4FT24WADHV | 4FT(1146mm) | 24W | 120lm/W | 2880lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSD4FT36WADHV | 4FT(1146mm) | 36W | 120lm/W | 4320lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
| WL-MSD8FT72WADHV | 8FT(2286mm) | 72W | 120lm/W | 8640lm | 30K/35K/40K | 120-347V | 0-10V(1-100%) | >90 |
Dense 177 Introduction Video

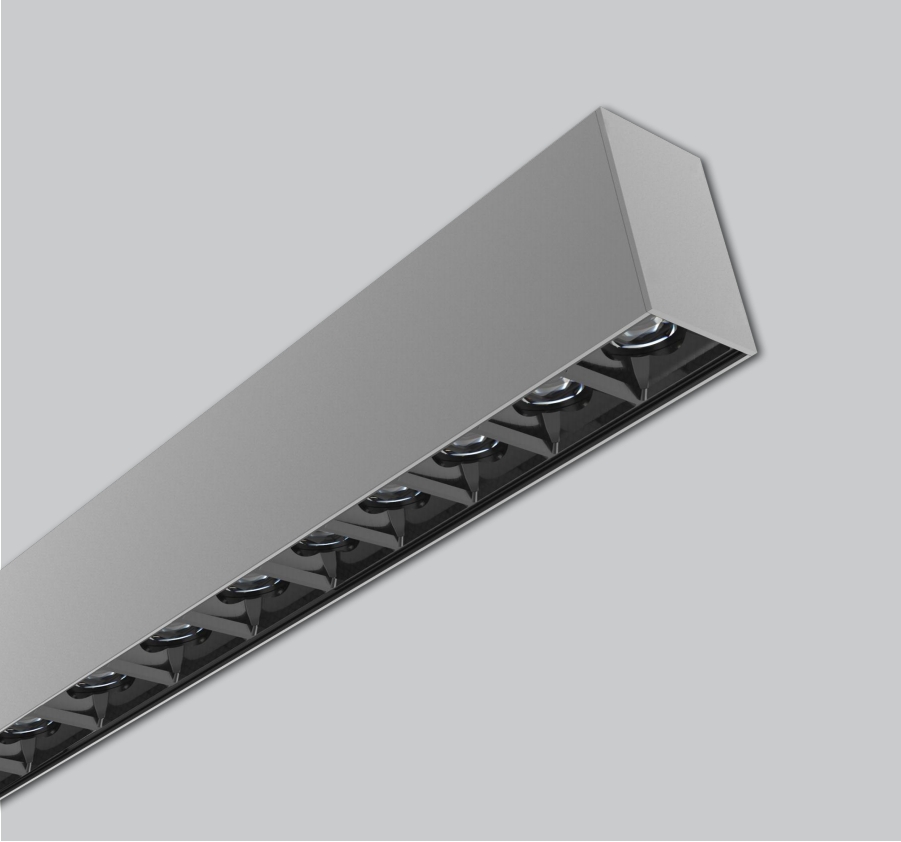

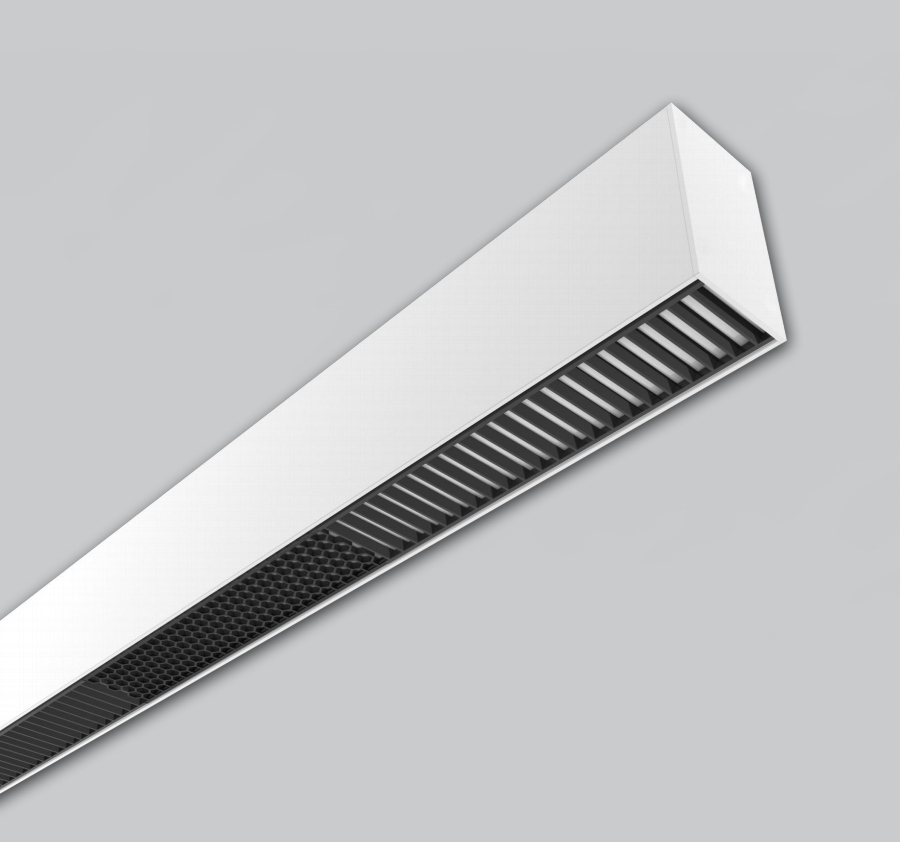

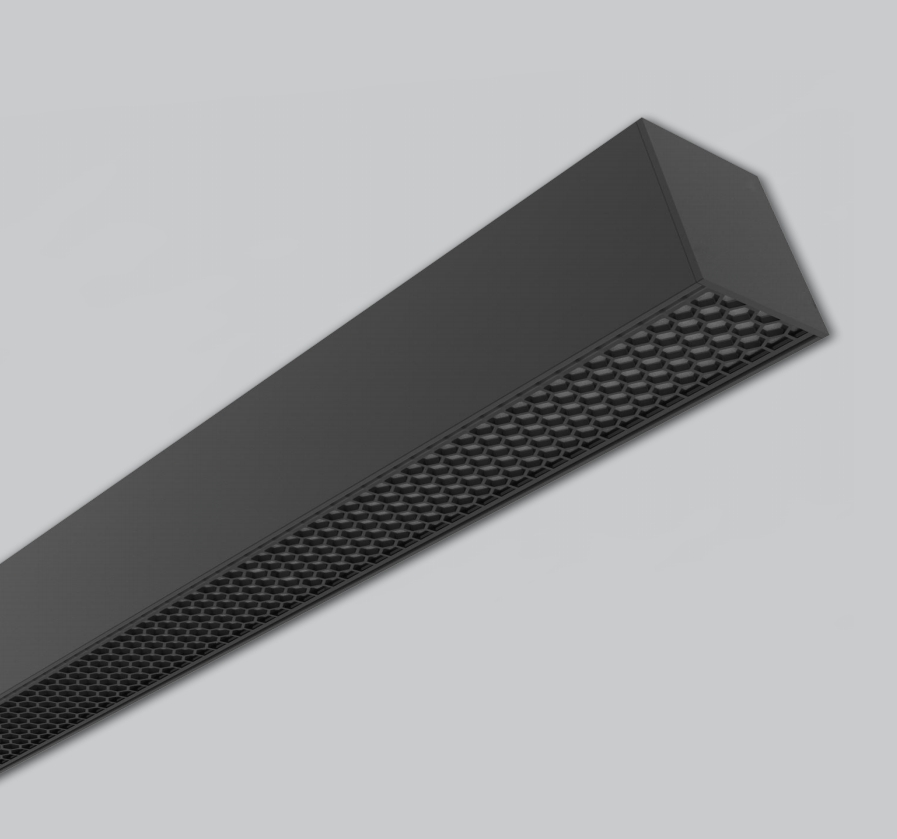

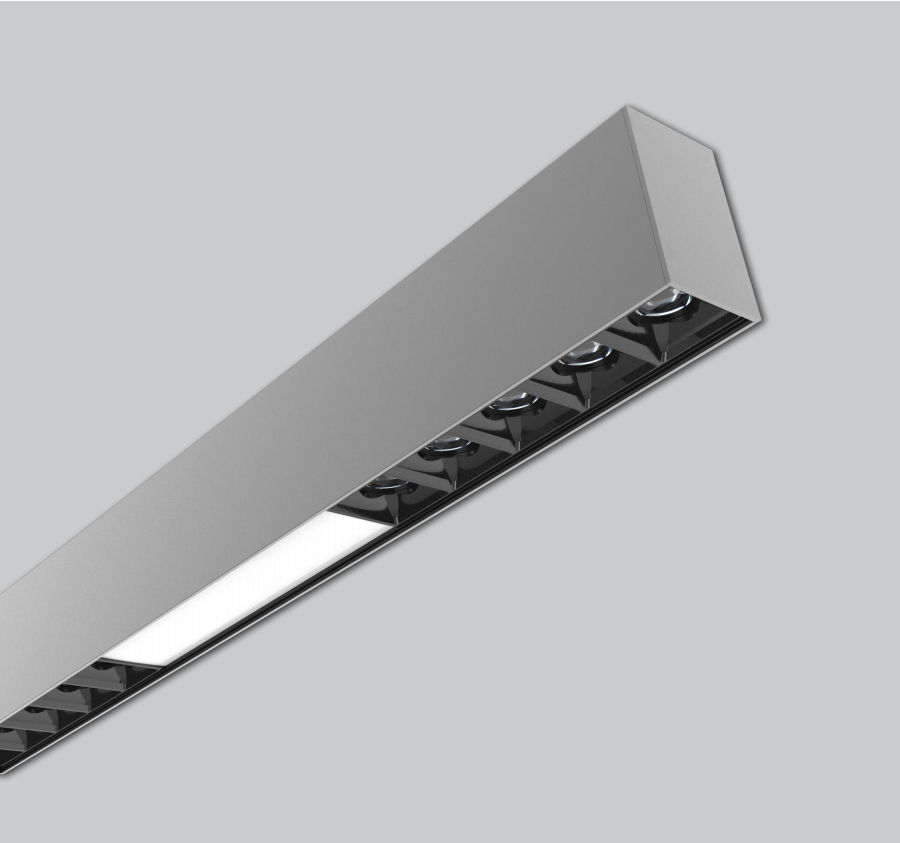

MULTIPLE OPTICS FOR PRECISE LIGHT CONTROL
Optimize glare control, visual comfort, and distribution with a wide range of optics — each engineered to deliver a unique lighting experience.

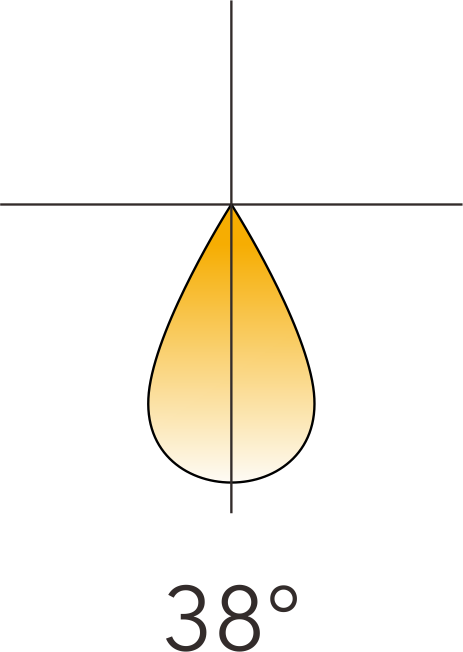

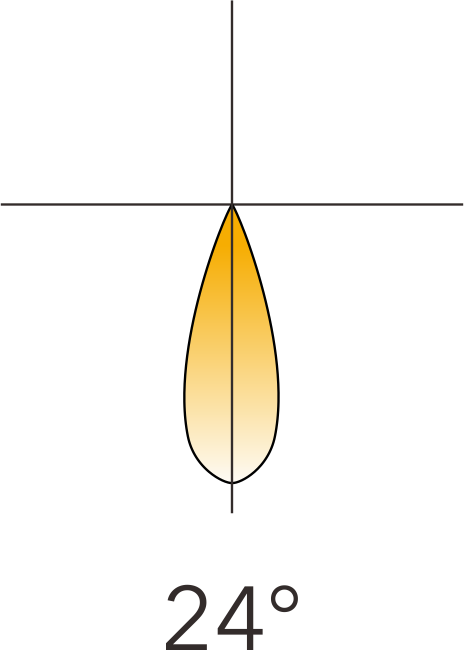

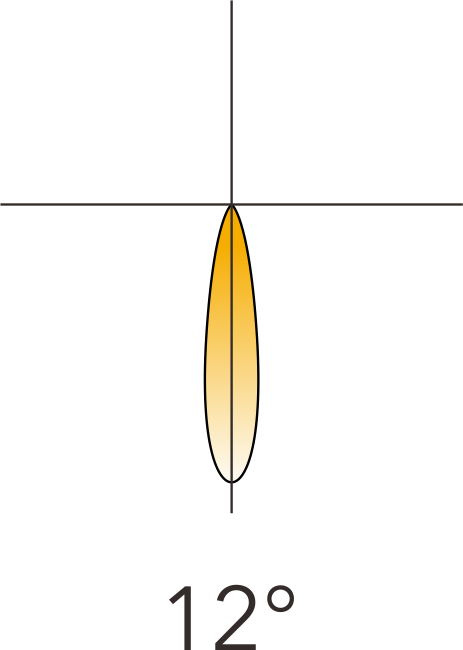

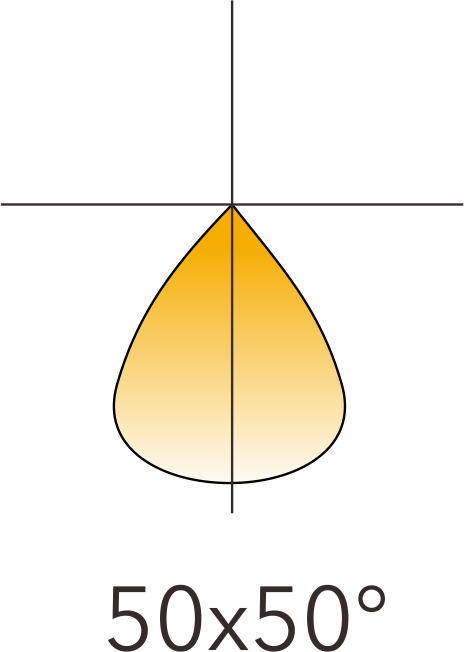

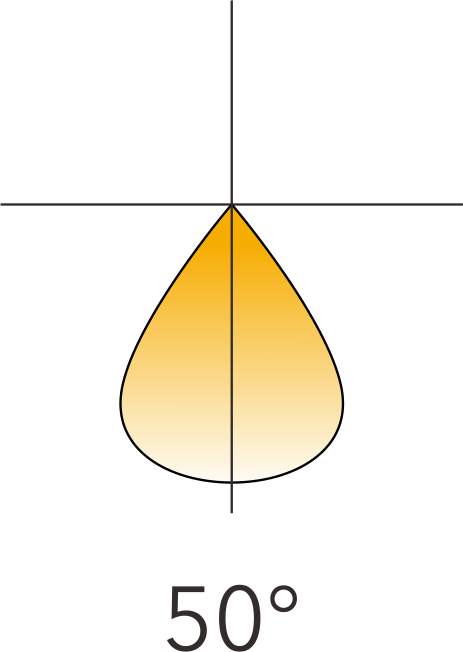

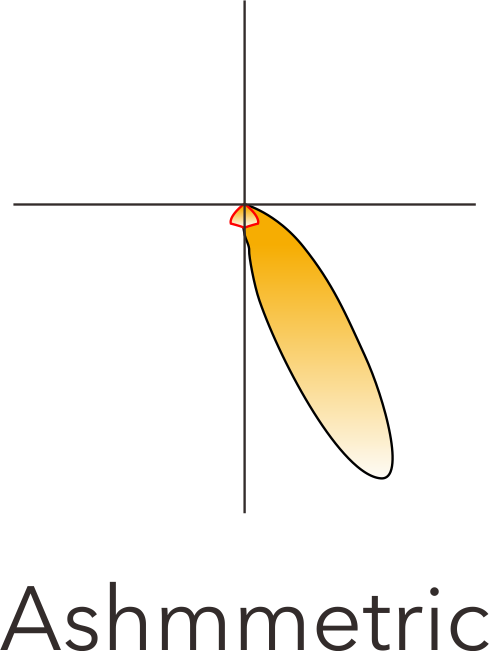

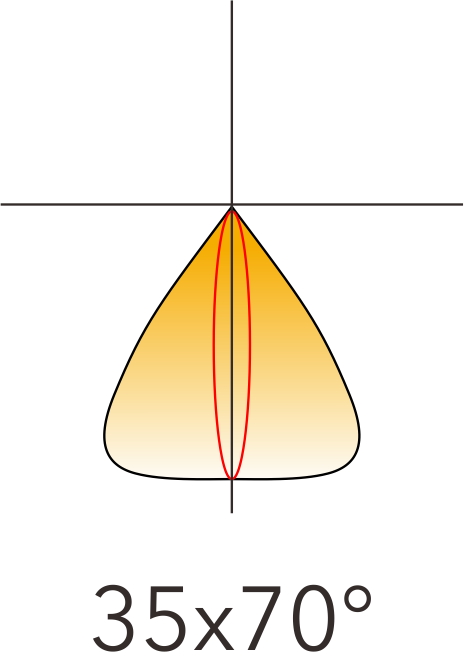

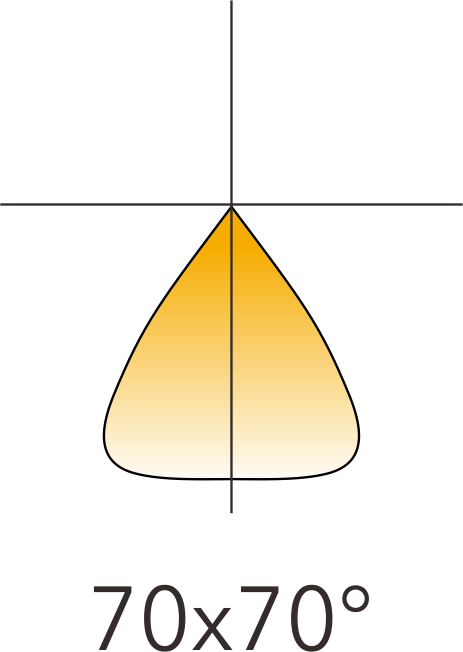

Multiple Beam Angle Options
Choose from a variety of beam angles to meet different lighting needs, from focused illumination to wide, uniform coverage.Flexible optical configurations ensure precise light control for any application.
Run Lengths
Standalone fixtures are available in 2FT(606mm),4FT(1206mm),6FT(1806mm) and 8FT(2406mm) nominal lengths.

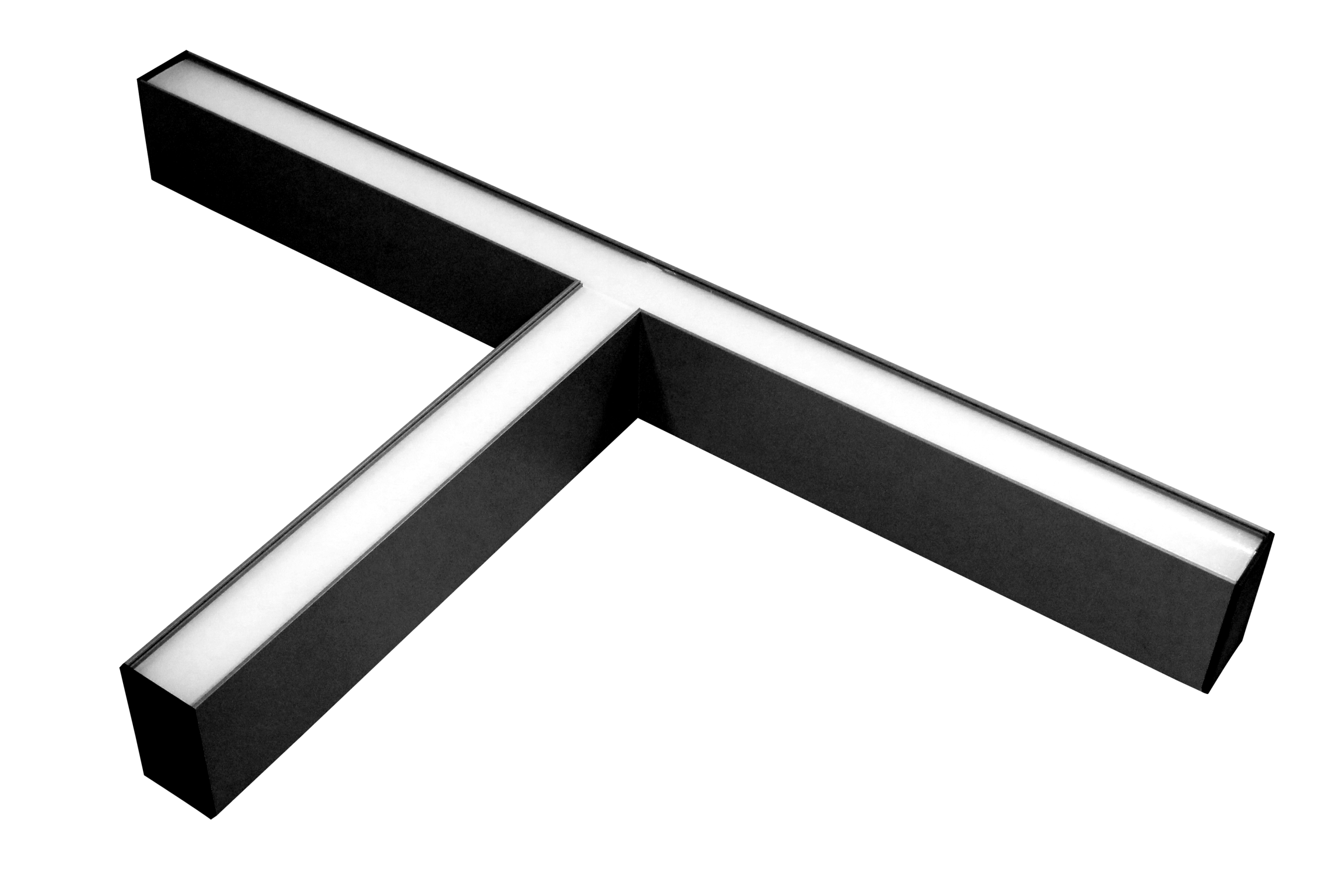

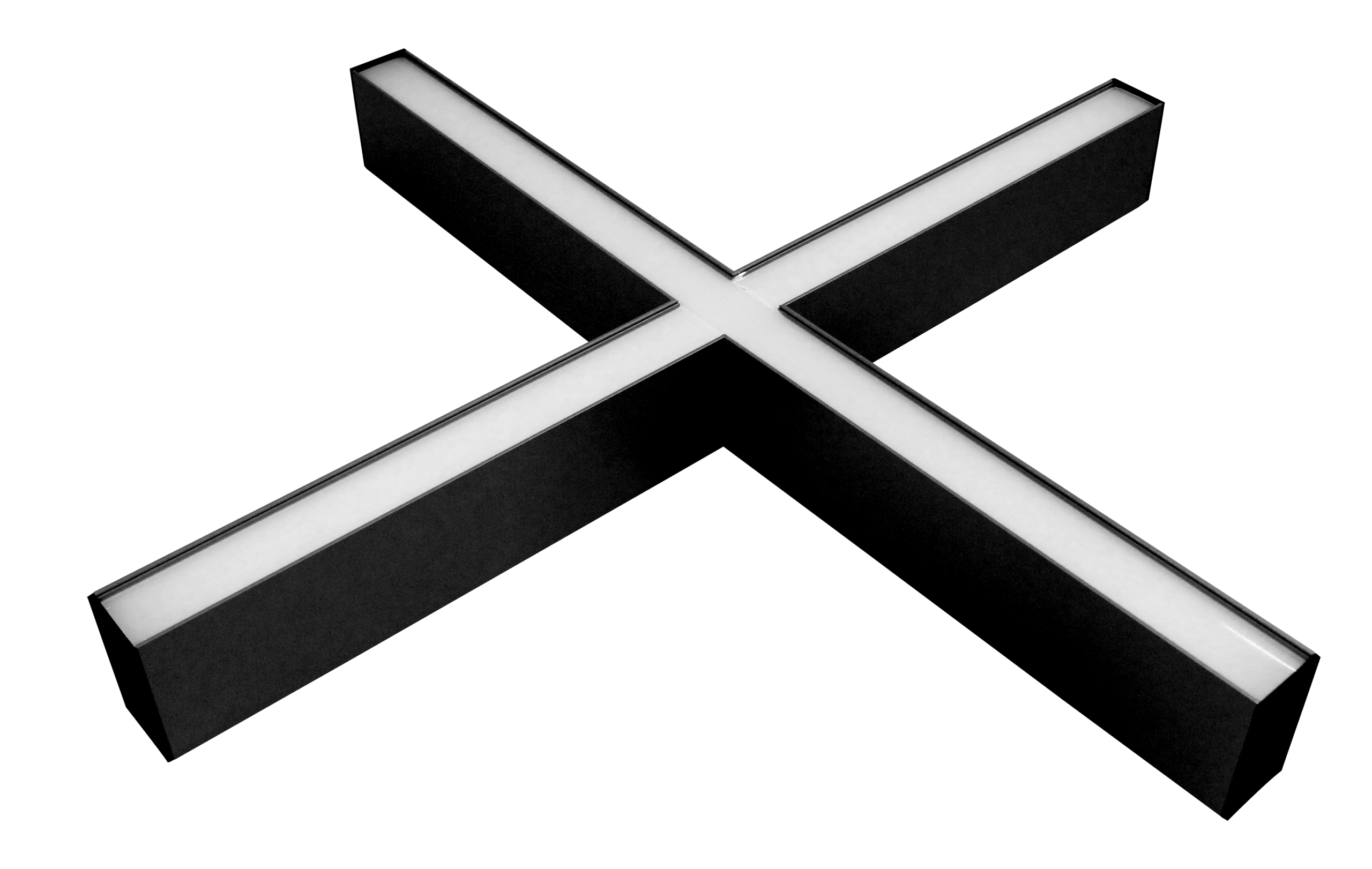

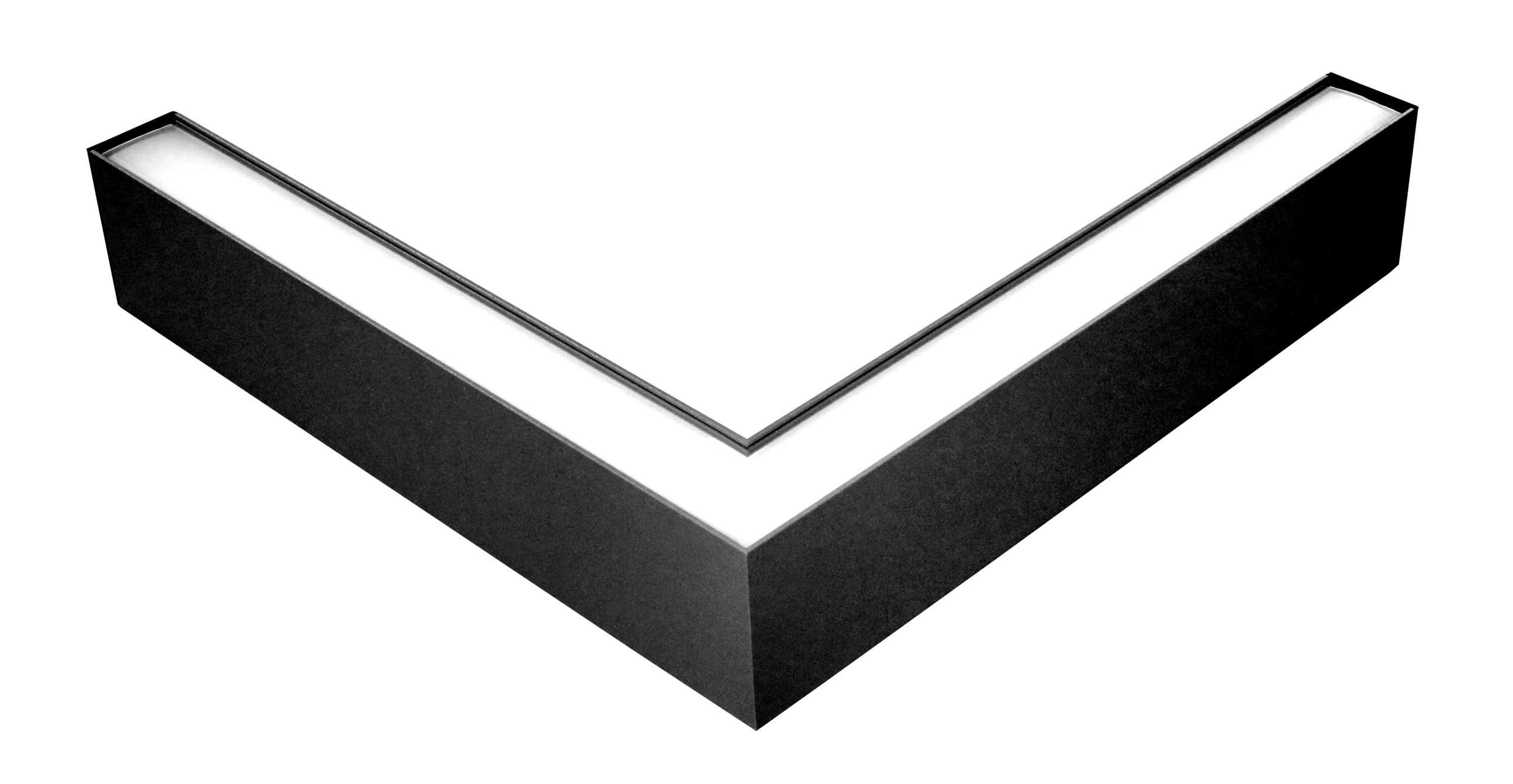

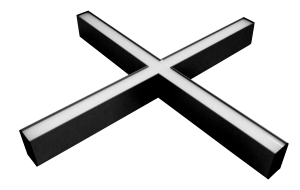

Flexible Linkable Patterns
The PC version supports versatile linkable configurations, including L, T, and X shapes,
enabling seamless design integration for creative layouts and continuous lighting patterns.

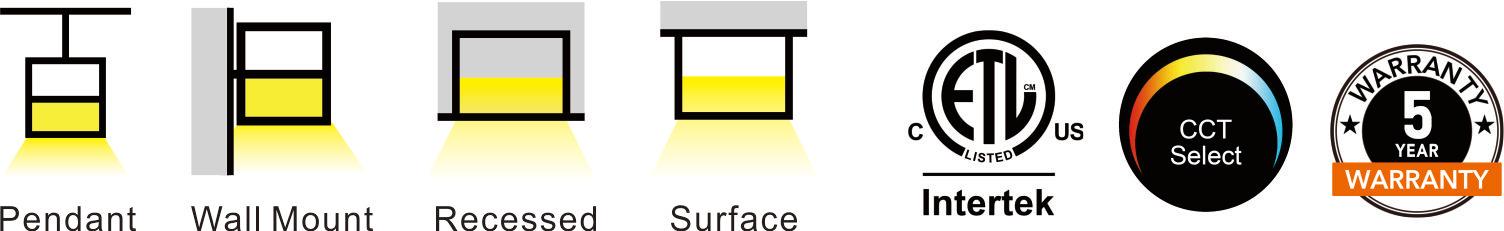

FOUR MOUNTING OPTIONS
Dense275 offers four installation methods—Wall Mount, Surface, Recessed, and Pendant—each with clean detailing and a consistent visual language.

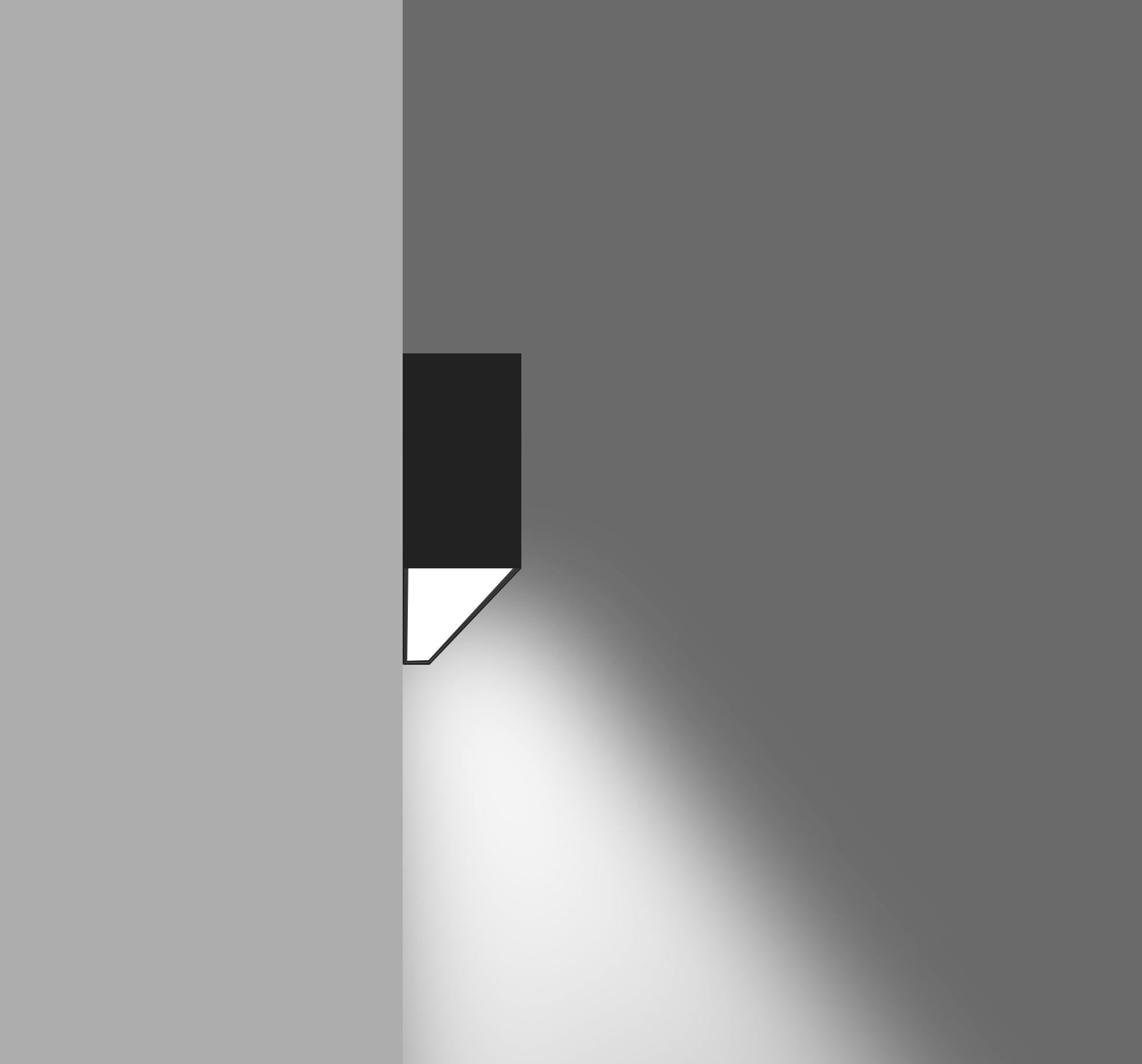

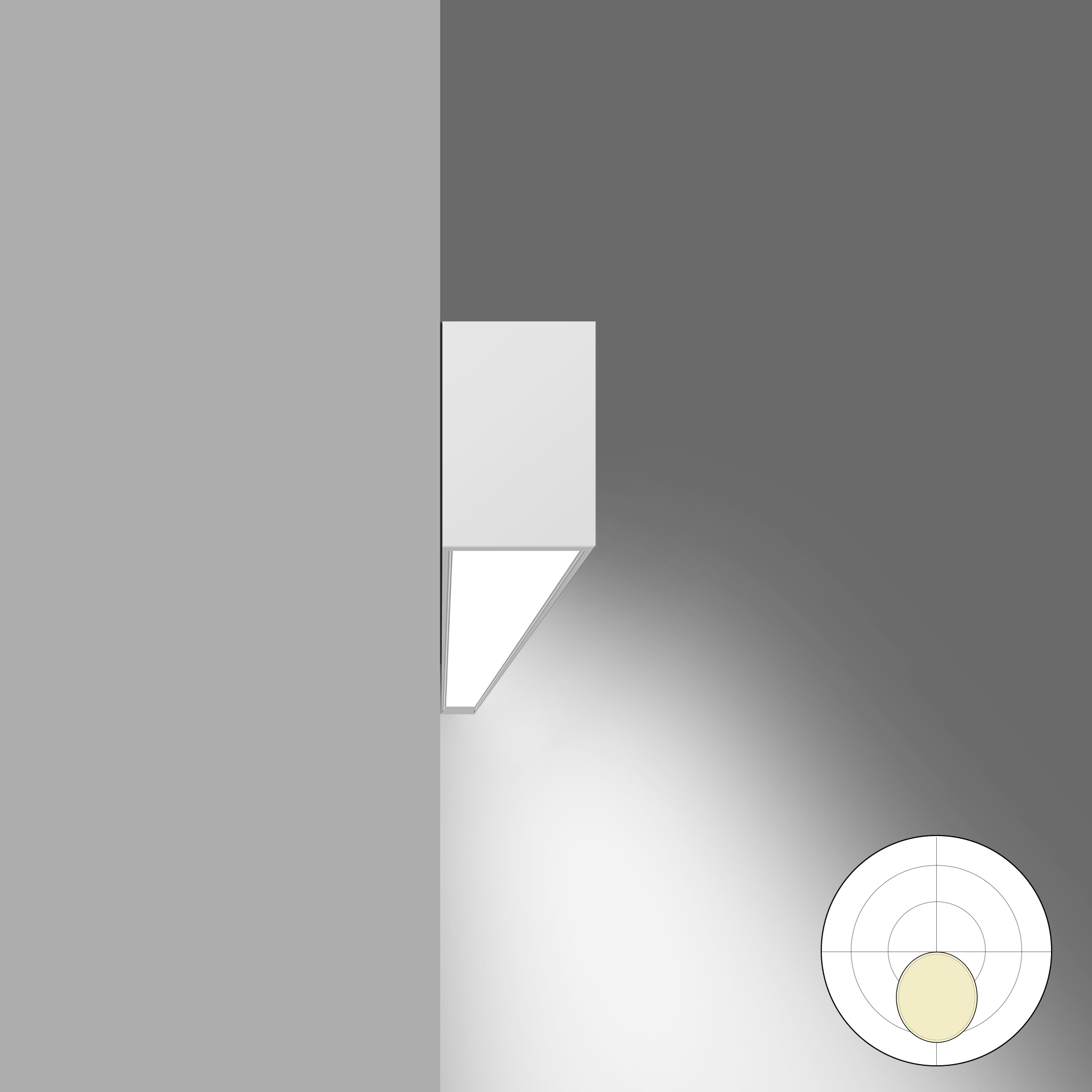

Wall Mount

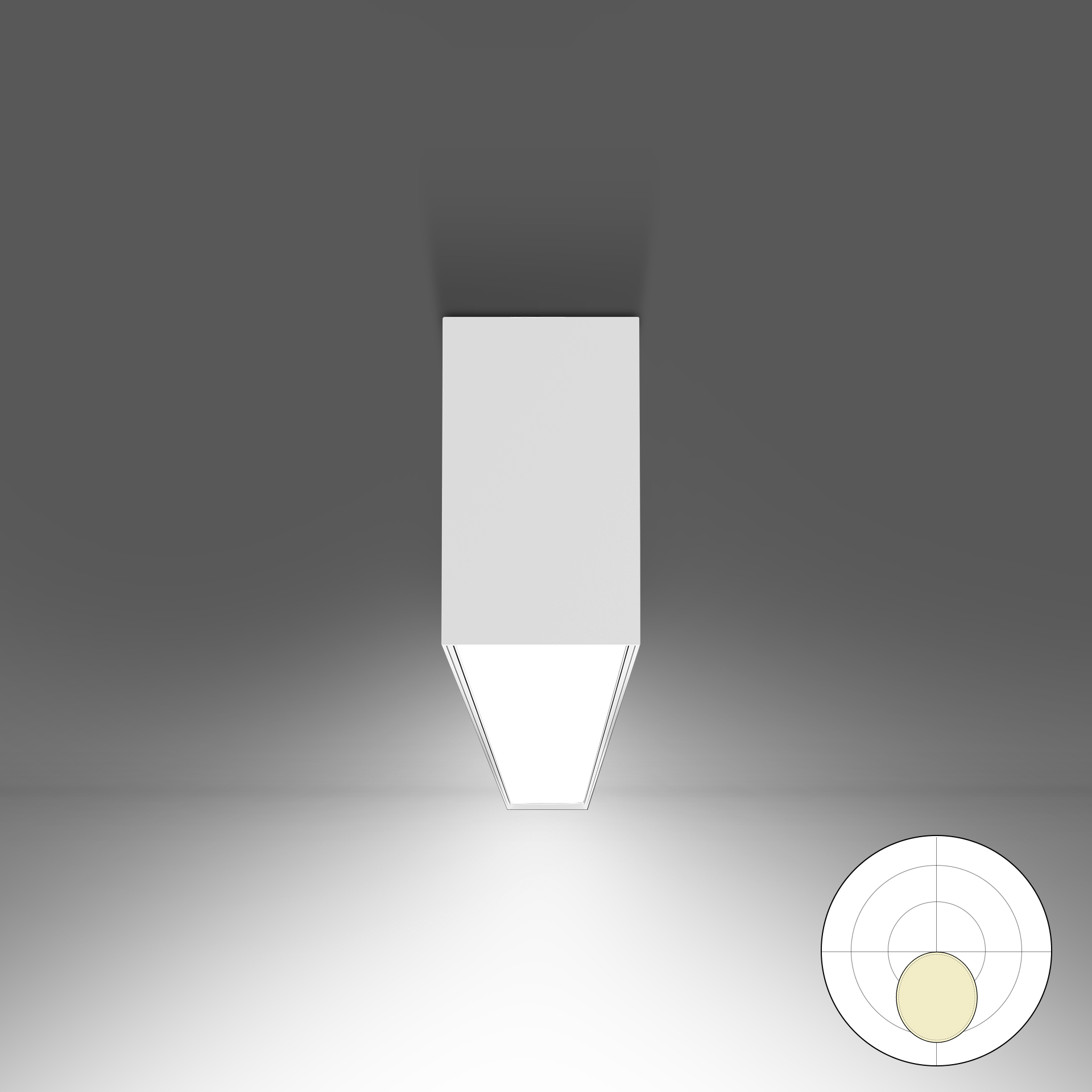

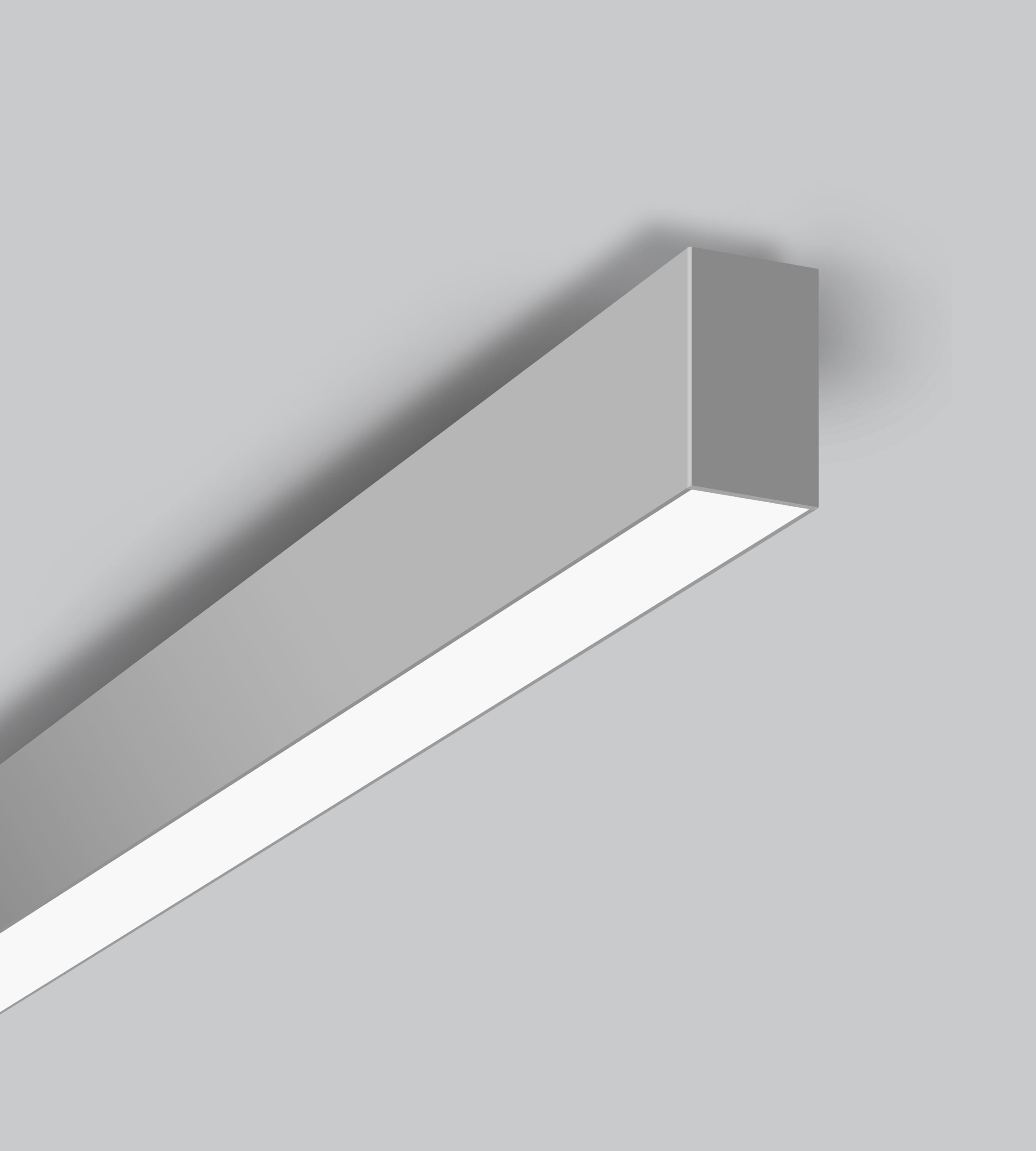

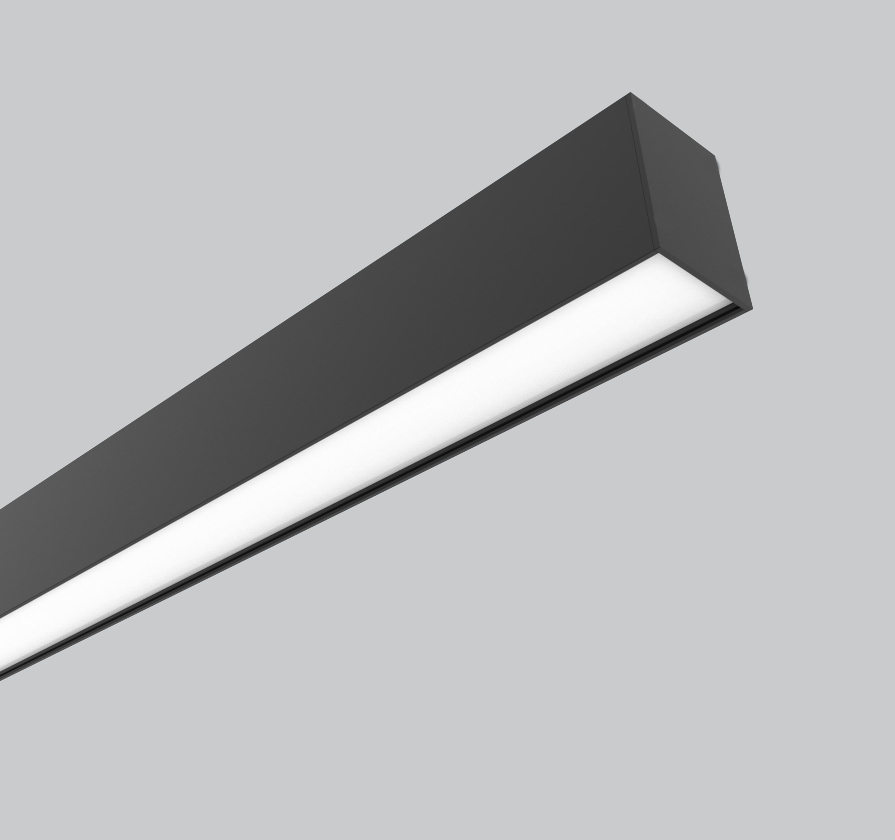

Surface

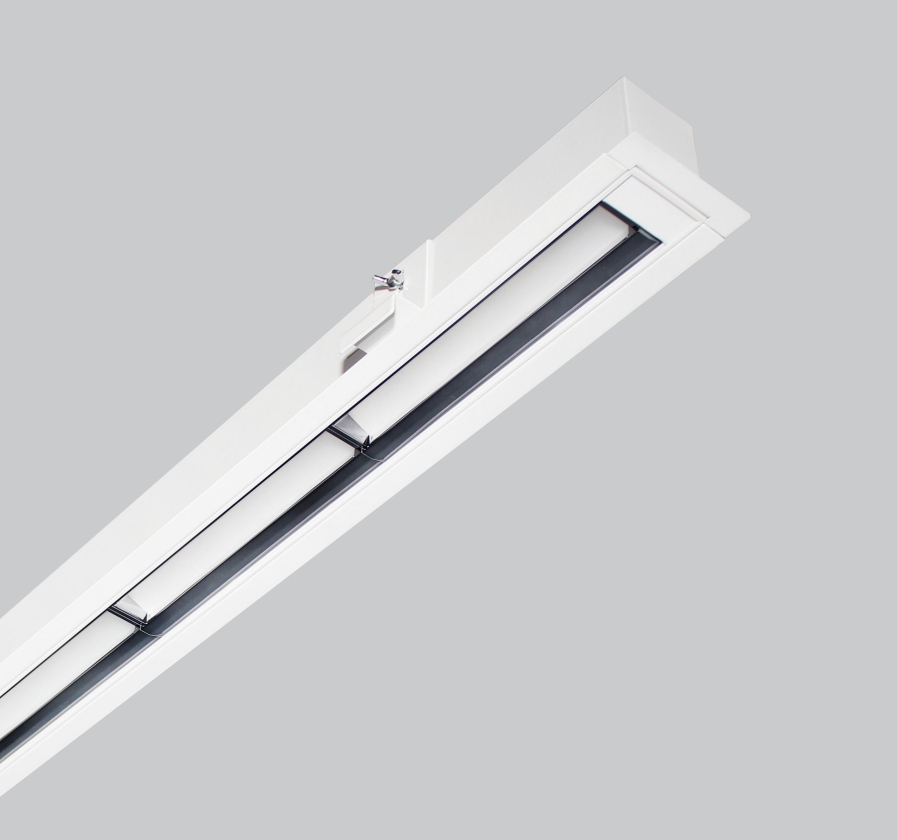

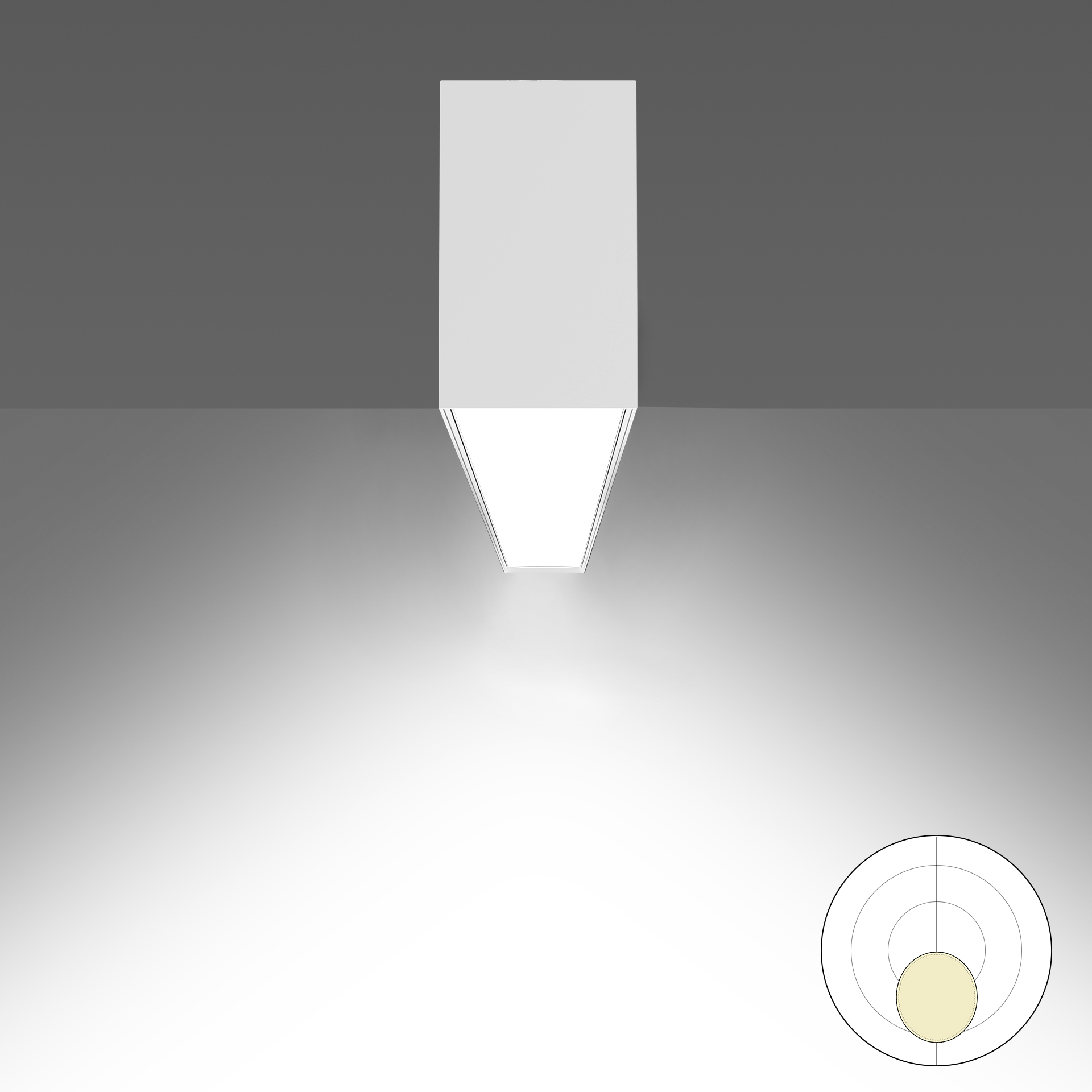

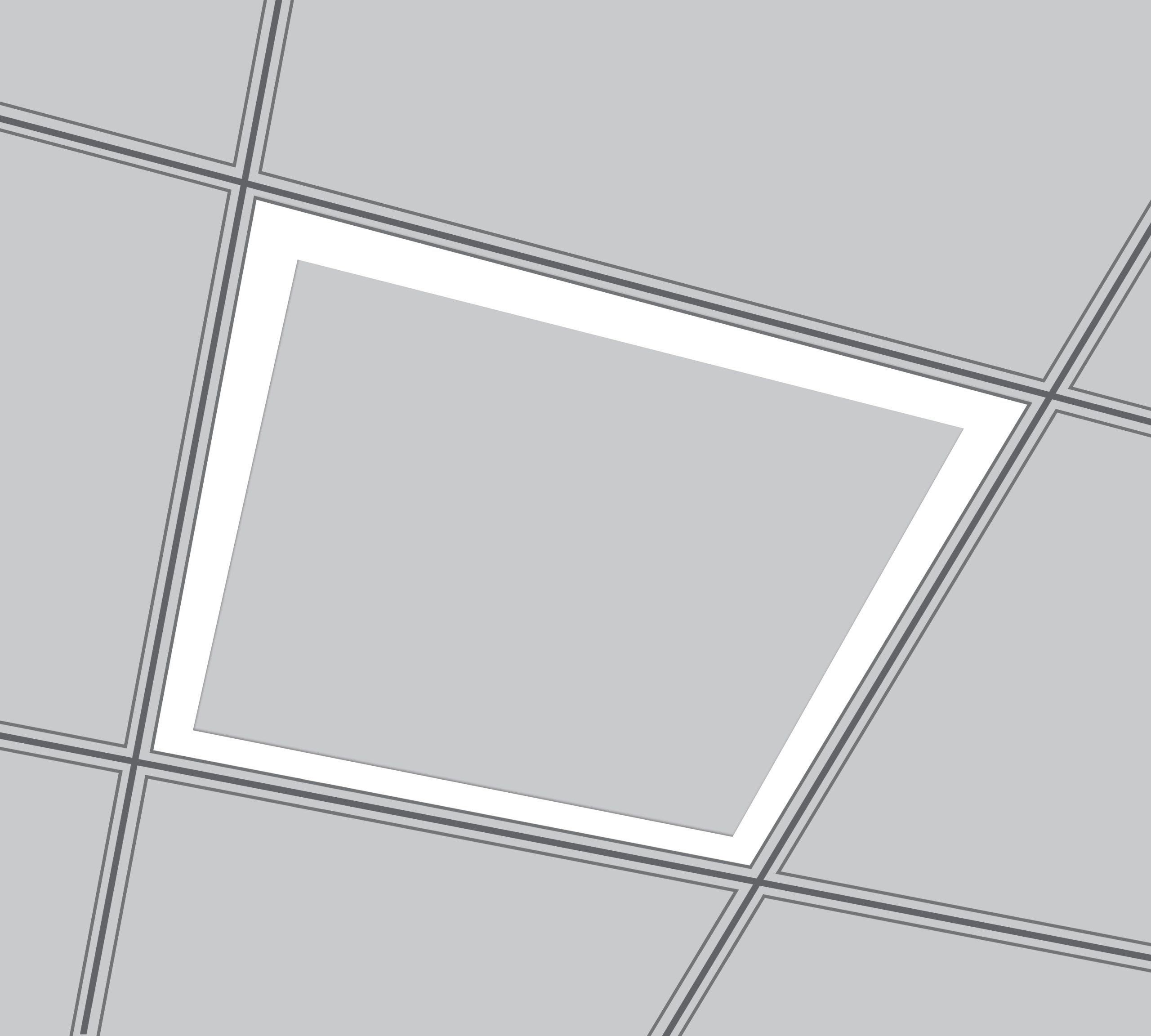

Recessed

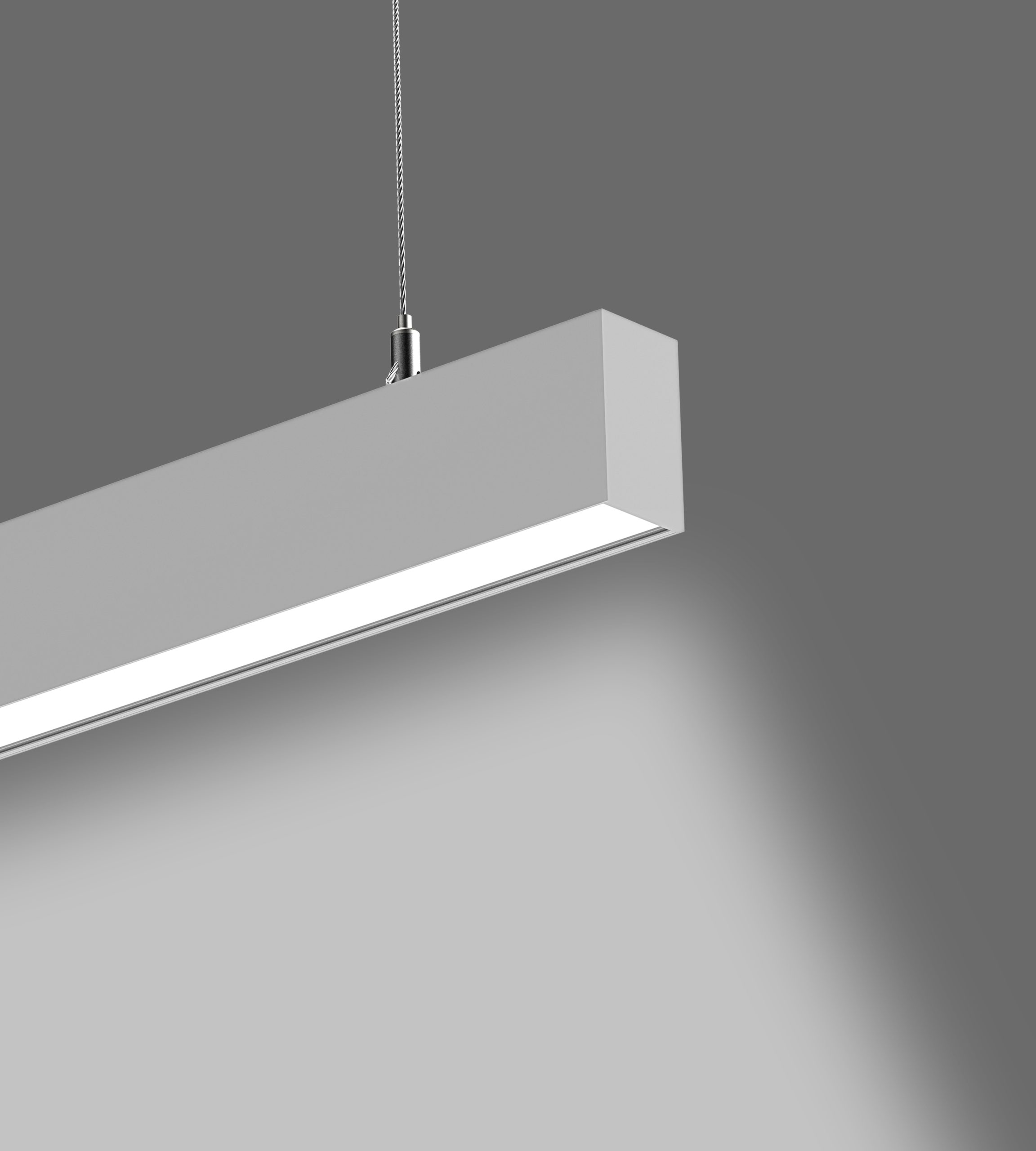

Pendant
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
