Dense 178（GEN13）
Dense 178 (GEN 13)

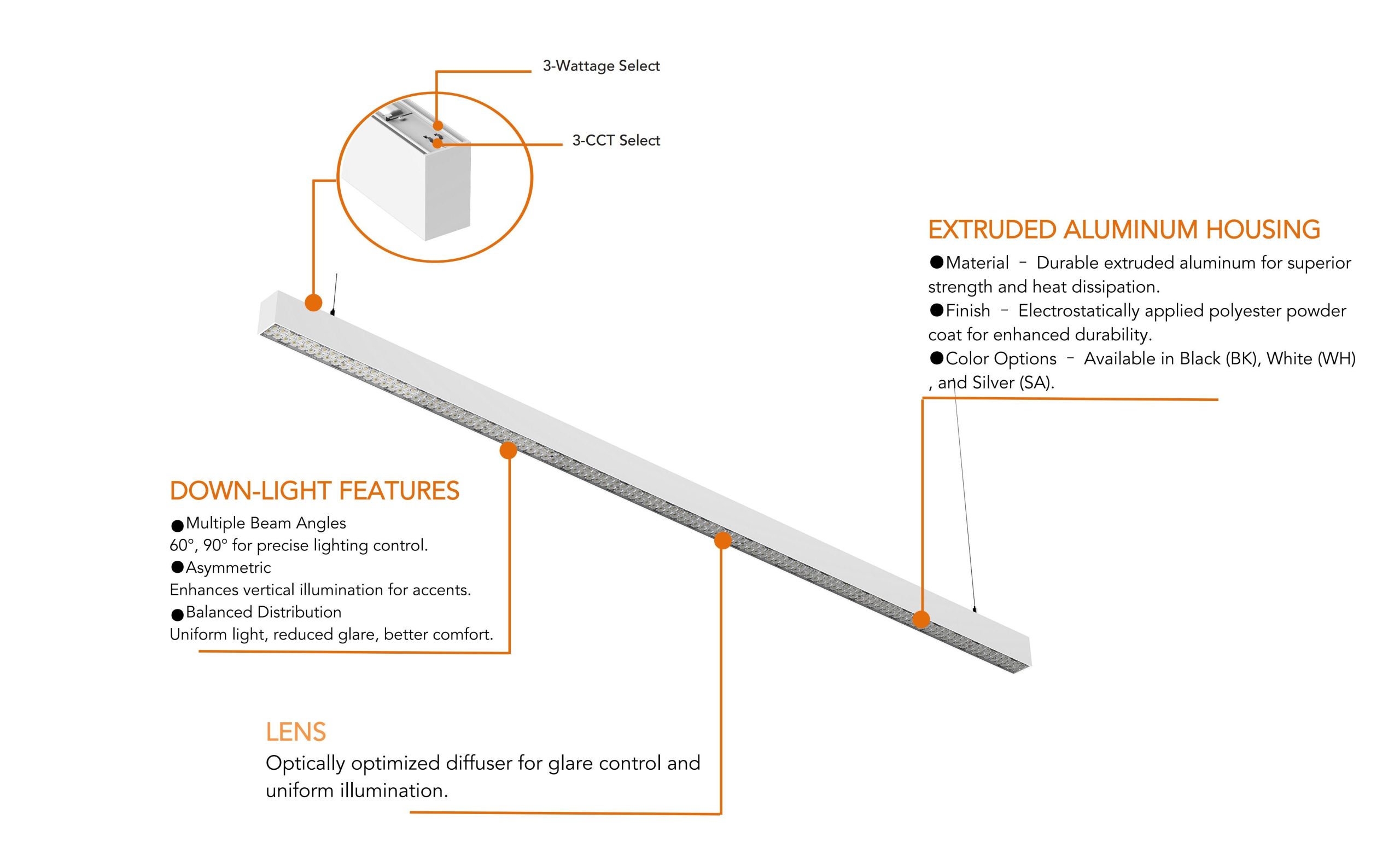

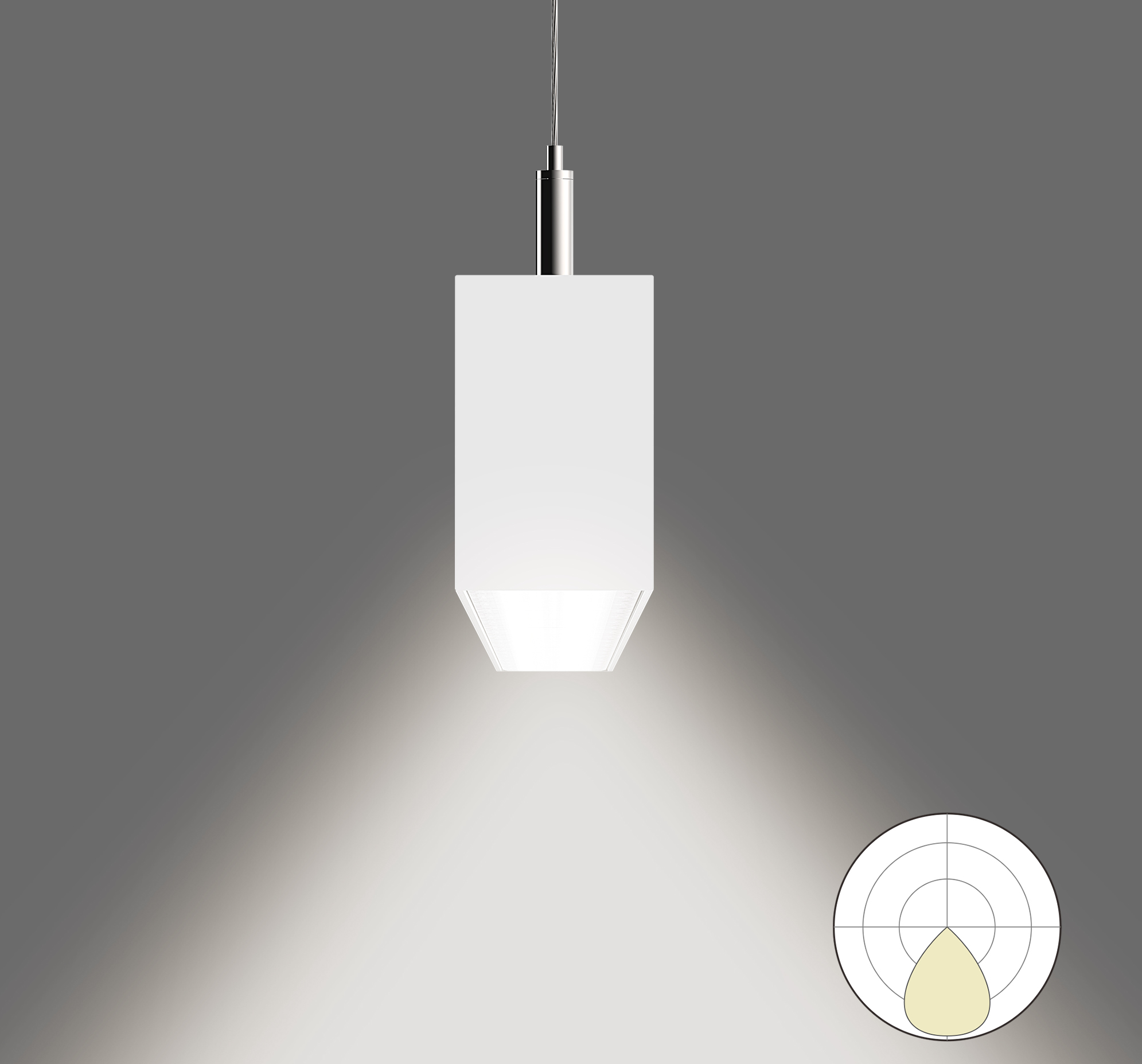

The Dense 178 series embodies minimalist design, delivering clean, uniform lines of light for any architectural space. With advanced linear LED technology, it offers industry-leading efficacy and customization, including aperture, continuous runs, and unlimited lengths. Standard with a louver lens and optional dual-row LED lens, it balances flexibility with precise glare control. Robust construction and modular components ensure easy installation and straight runs. Available as a suspended fixture with selectable wattage and CCT, it is the ultimate pendant problem solver.
| Model | Length | Wattage Select | Efficacy | Lumen | CCT Select | Voltage | Dimmable | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-13LSD4FT50WB1D1HV | 4FT | 30/40/50W | 170lm/w | 5100lm/6800lm/8500lm | 30K/35K/40K | 220-240V | 0-10V (1%-100%) | >80 |
| WL-13LSD8FT100WB1D1HV | 8FT | 60/80/100W | 170lm/w | 10200lm/13600lm/17000lm | 30K/35K/40K | 220-240V | 0-10V (1%-100%) | >80 |

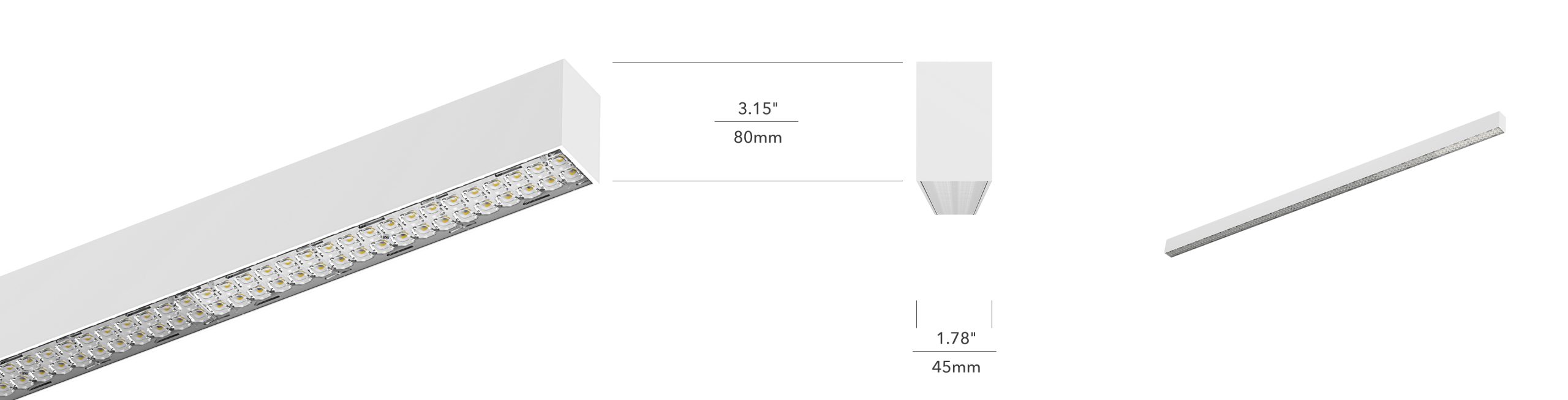

Run Lengths
Standalone fixtures are available in4FT(1126mm) and 8FT(2446mm) nominal lengths.

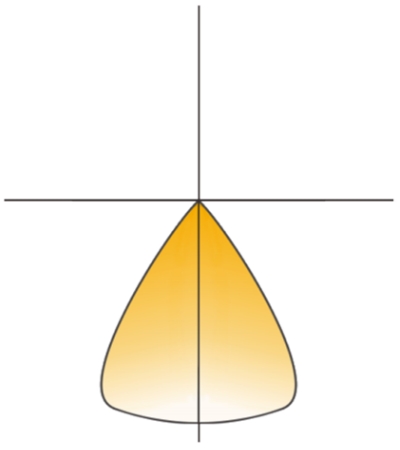

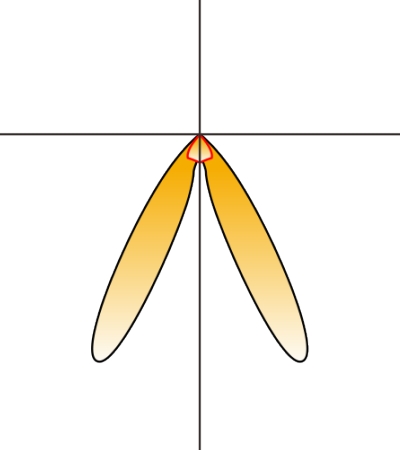

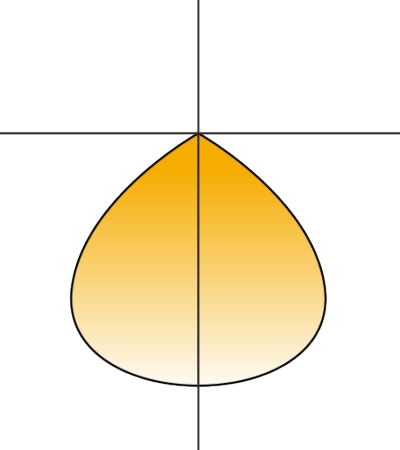

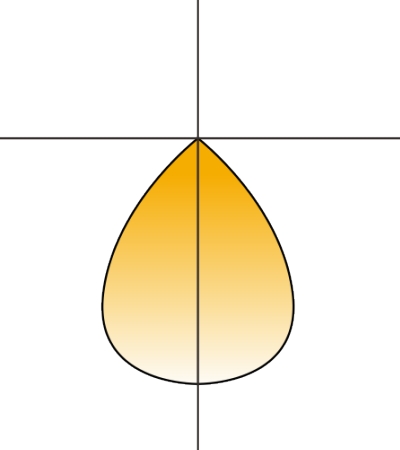

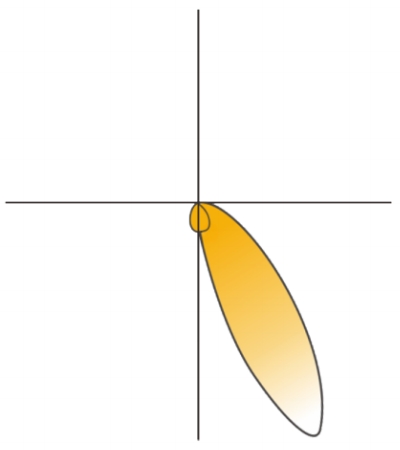

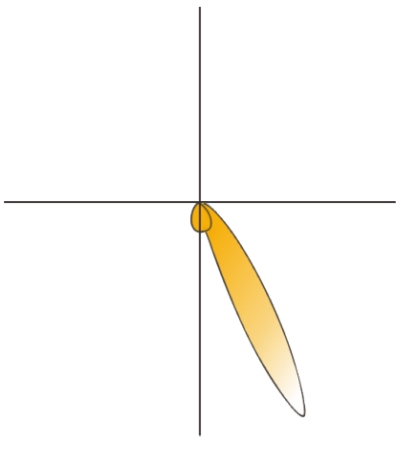

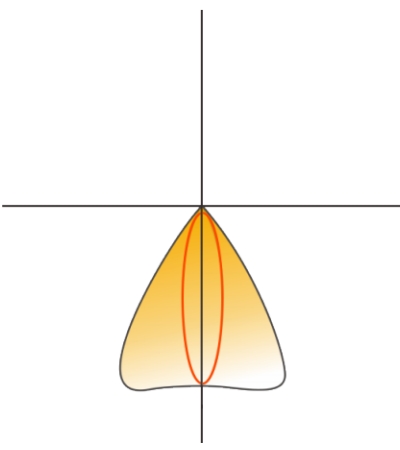

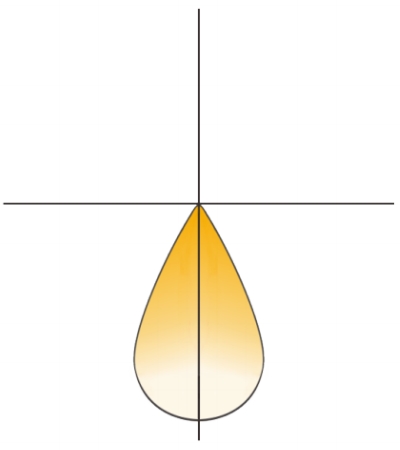

Distribution
Louver Lens
The louver lens delivers focused, low-glare illumination, reducing visual fatigue while maintaining a clean, structured aesthetic. Ideal for creating comfortable, high-end environments with controlled light distribution.

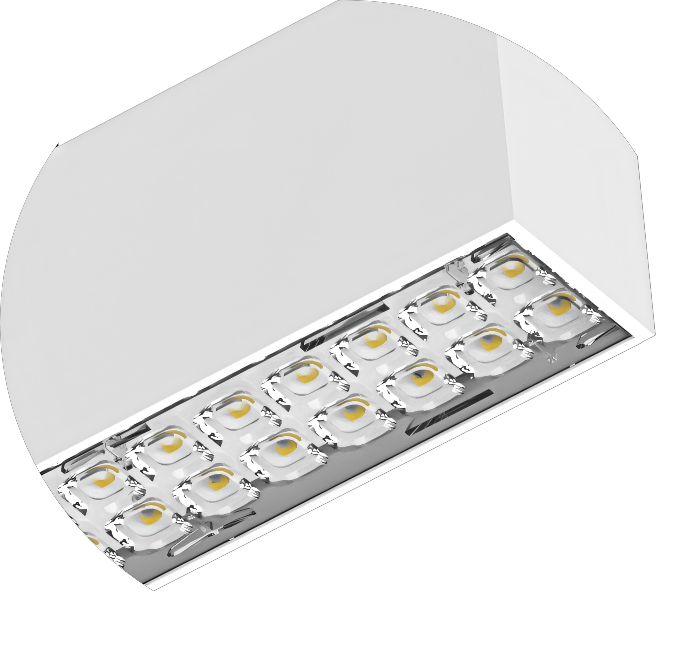

Dual-Row LED Lens
The dual-row LED lens increases luminous output while ensuring uniform light distribution. Perfect for applications that require higher illumination levels without sacrificing visual comfort.
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.

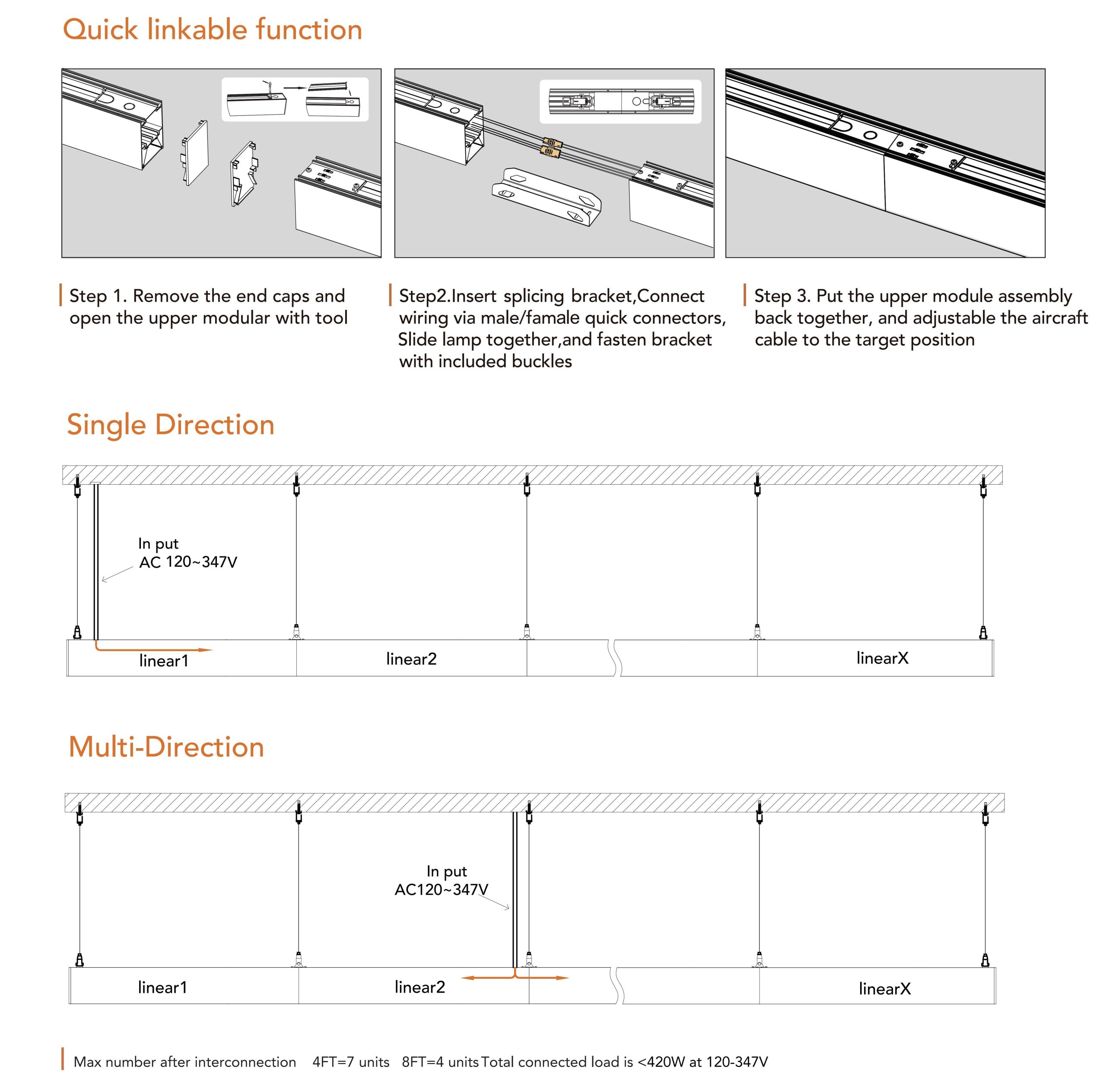

Run Length Limits
| Run Length Limits(ft) | 4FT | 8FT |
| Max Linkable Units | 7 units | 4 units |
| Total connected load | <420W at 120V & <960W at 277V & <1200W at 347V |
