Dense 197(GEN3)
Dense 197 (GEN 3)

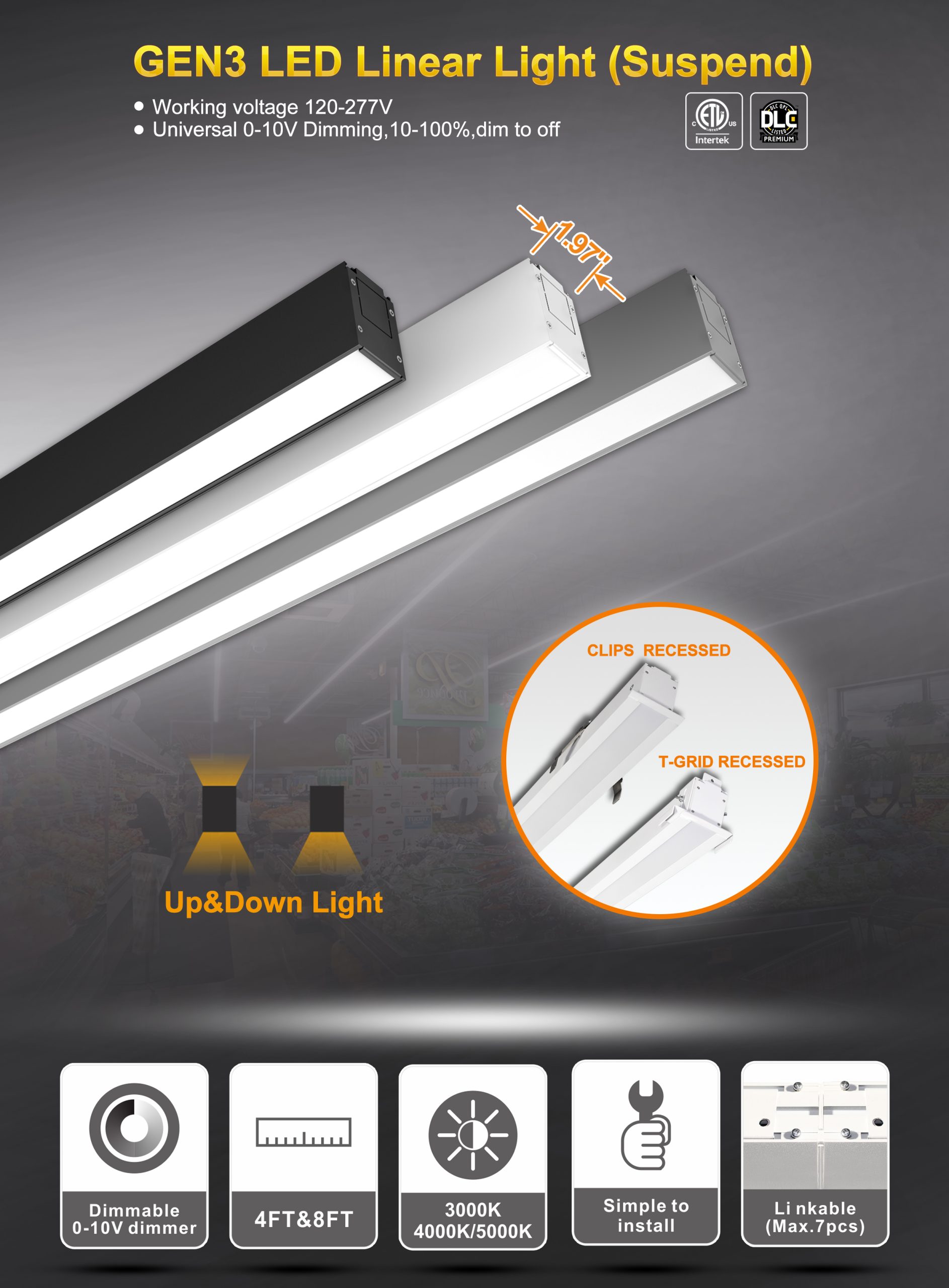

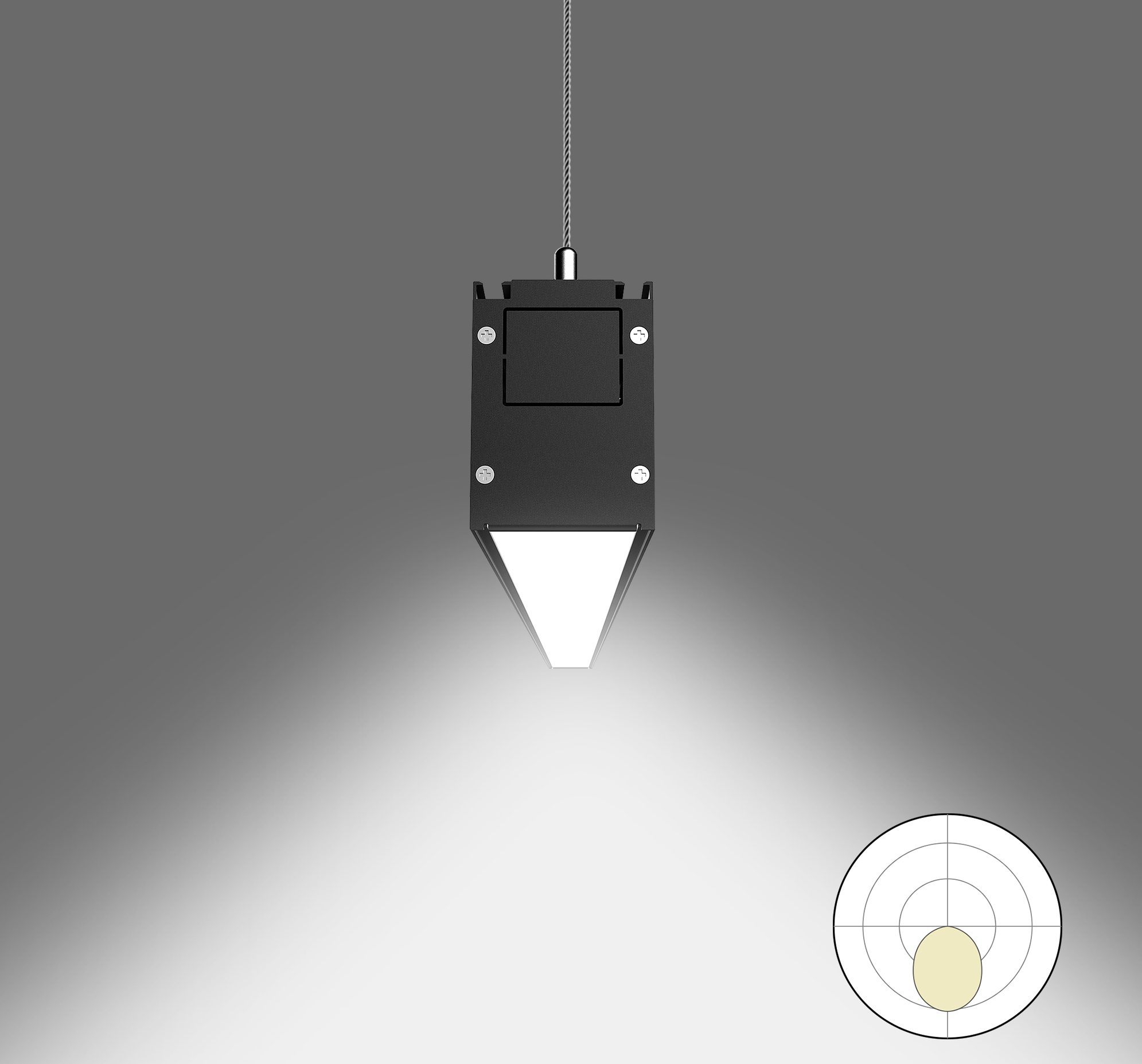

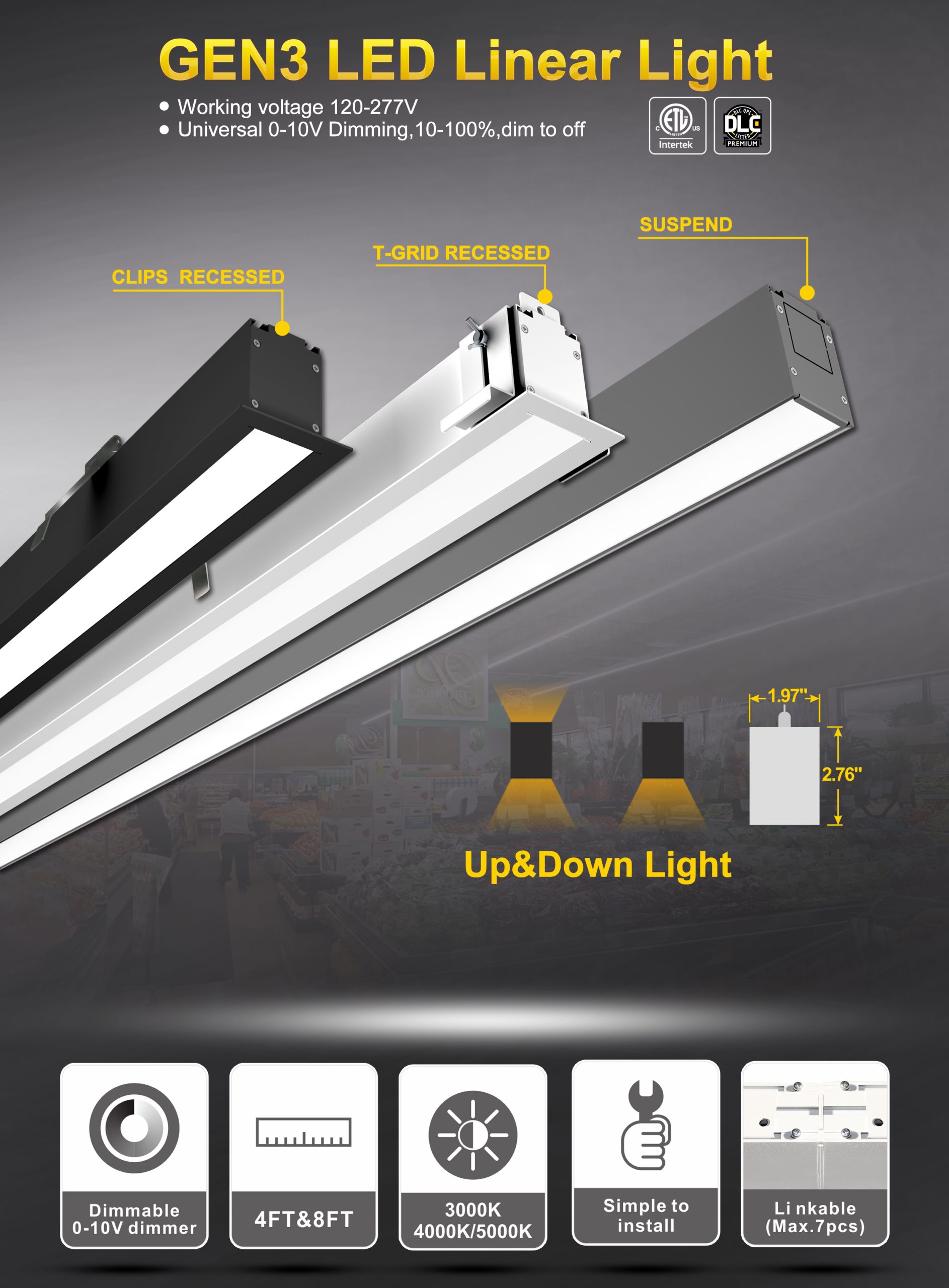

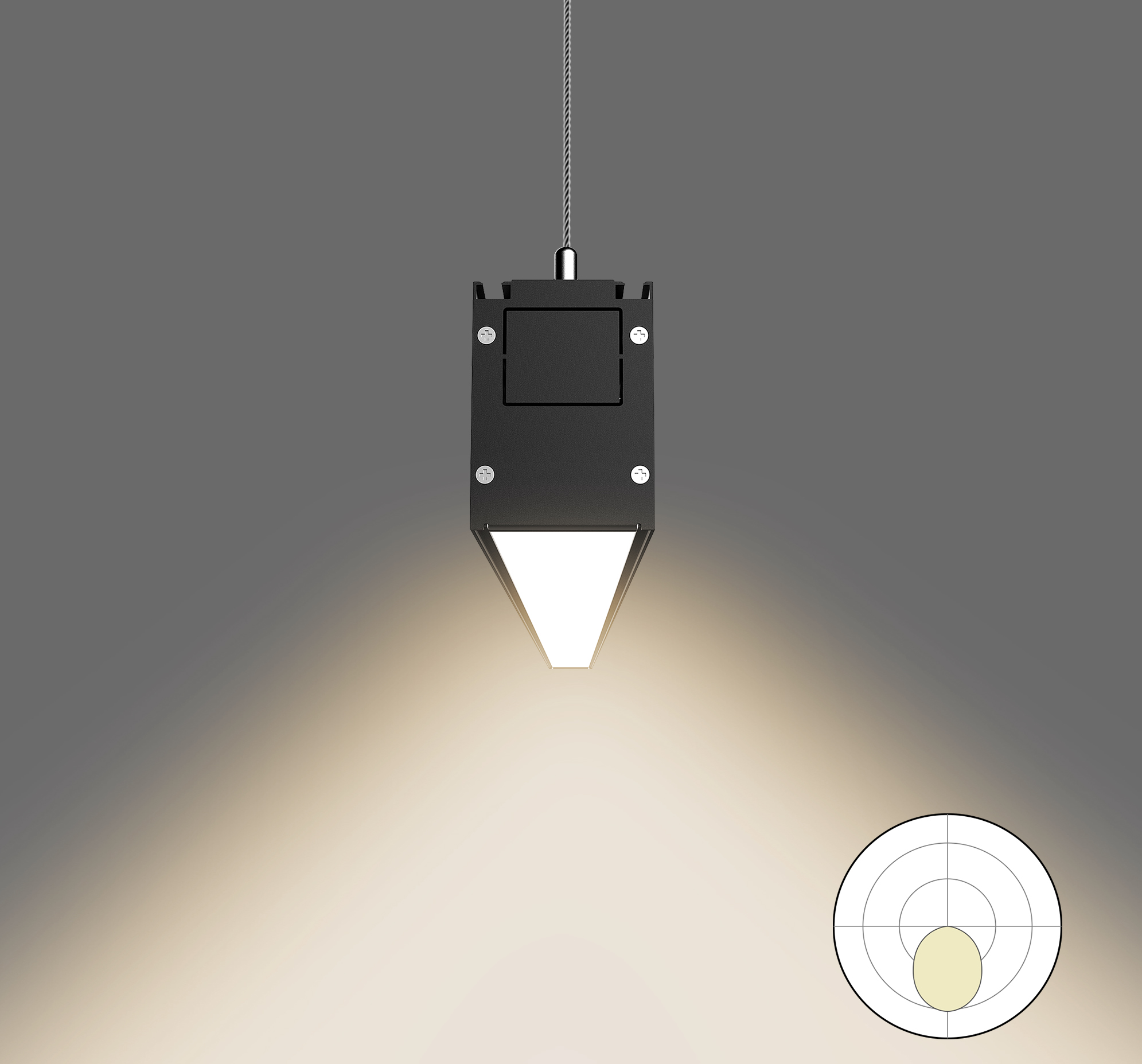

The Dense E 197 embodies a minimalist and elegant design, featuring smooth and consistent lines of light that enhance any commercial environment. Utilizing advanced linear LED technology, the Dense E 197 excels in efficiency and provides complete customization options. Its robust construction and adaptable installation process ensure accurate and straight configurations. The Dense E 197 is versatile, available for suspension and recessed mount. It can meet the requirements of any project within budget constraints.
| Model | Length/Pattem | Wattage | Efficacy | Lumen | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-3LSD4FT40WBDUV(30K-40K-50K-T) | 4FT(1130mm) | 40W | 120lm/W | 4800lm | 30K/40K/50K | 120-277V | 0-10V | >80 |
| WL-3LSD8FT80WBDUV(30K-40K-50K-T) | 8FT(2400mm) | 80W | 120lm/W | 9600lm | 30K/40K/50K | 120-277V | 0-10V | >80 |
DENSE 197 (GEN 3) Product Introduction Video
Run Lengths

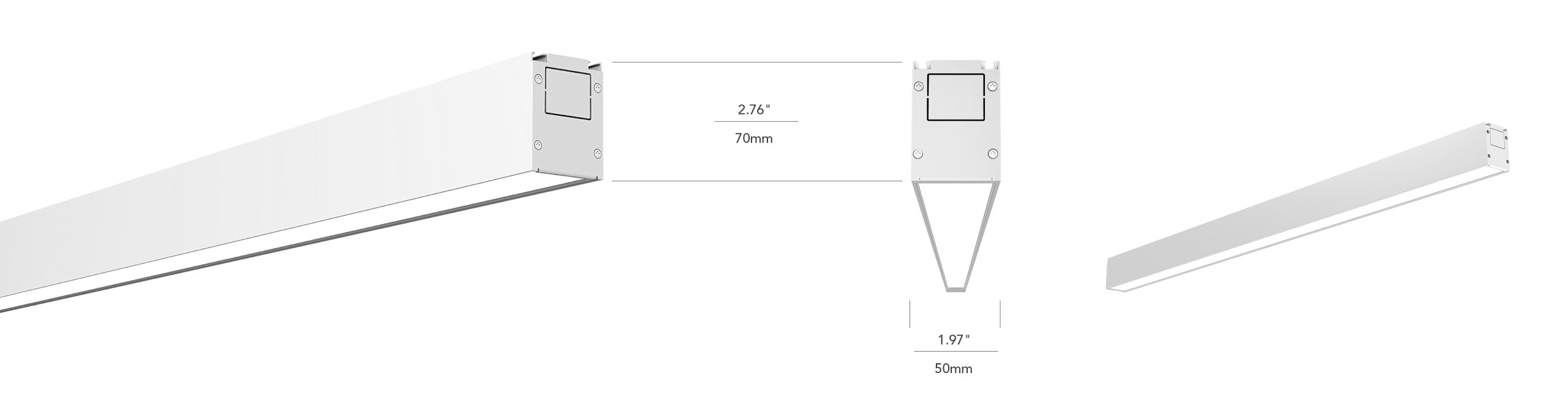

Standalone fixtures are available in4FT(1130mm) and 8FT(2400mm) nominal lengths.
UNLOCK CREATIVE CONFIGURATIONS
Dense 197 offers a modular connector system that enables designers to explore bold, sculptural forms.
From geometric shapes to customized layouts, these accessories support seamless integration and endless design flexibility.

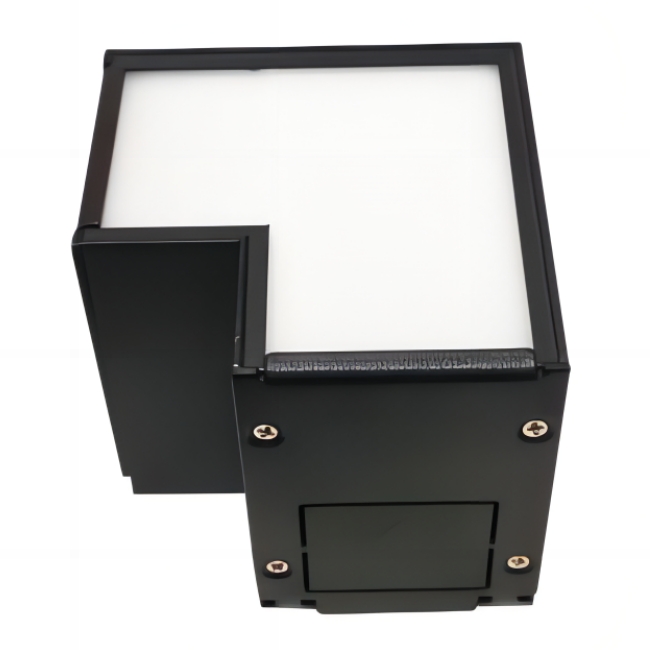

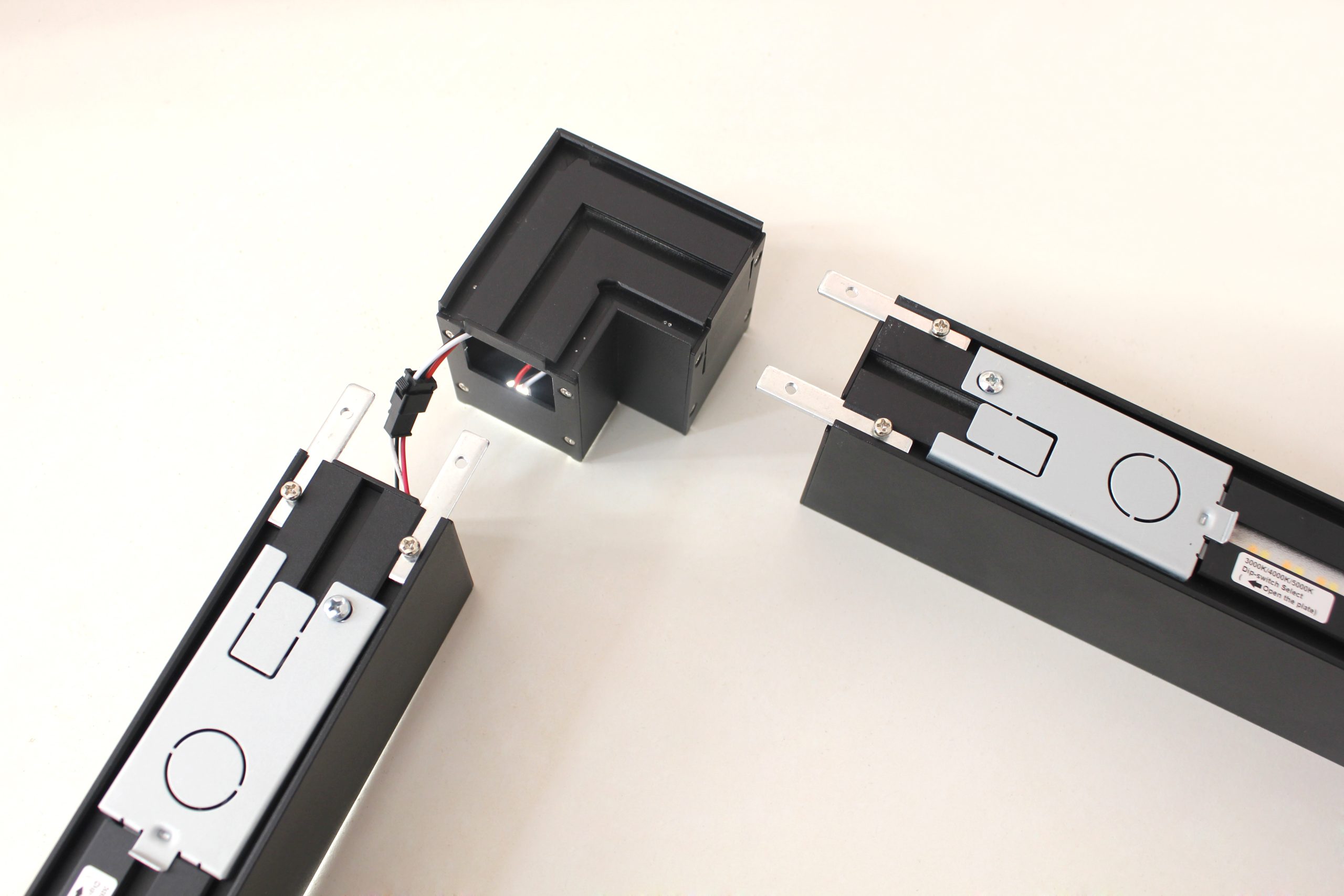

ENGINEERED FOR PERFECT CORNERS
Achieve flawless L-shaped transitions with architectural precision. The LTX connector keeps every angle aligned, refined, and visually consistent—ideal for perimeter and structured layouts.

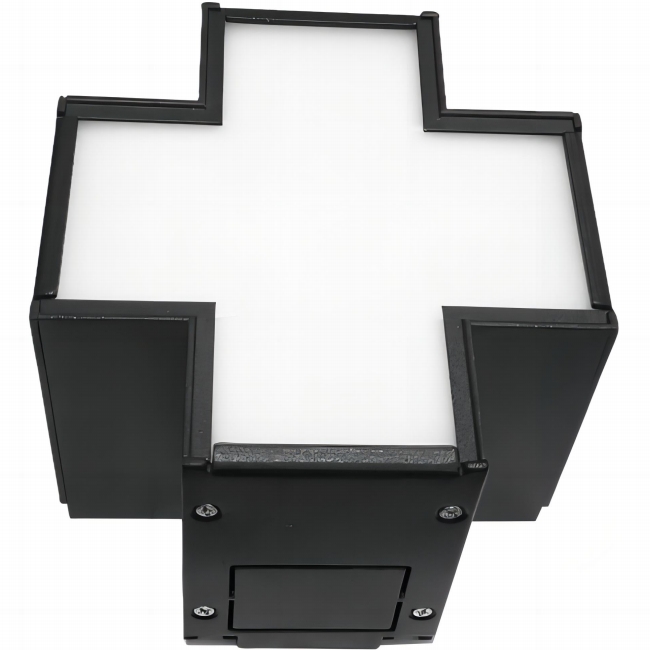

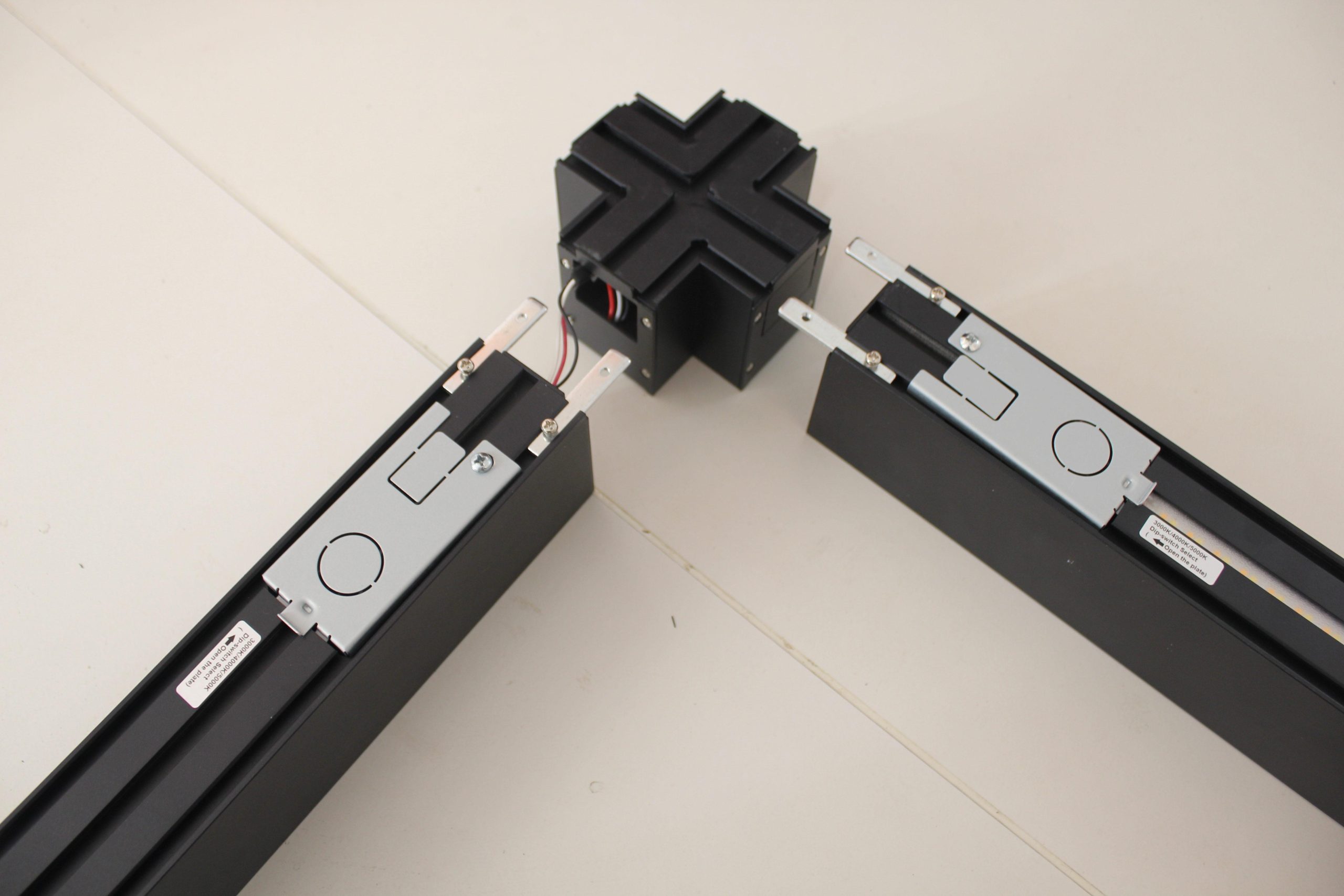

UNLOCK CROSS-LINEAR FREEDOM
Seamlessly connect four directions with a clean X-shaped junction.Designed for creative planning in open spaces, the LTX system supports complex intersections without compromising visual clarity.

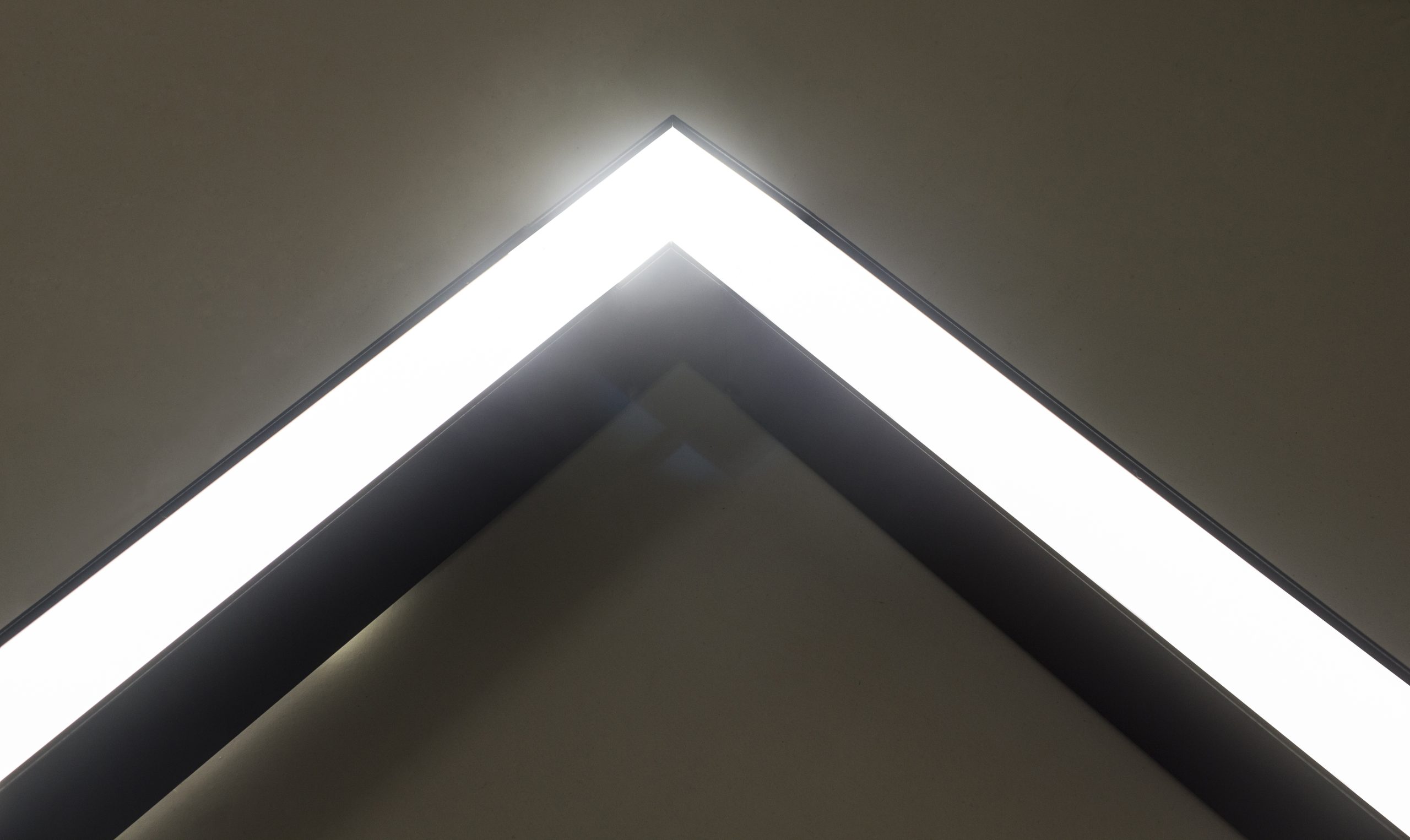

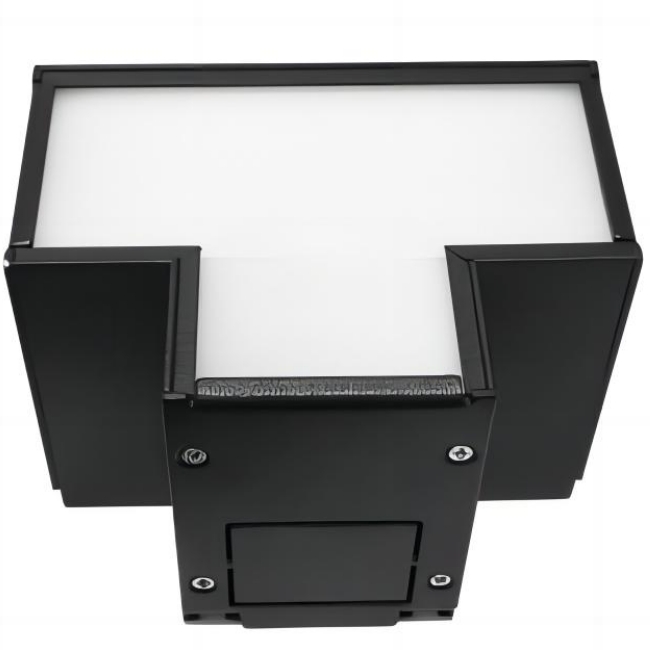

SEAMLESS LIGHT, UNBROKEN LINES
From structure to illumination, corners glow without interruption.Thanks to precisely engineered optics and connections, the light remains uniform—even through directional shifts.
