Dense 198(GEN17)
Dense 198 (GEN 17)

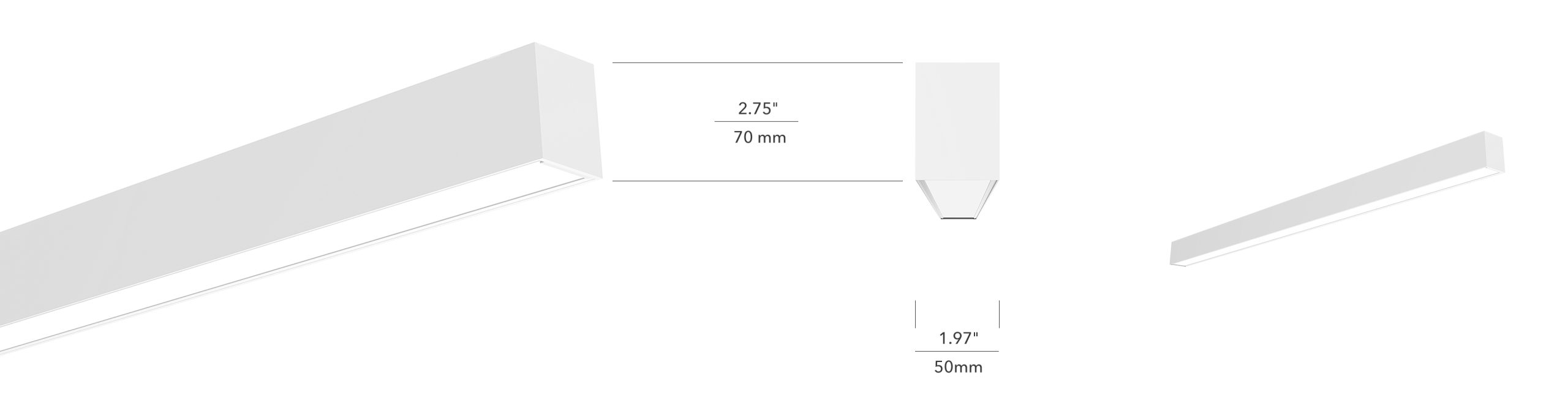

Dense 198 is a 1.97-inch-wide economy linear light. This direct light is available in 2FT, 4FT, and 8FT lengths and can be installed in continuous, seamless runs of any length.

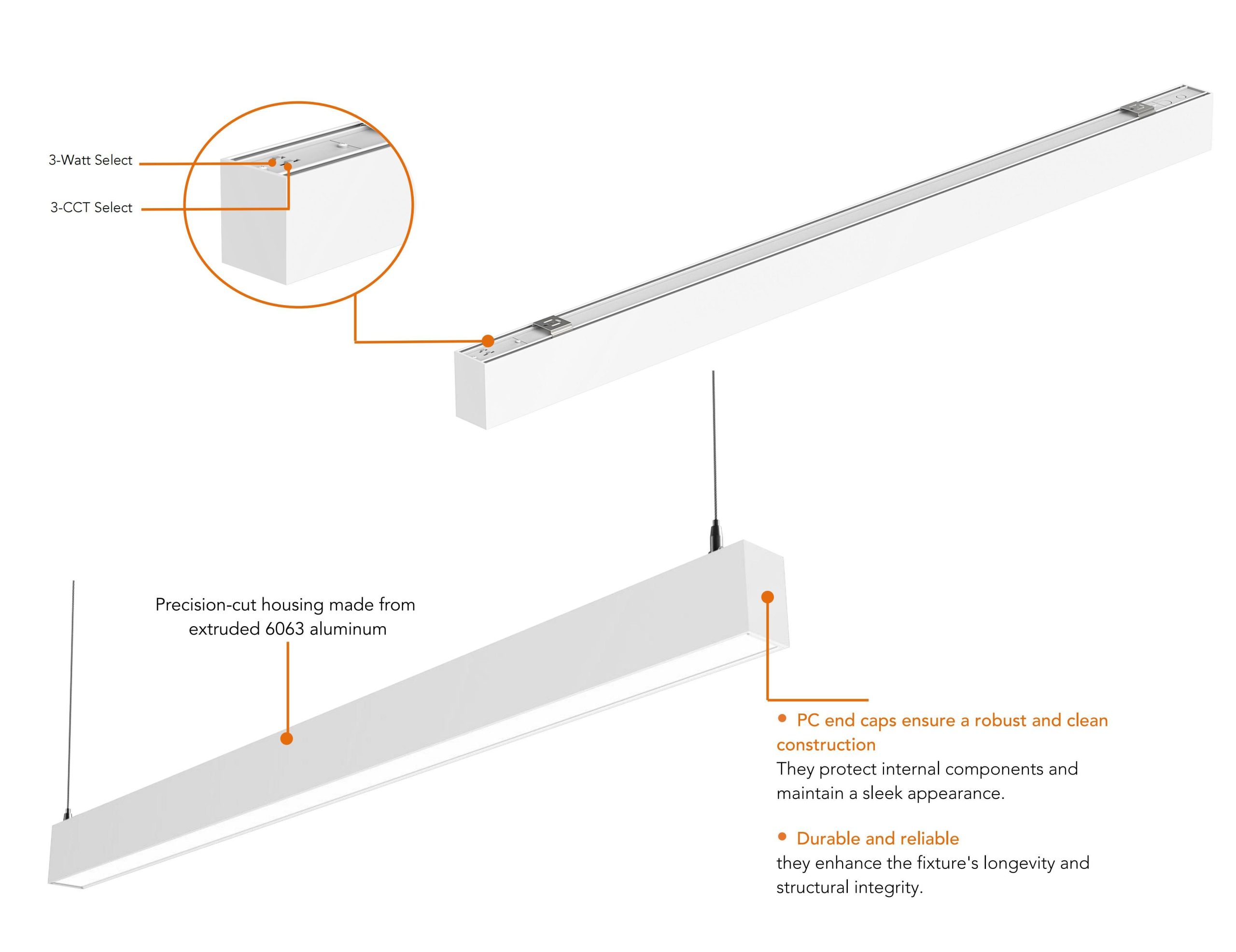

The H-shaped extruded aluminum housing supports various mounting methods, including pendant, recessed, surface, and wall mounting.
Its soft and continuous illumination makes it an ideal luminaire for commercial, hospitality, and residential interior lighting applications.
| Model | Length | Watt Select | Efficacy | Lumens | CCT Select | Voltage | Dimmable | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-17LSD2FT20WB2DUV | 2FT(606mm) | 10W/15W/20W | 105lm/W | 1050lm/1575lm/2100lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | >80 |
| WL-17LSD4FT40WB2DUV | 4FT(1206mm) | 20W/30W/40W | 105lm/W | 2100lm/3150lm/4200lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | ＜19 |
| WL-17LSD8FT80WB2DUV | 8FT(2406mm) | 40W/60W/80W | 105lm/W | 4200lm/6300lm/8400lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | >80 |
Run Lengths
Standalone fixtures are available in2FT(606mm),4FT(1206mm) and 8FT(2406mm) nominal lengths.

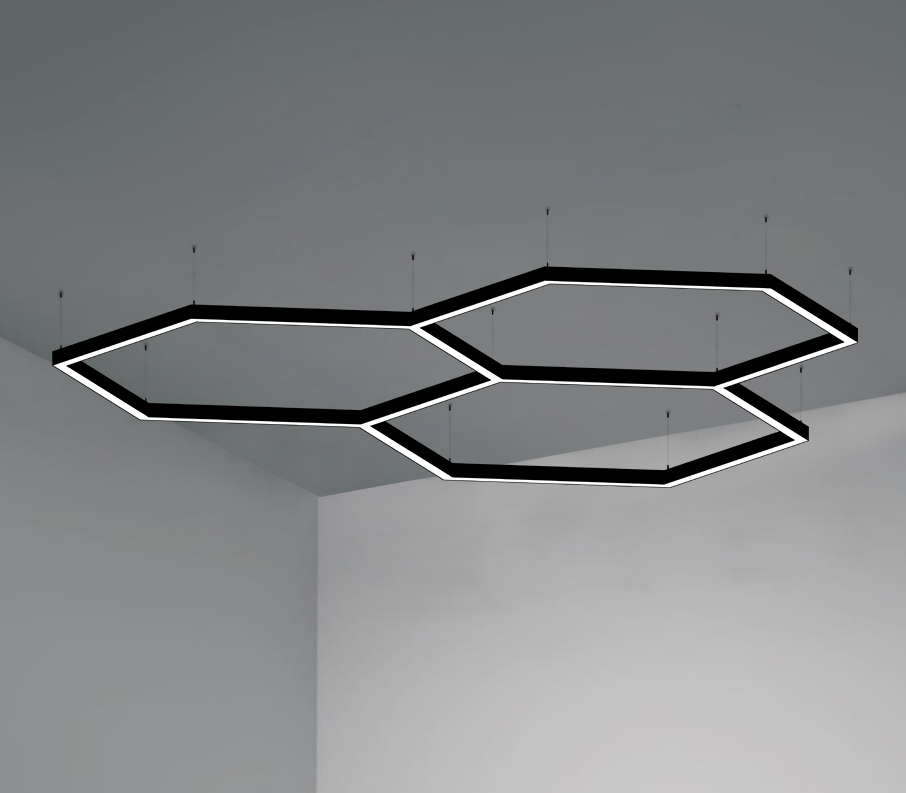

HEXAGONAL FORMATION
Y-Shape lit connectors enable seamless hexagonal patterns with continuous illumination—ideal for sculptural ceilings and immersive installations.

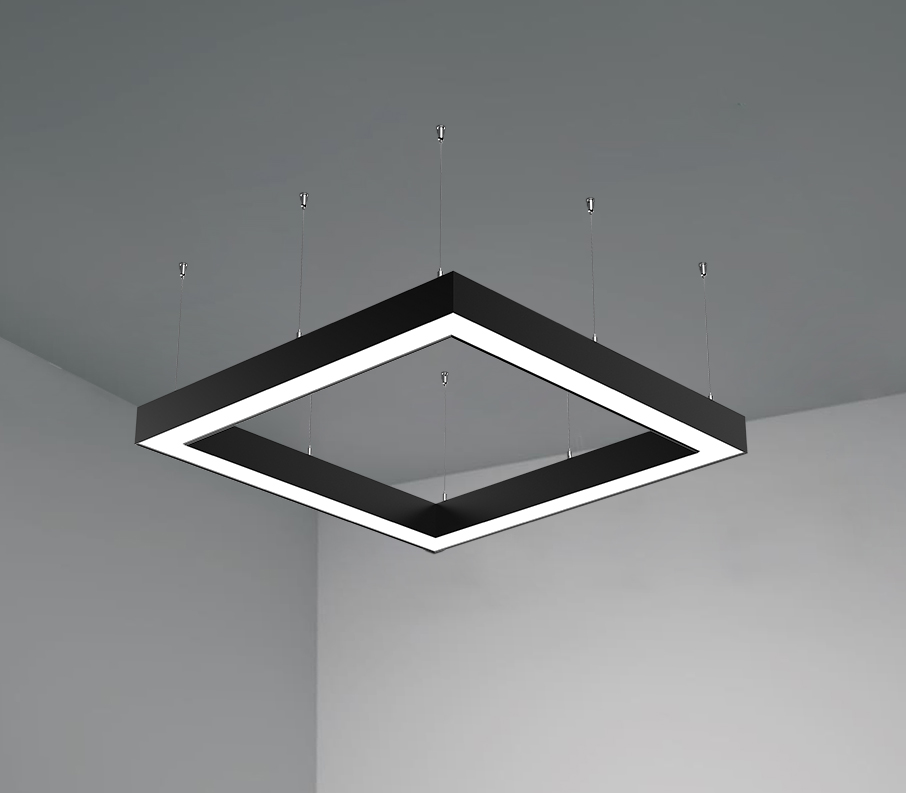

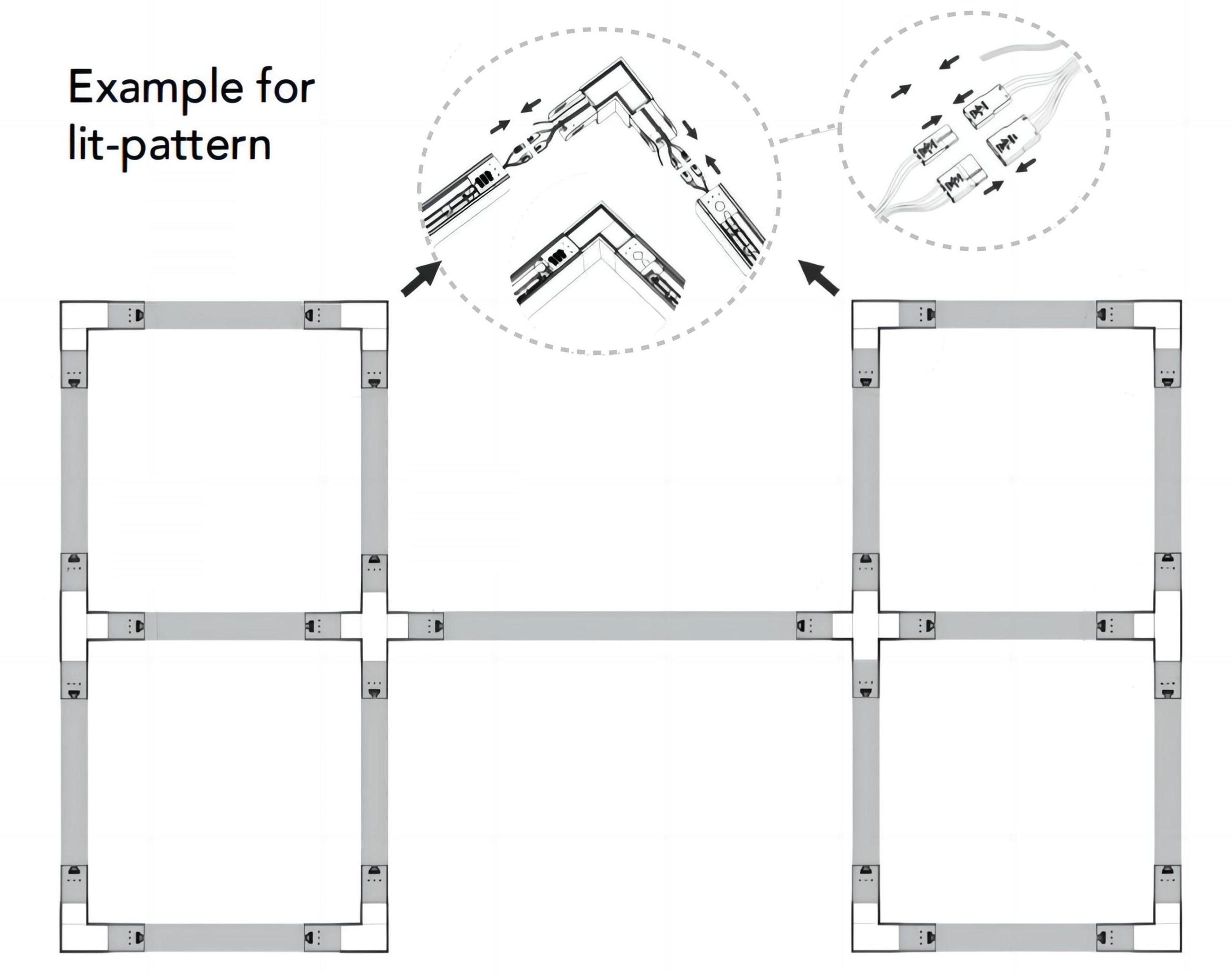

GRID CONFIGURATION

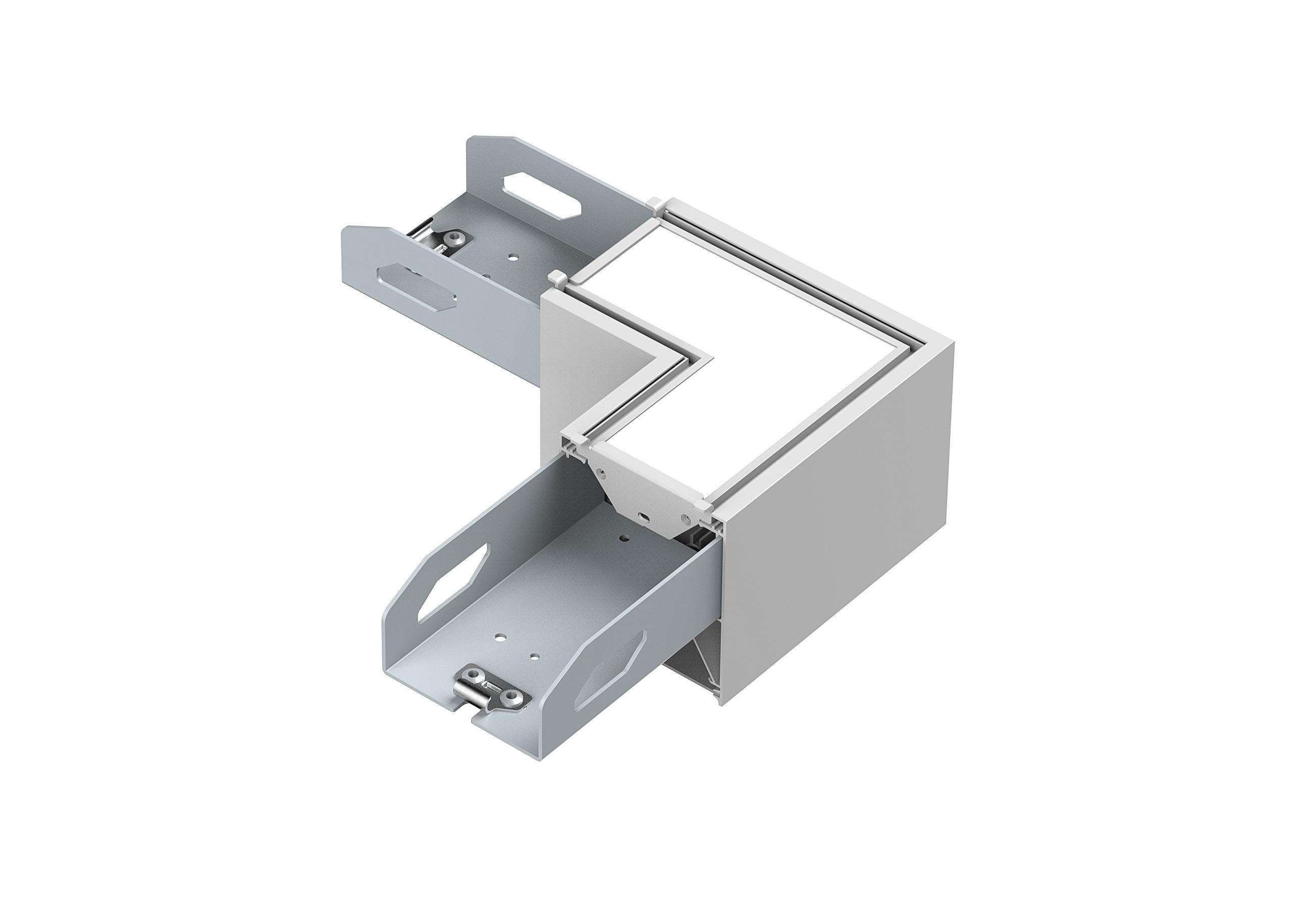

Square layouts built with L-Shape connectors deliver a clean, organized aesthetic—ideal for structured, modular ceiling designs.

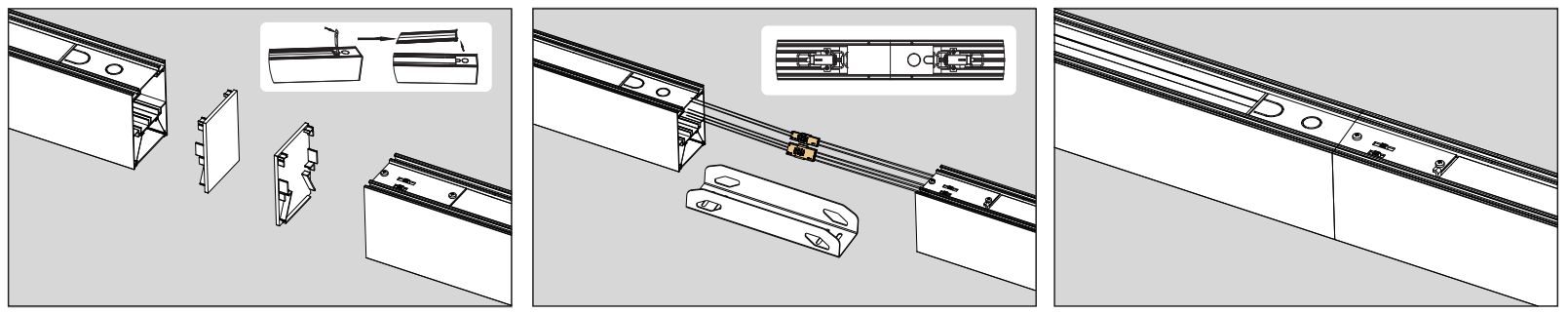

Quick linkable function
Run Length Limits
| Run Length Limits(ft) | 2FT | 4FT | 8FT |
| Max Linkable Units | 7 units | 7 units | 4 units |
| Total connected load:<420W at 120V & <960W at 277V |
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Dense 198 | IES | Sense-198-2FT-25W-CRI80-Up0down100-3000K-White | |
| Dense 198 | IES | Dense-198-4FT-40W-CRI80-6000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-40W-CRI80-5000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-40W-CRI80-4000K-White | |
| Dense 198 | IES | Dense-198-4FT-30W-CRI80-6000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-30W-CRI80-5000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-30W-CRI80-4000K-White | |
| Dense 198 | IES | Dense-198-4FT-20W-CRI80-6000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-20W-CRI80-5000K-White-Custom CCT | |
| Dense 198 | IES | Dense-198-4FT-20W-CRI80-4000K-White | |
| Dense 198 | V10-24 | Dense-198-V2.2-Specification Sheet |
