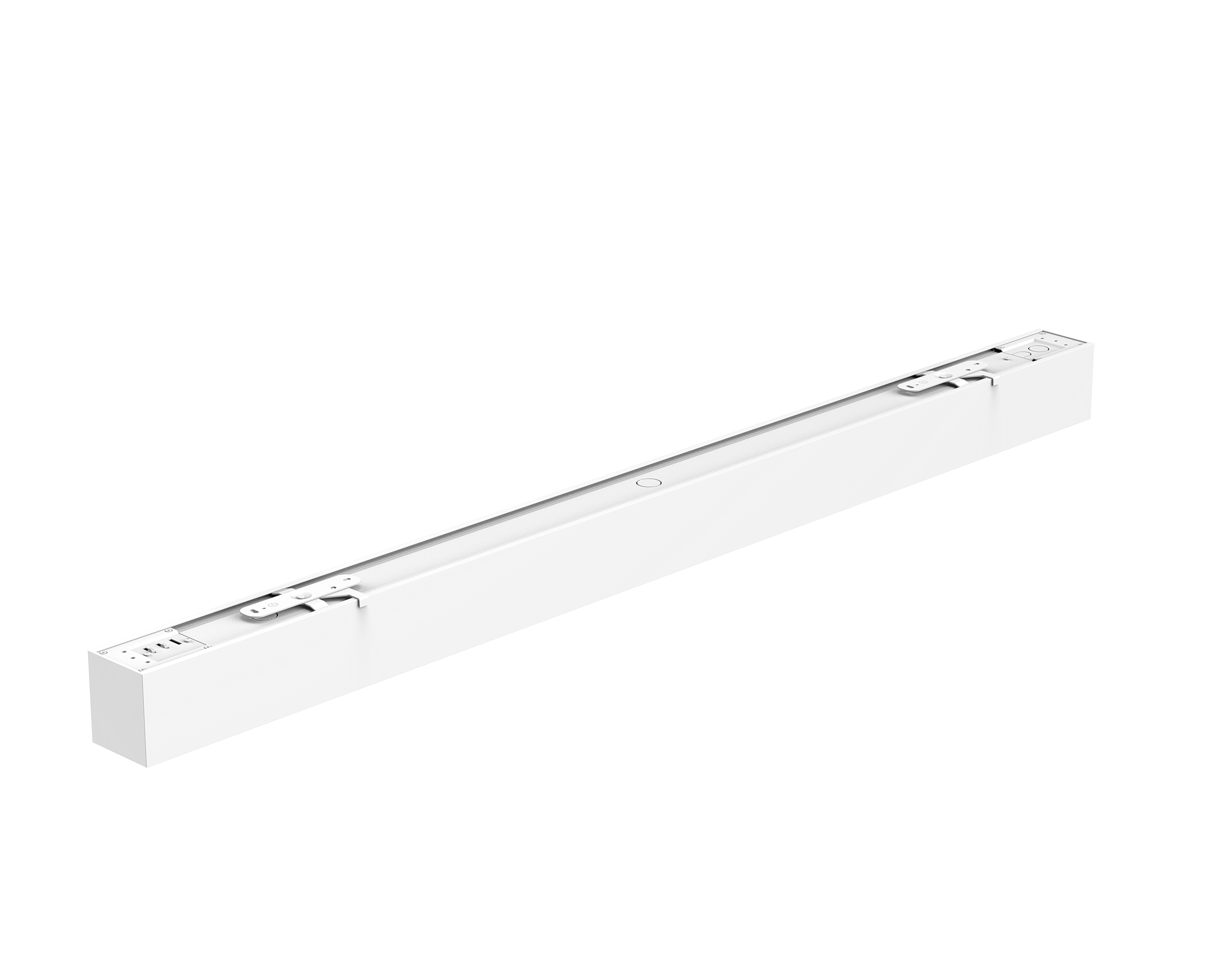

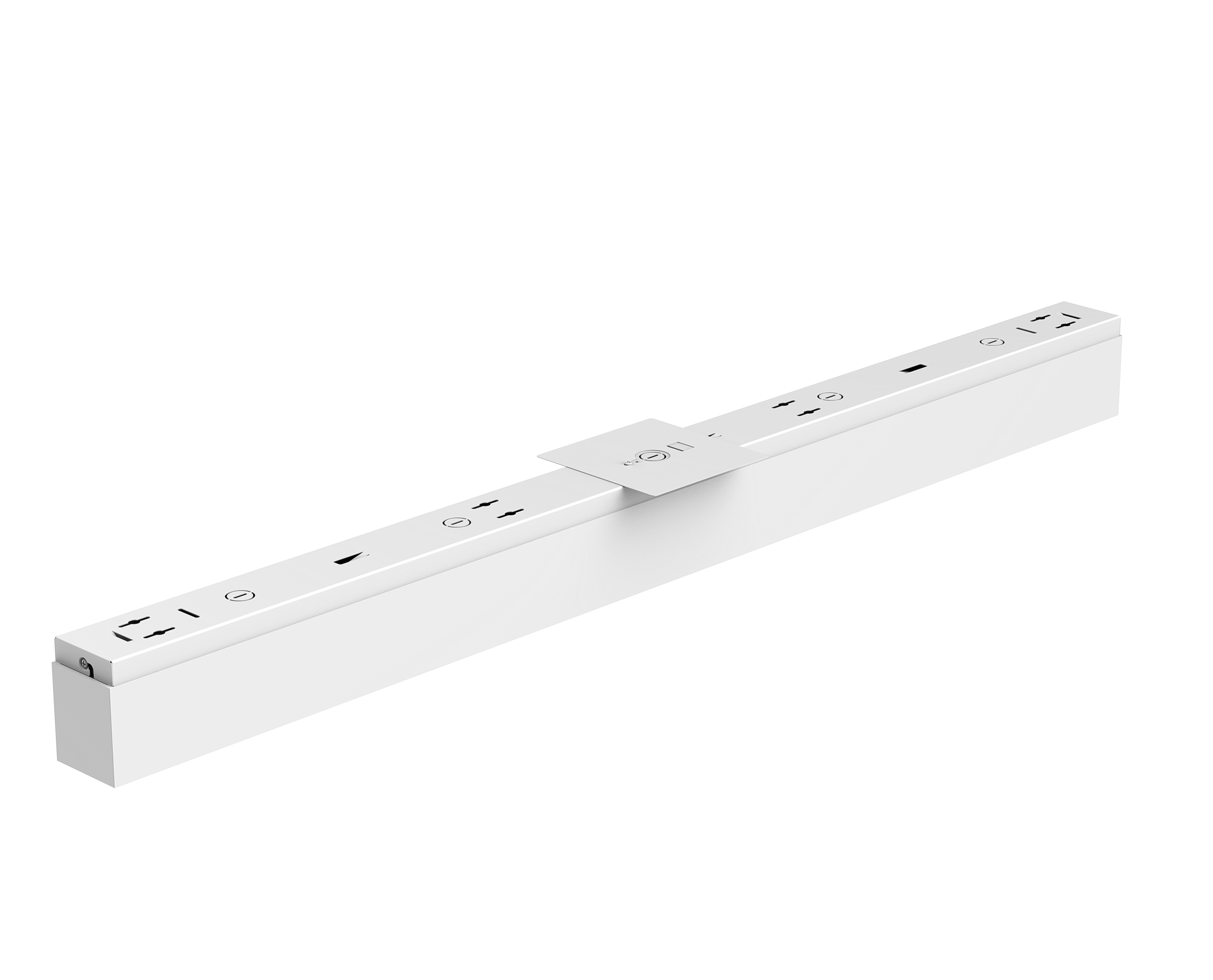

Dense 275 (GEN 2)

Dense 275 embodies a deliberate, low-glare control system, featuring dual-level optical control for exceptional visual comfort through direct lighting distributions, all with a built-in programmer. It offers versatility with available lengths of 2', 3', 4', 6', and 8', and supports continuous runs, providing a wide range of independently controllable direct distribution options.

Dense 275 is designed to significantly enhance the user experience while maintaining top-notch energy efficiency.

1112
Model Length/Pattem Wattage Efficacy Lumens CCT Select Voltage Dimming CRI
WL-2LSD2FT20WBDHV2FT(606mm)20W115lm/W2300lm30K/35K/40K120-347V0-10V>80
WL-2LSD3FT30WBDHV3FT(906mm)30W115lm/W3450lm30K/35K/40K120-347V0-10V>80
WL-2LSD4FT40WBDHV4FT(1206mm)40W115lm/W4600lm30K/35K/40K120-347V0-10V>80
WL-2LSD6FT60WBDHV6FT(1806mm)60W115lm/W6900lm30K/35K/40K120-347V0-10V>80
WL-2LSD8FT80WBDHV8FT(2406mm)80W115lm/W9200lm30K/35K/40K120-347V0-10V>80
WL-2LSDL20WBDHVL=L Pattern20W115lm/W2300lm30K/35K/40K120-347V0-10V>80
WL-2LSDT30WBDHVT= T Pattern30W115lm/W3450lm30K/35K/40K120-347V0-10V>80
WL-2LSDC40WBDHVC= X Pattern40W115lm/W4600lm30K/35K/40K120-347V0-10V>80
WL-2LSDL40WBDHV120=120° Pattern40W115lm/W4600lm30K/35K/40K120-347V0-10V>80
WL-2LSDY60WBDHVY= Y Pattern60W115lm/W6900lm30K/35K/40K120-347V0-10V>80

Dense 275 (GEN 2) Video

MULTIPLE OPTICS FOR PRECISE LIGHT CONTROL



Optimize glare control, visual comfort, and distribution with a wide range of optics — each engineered to deliver a unique lighting experience.

Hex louver
Hex louver
Asymmetric
Asymmetric
PC Louver
PC Louver
Batwing
Batwing
Parabolic Grill UGR<19
Parabolic Grill UGR<19
PC Spotless Diffuser
PC Spotless Diffuser
Glo-lens
Glo-lens
PC continous run lens
PC continous run lens
Prismatic PC Diffuser
Prismatic PC Diffuser
FAMILY
FAMILY

UNLOCK CREATIVE CONFIGURATIONS

Dense 275 offers a modular connector system that enables designers to explore bold, sculptural forms.

From geometric shapes to customized layouts, these accessories support seamless integration and endless design flexibility.

L-Shape(Lit-Pattern Connectors)
120°L-Shape(Lit-Pattern Connectors)
T-Shape(Lit-Pattern Connectors)
Y-Shape(Lit-Pattern Connectors)
X-Shape(Lit-Pattern Connectors)
L-Shape(Non Lit-Pattern Connectors)
Z-Shape(Non Lit-Pattern Connectors)
T-Shape(Non Lit-Pattern Connectors)
X-Shape(Non Lit-Pattern Connectors)
2 Head x 60°(Non Lit-Pattern Connectors)
3 Head x 60°(Non Lit-Pattern Connectors)
4 Head x 60°(Non Lit-Pattern Connectors)
5 Head x 60°(Non Lit-Pattern Connectors)
6 Head x 60°(Non Lit-Pattern Connectors)
1.Dense 275 120L Y 4FT

HEXAGONAL FORMATION

Y-Shape lit connectors enable seamless hexagonal patterns with continuous illumination—ideal for sculptural ceilings and immersive installations.

1.Dense 275 90L 120L Y X T

SUSPENDED SCULPTURE

With LYTX suspension, lighting becomes part of the architecture—lightweight, geometric, and spatially expressive.

1.Dense 275 90L

GRID CONFIGURATION

Square layouts built with L-Shape connectors deliver a clean, organized aesthetic—ideal for structured, modular ceiling designs.

FOUR MOUNTING OPTIONS

Dense275 offers four installation methods—Wall Mount, Surface, Recessed, and Pendant—each with clean detailing and a consistent visual language.

1

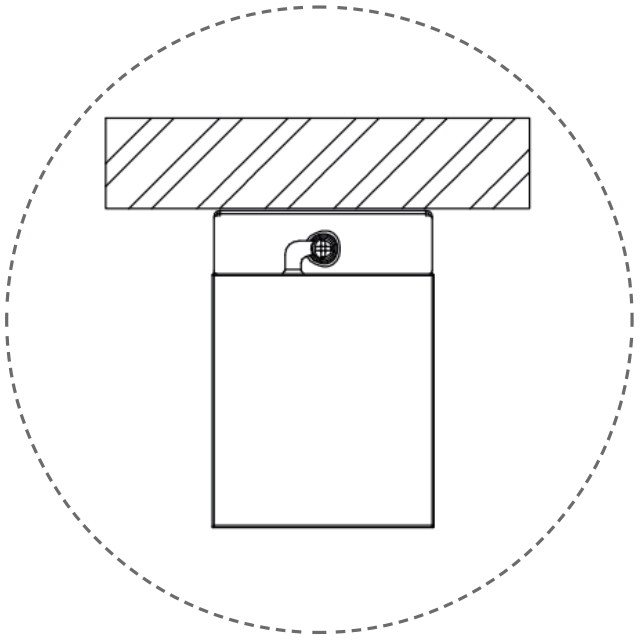

Wall Mount

2

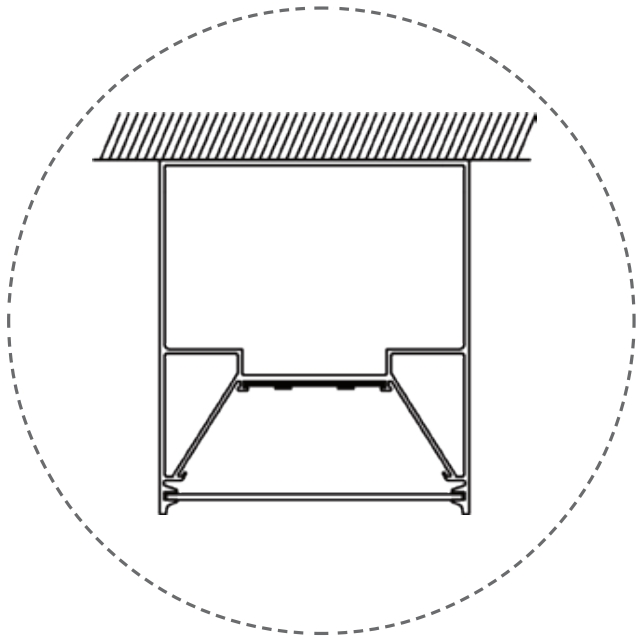

Surface

3

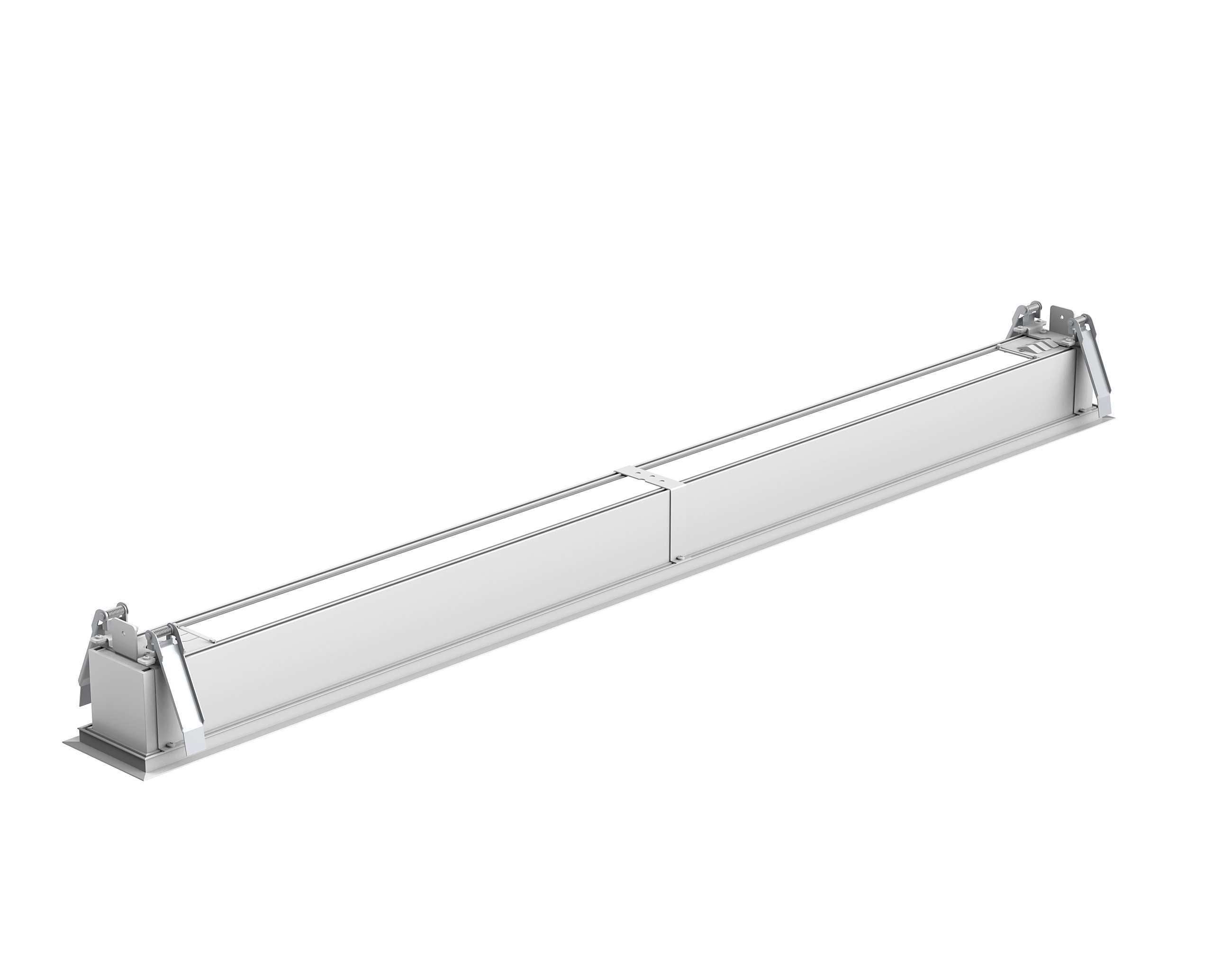

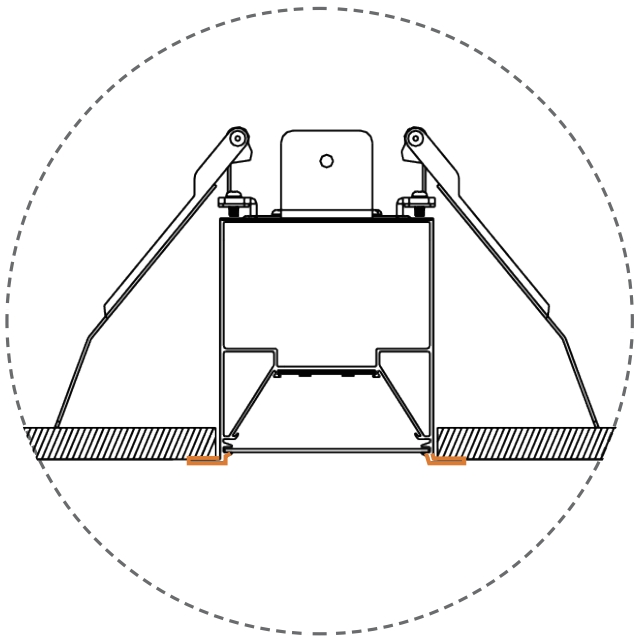

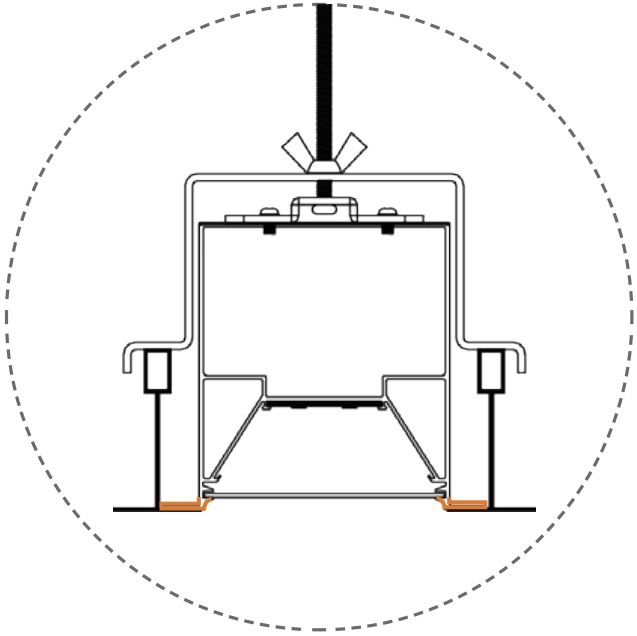

Recessed

4

Pendant

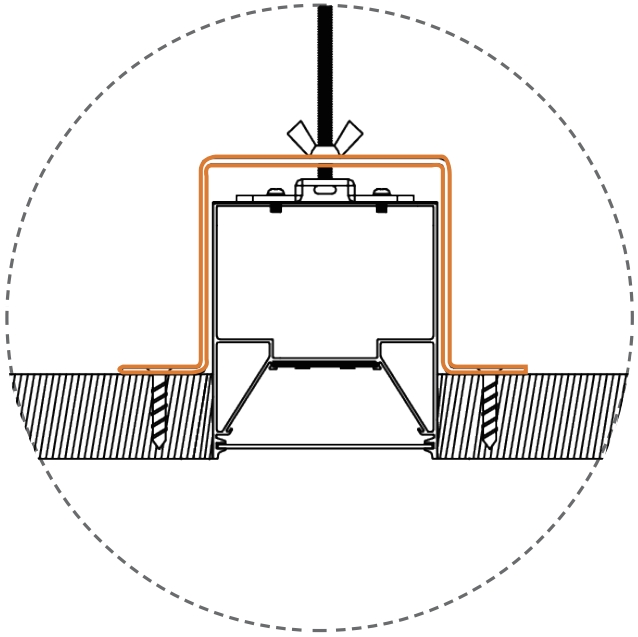

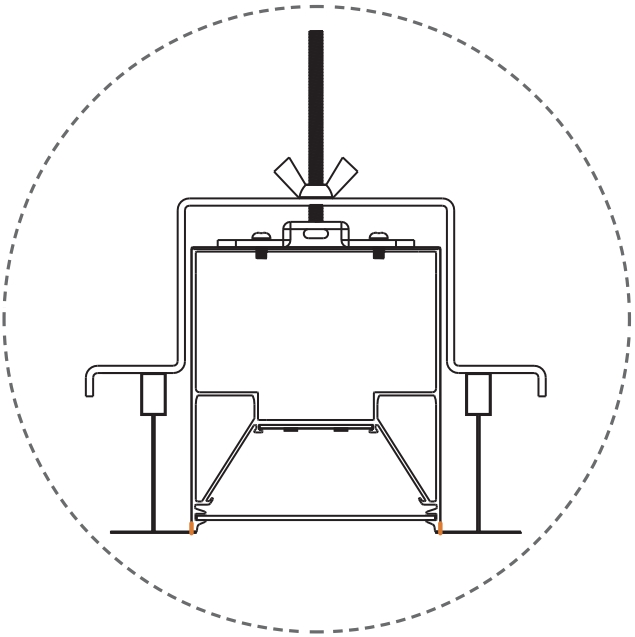

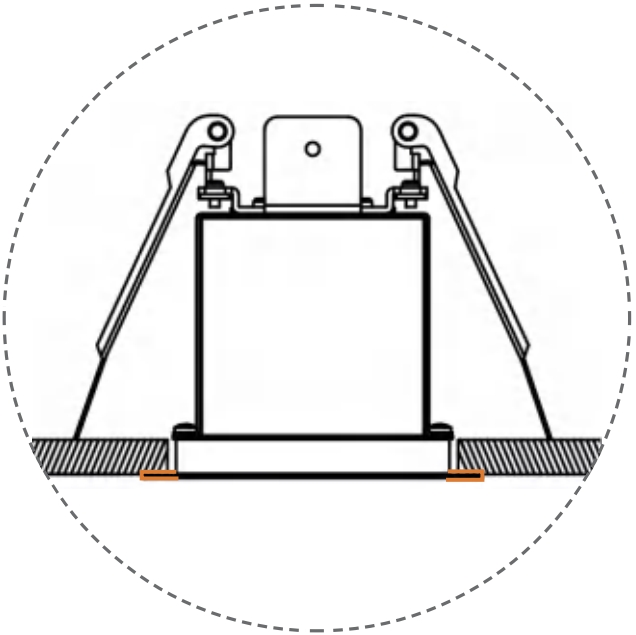

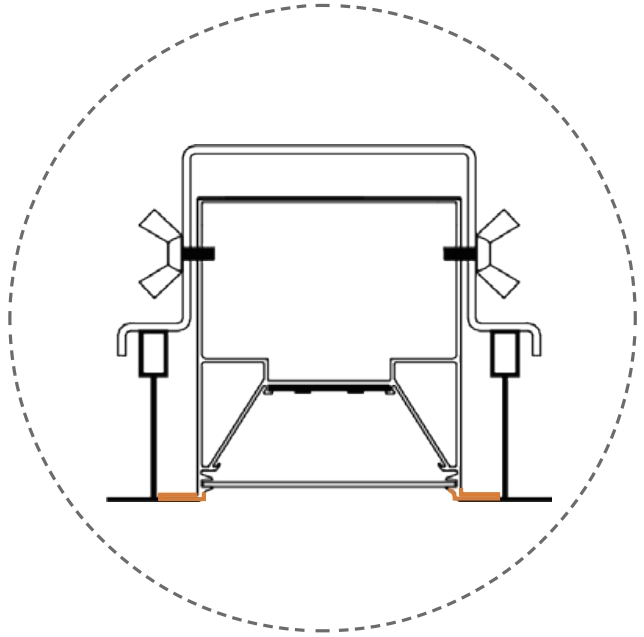

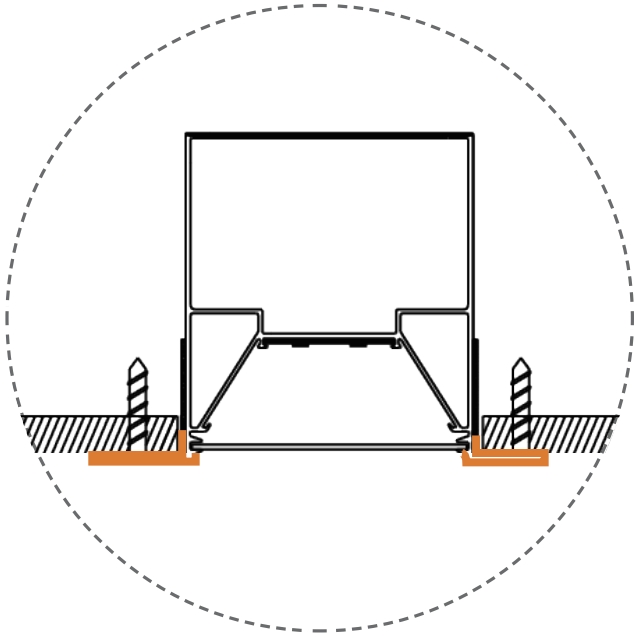

INSTALLATION ACCESSORIES

A full set of accessories is available for each mounting type, ensuring seamless installation under different ceiling conditions.

Quick linkable function

微信截图_20250606112611

Run Length Limits

Run Length Limits(ft)2FT4FT8FT
Max Linkable Units7 units7 units4 units
Total connected load:<420W at 120V & <960W at 277V & <1200W at 347V

Finishes

[BK] Black
[WH] White
[SR] SILVER
Custom

Run Lengths

Standalone fixtures are available in 2FT(606mm),3FT(906mm)，4FT(1206mm),6FT(1806mm) and 8FT(2406mm) nominal lengths.

3.Dense Sense 275

Customizable Dip Switch

Dense 198/2FT/20W/RA80/4000K
Dense 198/2FT/20W/RA80/4000K
Dense 198/4FT/40W/RA80/4000K
Dense 198/4FT/40W/RA80/4000K
Dense 198/8FT/80W/RA80/4000K
Dense 198/8FT/80W/RA80/4000K

Documentation

Spec Sheets + Photometry

FamilyVersionContentDownload
Dense 275IESDense-275-B-2FT-20W-Diffuser-CRI80-3000K-White-115LmW-IES
Dense 275IESDense-275-B-4FT-40W-Diffuser-CRI80-3000K-White-115LmW-IES
Dense 275IESDense-275-B-4FT-40W-Diffuser-CRI80-4000K-White-115LmW-IES
Dense 275V10-24Dense 275 Specification Sheet

Install Docs

FamilyVersionContentDownload
Dense 275, Sense, Sense 275V10-24Dense + Sense Metal Non-luminous LX Connector Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense New T-bar Recessed Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Suspension Kits Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Louver Lens Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Sensor Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense T-grid Recesse Mount With Frange Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Linkable Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Link Pattern Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Suspension Mount(Type-B) Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Recessed Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drop Ceiling Suspension Mount Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Ceiling Wall Recessed Installation Instruction
