Dense 276(GEN22)
Dense 276 (GEN 22)

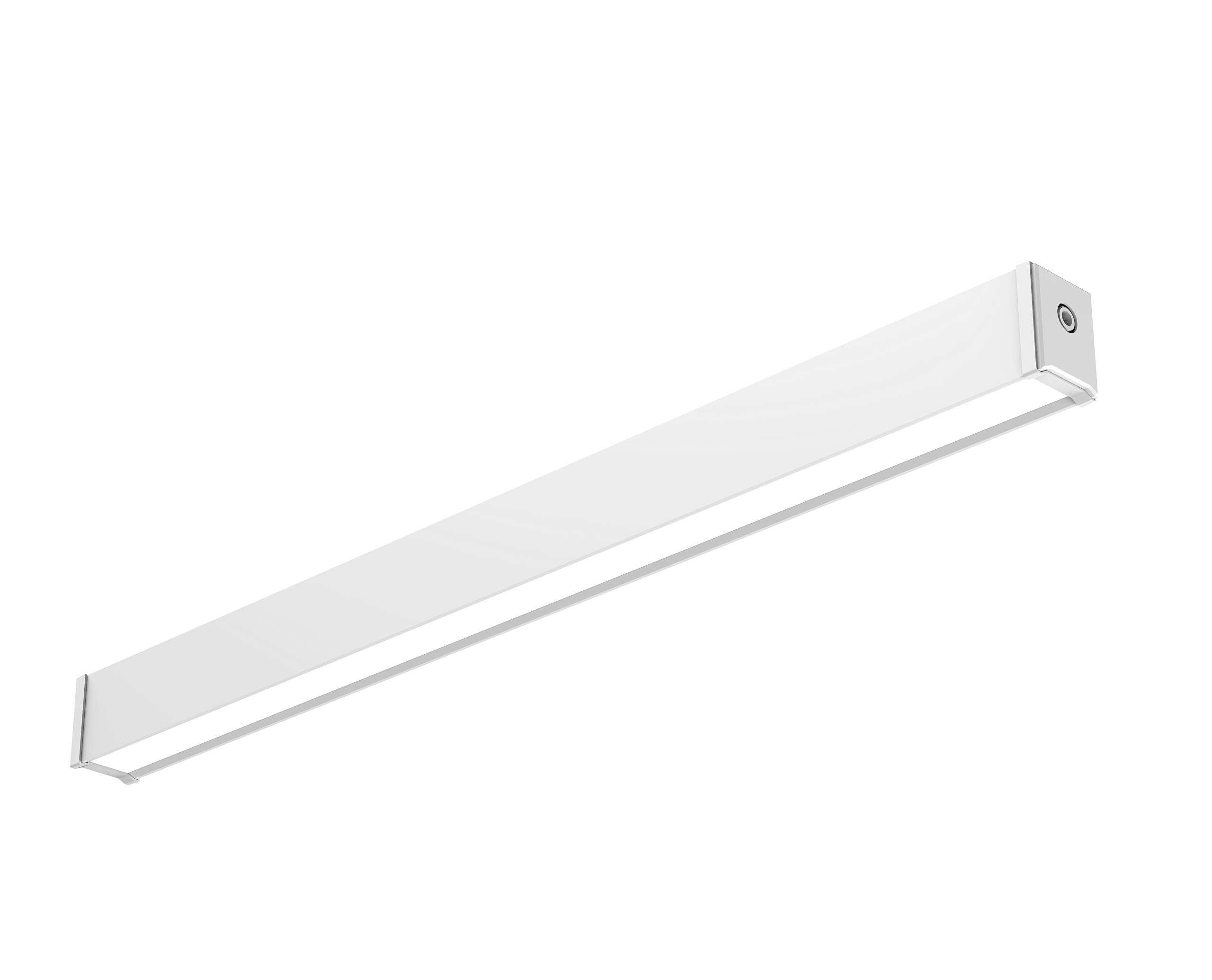

The Dense 276, an IP65-rated linear luminaire, is an ideal choice for long-term professional lighting applications in wet locations.

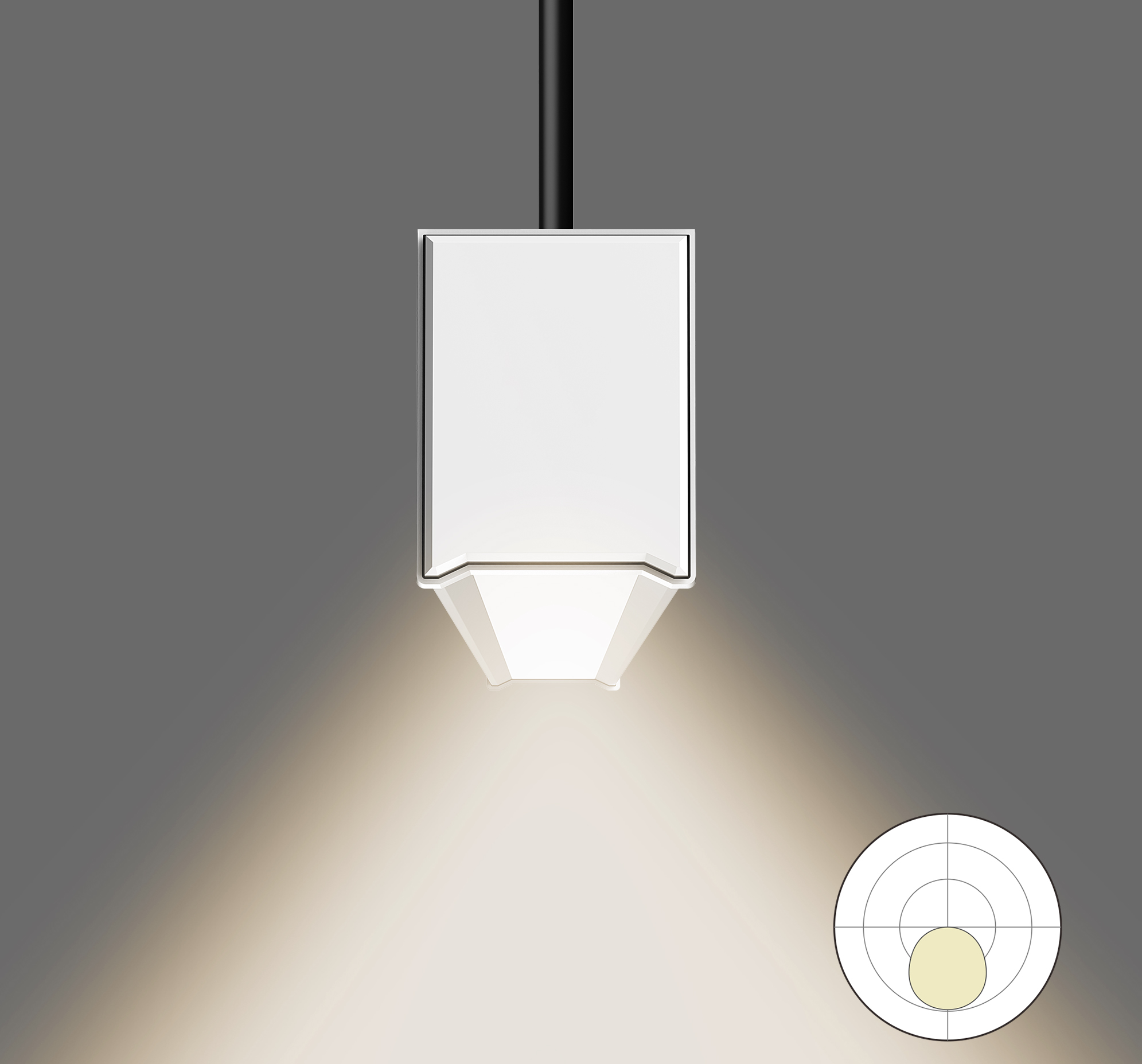

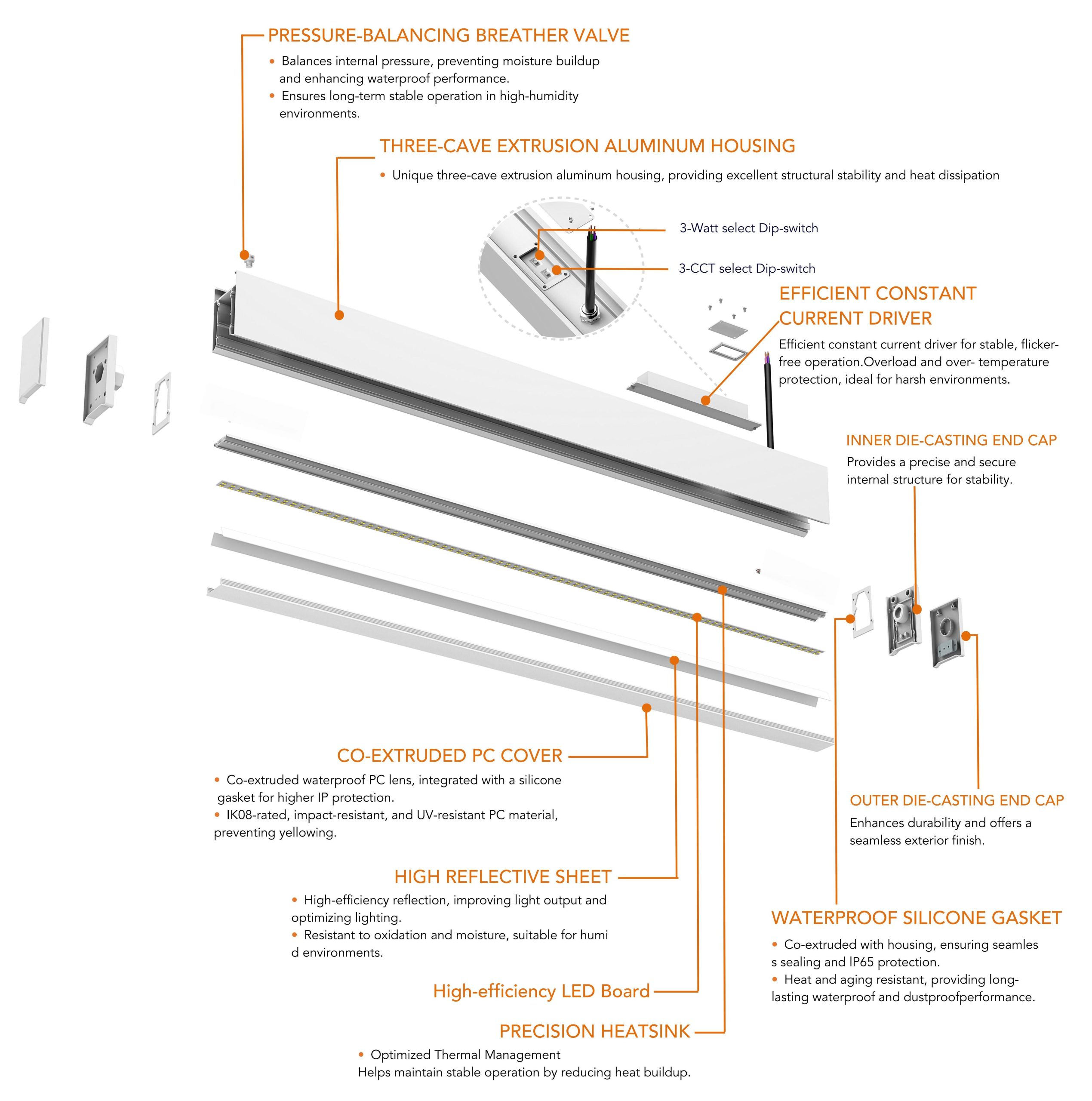

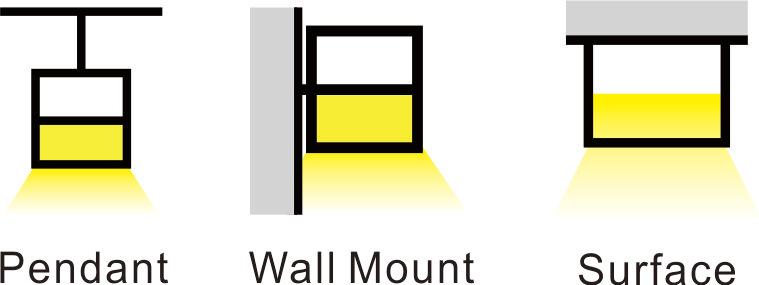

It features a unique triple-cavity extruded aluminum housing with a double-layer isolation end cap structure.Mounting options include rigid stem pendant, recessed, wall, and surface mount.
Designed for demanding environments, this IP65-rated luminaire offers protection against moisture, wind, dust, oil, and insects. The co-extruded gasketed lens is IK08-rated and features a clean design with no exposed fasteners.
| Model | Length | Wattage Select | Efficacy | Lumen | CCT Select | Voltage | Dimmable | CRI | Flicker | UGR |
|---|---|---|---|---|---|---|---|---|---|---|
| WL-22LSD2FT20WB3D1UV | 2FT | 10W/15W/20W | 105lm/w | 1050lm/1575lm/2100lm | 30K/35K/40K or 30K/40K/50K | 120-277V | 0-10V (1%-100%) | >80 | <5% | 28 |
| WL-22LSD4FT40WB3D1UV | 4FT | 20W/30W/40W | 105lm/w | 2100lm/3150lm/4200lm | 30K/35K/40K or 30K/40K/50K | 120-277V | 0-10V (1%-100%) | >80 | <5% | 28 |
| WL-22LSD8FT80WB3D1UV | 8FT | 40W/60W/80W | 105lm/w | 4200lm/6300lm/8400lm | 30K/35K/40K or 30K/40K/50K | 120-277V | 0-10V (1%-100%) | >80 | <5% | 28 |
| WL-22LSD4FT70WADUV | 4FT | 70W | 105lm/w | 7350lm | 3000K-5000K Single CCT | 120-277V | 0-10V (10%-100%) | >80 | <5% | 28 |
| WL-22LSD8FT140WADUV | 8FT | 140W | 105lm/w | 14700lm | 3000K-5000K Single CCT | 120-277V | 0-10V (10%-100%) | >80 | <5% | 28 |
IP65 Dense 276 (GEN22) — Product Introduction Video
Run Lengths

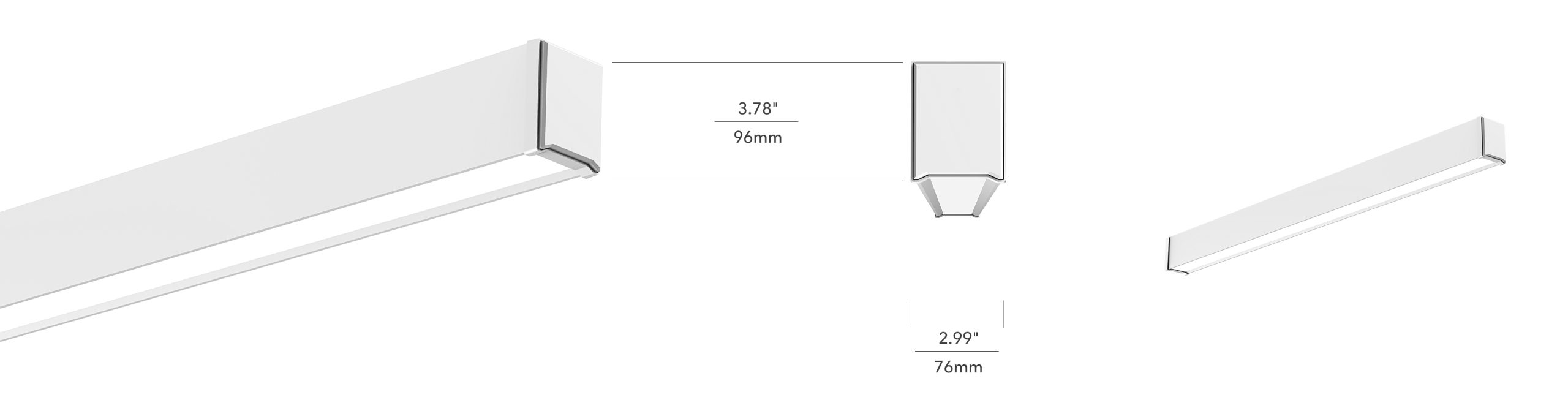

Standalone fixtures are available in 2FT(632mm),4FT(1232mm) and 8FT(2432mm) nominal lengths.

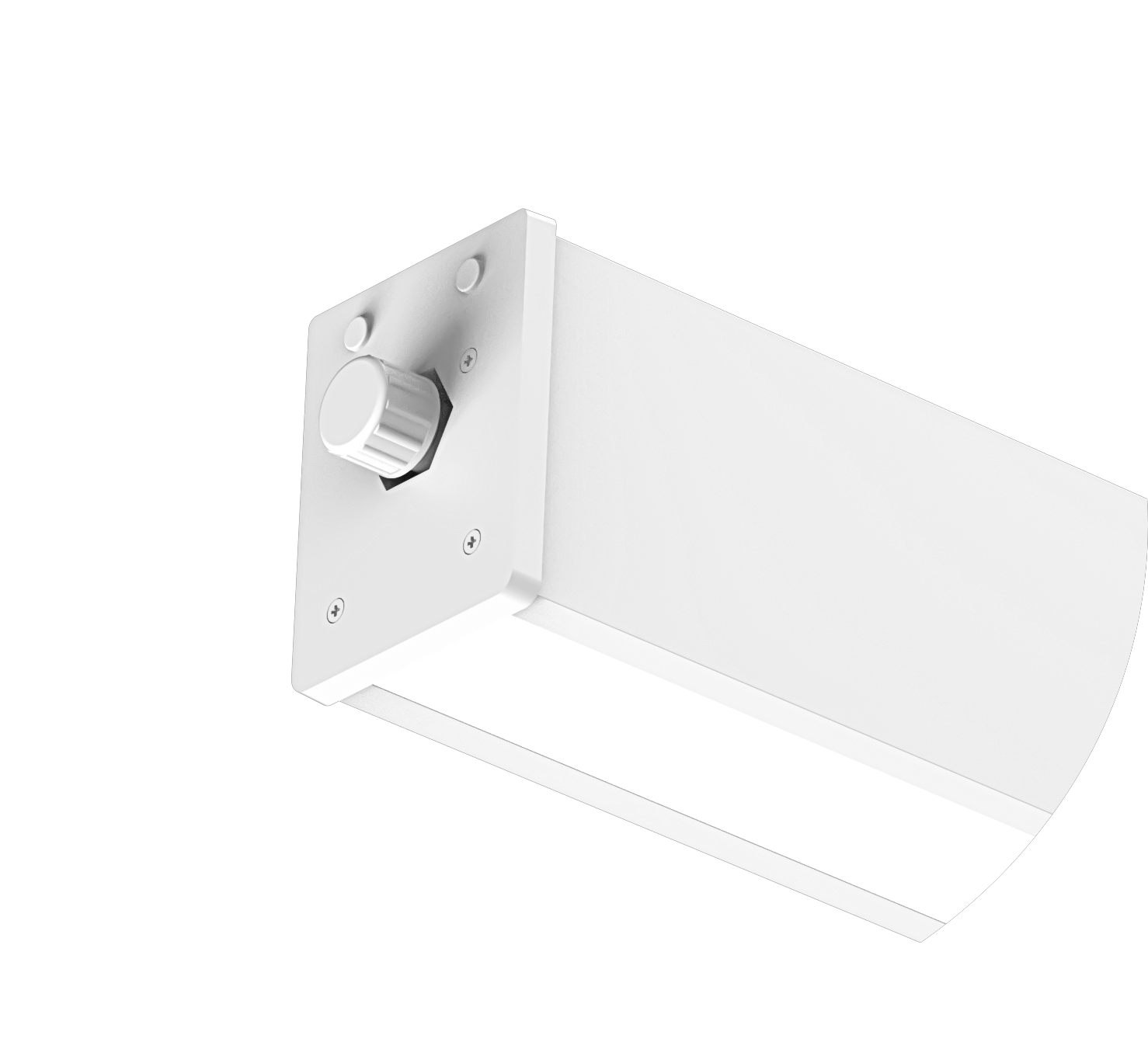

IP65 SEALED DESIGN

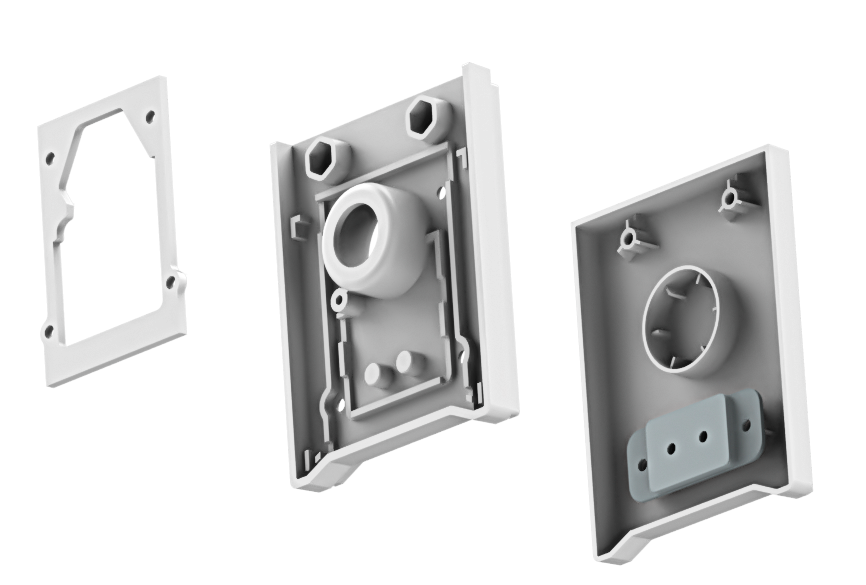

Durable die-cast ends and integrated silicone sealing ensure long-lasting waterproof and dustproof protection.

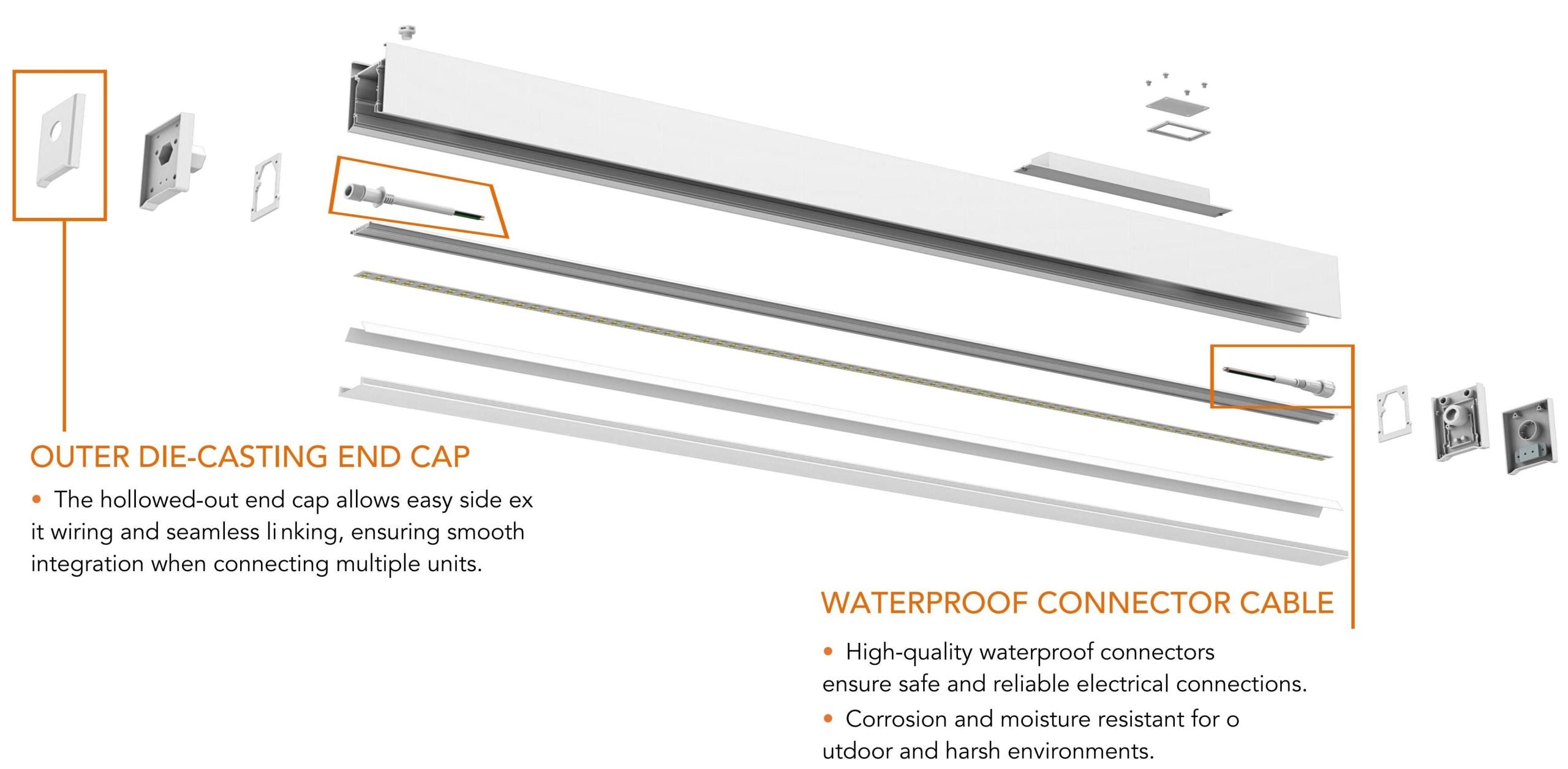

SIDE EXIT LINKABLE OPTION
Designed for seamless, continuous runs with side exit wiring, ideal for expansive lighting layouts.

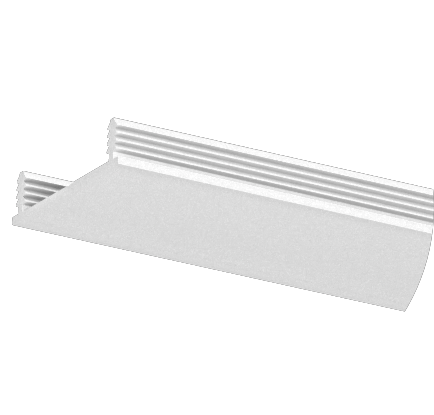

PC COVER
Durable co-extruded PC lens with silicone seal for enhanced waterproofing, impact and UV resistance.
WIRING EXIT TYPE

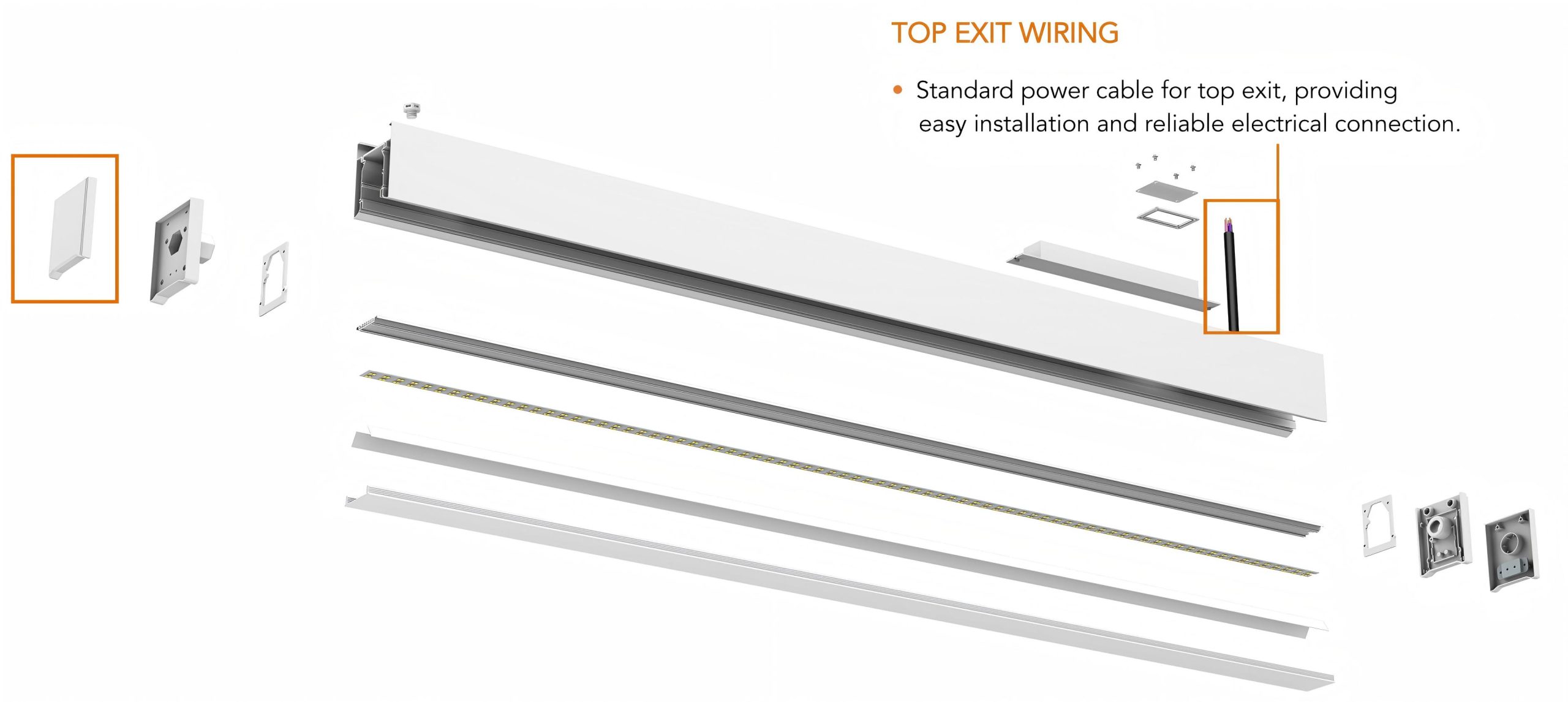

Top Exit (Standard Version, Non-Linkable)
- Description: The standard version with top exit wiring, designed for individual installations where seamless connection is not required.
- Use Case: Ideal for standalone installations, providing a clean and simple wiring solution.
Side Exit (Linkable Version)-Option
-
Description: The linkable version with side exit wiring, designed for seamless, continuous connections. This version allows multiple units to be connected without gaps, enabling versatile and expansive lighting designs.
-
Use Case: Perfect for projects that require long, uninterrupted lighting stretches, offering flexibility and ease of installation.

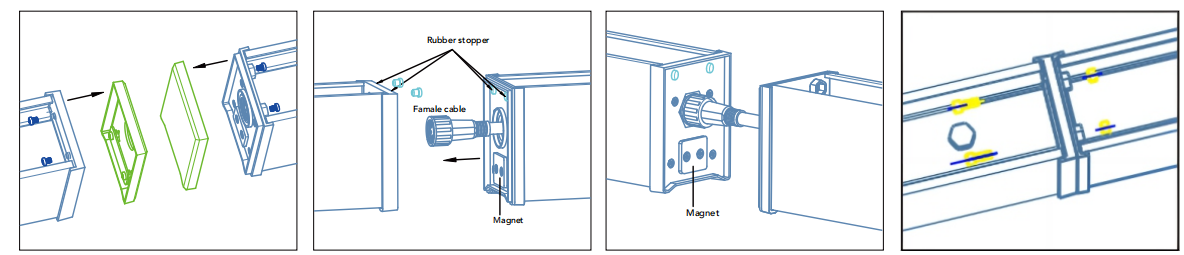

Quick linkable function
Run Length Limits
| Run Length Limits(ft) | 2FT | 4FT | 8FT |
| Max Linkable Units | 7 units | 7 units | 4 units |
| Total connected load | <420W at 120V & <960W at 277V |
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Dense 276 | V10-24 | Dense-276-Spec-Sheet-V3.3-Specification Sheet | |
| Dense 276 | IES | P65-Dense-276-2FT-20W-CRI80-4000K-White-IES | |
| Dense 276 | IES | IP65-Dense-276-4FT-40W-CRI80-3500K-White-IES | |
| Dense 276 | IES | IP65-Dense-276-4FT-70W-CRI80-4000K-White-IES | |
| Dense 276 | IES | IP65-Dense-276-8FT-80W-CRI80-4000K-White-IES | |
| Dense 276 | IES | IP65-Dense-276-8FT-140W-CRI80-4000K-White-IES |
