Dense 375(GEN8)
Dense 375 (GEN 8)
The Dense 375 series defines minimalist sophistication, delivering clean, continuous lines of illumination across any architectural setting.
Powered by advanced linear LED technology, it offers industry-leading efficacy and full customization—including aperture selection, seamless continuous runs, and unlimited lengths.Its robust construction and modular design simplify installation and guarantee alignment in every run.

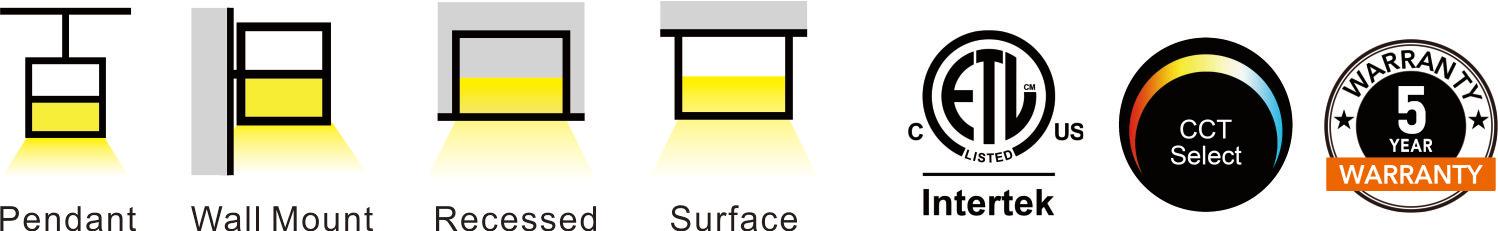

Available in recessed, surface-mount, or suspended configurations, the CCT-selectable Dense 375 is the go-to solution for versatile and demanding projects.
| Model | Length | Wattage | Efficacy | Lumen | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-8LSD2FT20WBD1HV(XXK-XXK-XXK)-YY-ZZ | 2FT(606mm) | 20W | 120Lm/W | 2400lm | 30K/35K/40K | AC120-277V | 0-10V(1%-100%) | >80 |
| WL-8LSD4FT40WBD1HV(XXK-XXK-XXK)-YY-ZZ | 4FT(1206mm) | 40W | 120Lm/W | 4800lm | 30K/35K/40K | AC120-277V | 0-10V(1%-100%) | >80 |
| WL-8LSD8FT80WBD1HV(XXK-XXK-XXK)-YY-ZZ | 8FT(2406mm) | 80W | 120Lm/W | 9600lm | 30K/35K/40K | AC120-277V | 0-10V(1%-100%) | >80 |

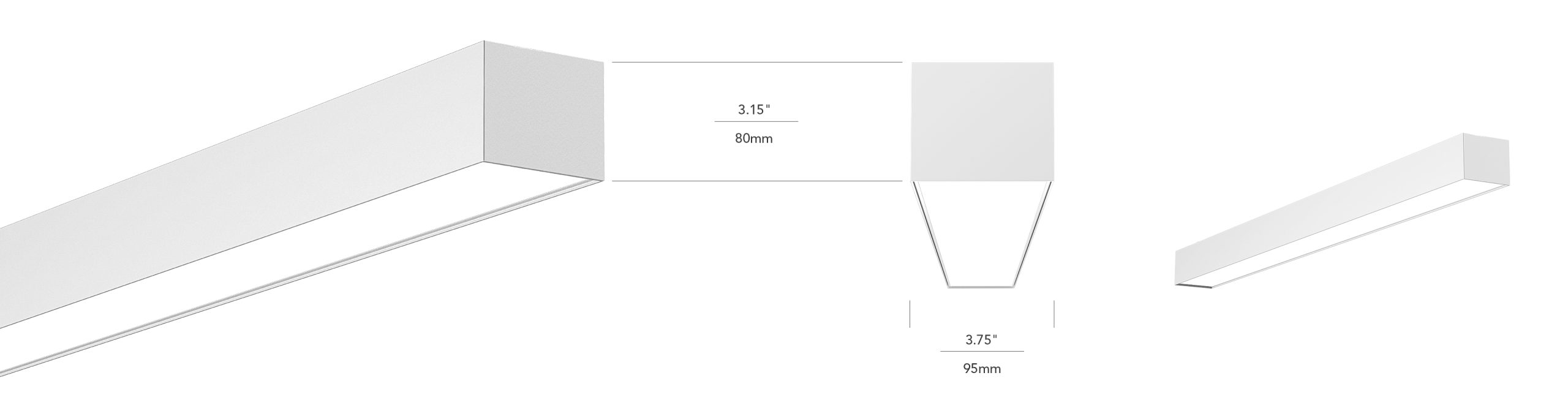

Run Lengths
Standalone fixtures are available in 2FT(606mm), 4FT(1206mm) and 8FT(2406mm) nominal lengths.
VERSATILE APPLICATIONS

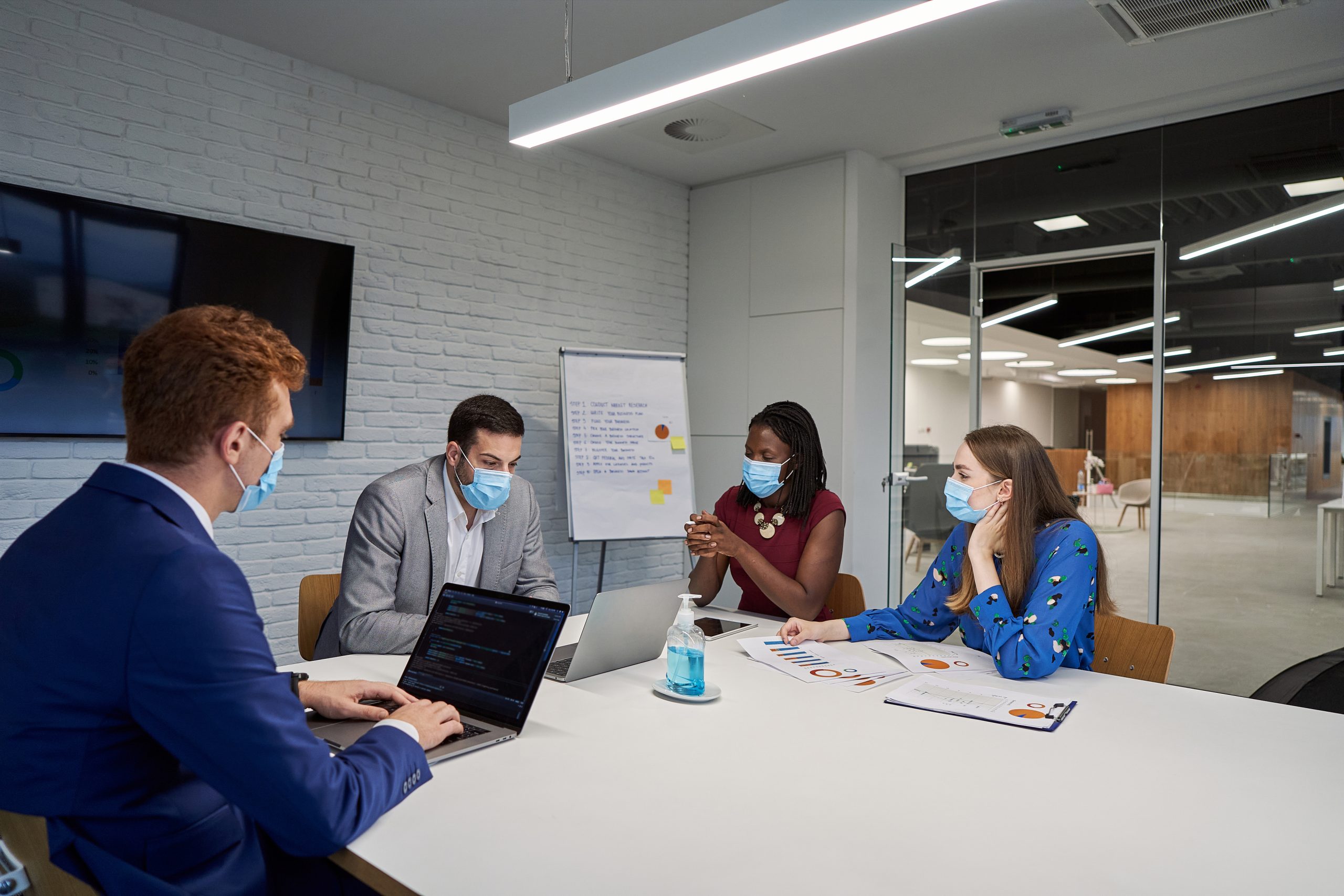

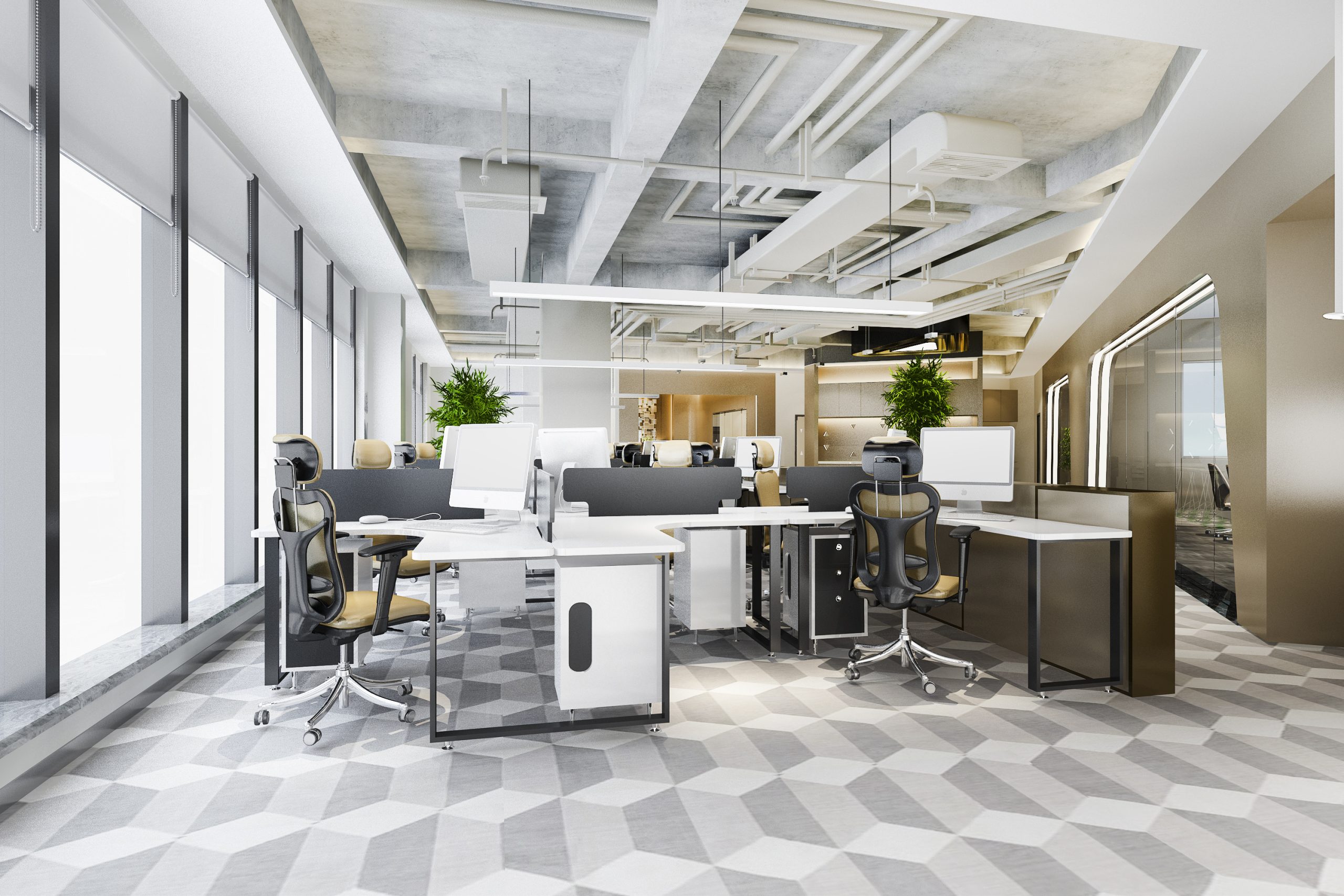

The Dense 375 is ideal for modern commercial environments such as offices, retail spaces, and educational facilities. Its minimalist design and uniform lines of light deliver both visual comfort and architectural refinement, enhancing productivity and ambience in any space.
TAILORED OPTICS FOR ARCHITECTURAL PRECISION
Lighting is more than brightness—it's the way light behaves in space. Our refined optical selections offer designers tools to shape light with purpose: continuous lines, glare control, or soft ambient reflection.

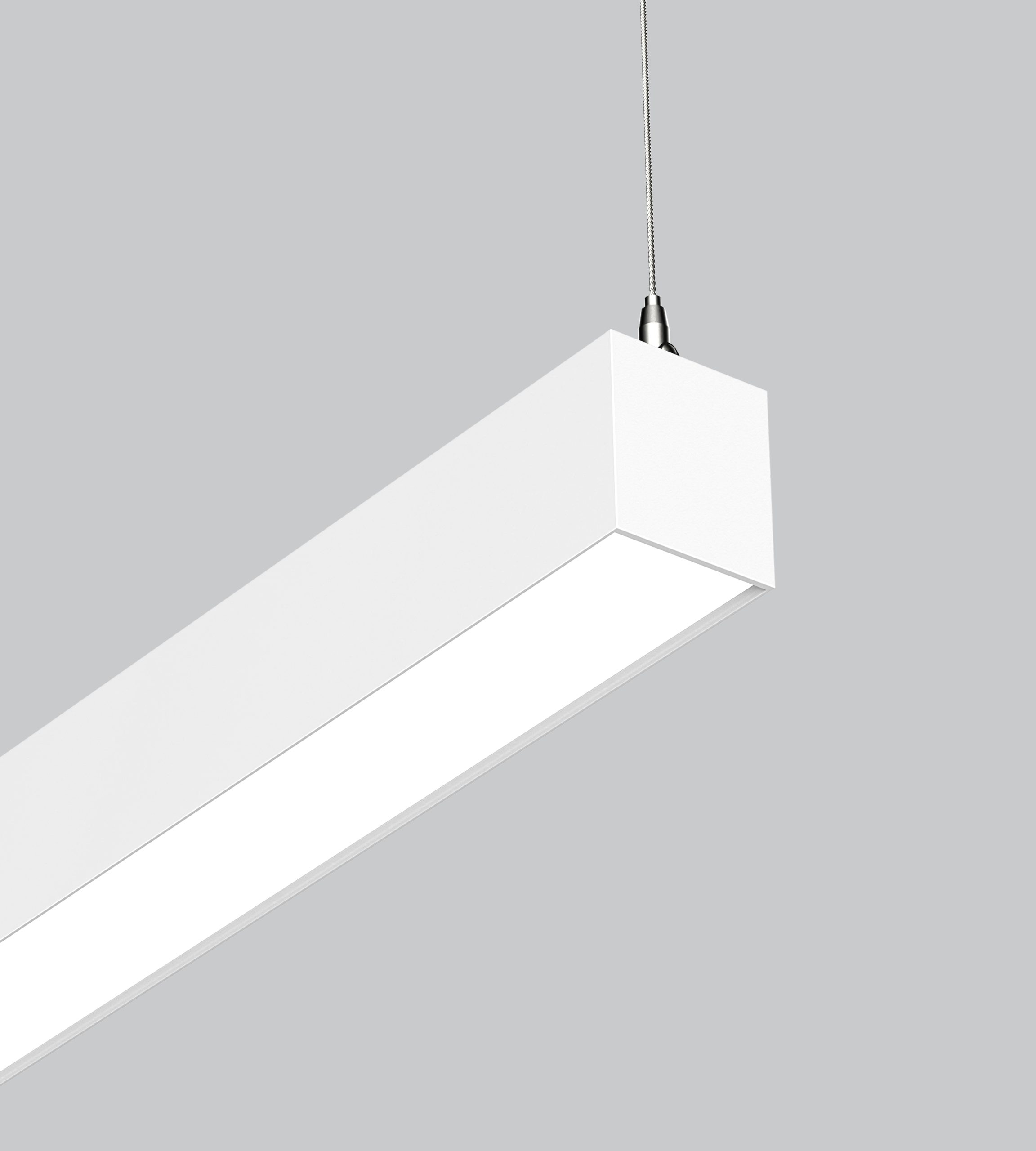

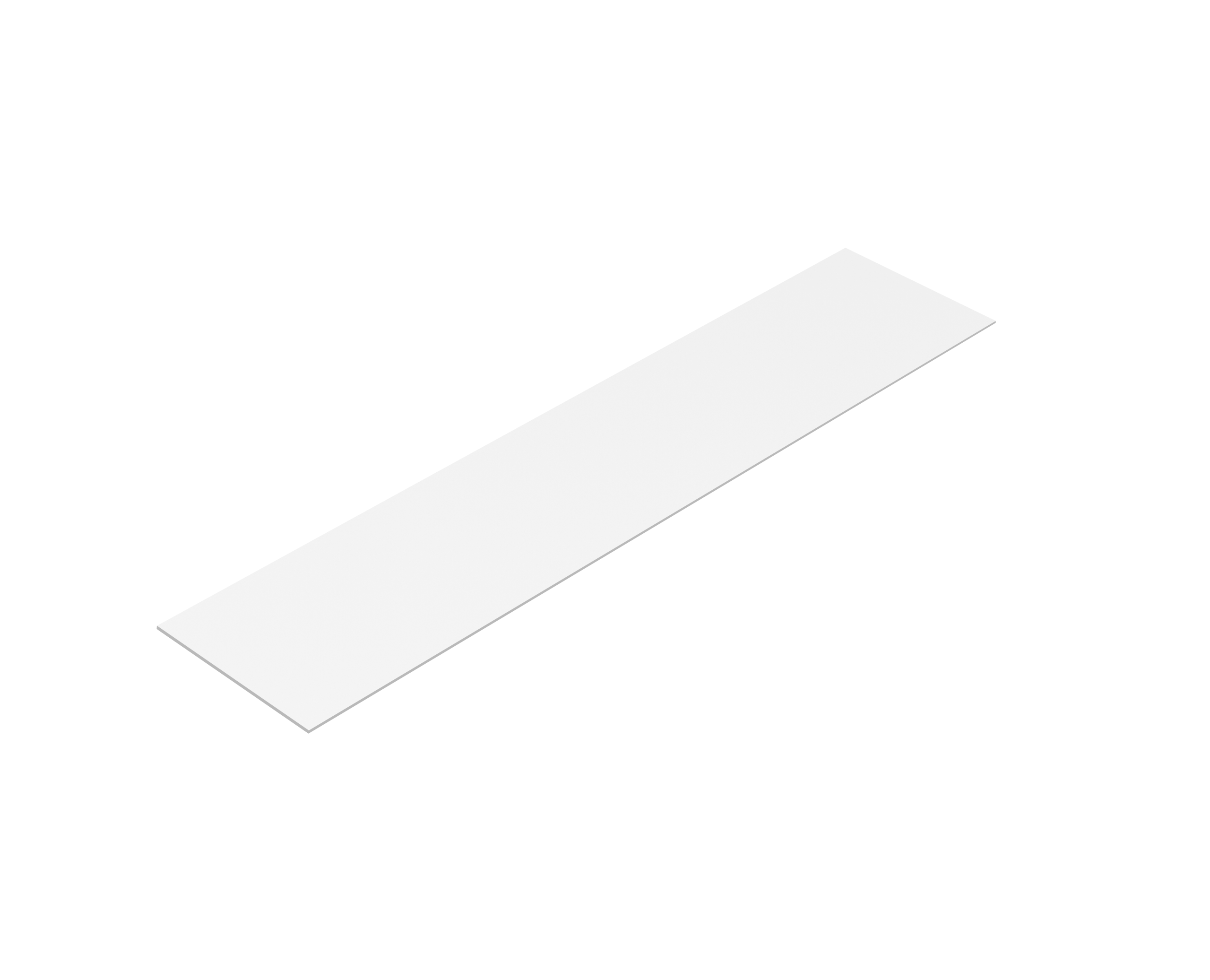

SPOTLESS DIFFUSER
Delivers smooth, dot-free illumination for a clean, continuous line of light. Ideal for modern interiors where uniformity and visual comfort are key.

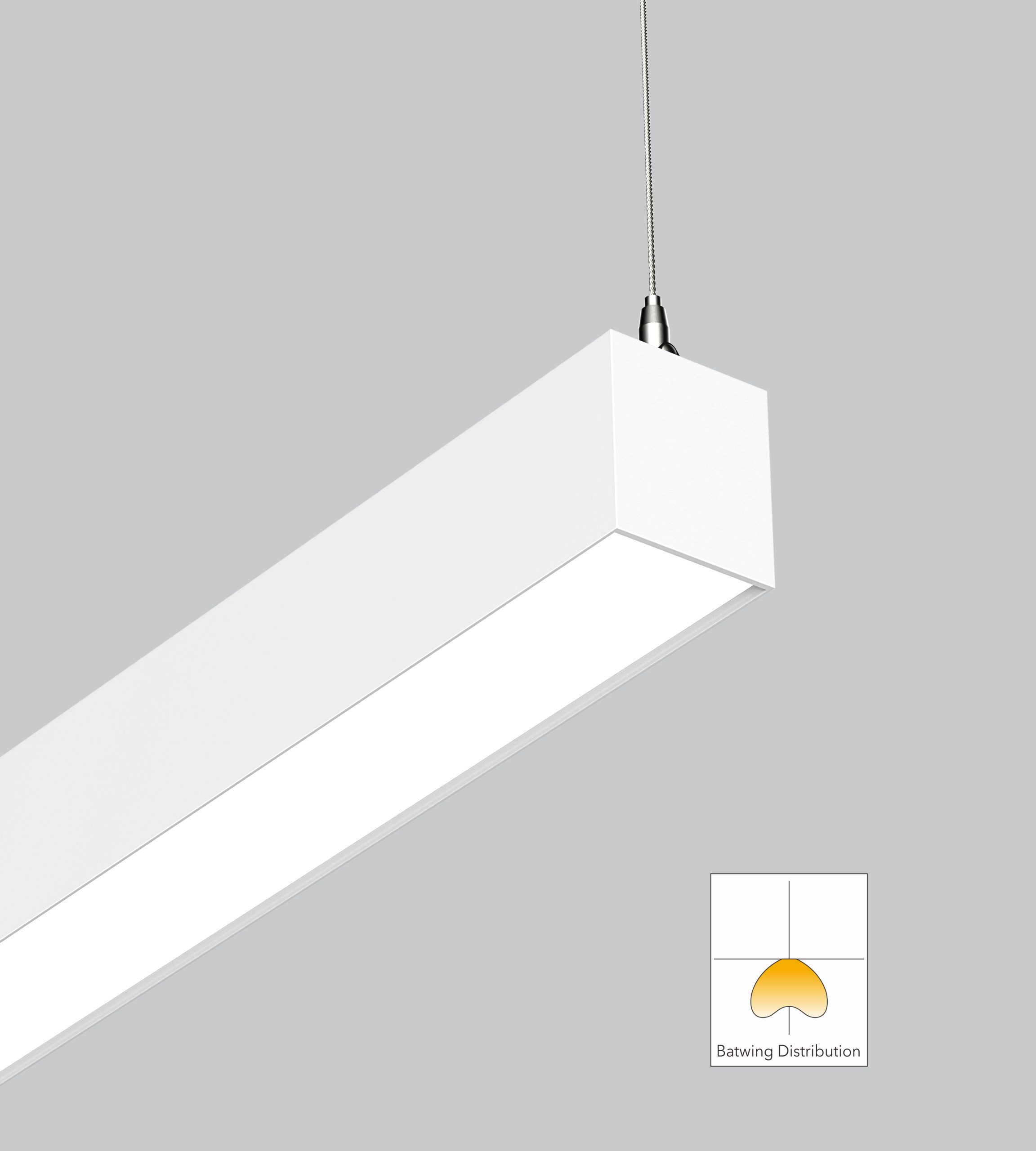

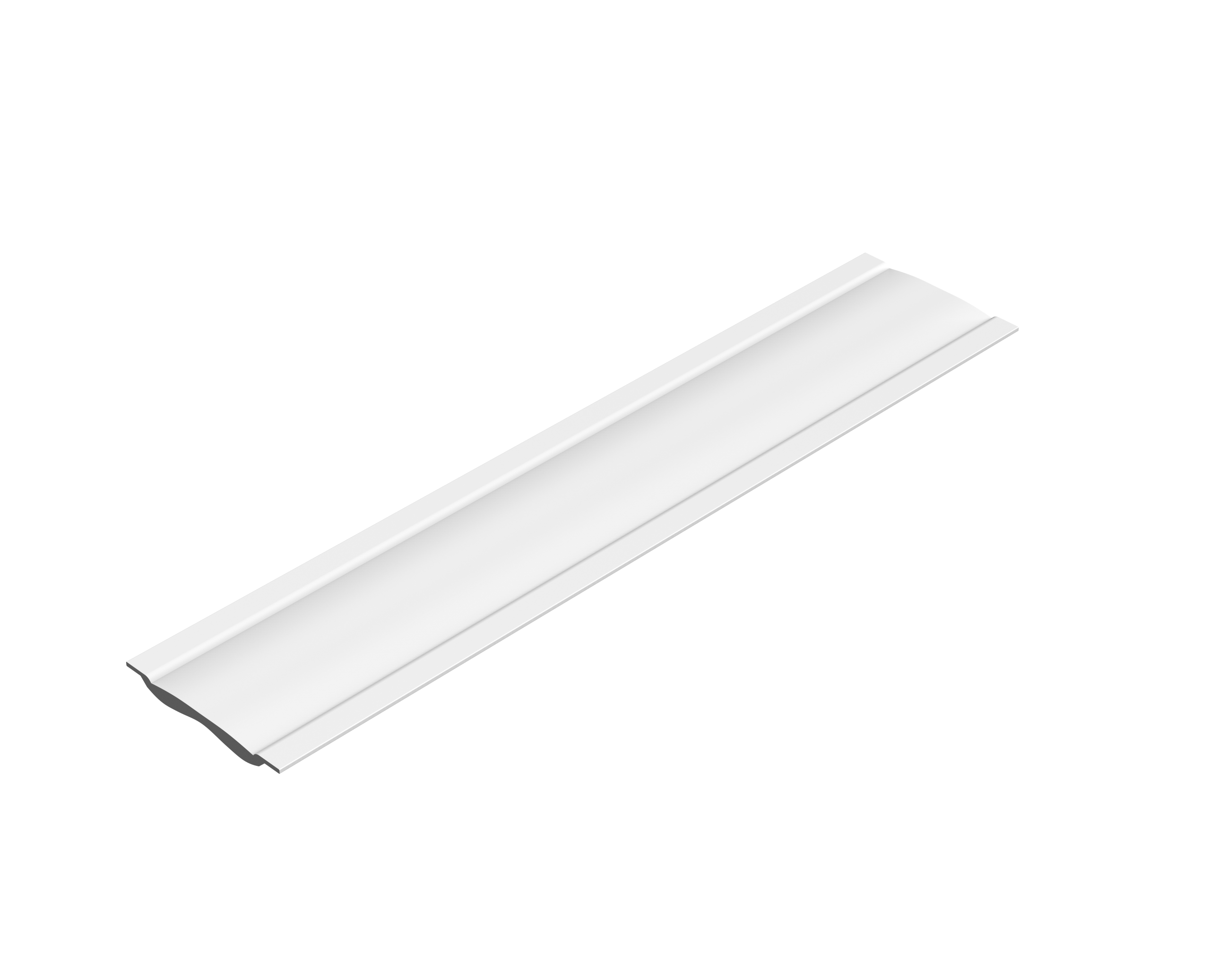

BATWING FILM
Creates a wide horizontal light spread with reduced ceiling hotspot. Perfect for indirect lighting applications that demand even ceiling brightness.

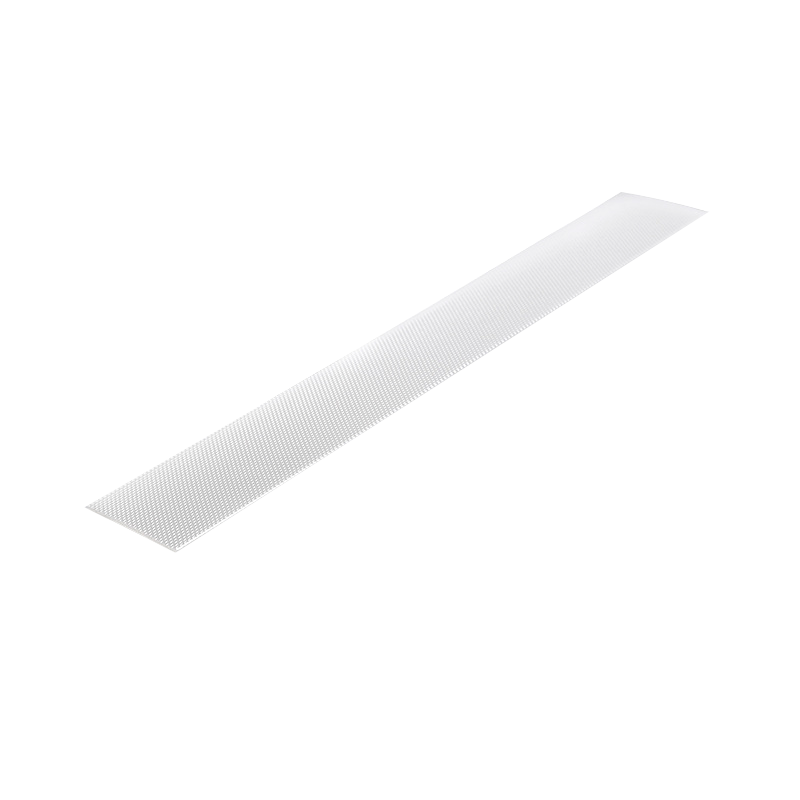

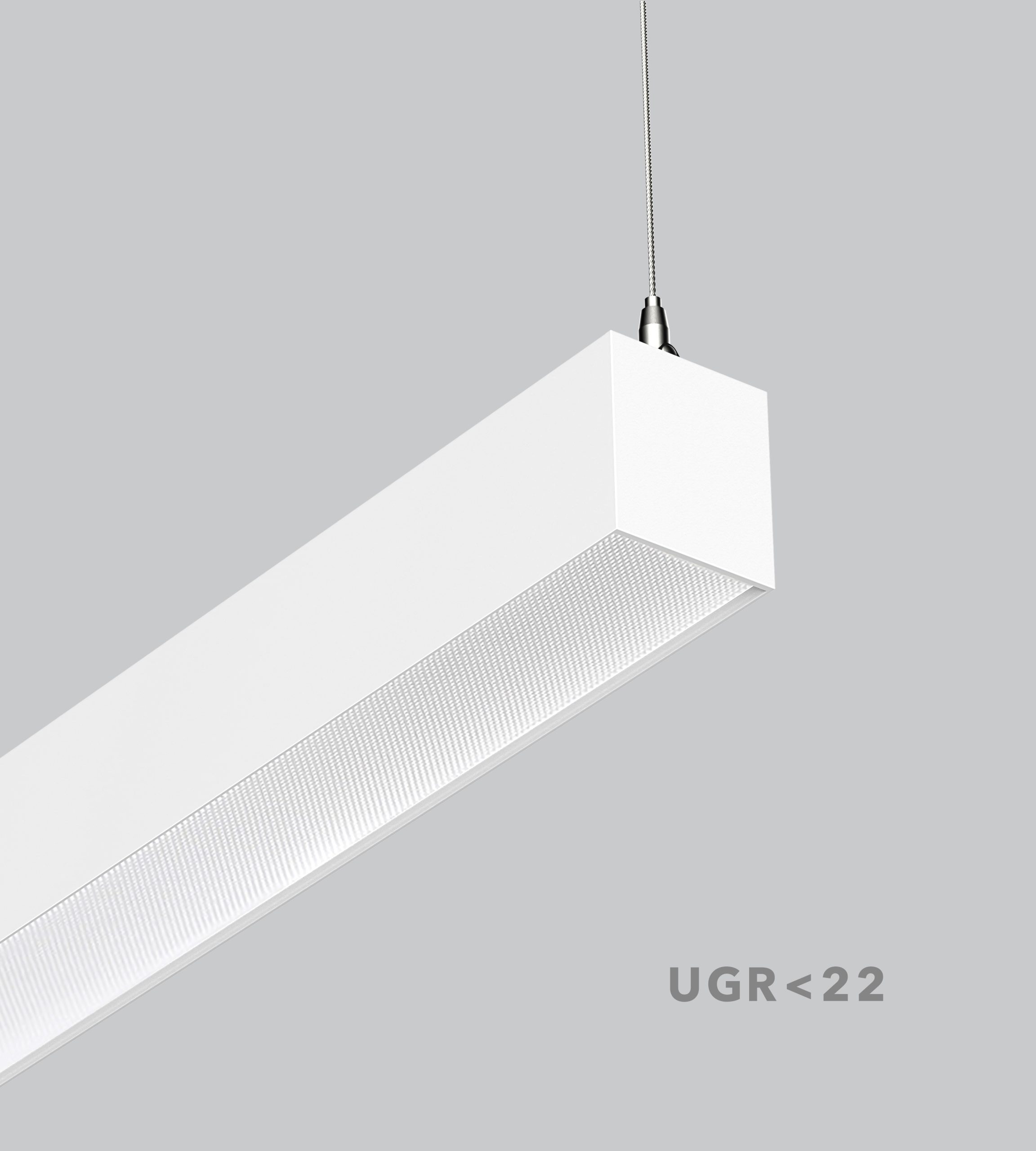

PRISMATIC DIFFUSER
Featuring micro-structured patterns, it balances efficiency and comfort—redirecting light for better coverage while maintaining visual clarity.
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
