Dense E 260(GEN1)
Dense E 260 (GEN 1)
The Dense E 260 embodies a minimalist and elegant design, featuring smooth and consistent lines of light that enhance any architectural environment. Utilizing advanced linear LED technology, the Dense series excels in efficiency and provides complete customization options, including various apertures and wall installation configurations. Its robust construction and adaptable, modular elements streamline the installation process, ensuring precise and straight configurations. The Dense E 260 model is versatile, available for wall mount or suspension, and with a simple 40W at 115 lpw, it can meet the requirements of any project within budget constraints.
| Model | Length/Pattem | Wattage | Efficacy | Lumens | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-LSD4FT40WDHV-30K/40K/50K-T | 4FT(1130mm) | 40W | 115lm/W | 4600lm | 30K/35K/40K | 120-347V | 0-10V | >80 |
Dense 260(GEN 1) Video Introduction
Run Lengths
Standalone fixtures are available in 4FT(1130mm)nominal lengths.
TWO MOUNTING OPTIONS
Dense 260 offers two installation methods—Pendant and Wall Mount—each with clean detailing and a consistent visual language.

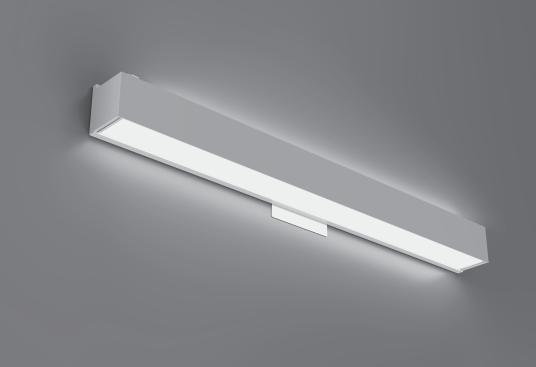

Wall Mount

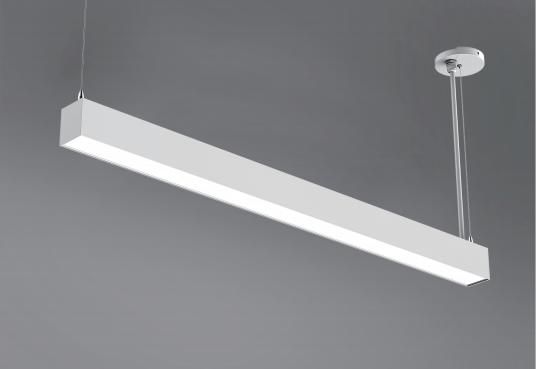

Pendant
Documentation
