Commercial GEN1 Downlight

The WL-DL downlight series delivers superior performance and energy efficiency. This high-performance luminaire offers 800 to 4000 lumens with color temperatures of 3000K, 3500K, 4000K, and 5000K at 90 CRI.

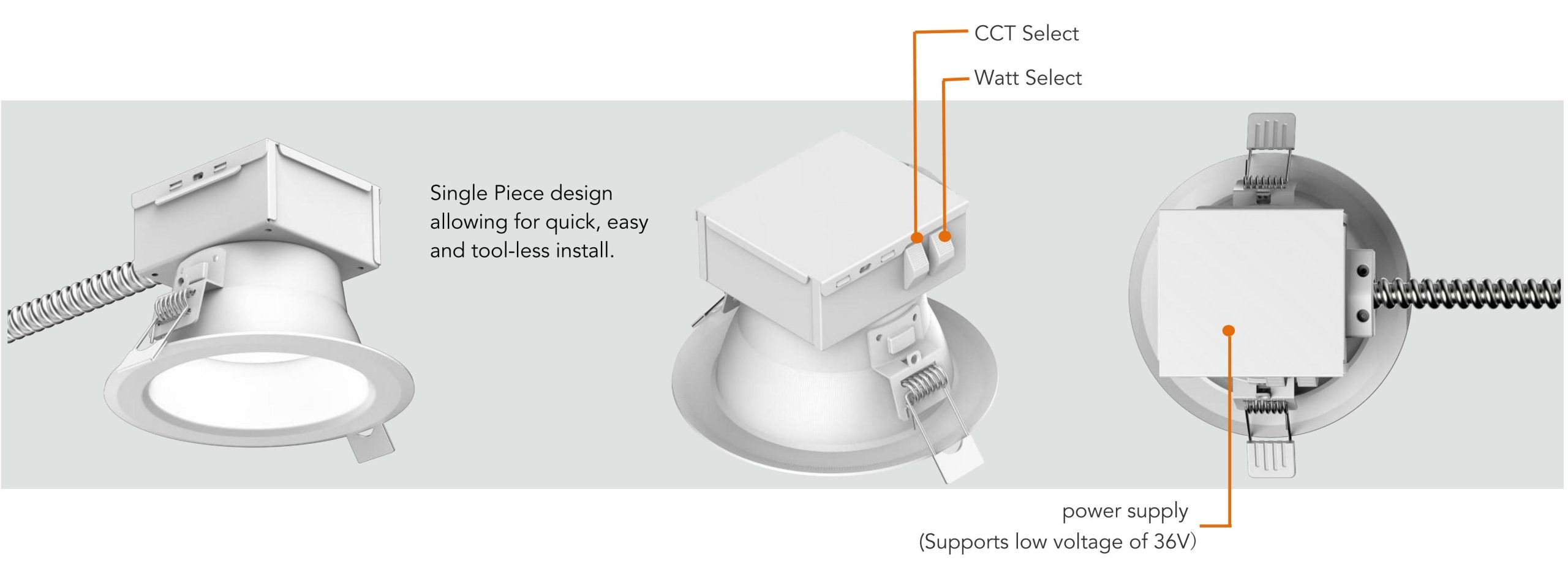

The standard driver offers universal (120-277VAC) input and 0-10V dimming from 5% to 100% (dim-to-off). This product is wattage- and CCT-selectable, making it ideal for low to medium ceiling heights in retail, hospitality, and commercial applications.

上下发光
IC RATING Model Size Wattage Select Efficacy Lumens CCT Select Voltage Beam Angle Dimming Flicker Rate UGR CRI
Non-IC ratedWL-DL04IN15WDUV4"9W/12W/15W100lm/W900/1200/1500lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
Non-IC ratedWL-DL06IN24WDUV6"12W/18W/24W100lm/W1200/1800/2400lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
Non-IC ratedWL-DL08IN24WDUV8"12W/18W/24W100lm/W1200/1800/2400lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
Non-IC ratedWL-DL08IN30WDUV8"20W/25W/30W100lm/W2000/2500/3000lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
Non-IC ratedWL-DL10IN40WDUV10"20W/30W/40W100lm/W2000/3000/4000lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
IC ratedWL-DL04IN8WDUV4"8W100lm/W800lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
IC ratedWL-DL06IN12WDUV6"12W100lm/W1200lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90
IC ratedWL-DL08IN20WDUV8"20W100lm/W2000lm30K/35K/40KAC120-277V100°0-10V (5%-100%)<5%<28>90

Commercial Downlight Trim Installation Video

DIMENSIONS

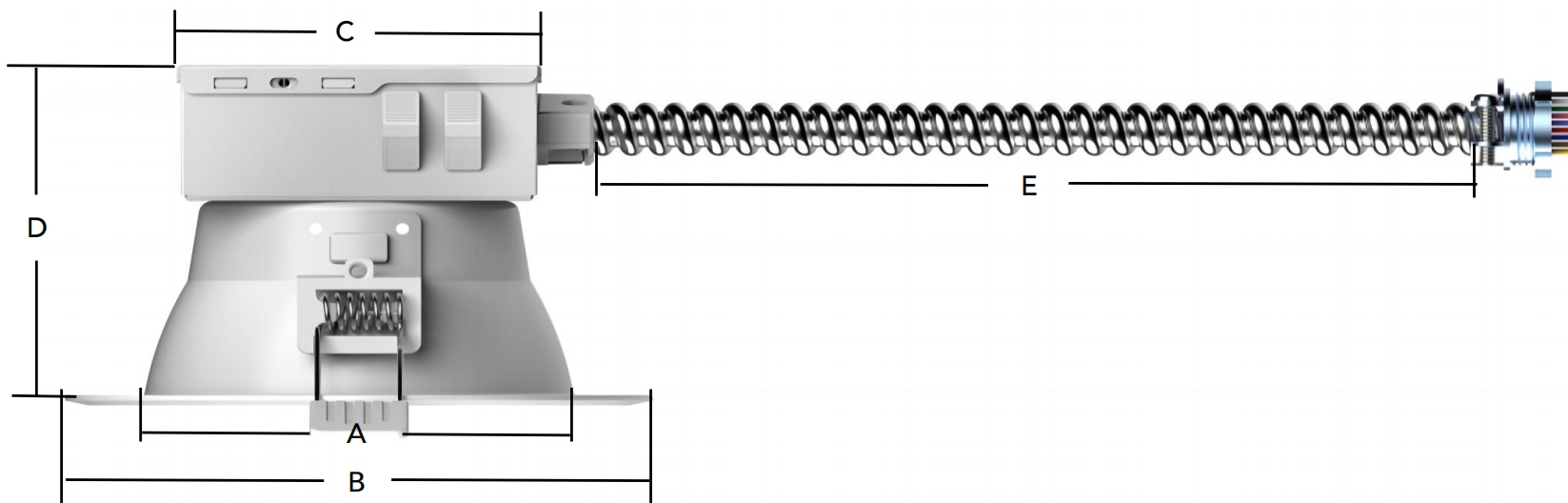

APERTURE CEILING CUTOUT MIN.–MAX. NOMINALA PERTURE 【A】Aperture Diameter 【B】Overall Trim Diameter 【C】Overall Module Power Box 【D】Overall Height 【E】Flexible Conduit
4''4.72''-5.12''(120mm-130mm)4''4.08''(103.7mm)5.6''(142.3mm）3.47''(88.2mm)3.74''(95.2mm)11.81''(300mm)
6''5.83''-7.28'' (148mm-185mm)6''5.67''(144.1mm)7.91''(200.8mm)3.47''(88.2mm)4.58''(116.29mm)11.81''(300mm)
8''7.68''-9.06'' (195mm-230mm)8''7.39''(187.65mm)9.91''(251.59mm)3.47''(88.2mm)5.15''(130.9mm)11.81''(300mm)
10''7.68''-9.06'' (195mm-230mm)10''7.39''(187.65mm)10.5''(266.7mm)3.47''(88.2mm)5.15''(130.9mm)11.81''(300mm)

VERSATILE APPLICATIONS

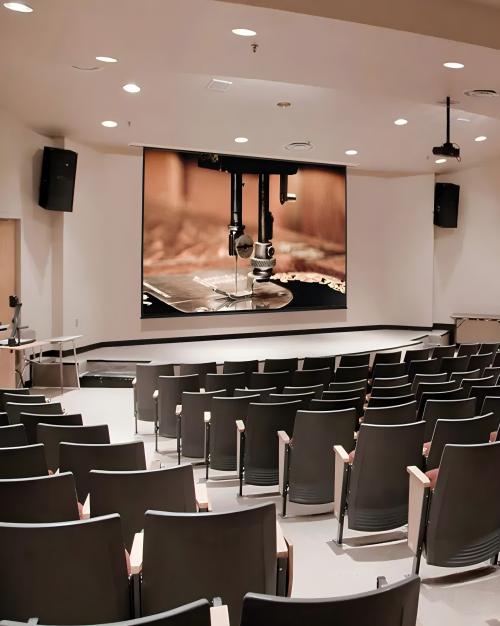

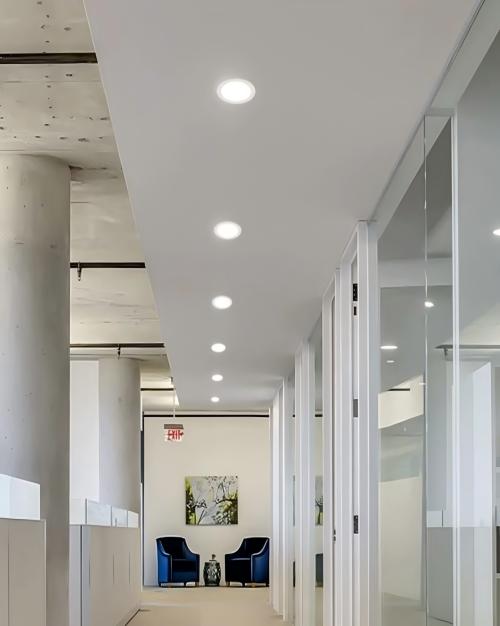

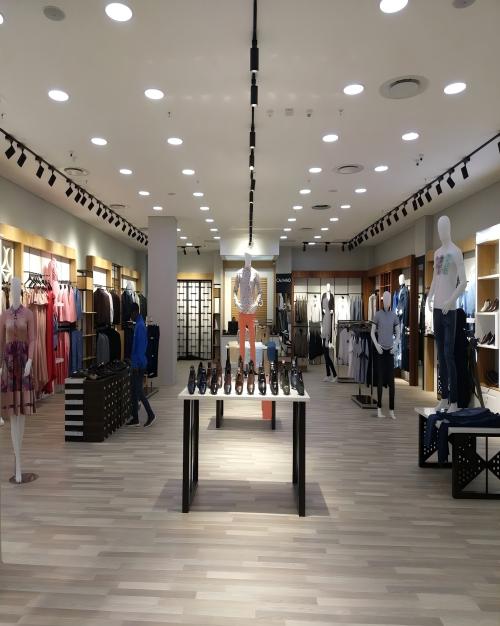

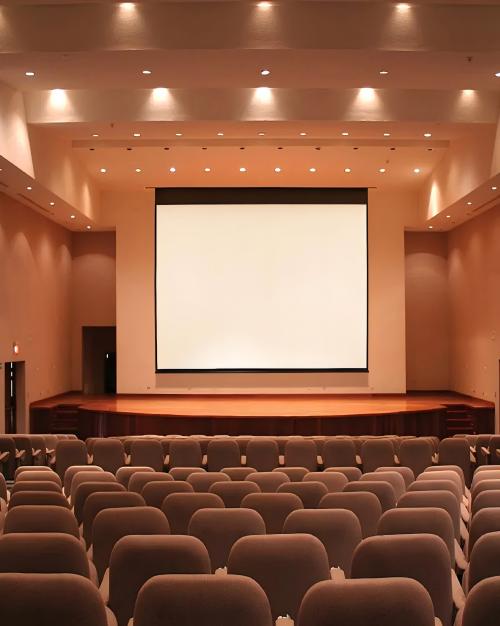

The Downlight is ideal for various environments, including offices, workshops, shops, and schools. Its efficient illumination and sleek design create bright, comfortable spaces that enhance productivity and visual comfort.

1.1
1.2
1.4
1.3

AVAILABLE ACCESSORIES

Enhance installation flexibility and performance with a wide range of optional accessories, including trims, emergency backup solutions, wiring boxes, and mounting kits to suit various project requirements.

Silver Trim Suitable for 4"/6"/8"
White Trim Suitable for 4"/6"/8"
Black Trim Suitable for 4"/6"/8"

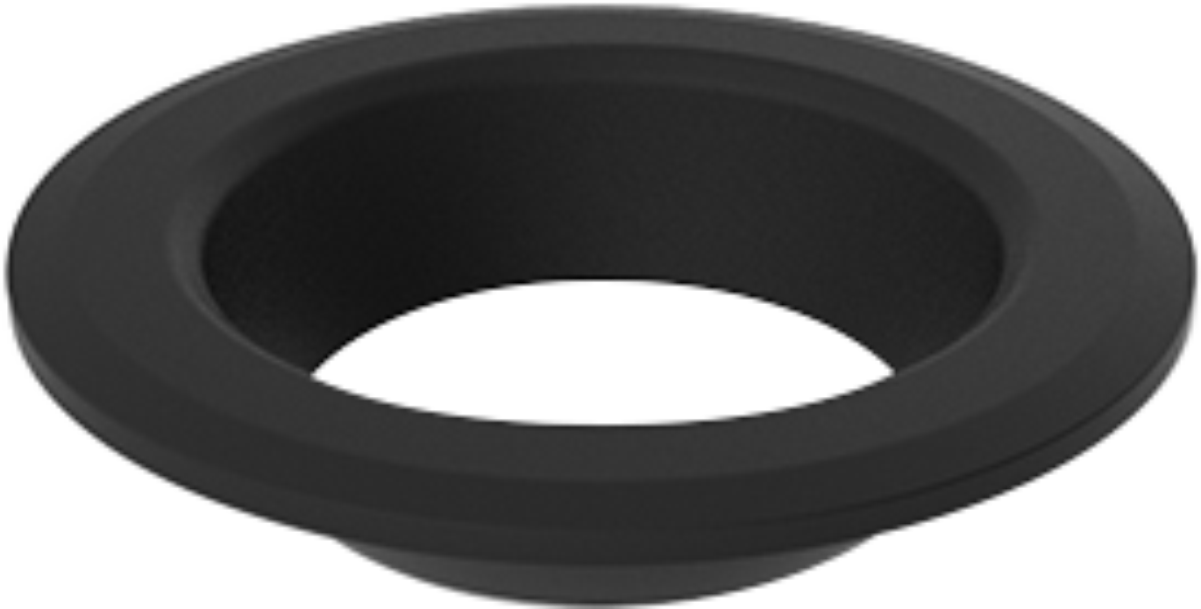

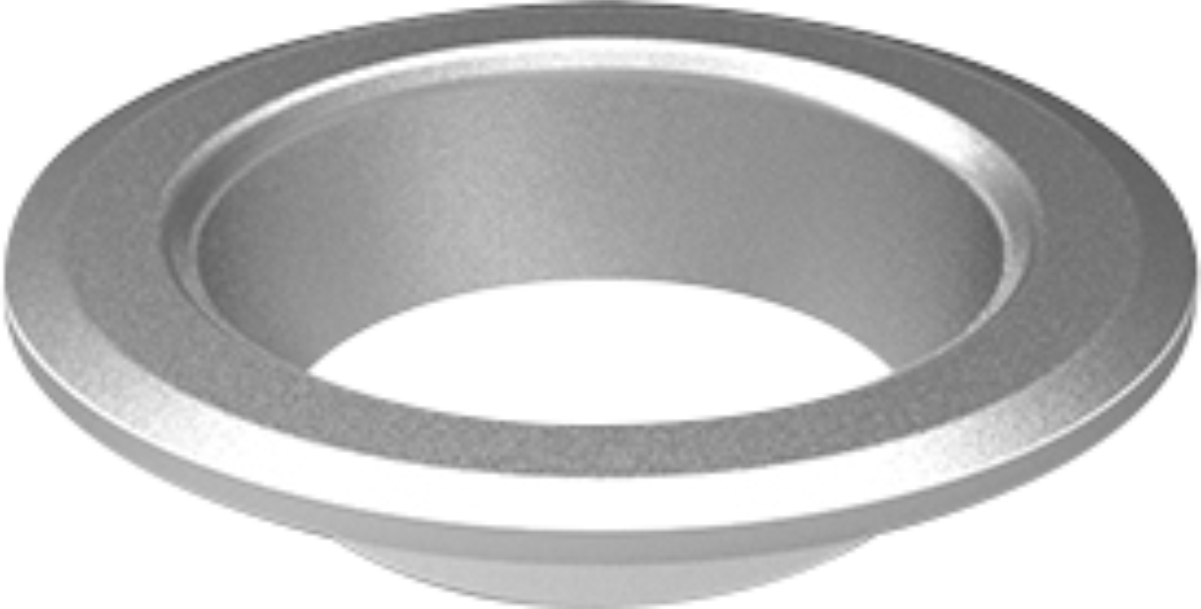

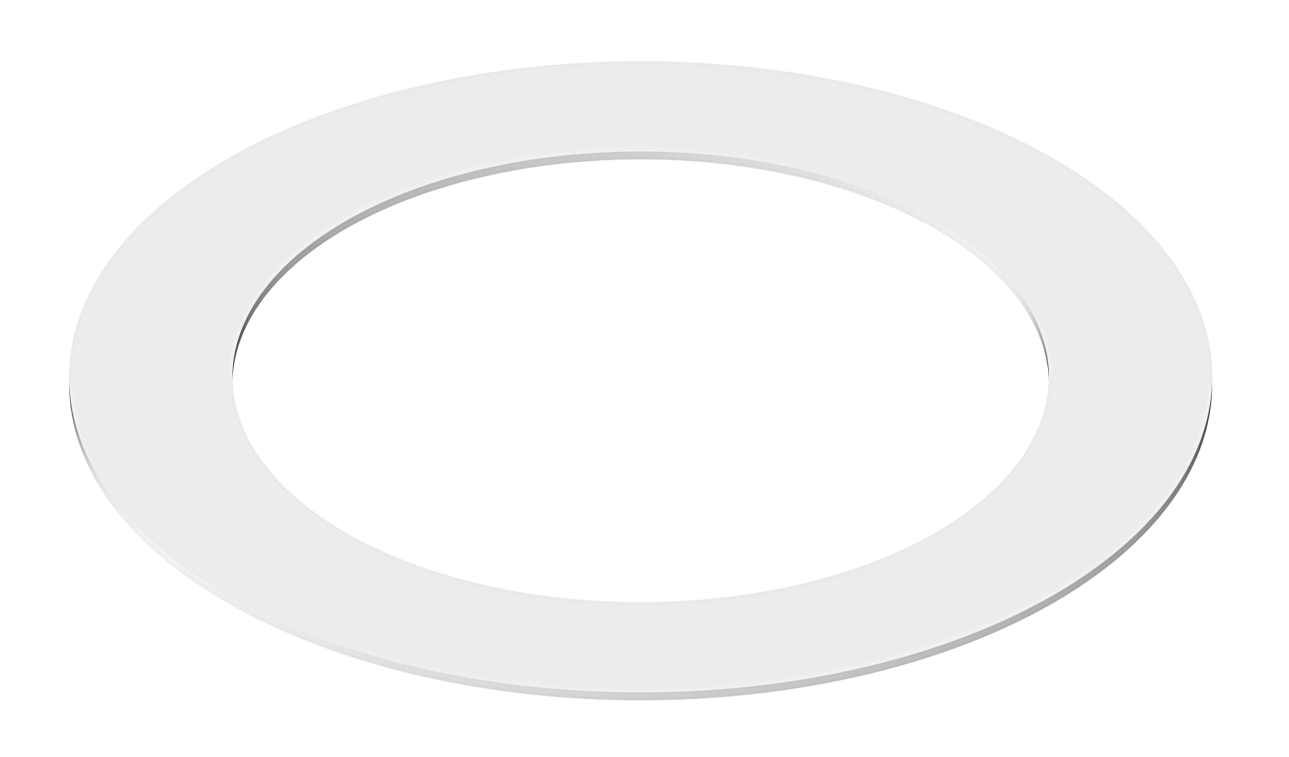

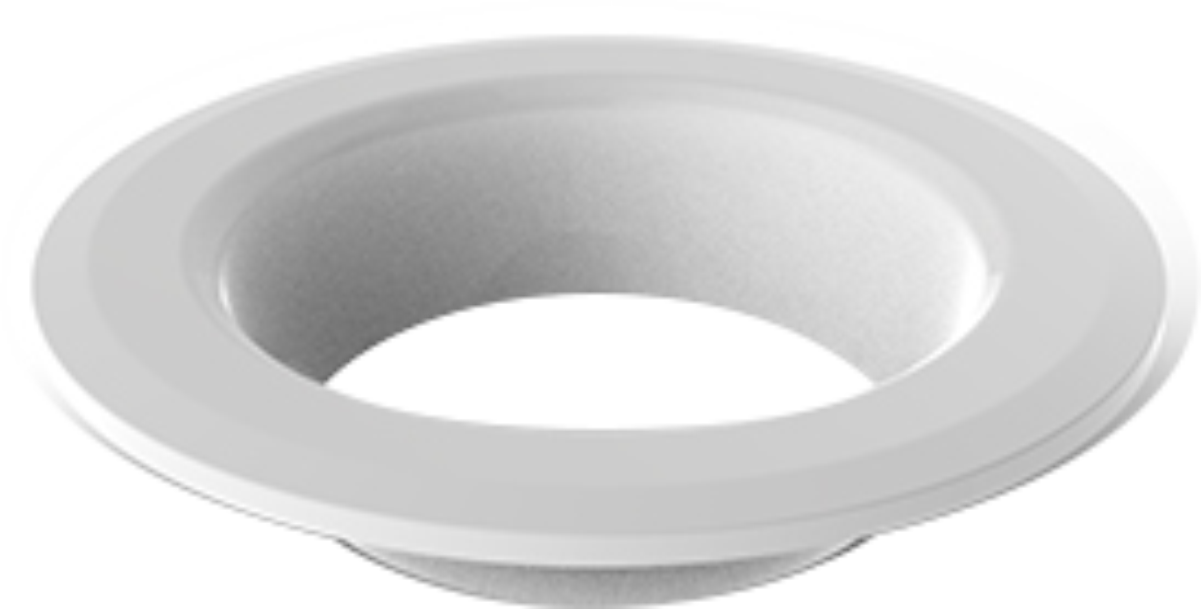

10" Trim Ring

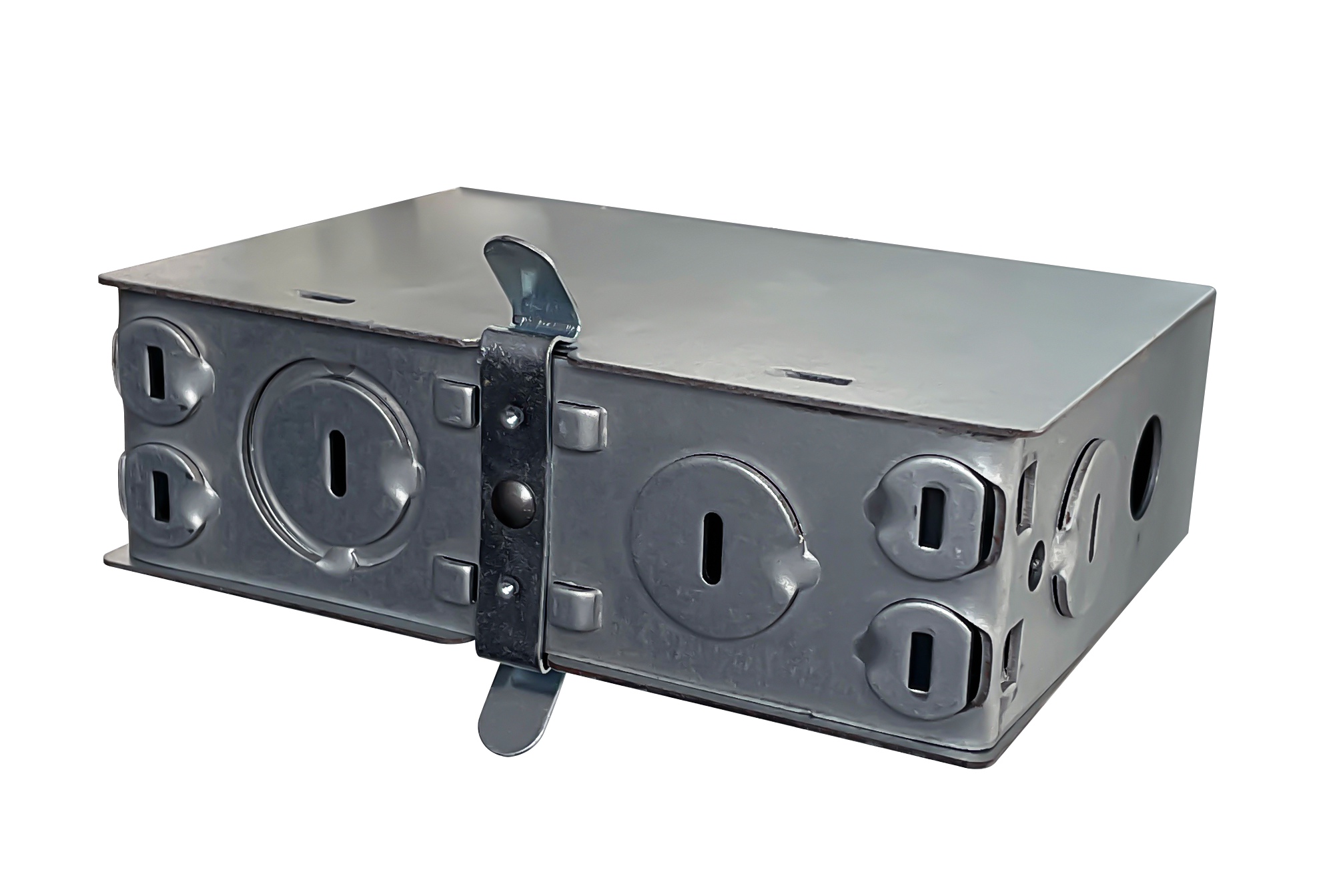

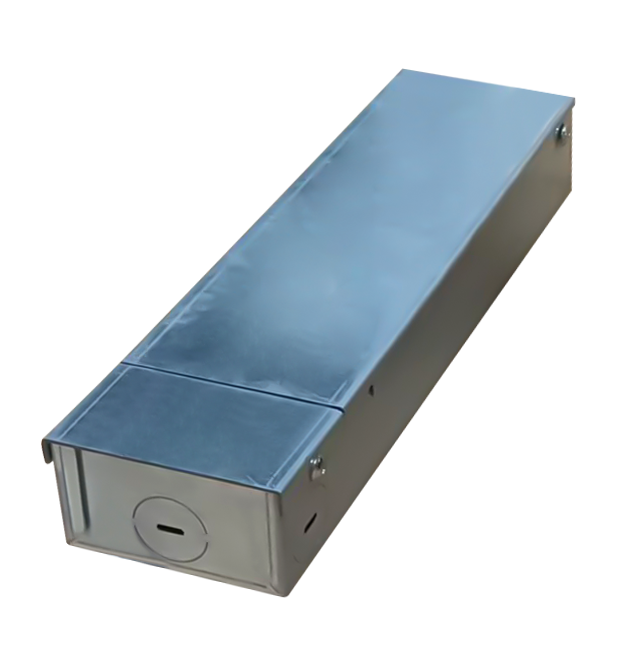

Wiring Box Work with Frame Kit,optional
Quick connect j -box

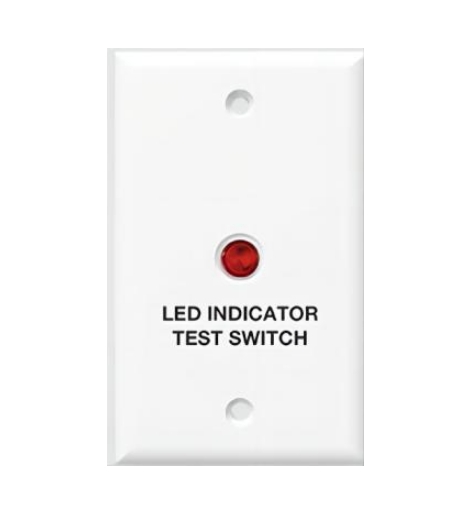

Test switch & Emergency indicator light
Emergency backup

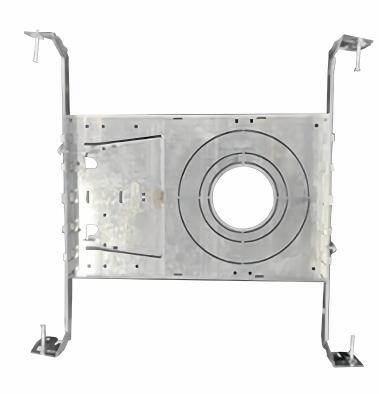

Frame Kit 120mm/150mm/200mm new construction plate with hange bar
2in1 EM Inverter Indicator

RECESSED FRAME,NEW CONSTRUCTION

Pan with Bar Hangers for T-Grid/Joist Ceilings

DIMENSIONS

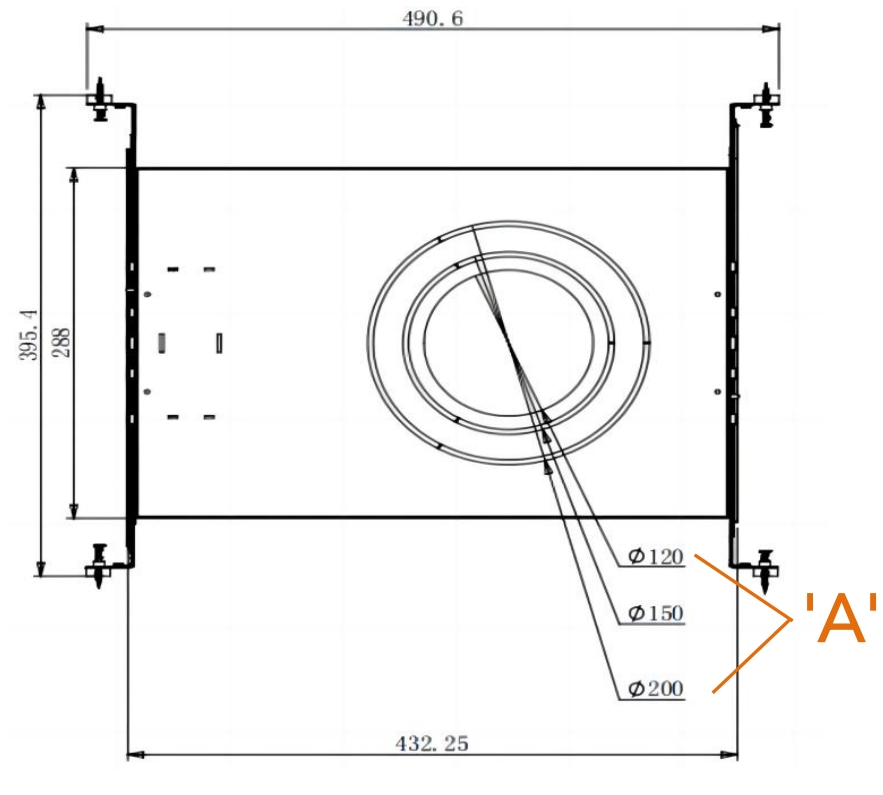

AccessoryAccessory'A'
WL-DL04IN4" Round4.72''(120mm)
WL-DL06IN6" Round5.91''(150mm)
WL-DL08IN8" Round7.87''(200mm)
WL-DL10IN10" Round7.87''(200mm)

Energy-Saving 12V & 36V Low Voltage Downlights

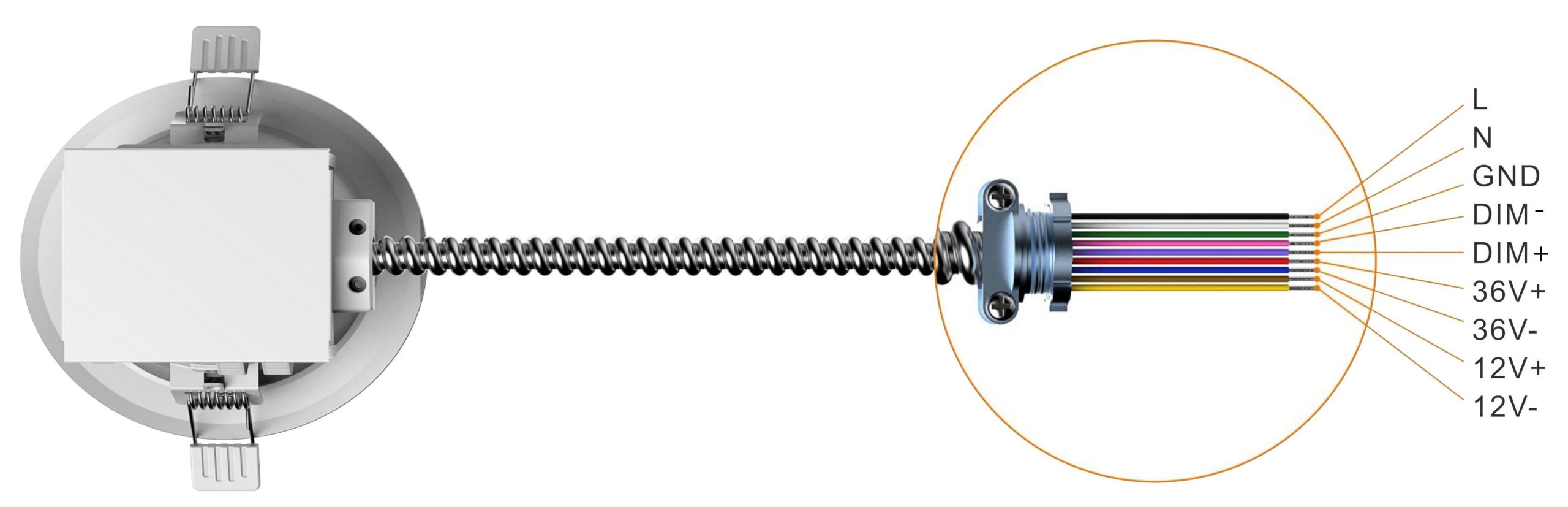

12V & 36V Low Voltage Options

Our commercial downlights support 12V and 36V connections, providing flexible, energy-efficient lighting solutions for a variety of applications.

12V Low Voltage-Smart Device Integration

Smart Connectivity: Easily integrates with smart devices like Bluetooth for advanced control.

36V Low Voltage-Ideal for Emergency Backup

Emergency Power: Perfect for emergency backup systems, ensuring continuous lighting during power outages.

Efficient & Safe: Provides high performance with low energy loss ,low cost of useand enhanced safety compared to higher voltage systems.

Eco-friendly: Reduced energy consumption for long-term savings and lower environmental impact.

EMERGENCY CONNECTION DIAGRAM

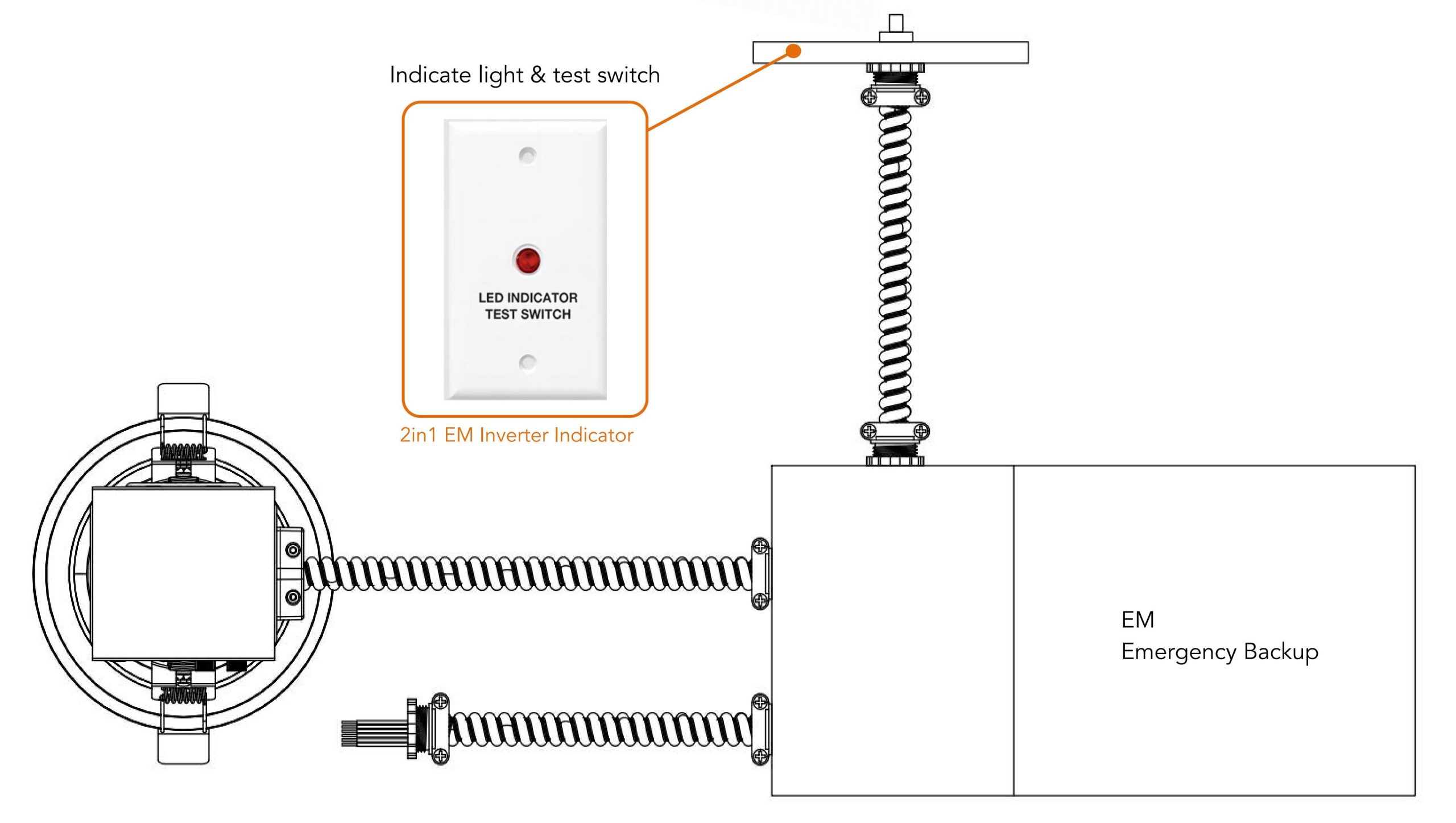

1.(External indicate light & test switch)

Our commercial downlights offer an optional emergency backup system for reliable lighting during power outages. The integrated indicator board allows easy monitoring of the backup power status.

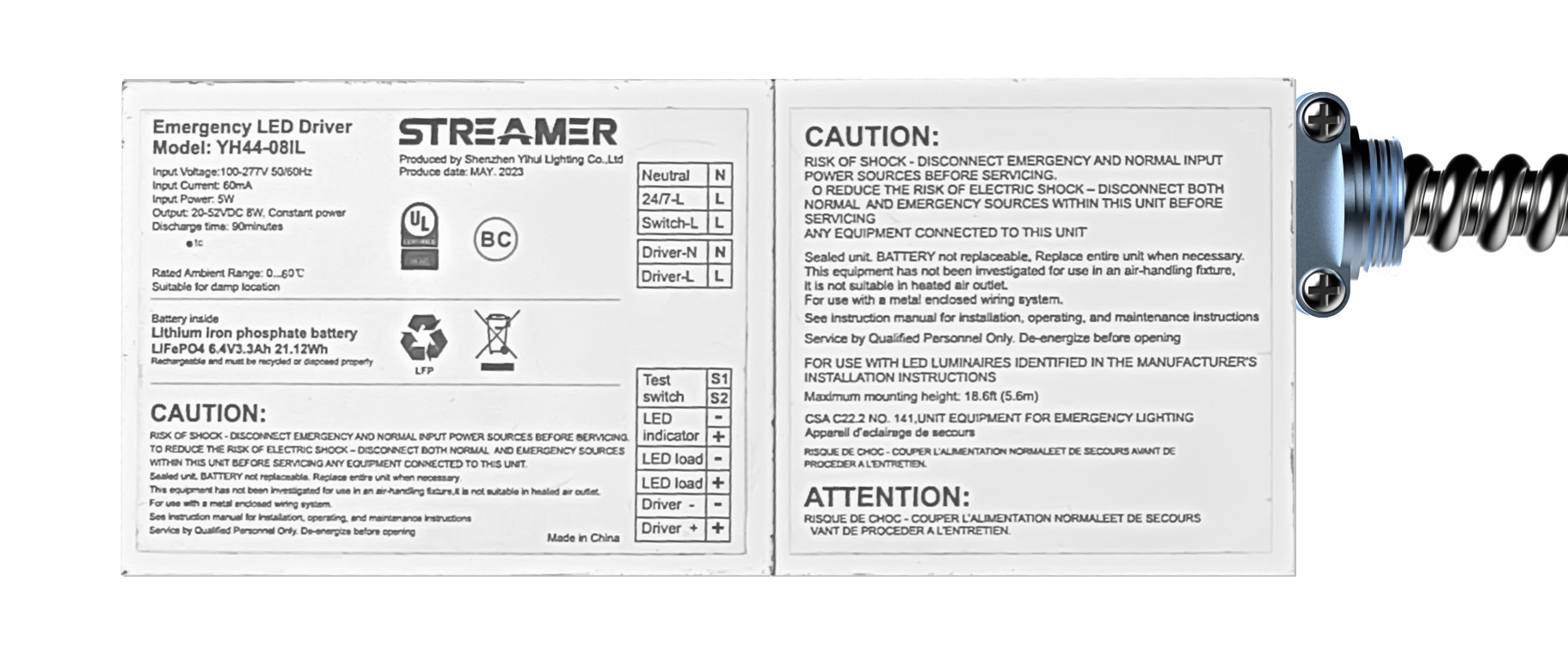

2in1 EM Inverter & Indicator: Combines the emergency inverter and status indicator. When power fails, the inverter activates, ensuring continuous emergency lighting.

  • Test Function: Pressing the test switch simulates a power failure, activating the backup power and confirming system operation.
  • Easy Installation: The inverter and indicator are designed for ceiling mounting, ensuring clear visibility and easy monitoring without taking up extra space.

2.(Internal indicate light & test switch)

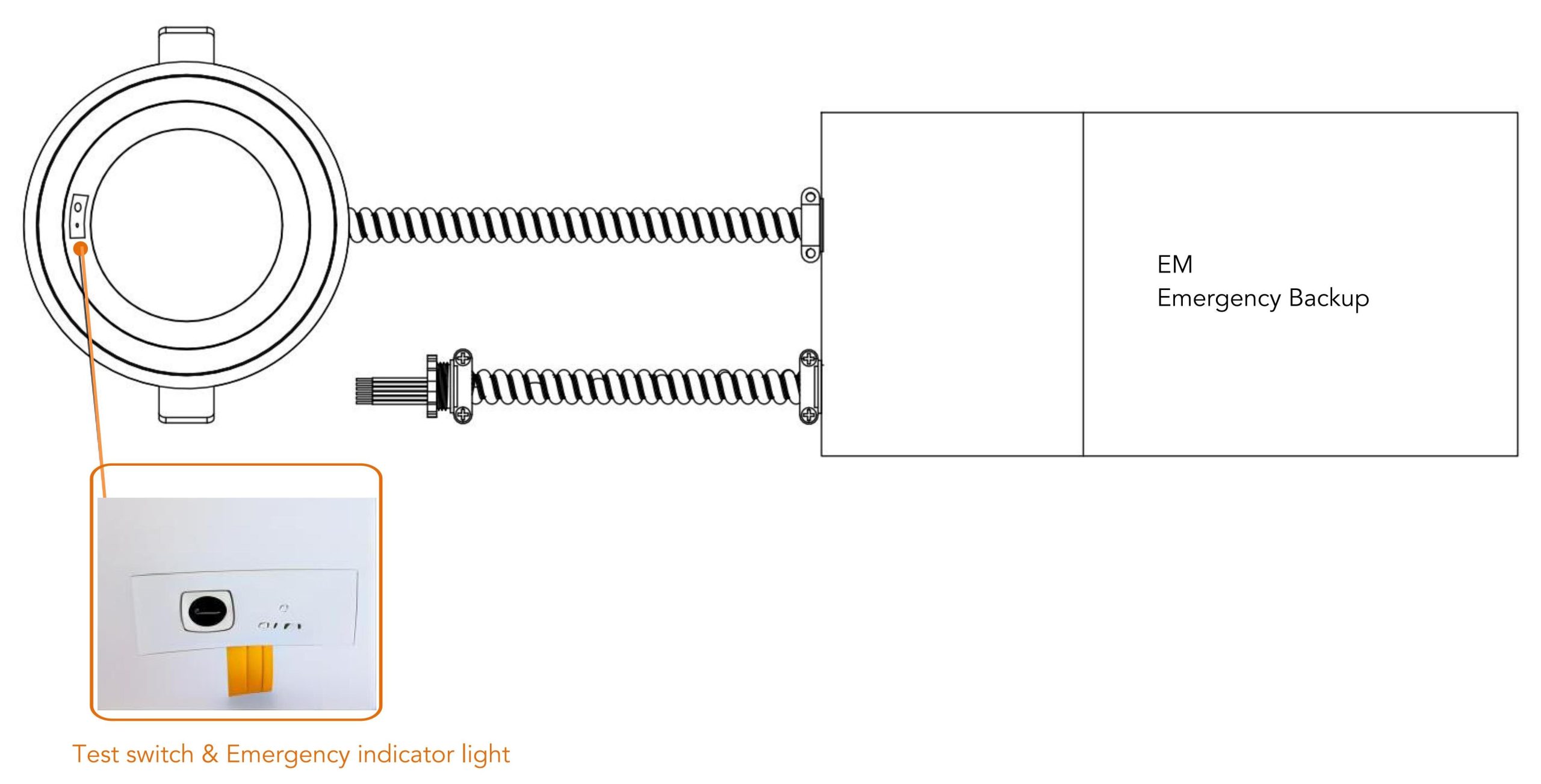

Our commercial downlights come with an optional emergency backup system, featuring a test switch and charge indicator light. These components are surface-mounted for easy access and monitoring.

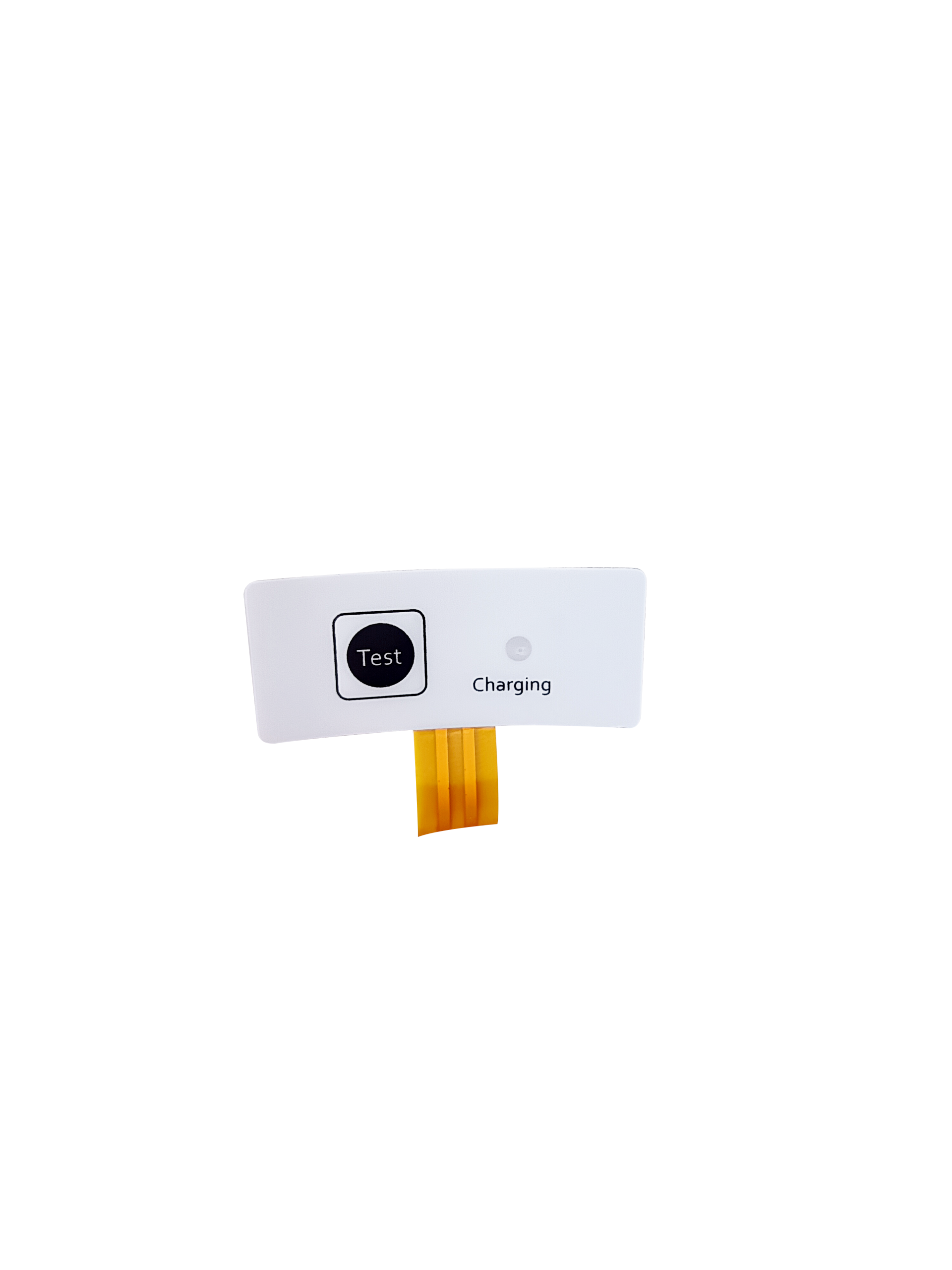

Test Switch (Left Side - Black Button)

  • Function: Press to simulate a power failure, activating the emergency inverter and switching to battery power
  • Indicator Response: The charge indicator light turns red to confirm activation. If not, further inspection is needed.

Charge Indicator Light (Right Side)

  • Charging: The light glows red when the battery is charging.
  • Fully Charged: The light turns green when the battery is fully charged and ready for use.
Down Ligh/4"/15W/RA90/3000K
Down Ligh/4"/15W/RA90/3000K

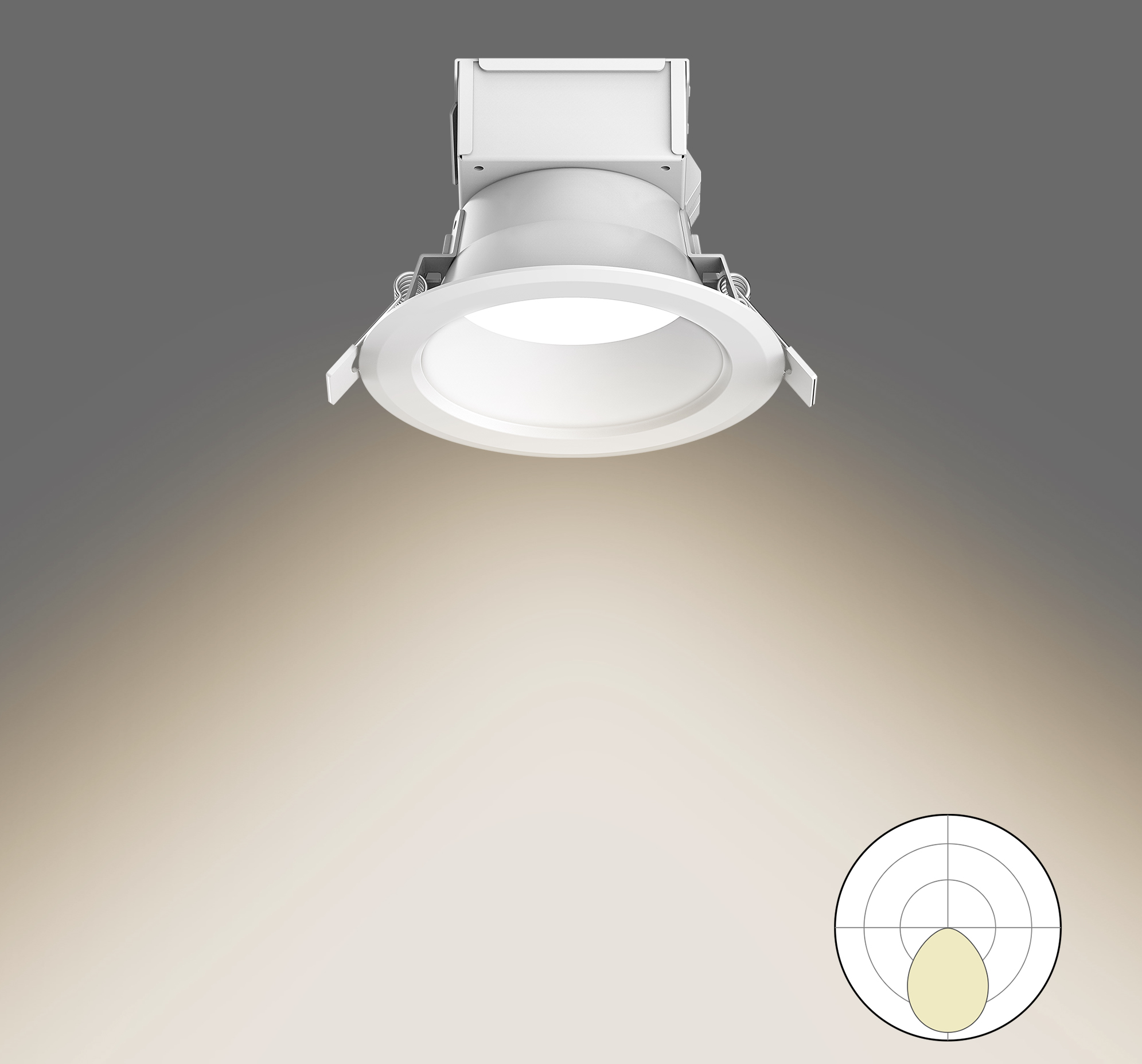

Down Ligh/4"/15W/RA90/3500K
Down Ligh/4"/15W/RA90/3500K
Down Ligh/4"/15W/RA90/4000K
Down Ligh/4"/15W/RA90/4000K

Documentation

Spec Sheets + Photometry

FamilyVersionContentDownload
DownlightsIESCommercial-G1-Downlight-4Inch-15W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-4Inch-8W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-6Inch-12W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-6Inch-24W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-8Inch-20W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-8Inch-24W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-8Inch-24W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-8Inch-30W-30K-35K-40K-CRI90
DownlightsIESCommercial-G1-Downlight-10Inch-40W-30K-35K-40K-CRI90
DownlightsV10-24Commercial-GEN1-Downlight-Specification-Sheet-V3.0
DownlightsIESCommercial-G1-Downlight-4Inch-15W-3000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-4Inch-15W-4000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-4Inch-15W-5000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-6Inch-24W-3000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-6Inch-24W-4000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-6Inch-24W-5000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-8Inch-30W-3000K-CRI90-IES
DownlightsIESCommercial-G1-Downlight-8Inch-30W-4000K-CRI90-IES

Install Docs

FamilyVersionContentDownload
DownlightsV10-24Downlights Installation
