G5 Highbay

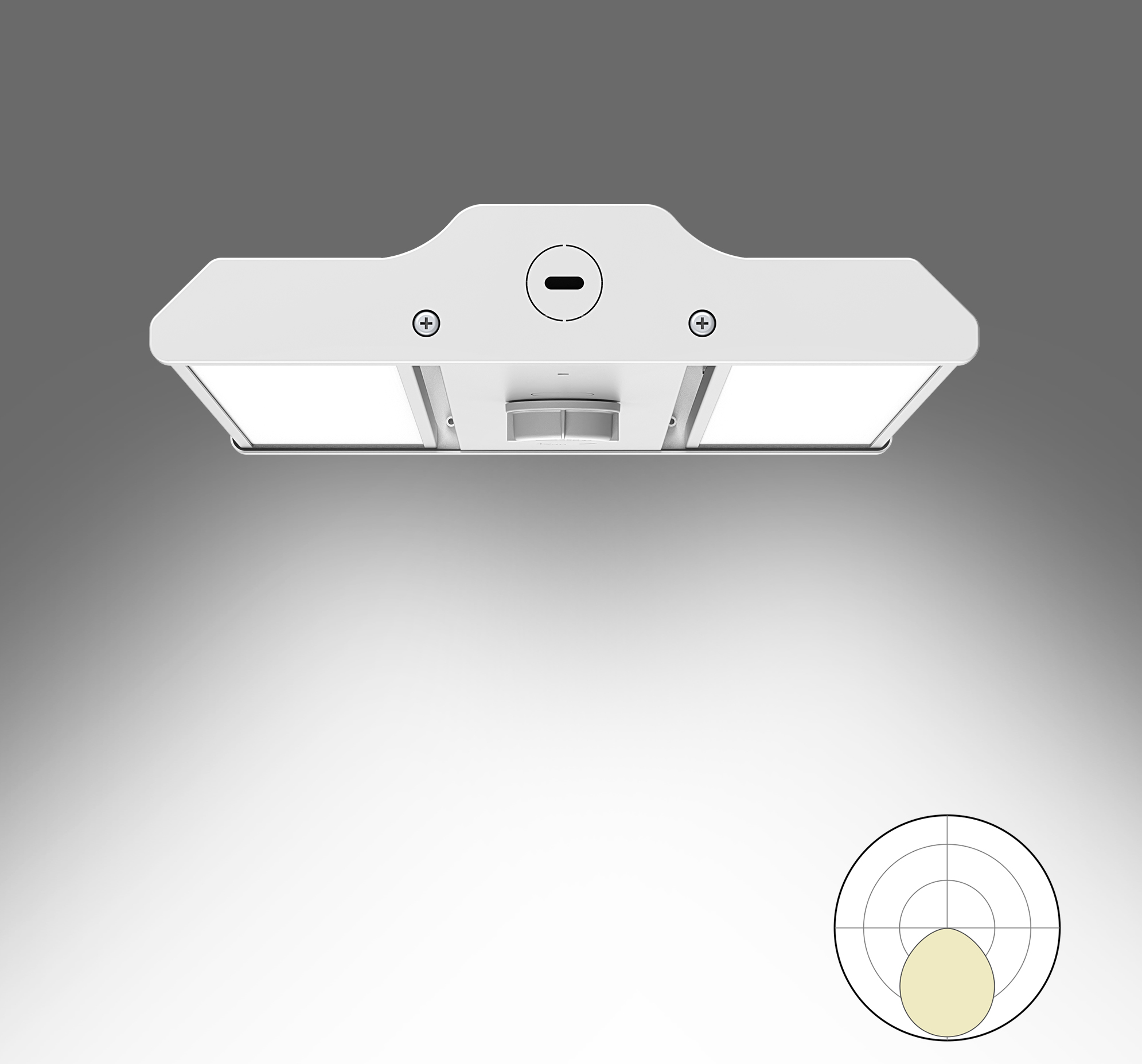

Compact GEN5 Linear Highbay

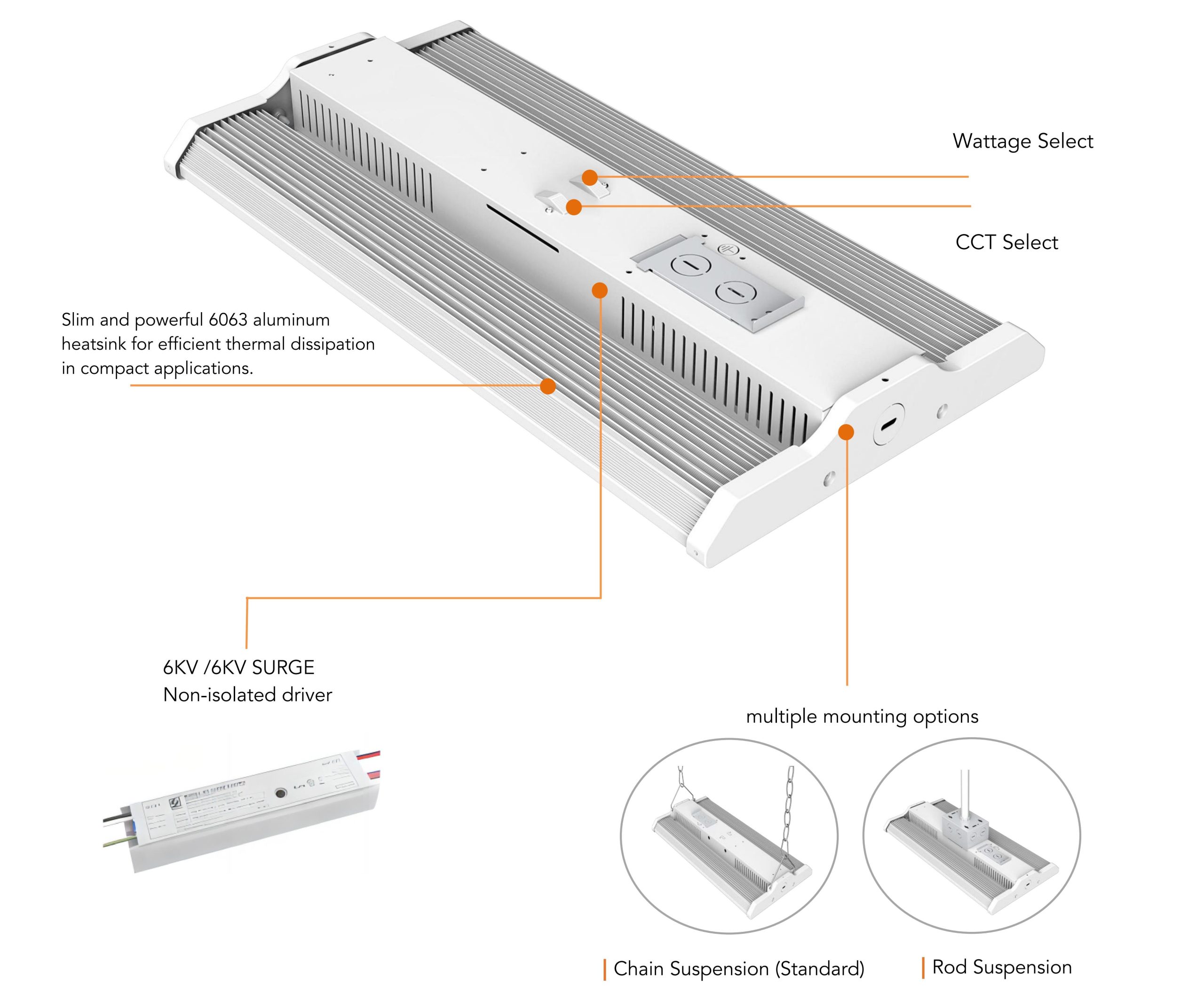

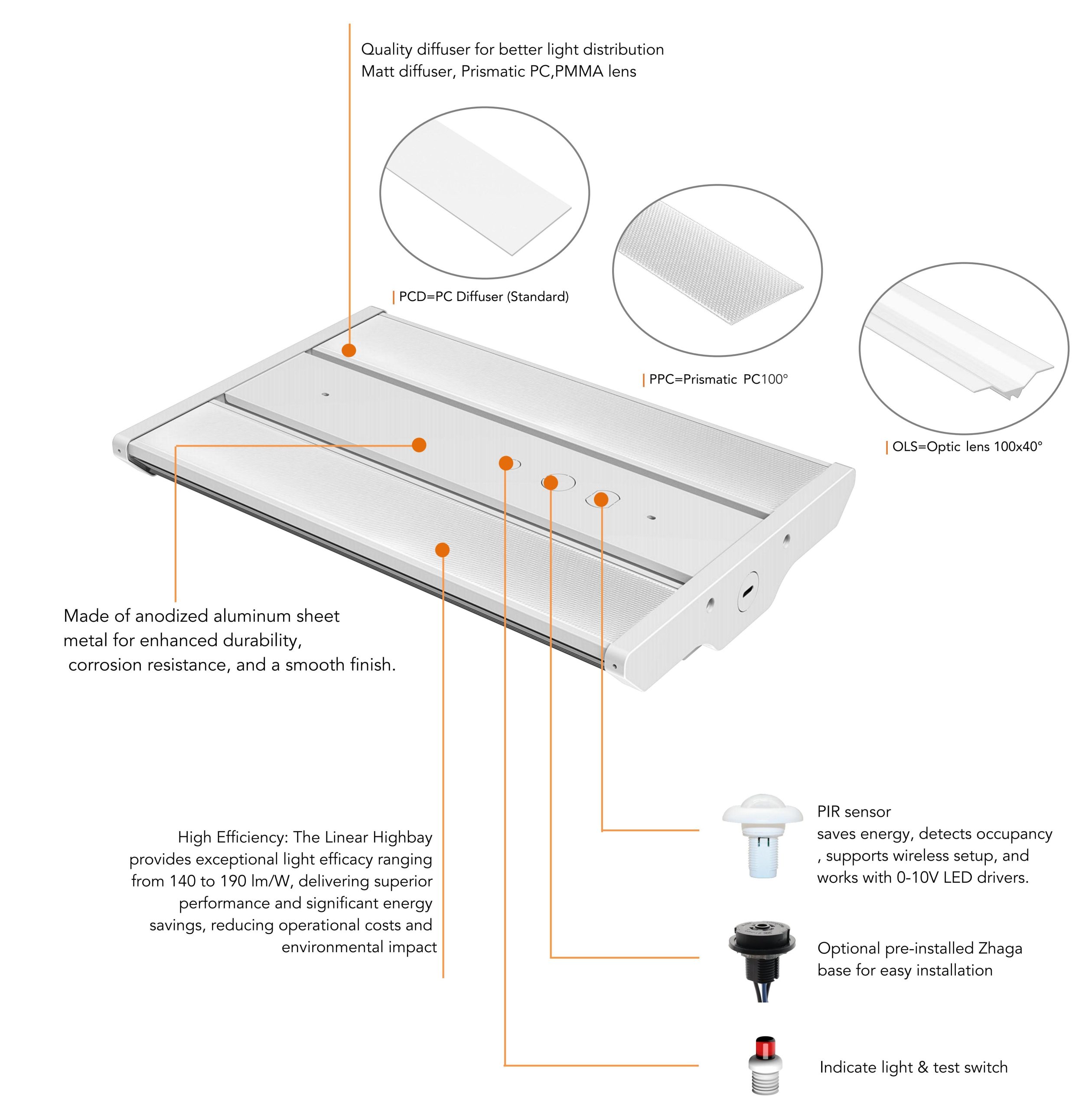

The Gen5 Linear Highbay is a lumen and CCT Select LED lensed high bay luminaire designed for multiple industrial applications. The compact diecast form makes the LHBS both durable and an easy, one-person installation. G5 is offered in seven lengths with both CCT select and wattage select can delivered performance from 10,000 up to 60,000 lumens. The optical lens delivers high efficacy and reduces high angle glare. It is an ideal energy-efficient one-for-one replacement for linear fluorescent and HID fixtures in warehouse, manufacturing, gymnasium, and big box/retail applications.
| G5 Linear Highbay | Size | Wattage Select | Efficacy | Lumens | Beam Angles | CCT Select | Voltage | UGR | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|---|---|

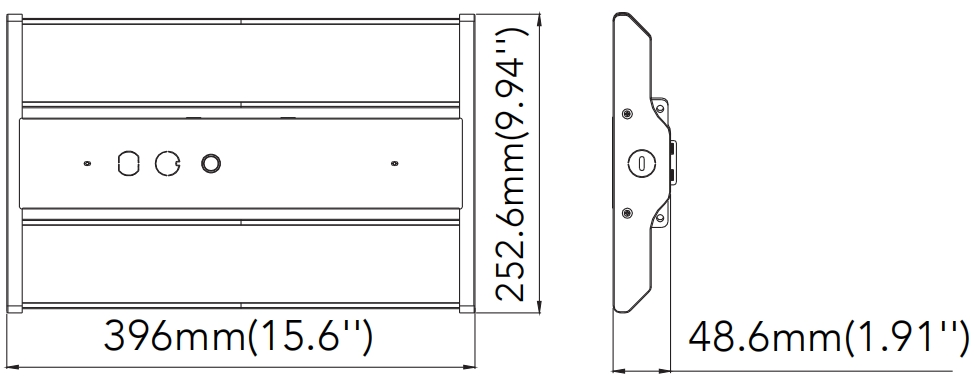

| WL-5LH11.3FT110/135/165DUV | 1.3FT(L396mm*W252.6mm*H48.6mm) | 110W/135W/165W | 140-155lm/W | 23100lm | 100° Matt diffuser | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >80 |

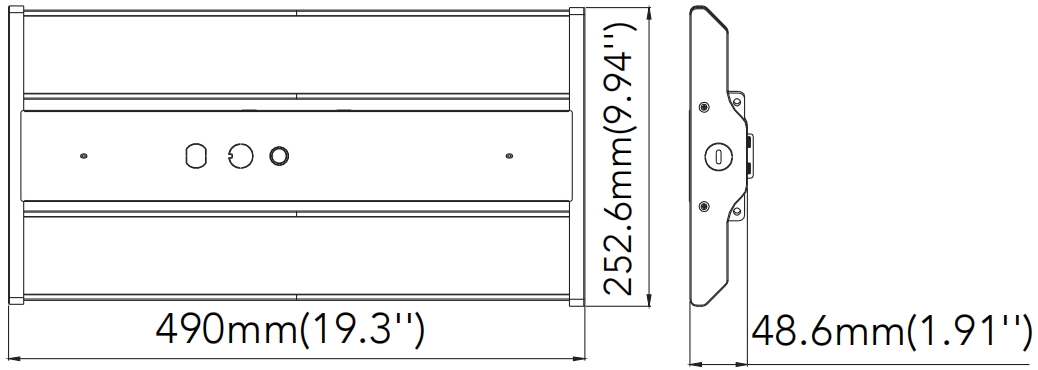

| WL-5LH11.6FT155/185/210DUV | 1.6FT(L490mm*W252.6mm*H48.6mm) | 155W/185W/210W | 140-155lm/W | 29400lm | 100° Matt diffuser | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >80 |

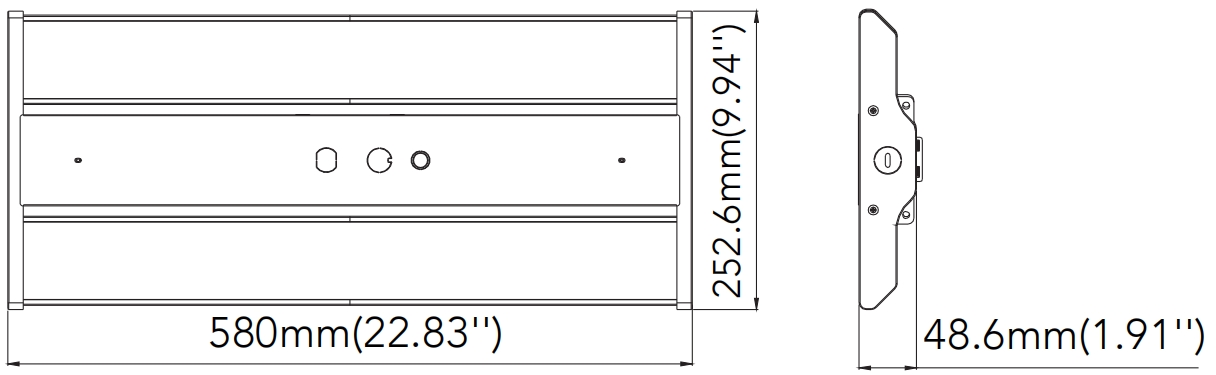

| WL-5LH11.9FT155/185/210DUV | 1.9FT(L580mm*W252.6mm*H48.6mm) | 155W/185W/210W | 140-155lm/W | 29400lm | 100° Matt diffuser | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >80 |

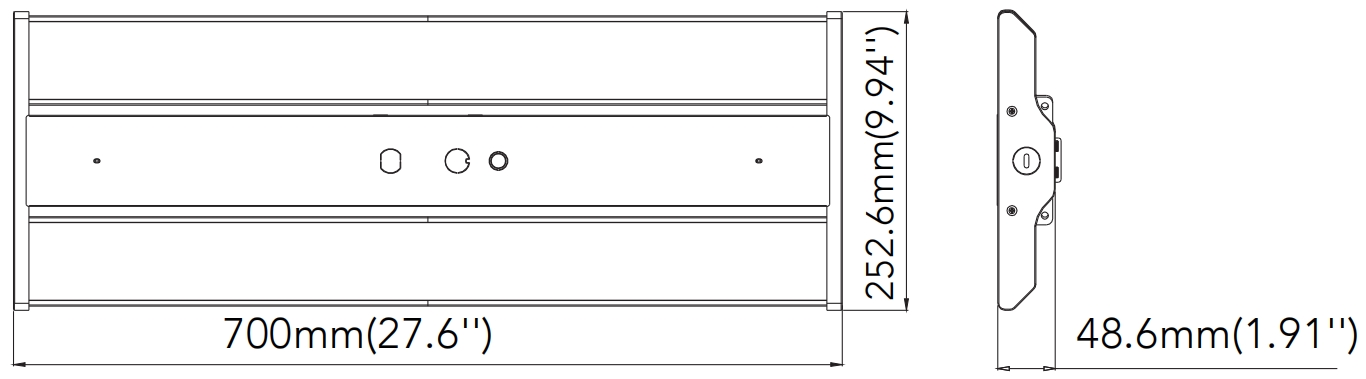

| WL-5LH12.3FT200/250/305DUV | 2.3FT(L700mm*W252.6mm*H48.6mm) | 200W/250W/305W | 140-155lm/W | 42700lm | 100° Matt diffuser | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >80 |

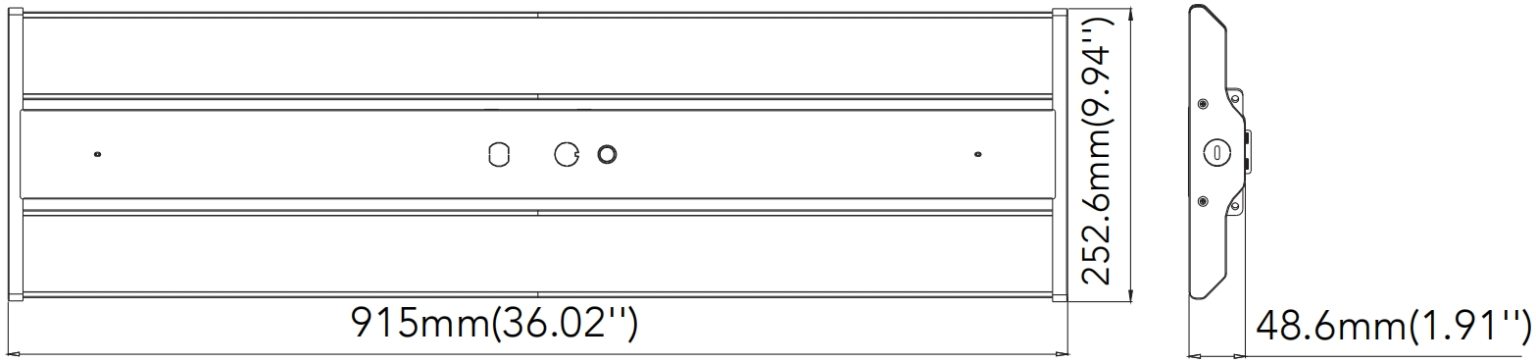

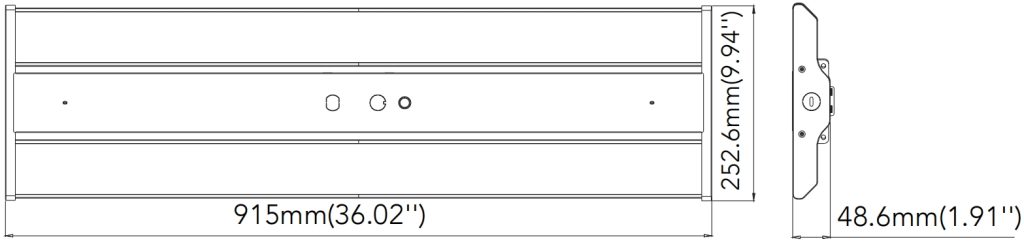

| WL-5LH13.0FT400DUV | 3.0FT(L915mm*W252.6mm*H48.6mm) | 400W | 140-155lm/W | 56000lm | 100° Matt diffuser | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >80 |
| WL-5LH11.3FT60/85/110DUV | 1.3FT(L396mm*W252.6mm*H48.6mm) | 60W/85W/ 110W | 140-155lm/W | 15400lm | 100° Matt diffuser | 40K,50K(Select CCT) | AC120-277V | <28 | 0-10V | >80 |
| WL-5LH11.6FT110/135/165DUV | 1.6FT(L490mm*W252.6mm*H48.6mm) | 110W/135W/165W | 140-155lm/W | 23000lm | 100° Matt diffuser | 40K,50K(Select CCT) | AC120-277V | <28 | 0-10V | >80 |
| WL-5LH11.9FT155/185/210DUV | 1.9FT(L580mm*W252.6mm*H48.6mm) | 155W/185W/210W | 140-155lm/W | 29400lm | 100° Matt diffuser | 40K,50K(Select CCT) | AC120-277V | <28 | 0-10V | >80 |
| WL-5LH13.0FT200/250/305DUV | 3.0FT(L915mm*W252.6mm*H48.6mm) | 200W/250W/305W | 140-155lm/W | 42000lm | 100° Matt diffuser | 40K,50K(Select CCT) | AC120-277V | <28 | 0-10V | >80 |
| WL-5LH11.6FT100DUV | 1.6FT(L490mm*W252.6mm*H48.6mm) | 100W | 170-190lm/W | 19000lm | 100° Matt PC | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |
| WL-5LH11.3FT100/125/150DUV | 1.3FT(L396mm*W252.6mm*H48.6mm) | 100W/125W/150W | 170-190lm/W | 25500lm | 100° Matt PC | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |
| WL-5LH11.6FT125/165/210DUV | 1.6FT(L490mm*W252.6mm*H48.6mm) | 125W/165W/210W | 170-190lm/W | 35700lm | 100° Matt PC | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |
| WL-5LH12.3FT200/250/305DUV | 2.3FT(L700mm*W252.6mm*H48.6mm) | 200W/250W/305W | 170-190lm/W | 51000lm | 100° Matt PC | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |

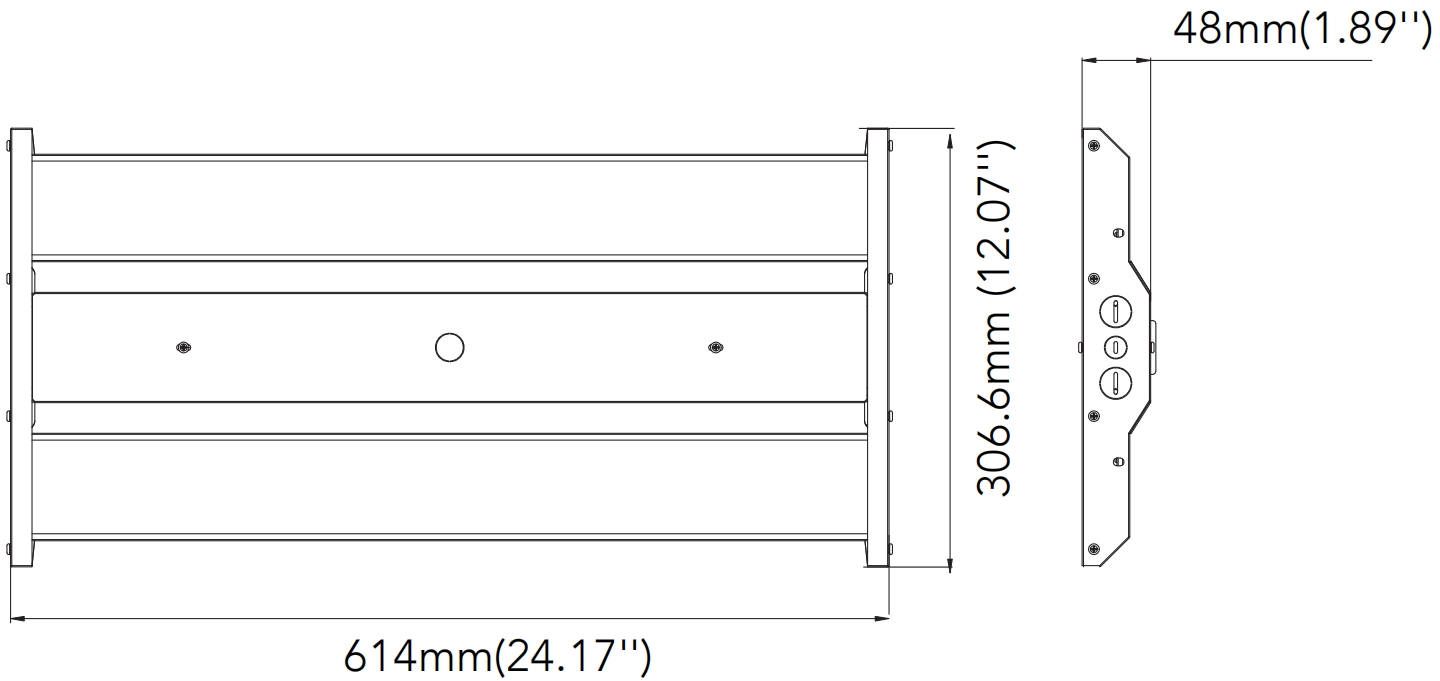

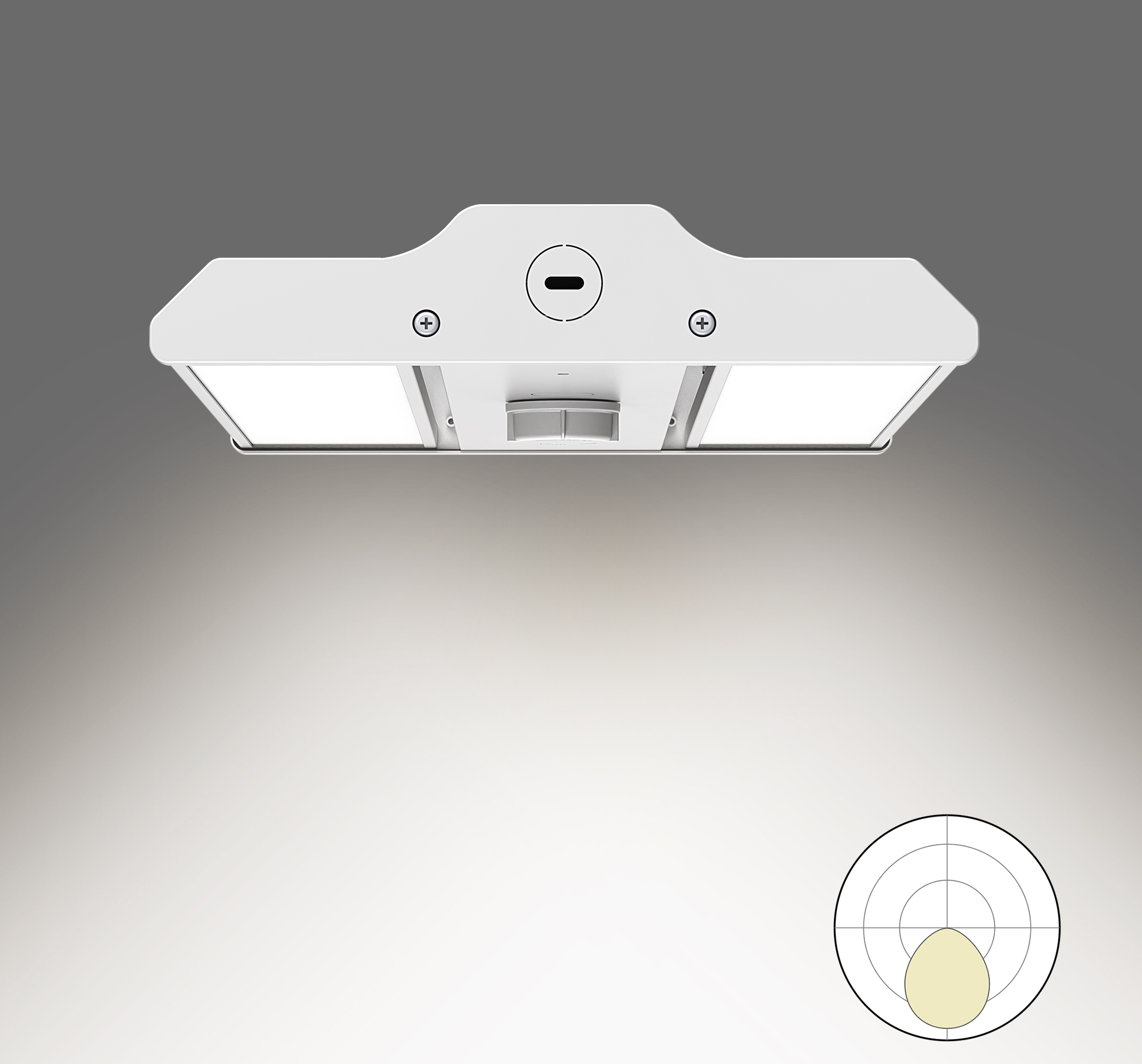

| WL-5LH12.0FT100/125/150DUV | 2.0FT(L614mm*W306.6mm*H48mm) | 100W/125W/150W | 170-190lm/W | 25500lm | 100°*40° | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |

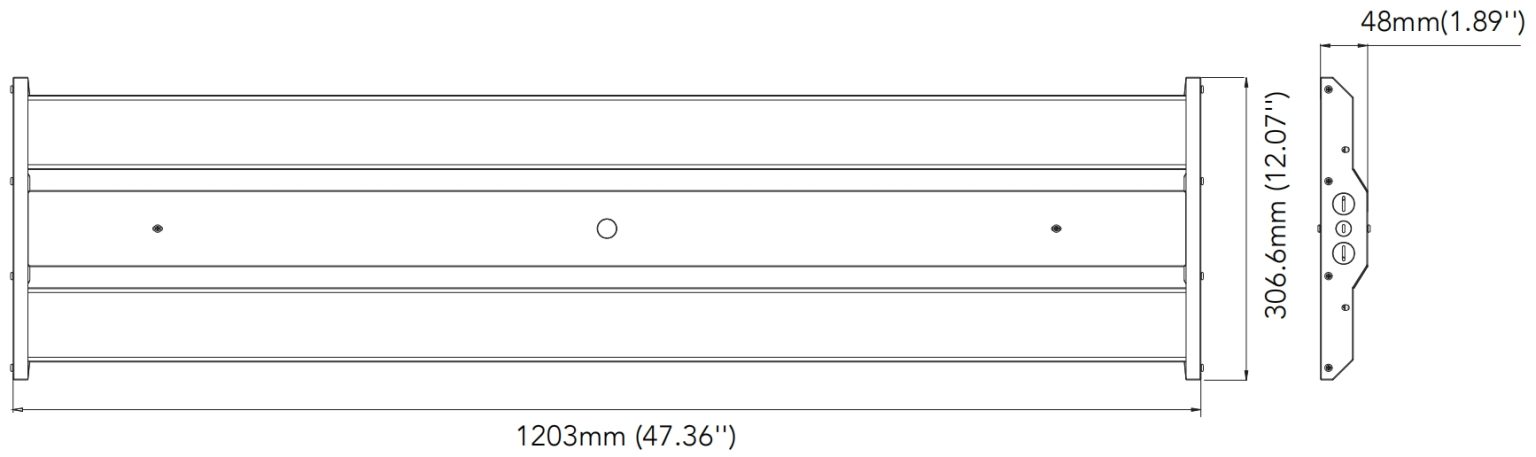

| WL-5LH14.0FT200/250/305DUV | 4.0FT(L1203mm*W306.6mm*H48mm) | 200W/250W/305W | 170-190lm/W | 51000lm | 100°*40° | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |
| WL-5LH14.0FT400DUV | 4.0FT(L1203mm*W306.6mm*H48mm) | 400W | 150lm/W | 60000lm | 100°*40° | 40K,50K(Single CCT) | AC120-277V | <28 | 0-10V | >70 |
COMPACT GEN5 LINEAR HIGHBAY Video Introduction
MULTIPLE SIZES AVAILABLE
The highbay series offers a wide range of sizes to meet diverse lighting needs. From compact options for lower ceiling installations to larger sizes for spacious industrial environments, these selections ensure optimal lighting design and flexibility for any project. Available sizes include:
• 1.3 FT • 1.6 FT • 1.9 FT • 2 FT • 2.3 FT • 3 FT • 4 FT
WIDE-RANGE APPLICATIONS

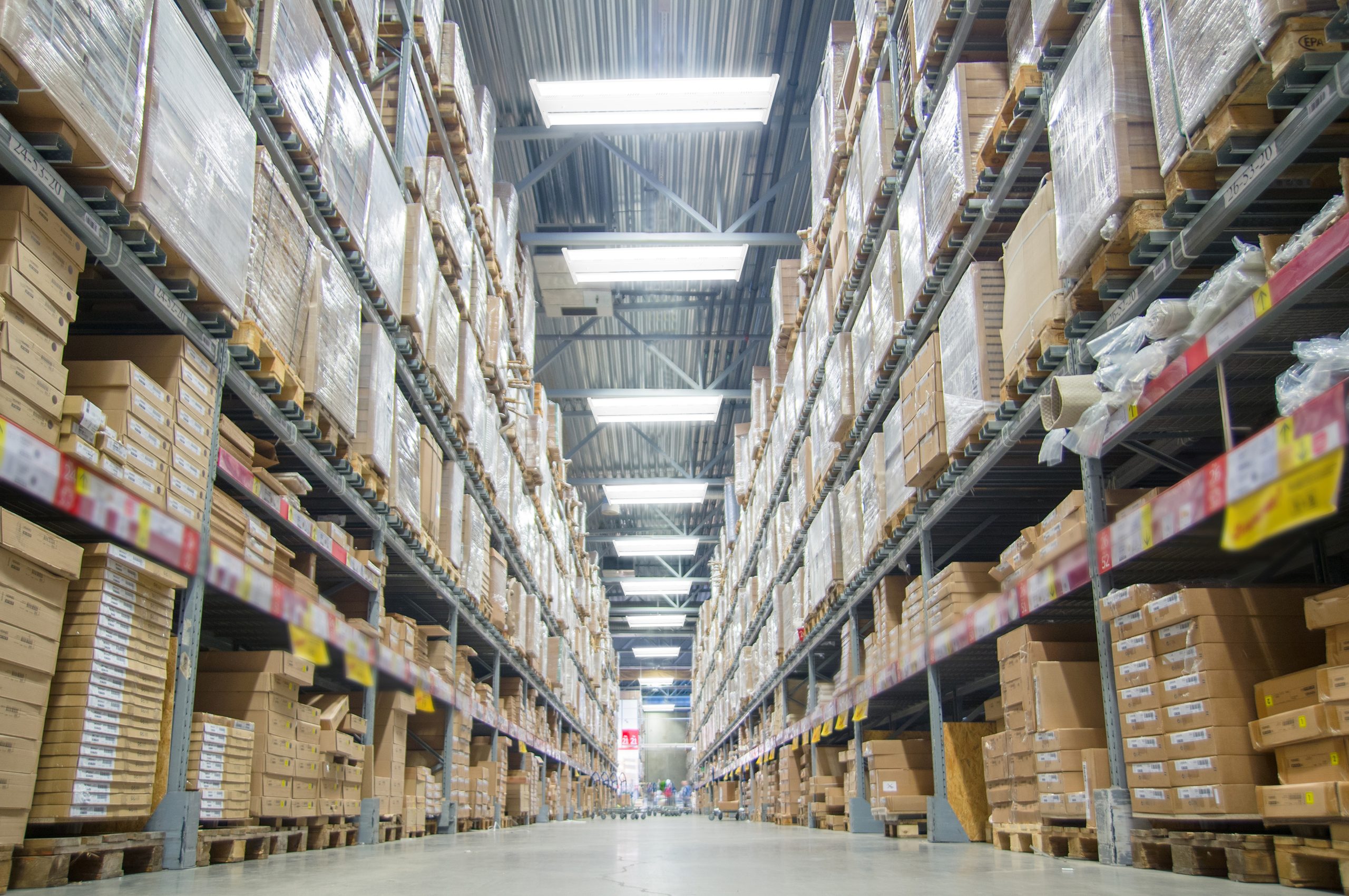

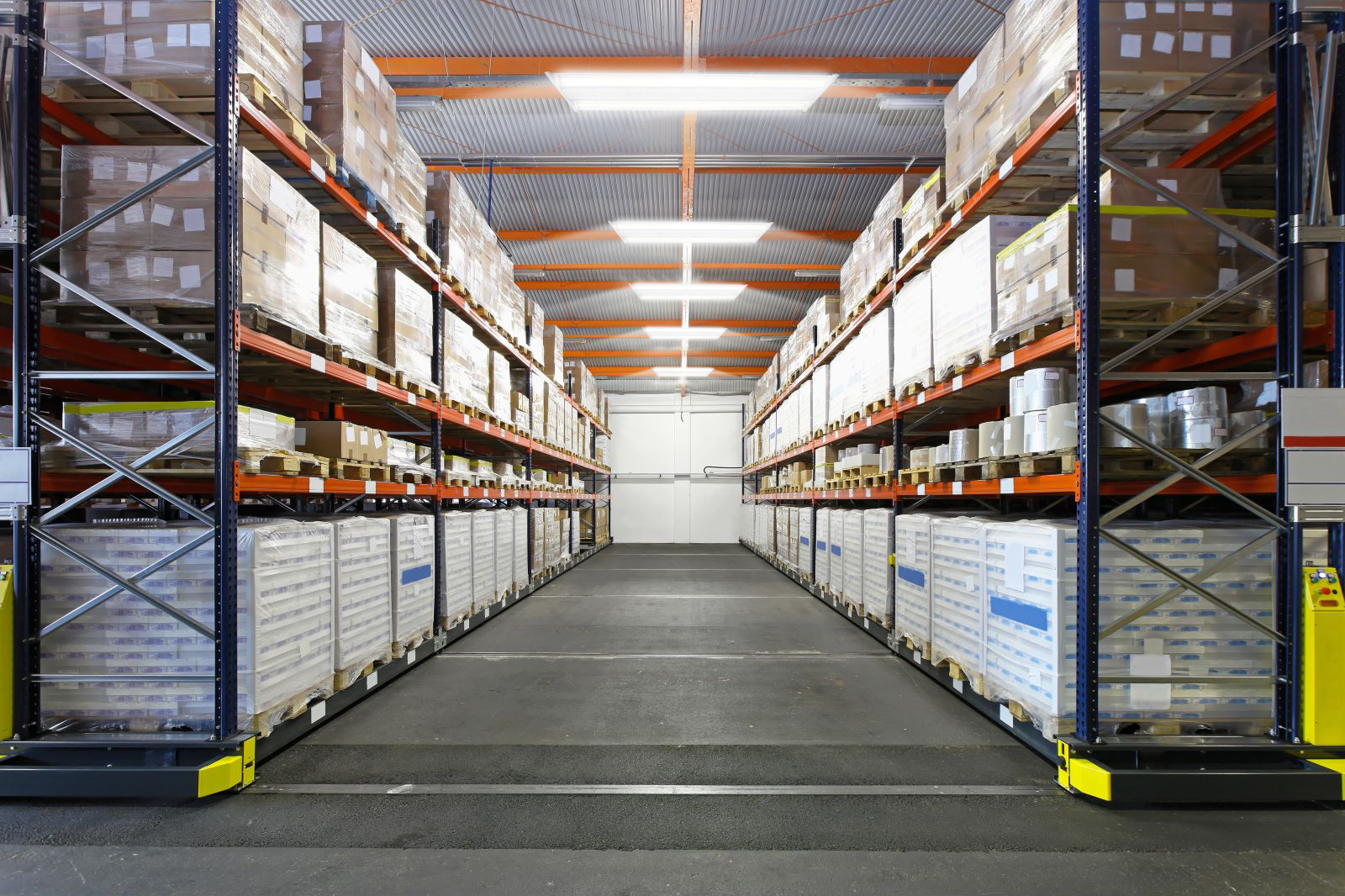

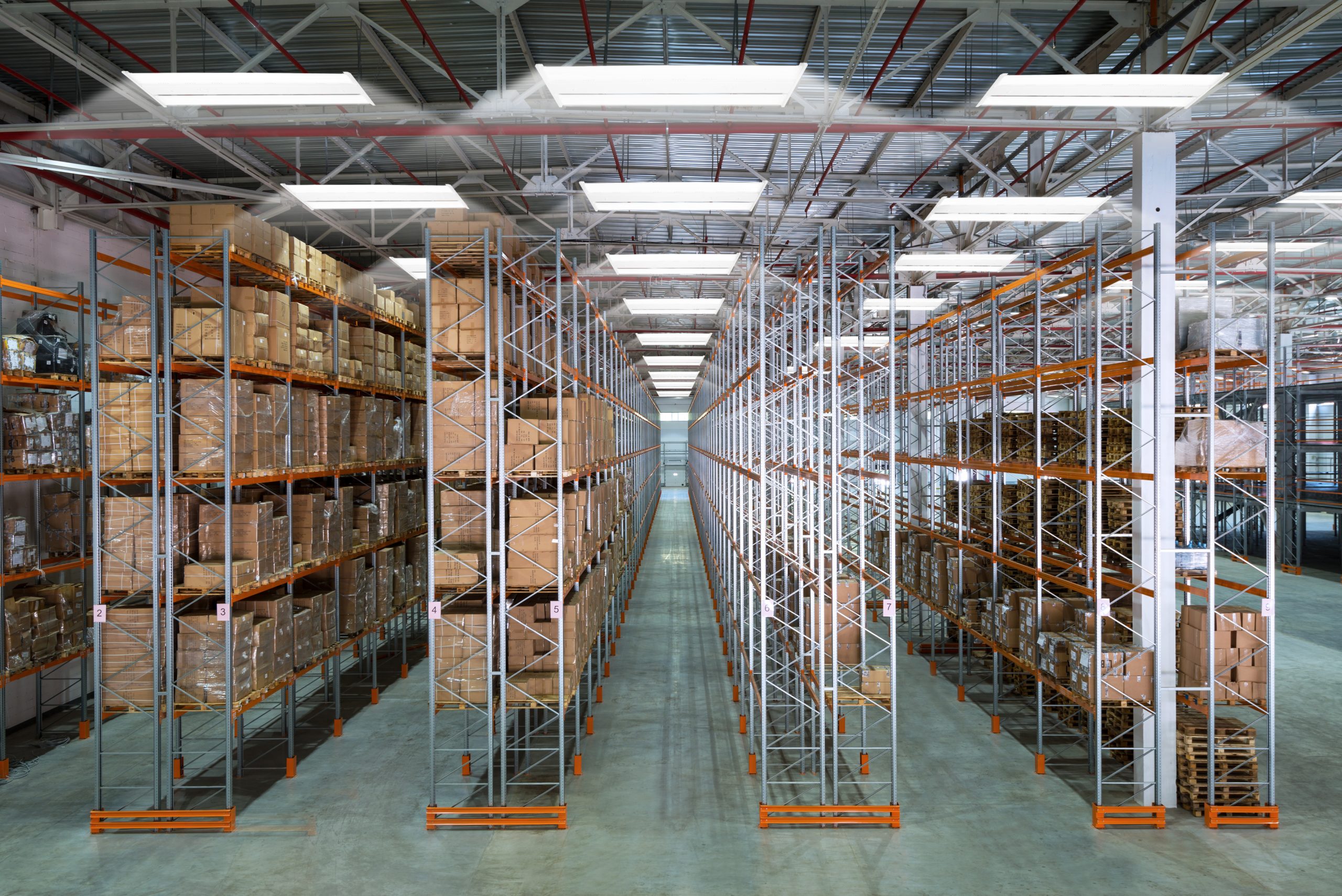

Ideal for a variety of environments, this highbay is widely used in warehouses and logistics centers, gymnasiums and fitness centers, factories, and other large indoor spaces requiring powerful, efficient illumination to enhance safety and productivity.
