Range Troffer Retrofit

The Range Troffer Retrofit Kit is our newest LED lighting solution for customers looking to upgrade their fluorescent luminaires to a high performing aesthetically-pleasing LED system without the need to install a complete luminaire. This innovative, high quality retrofit kit is dedicated to the latest solid state lighting and driver technology for optimal performance and energy efficiency. The retrofit kit is engineered for simple and quick installation making it easy to switch to LED.

- Easy and quick installation

上下发光
Retrofit Troffer Length Wattage Select Efficacy Lumens CCT Select Voltage Dimming CRI Flicker Index
WL-3TRRS2224/30/36DUV2'X2'24W/30W/36W130Lm/W3120lm/3900lm/4680lm35K/40K/50KAC120-277V0-10V>80<30%
WL-3TRRS24/24/36/45DUV2'X4'24W/36W/45W130Lm/W3120lm/4680lm/5850lm35K/40K/50KAC120-277V0-10V>80<30%

RANGE TROFFER RETROFIT Video Introduction

STANDARD SIZES

Available in two standard sizes for easy retrofit into existing ceiling grids, ensuring quick installation and compatibility with most commercial lighting systems:



• 2' x 2' (603 x 603 mm)

• 2' x 4' (603 x 1213 mm)

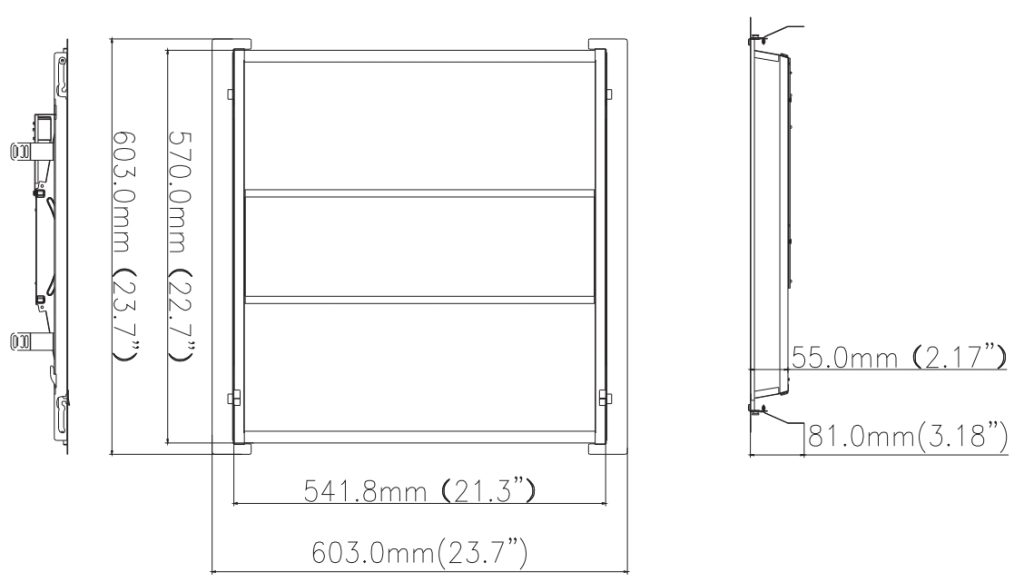

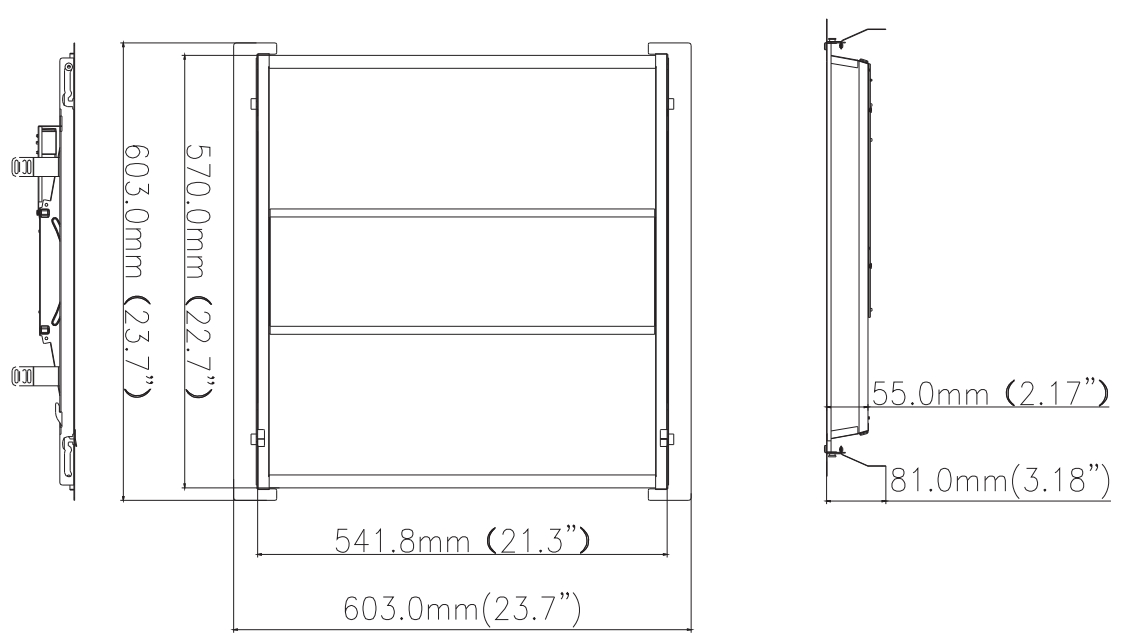

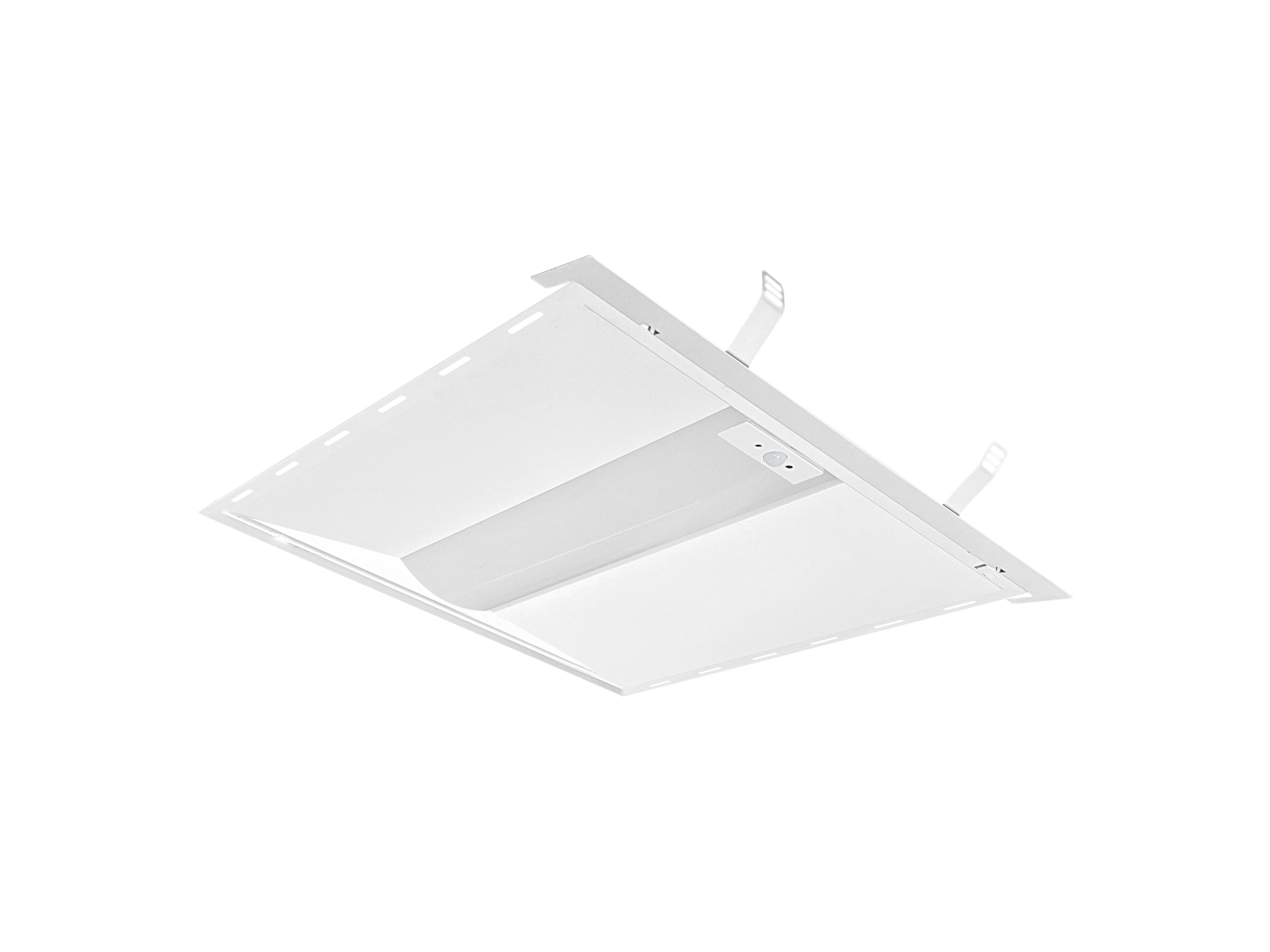

Single size: 2'x2'

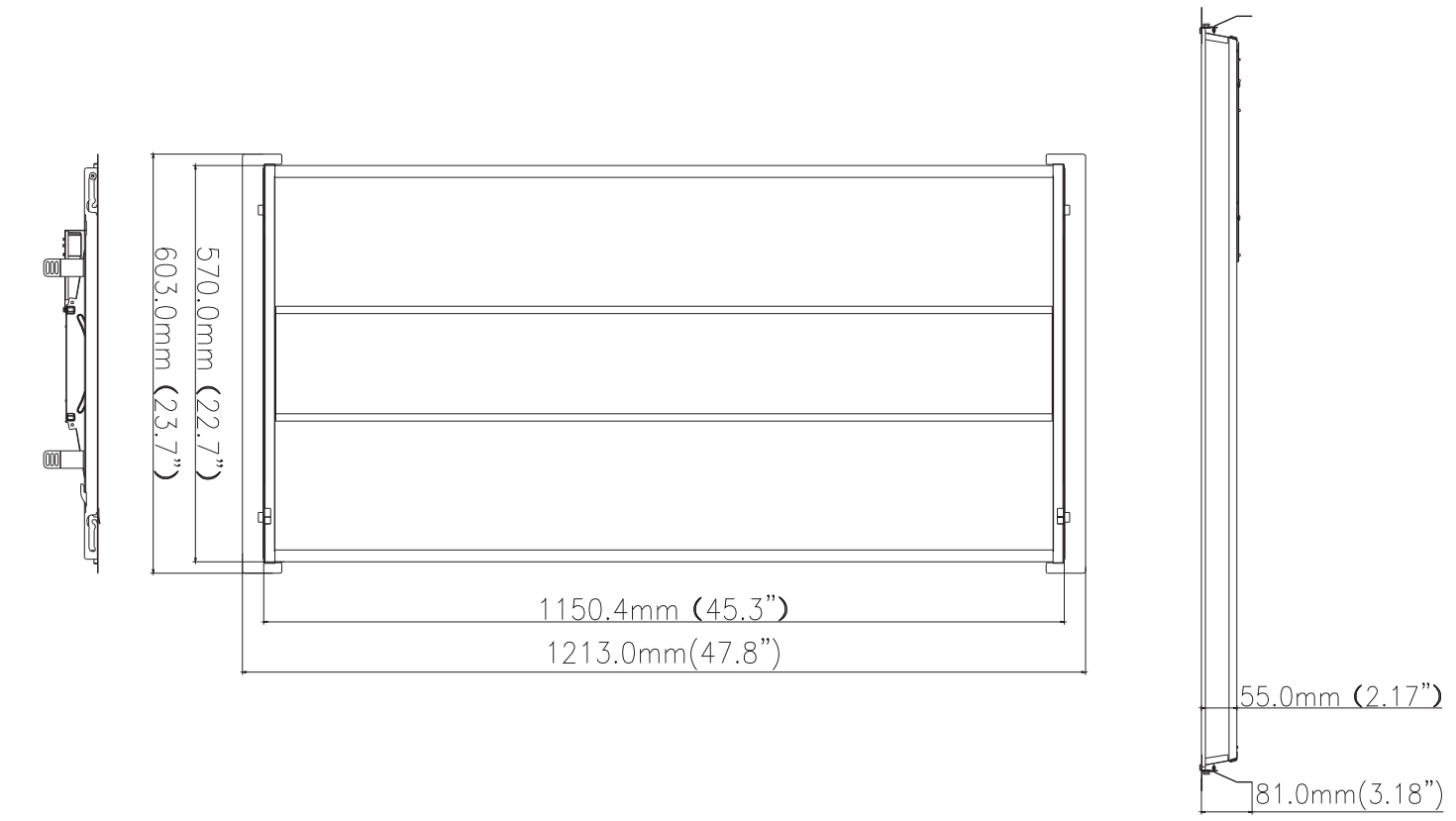

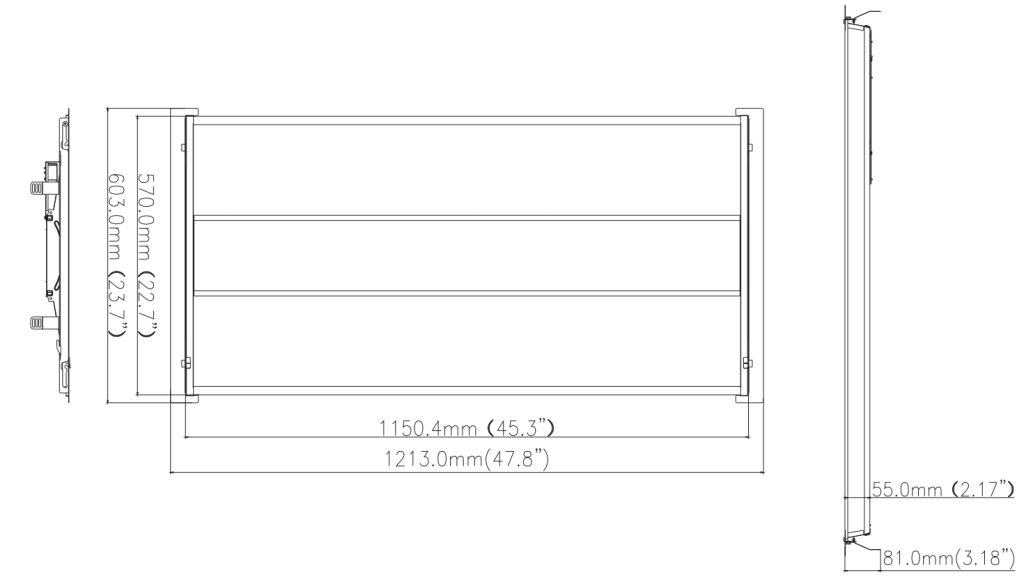

Single size: 2'x4'

STACKED PACKAGE DIMENSIONS

The retrofit kits are designed for efficient storage and transportation. Stacked dimensions are as follows:

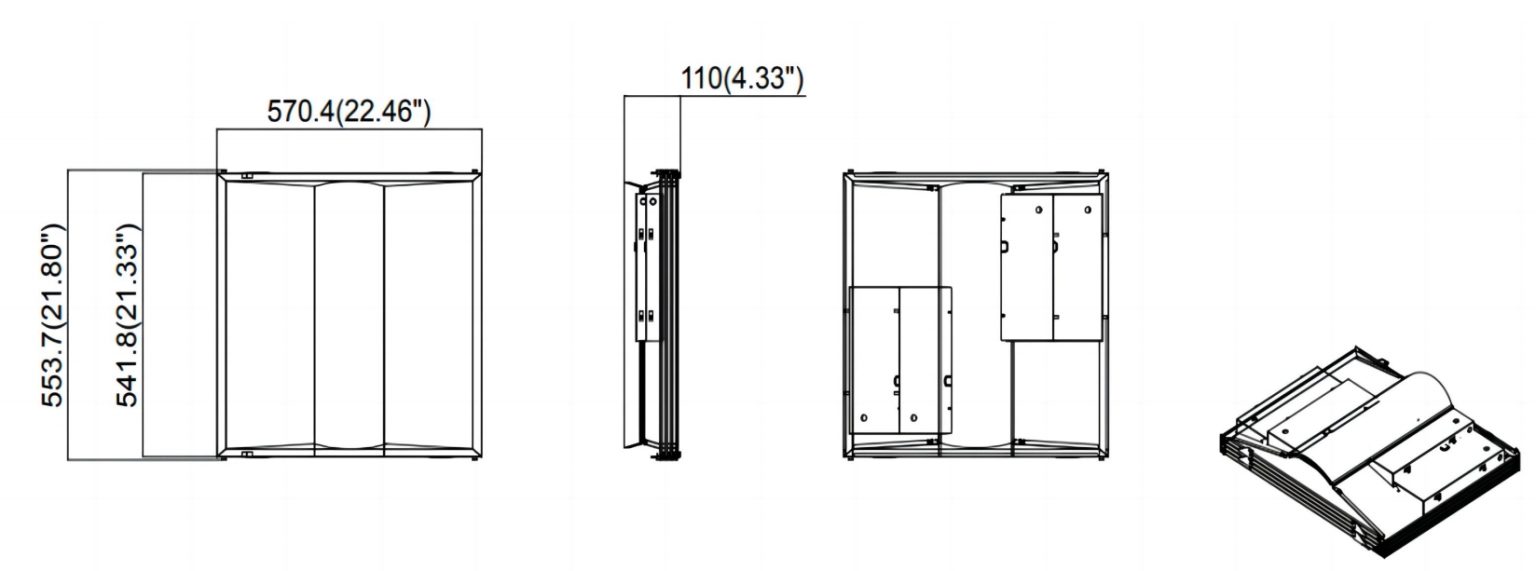

• 2' x 2': 553.7 x 570.4 x 110 mm

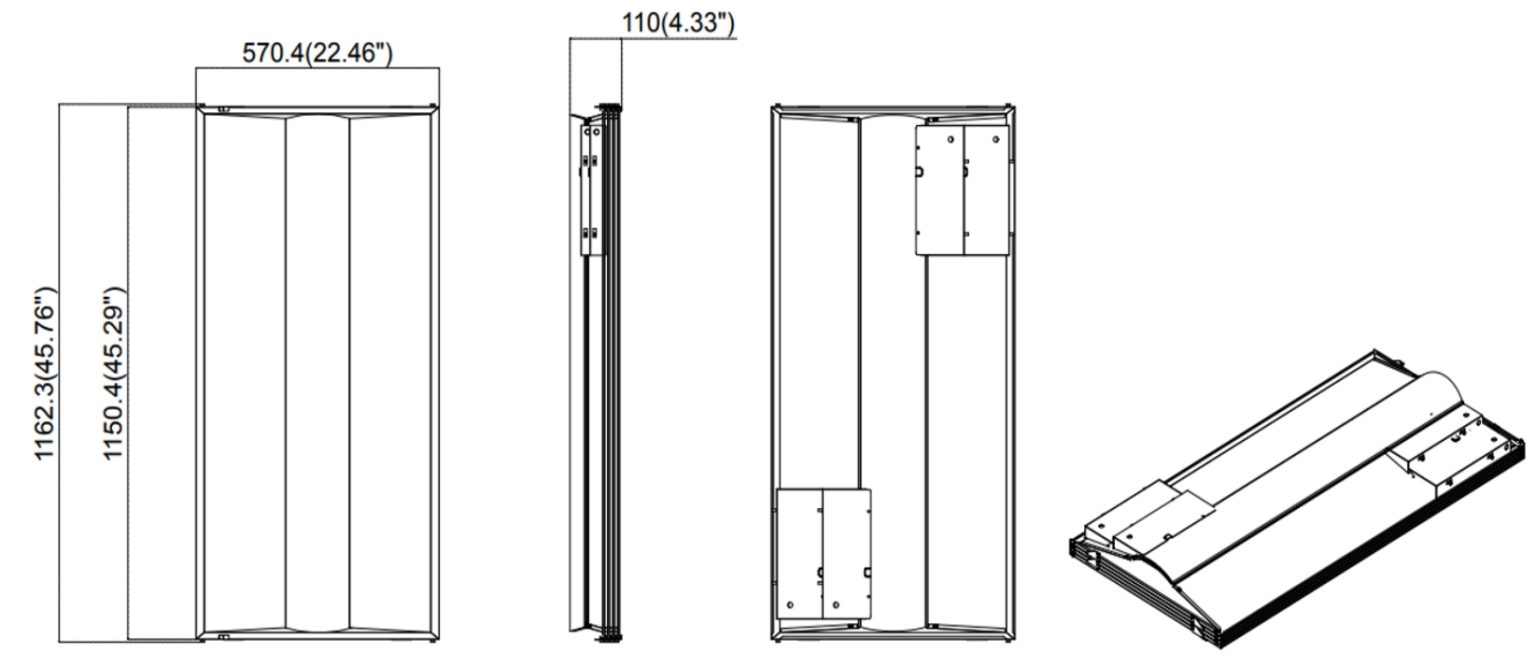

• 2' x 4': 1162.3 x 570.4 x 110 mm

2'X4'：1162.3*570.4*110MM
2'X2'：553.7*570.4*110MM

VERSATILE APPLICATIONS

The Ranger Troffer is ideal for various environments, including offices, workshops, warehouses, retail shops, and schools. Its efficient illumination and modern design create comfortable, well-lit spaces that enhance productivity and visual comfort.

troffer-office
三代灯盘1
三代灯盘

CUSTOM ANTIMICROBIAL COATING

Available with a customizable antimicrobial coating, this troffer is ideal for healthcare and specialized environments. It helps inhibit bacteria and microorganism growth, maintaining a cleaner and safer lighting area.

Report NO. : 2024FM04845R01D
The test microorganismThe average plate count of blank control sample recovered over 24h(cfw/piece)The average plate count of sample recovered over 24h (cfu/piece )Antibacterial rate（%）
Escherichia coli AS1.907.8x10⁶＜20＞99.99

CUSTOM VENTILATION DESIGN

Custom air ventilation openings available

for HVAC integration, improving airflow

around the fixture to maintain balanced

room temperature and enhance overall

comfort and energy efficiency.

2'x2'

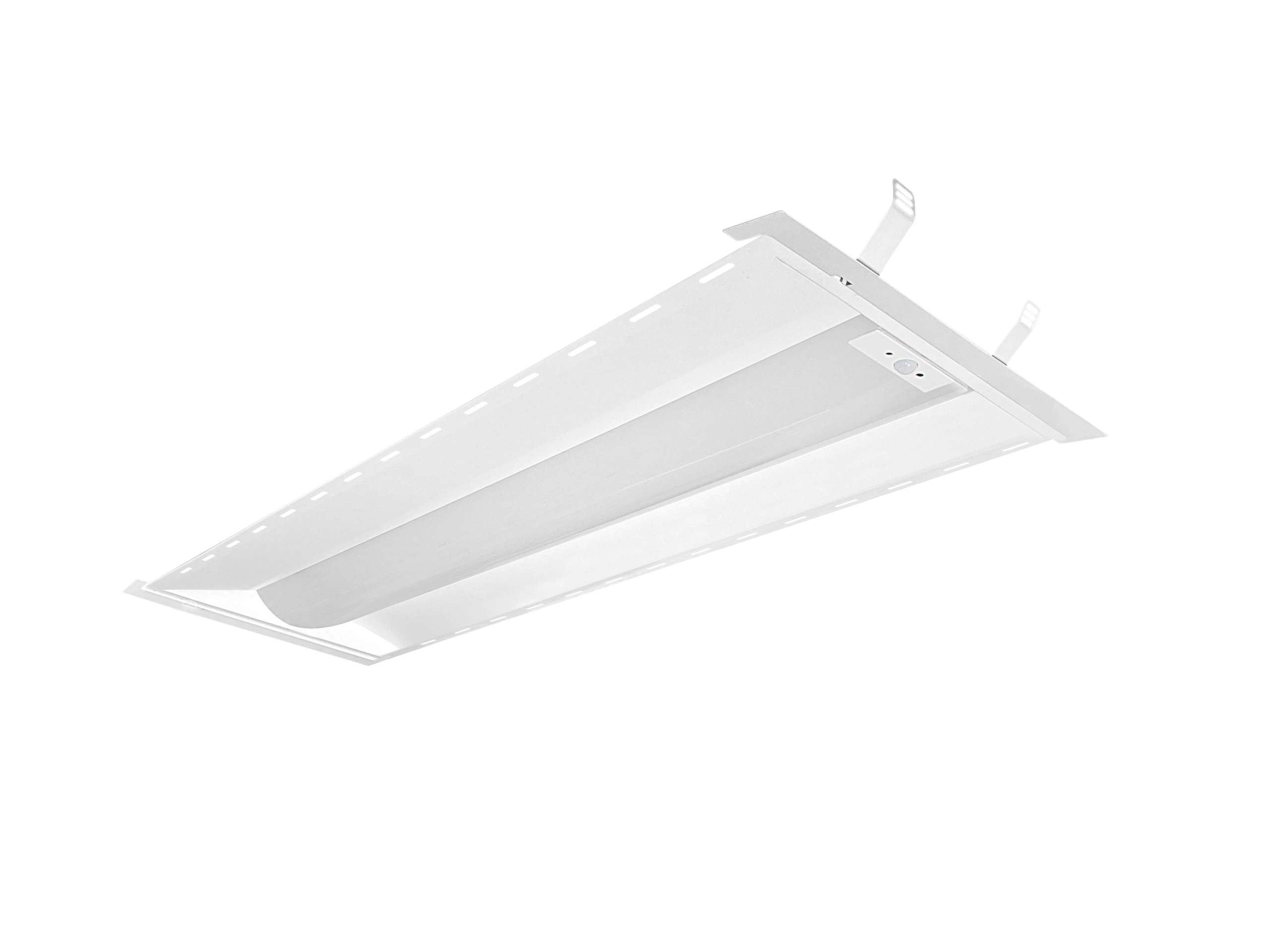

1'x4'

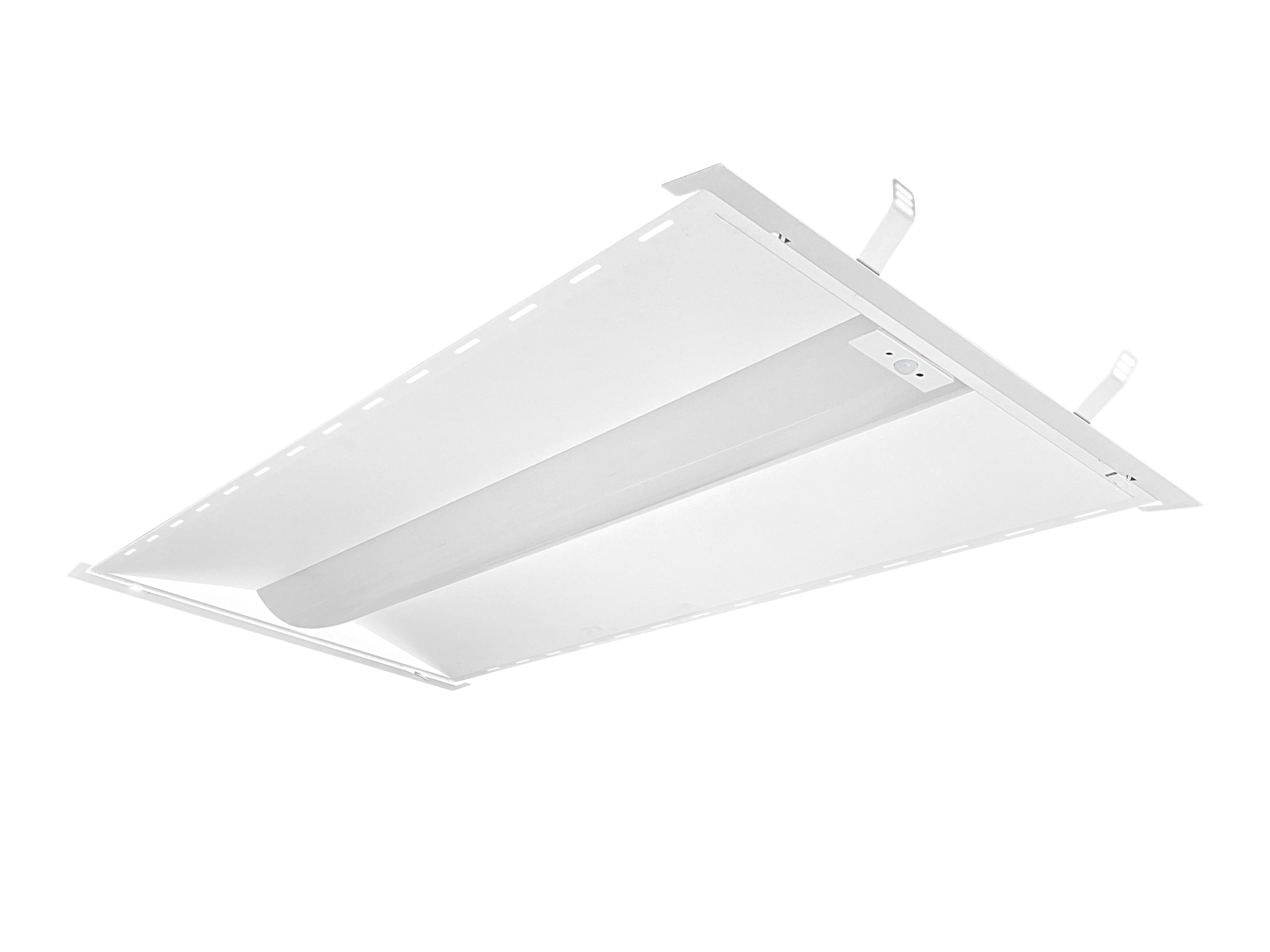

2'x4'

GEN3 Troffer/2X2’/36W/RA80/3500K
GEN3 Troffer/2X2’/36W/RA80/3500K
GEN3 Troffer/2X2’/36W/RA80/4000K
GEN3 Troffer/2X2’/36W/RA80/4000K
GEN3 Troffer/2X2’/36W/RA80/5000K
GEN3 Troffer/2X2’/36W/RA80/5000K
