Retrofit Magnetic Strips-T7
Retrofit Magnetic Strips-T7
The WL-2WRTST series 4ft LED retrofit strip kits deliver up to 130 LPW with a CRI of up to 80. The innovative kit is designed for retrofitting existing troffer and strip luminaires. The kits are easy to install and fit into almost any existing linear fixture via magnets, making them a perfect upgrade option for energy savings and long life without added renovation labor or waste.
- Dimming: 0-10V

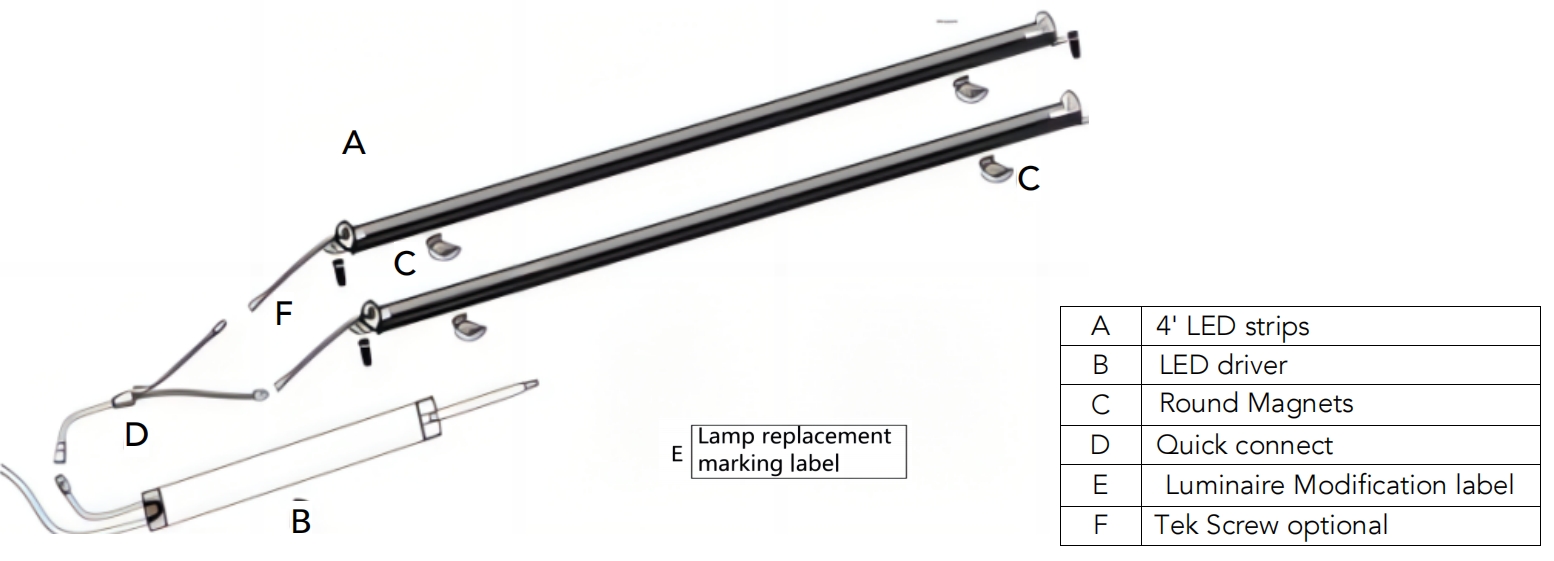

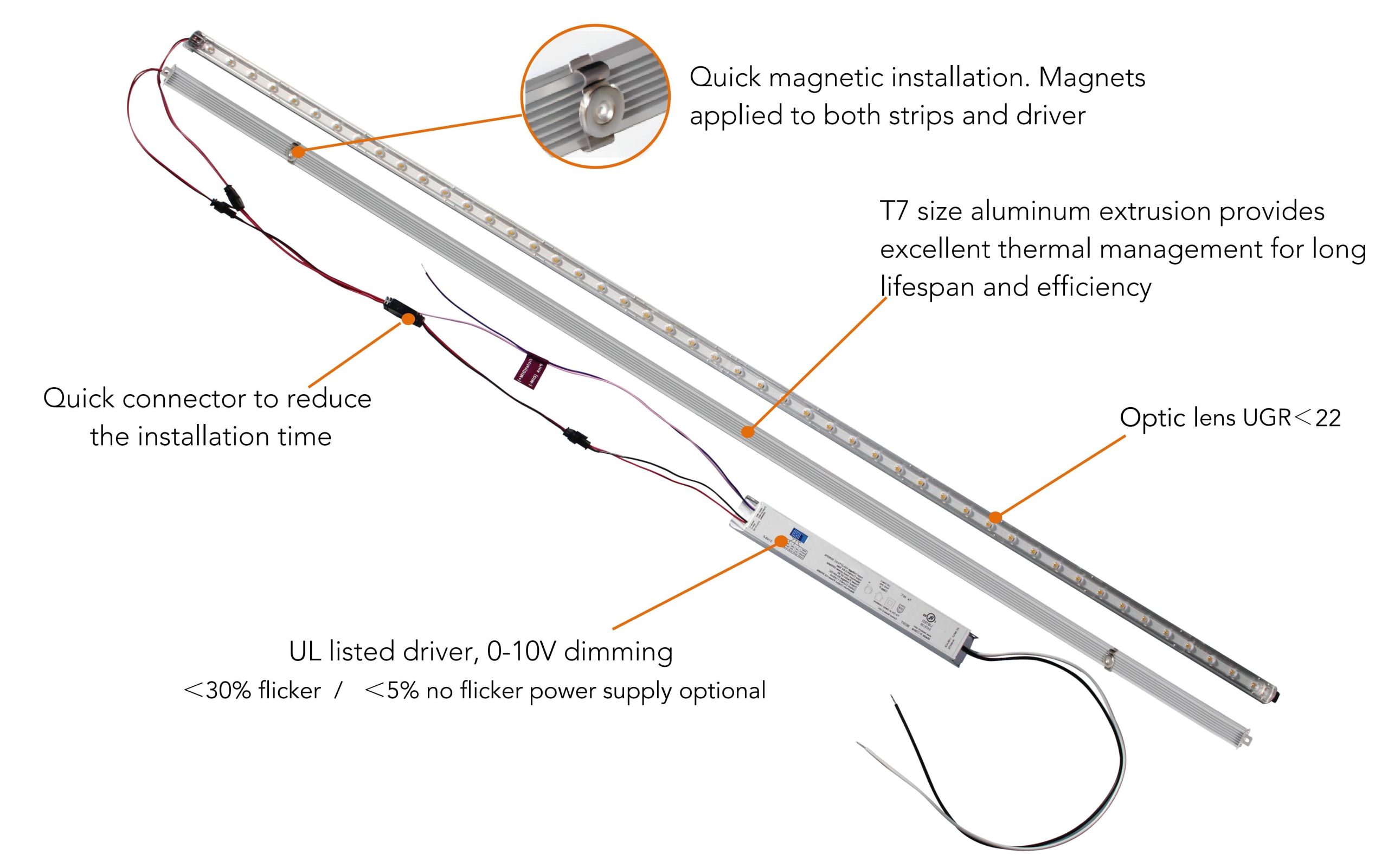

- Mounting method: Magnetic LED strips and quick-connect driver
- Easy and quick installation with existing fixture body in just 3 minutes
- No noise, maintenance-free, and no glare, flicker, or hot spots
- Durable – backed by a 5-year warranty with a long life of up to 50,000 hours
| T7 (Standard) | Length | Wattage /1 Strip | Strips Q'ty | Total Power | Efficacy | Lumen | CCT Single | Input Voltage | Dimming | CRI | Flicker Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WL-2WRTST220D | 4' | 10W | 2 | 20W | 130 lm/W | 2600lm | 35K/40K/50K | AC120-277V | 0-10V(10-100%) | >80 | <30% |
| WL-2WRTST230D | 4' | 15W | 2 | 30W | 130 lm/W | 3900lm | 35K/40K/50K | AC120-277V | 0-10V(10-100%) | >80 | <30% |
| WL-2WRTST240D | 4' | 20W | 2 | 40W | 130 lm/W | 5200lm | 35K/40K/50K | AC120-277V | 0-10V(10-100%) | >80 | <30% |
| WL-2WRTST260D | 4' | 30W | 2 | 60W | 130 lm/W | 7800lm | 35K/40K/50K | AC120-277V | 0-10V(10-100%) | >80 | <30% |
| WL-2WRTST280D | 4' | 40W | 2 | 80W | 130 lm/W | 10400lm | 35K/40K/50K | AC120-277V | 0-10V(10-100%) | >80 | <30% |
Retrofit Magnetic Strips-T7 Video Introduction
VERSATILE RETROFIT APPLICATIONS
The Retrofit Magnetic Strips are ideal for upgrading existing troffer and strip fixtures in offices, workshops, warehouses, retail shops, and schools. Their efficient illumination and easy installation transform outdated lighting into bright, modern spaces that enhance productivity and visual comfort.
Packing Specifications
This product offers three outer carton types for convenient packaging and delivery: LED strip outer carton, quick connect cable outer carton, and power supply outer carton. Each packaging option ensures safe handling and efficient storage based on the component requirements.
| Packing Parameters | |||||
|---|---|---|---|---|---|
| MODEL | OUTER CARTON TYPE | O.C. DIM. (CM) | N.W./CTN | G.W./CTN | PCS/CTN |
| 4FT-2 Strip | LED strip outer carton | 124*21*22.5 | 8.5 | 9.8 | 70PCS |
| 4FT-2 Strip | Quick connect cable outer carton | 44.2*41.8*13 | 8.5 | 9.2 | 500PCS |
| 4FT-2 Strip | Power supply outer carton | 44.2*39.2*12 | 11.9 | 12.5 | 50PCS |
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Retrofit Magnetic Strips-T7 | V10-24 | Retrofit-Magnetic-Strips-T7-Specification-Sheet | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-80W-CRI80-3500K-IES | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-60W-CRI80-5000K | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-60W-CRI80-3500K-IES | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-40W-CRI80-5000K | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-40W-CRI80-3500K-IES | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-30W-CRI80-5000K | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-30W-CRI80-3500K-IES | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-20W-CRI80-5000K | |
| Retrofit Magnetic Strips-T7 | IES | Magnetic-T7-Lens-2-Strip-4FT-20W-CRI80-3500K-IES |
