Sense 178(GEN13)
Sense 178 (GEN 13)

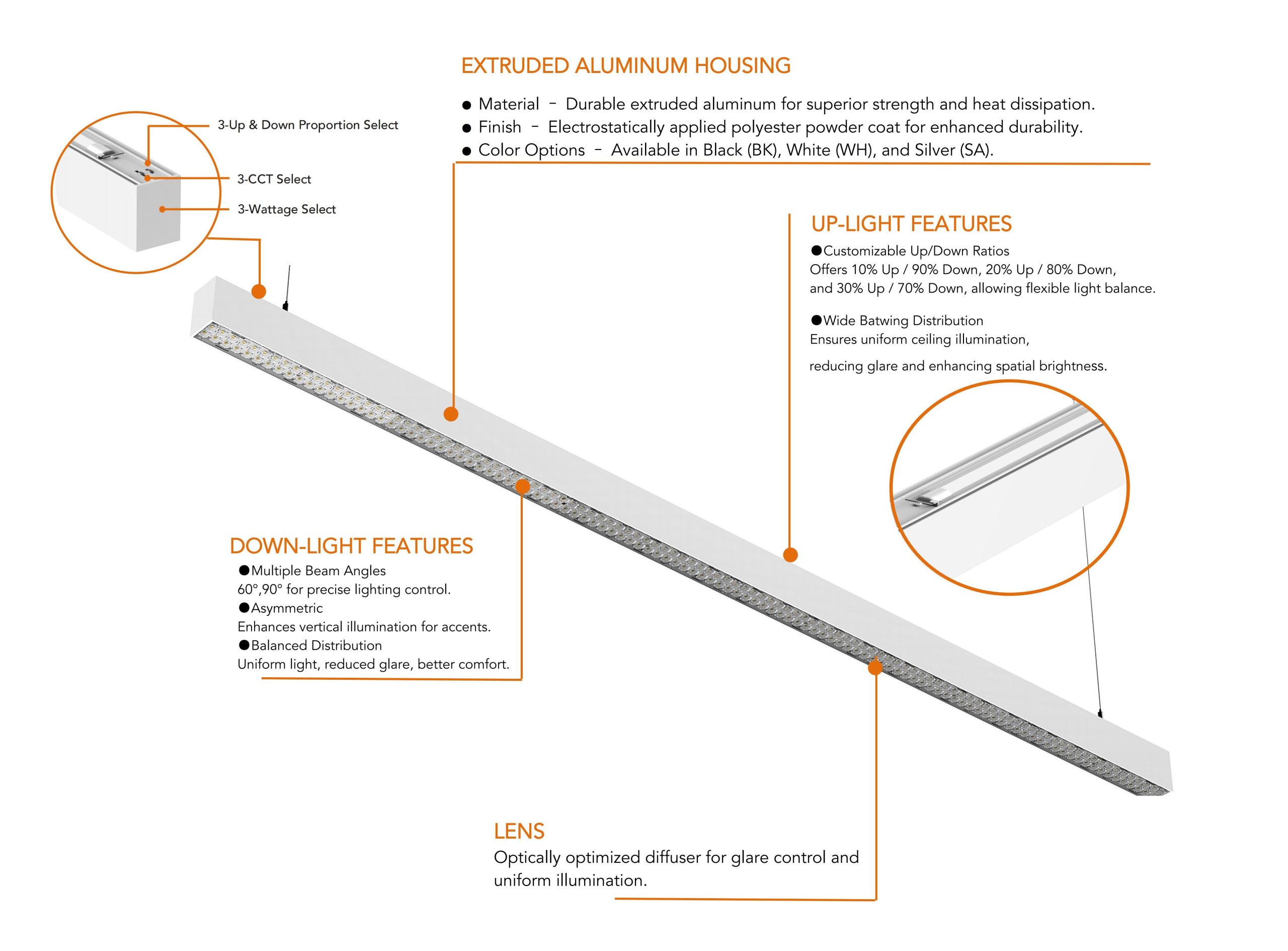

Designed for modern workspaces, hospitality, and architectural interiors, the Sense 178 series delivers refined illumination through a precision-engineered low-glare system. Its dual-level optical design blends indirect and direct light for balanced visual comfort, supported by a built-in programmer. Standard with a louver lens and available with an optional dual-row LED lens, it adapts to diverse design needs while preserving a clean, architectural aesthetic. Available in 2', 4', and 8' lengths with continuous run capability, Sense 178 offers multiple independently controllable direct/indirect distribution combinations—uniting design flexibility with exceptional energy efficiency.
| Model | Length | Wattage Select | Efficacy | Lumen | CCT Select | Voltage | Dimmable | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-13LSUD4FT50WE1D1HV(XXK-XXK-XXK)-YY-ZZ | 4FT | 36/48/60W | 170lm/w | 6120lm/8160lm/10200lm | 30K/35K/40K | 220-240V | 0-10V (1%-100%) | >80 |
| WL-13LSUD8FT120WE1D1HV(XXK-XXK-XXK)-YY-ZZ | 8FT | 72/96/120W | 170lm/w | 12240lm/16320lm/20400lm | 30K/35K/40K | 220-240V | 0-10V (1%-100%) | >80 |
Run Lengths
Standalone fixtures are available in4FT(1126mm) and 8FT(2446mm) nominal lengths.
Distribution
Up:Batwing

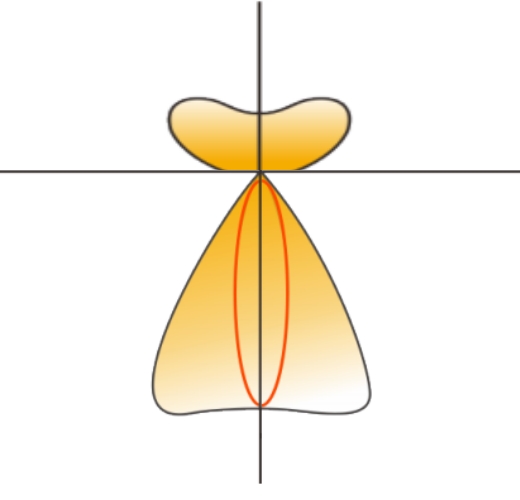

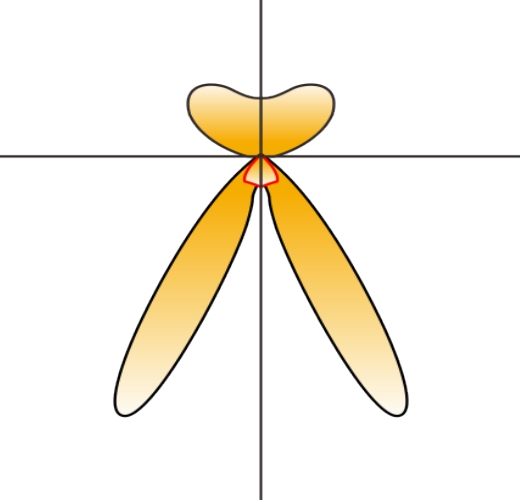

Down:Double Asymmetric

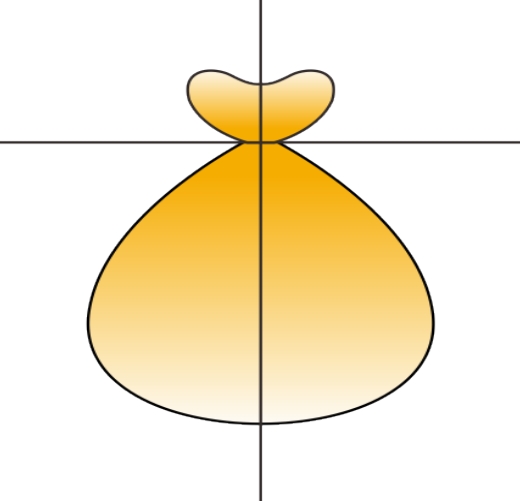

Up:Batwing Down:90°

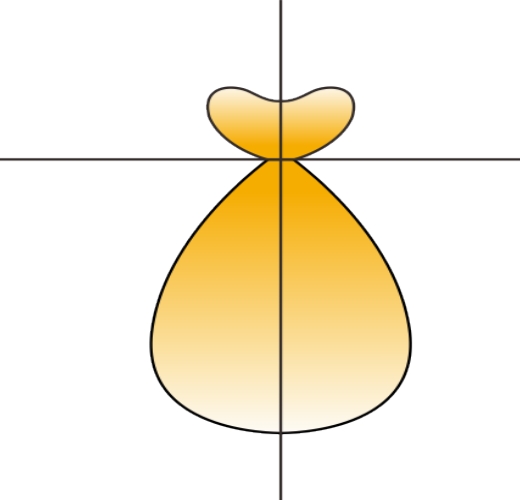

Up:Batwing Down:60°

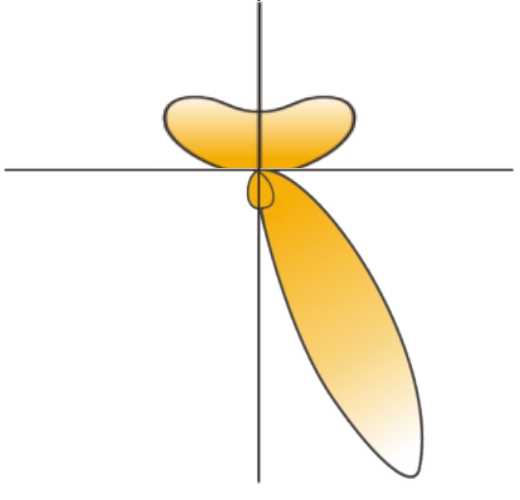

Up:Batwing Down:Wall wash
Up:Batwing Down:Asymmetric

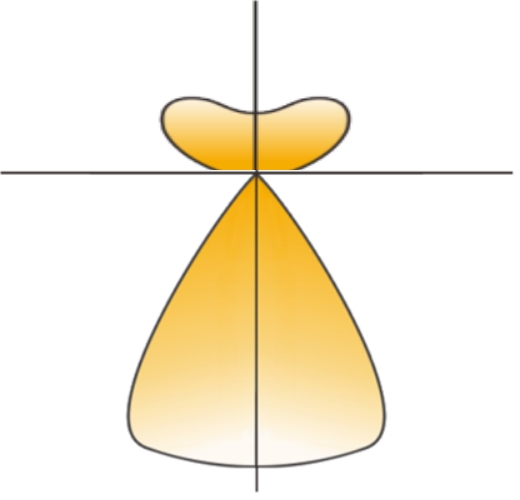

Up:Batwing Down:80°

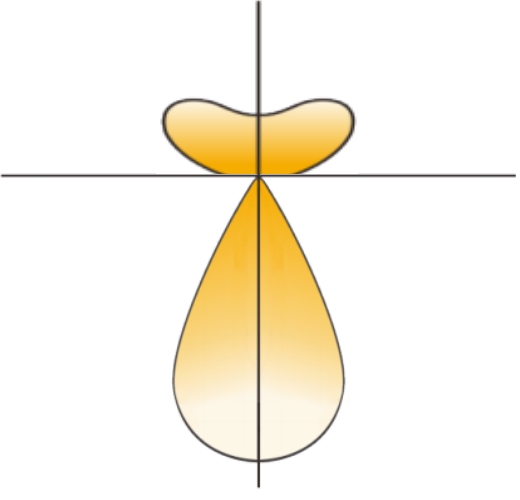

Up:Batwing Down:50°
Louver Lens
The louver lens delivers focused, low-glare illumination, reducing visual fatigue while maintaining a clean, structured aesthetic. Ideal for creating comfortable, high-end environments with controlled light distribution.
Dual-Row LED Lens
The dual-row LED lens increases luminous output while ensuring uniform light distribution. Perfect for applications that require higher illumination levels without sacrificing visual comfort.
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
[BK] Black
[WH] White
[SR] SILVER
Custom
Run Length Limits
| Run Length Limits(ft) | 4FT | 8FT |
| Max Linkable Units | 7 units | 4 units |
| Total connected load | <420W at 120V & <960W at 277V & <1200W at 347V |
Sense 178/3000K/50W/RA80

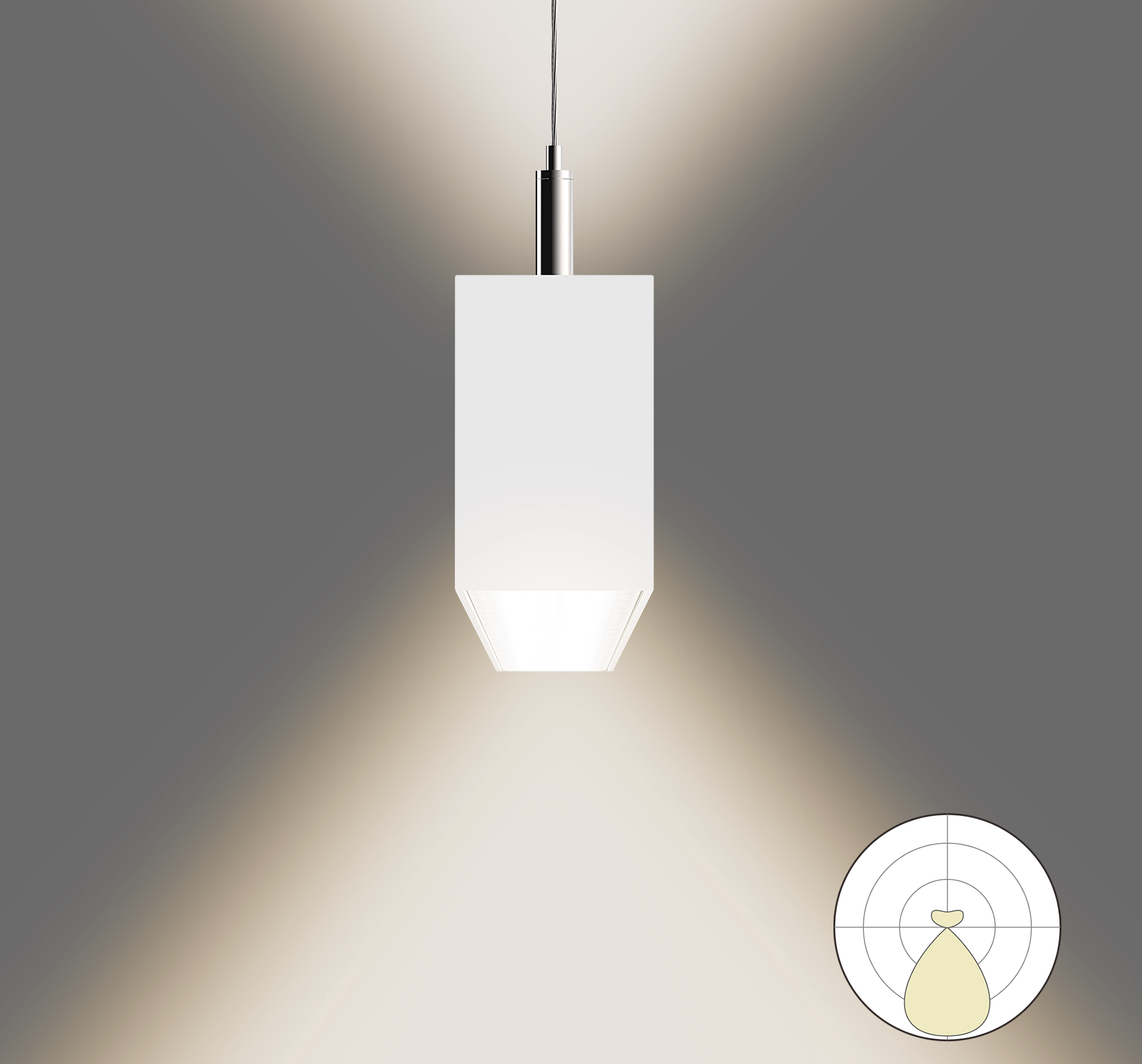

Sense 178/3500K/50W/RA80

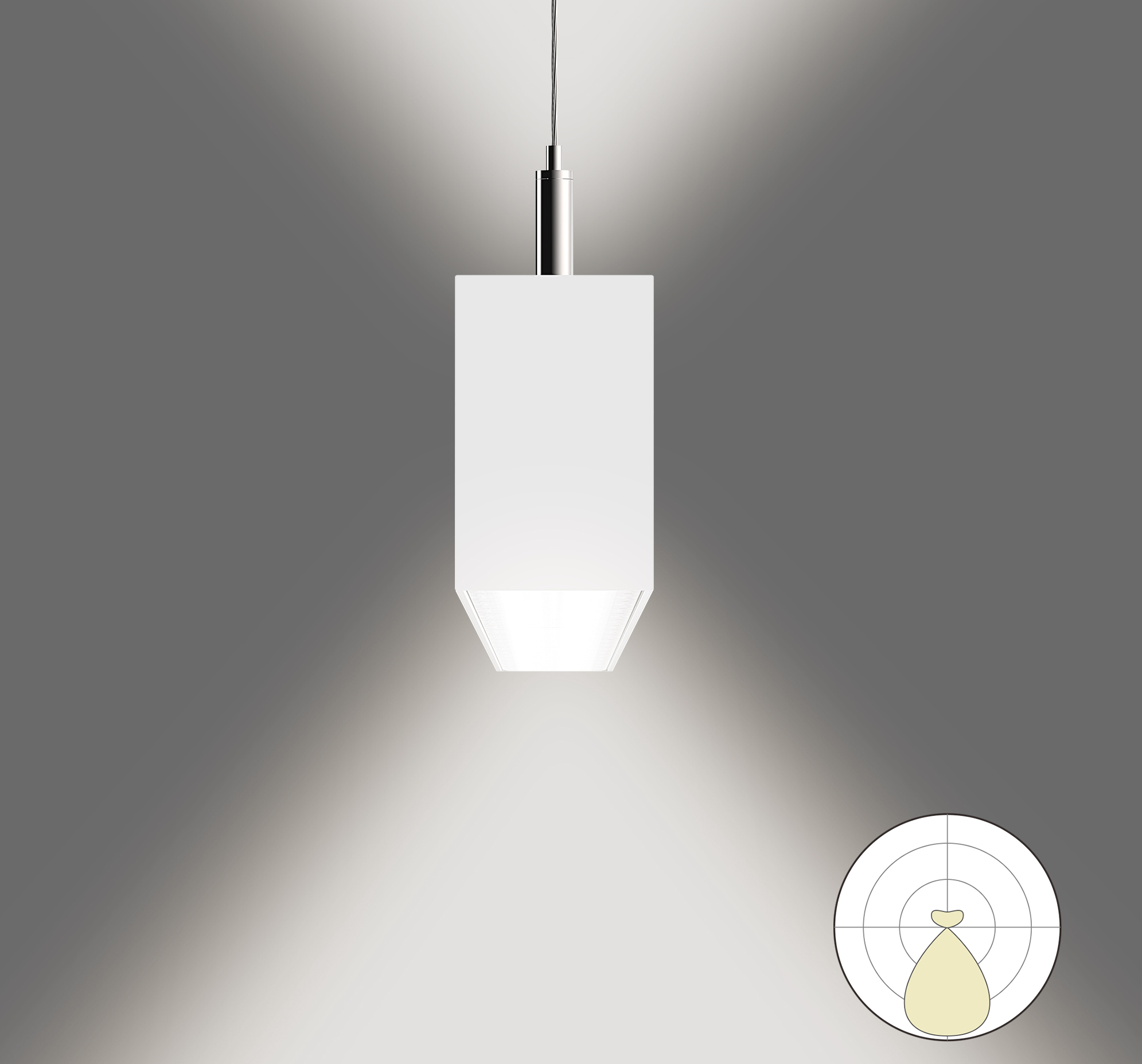

Sense 178/4000K/50W/RA80
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up30Down70-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up10Down90-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up10Down90-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up20Down80-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up20Down80-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-4000K-White-2 | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up30Down70-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up20Down80-CRI80-4000K-Black-1 | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-4000K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-3500K-White | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-3000K-White | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-60W-Up-BatwingDown-60°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up20Down80-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-48W-Up-BatwingDown-60°-Up10Down90-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up30Down70-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up20Down80-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-4FT-36W-Up-BatwingDown-60°-Up10Down90-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up30Down70-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up30Down70-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up20Down80-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up20Down80-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up10Down90-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up10Down90-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up30Down70-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up30Down70-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up20Down80-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up20Down80-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up10Down90-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-12W-Up-BatwingDown-73°-Up10Down90-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up30Down70-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up30Down70-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up20Down80-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up20Down80-CRI80-3500K-Black. | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up20Down80-CRI80-3000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | IES | Sense-178-1FT-9W-Up-BatwingDown-73°-Up10Down90-CRI80-3500K-Black | |
| Sense 178 | IES | Sense-178-1FT-15W-Up-BatwingDown-73°-Up10Down90-CRI80-4000K-Black | |
| Sense 178 | V10-24 | Sense 178 Specification Sheet |
| Family | Version | Content | Download |
|---|---|---|---|
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Metal Non-luminous LX Connector Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense New T-bar Recessed Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Drywall Suspension Kits Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Louver Lens Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Sensor Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense T-grid Recesse Mount With Frange Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Linkable Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Link Pattern Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Drywall Suspension Mount(Type-B) Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Drywall Recessed Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Drop Ceiling Suspension Mount Installation Instruction | |
| Dense 275, Sense, Sense 275 | V10-24 | Dense + Sense Ceiling Wall Recessed Installation Instruction |
