The Sense 178 product line embodies a deliberate, low-glare control system. Its standout feature is the dual-level optical control, providing exceptional visual comfort through both indirect and direct lighting distributions, complete with a built-in programmer. Offering versatility,it comes in sizes of 2', 4', and 8', and supports continuous runs,boasting a diverse array of independently controllable direct/indirect distribution options. Sense 178 promises to enhance the user experience significantly while maintaining top-notch energy efficiency.
| Model | Length | Watt Select | Propotion Select | Efficacy | Lumens | CCT Select | Voltage | Dimmable | CRI |
|---|---|---|---|---|---|---|---|---|---|
| WL-17LSUD2FT25WE3DUV | 2FT(606mm) | 15W/20W/25W | ↑30% / ↓70% or ↑50% / ↓50% or ↑0% / ↓100% | 105lm/W | 1575/2100/2625lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | ＜19 |
| WL-17LSUD4FT50WE3DUV | 4FT(1206mm) | 30W/40W/50W | ↑30% / ↓70% or ↑50% / ↓50% or ↑0% / ↓100% | 105lm/W | 3150/4200/5250lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | ＜19 |
| WL-17LSUD8FT100WE3DUV | 8FT(2406mm) | 60W/80W/100W | ↑30% / ↓70% or ↑50% / ↓50% or ↑0% / ↓100% | 105lm/W | 6300/8400/10500lm | 30K/35K/40K | 120-277V | 0-10V (10%-100%) | ＜19 |
Run Lengths
Standalone fixtures are available in2FT(606mm),4FT(1206mm) and 8FT(2406mm) nominal lengths.

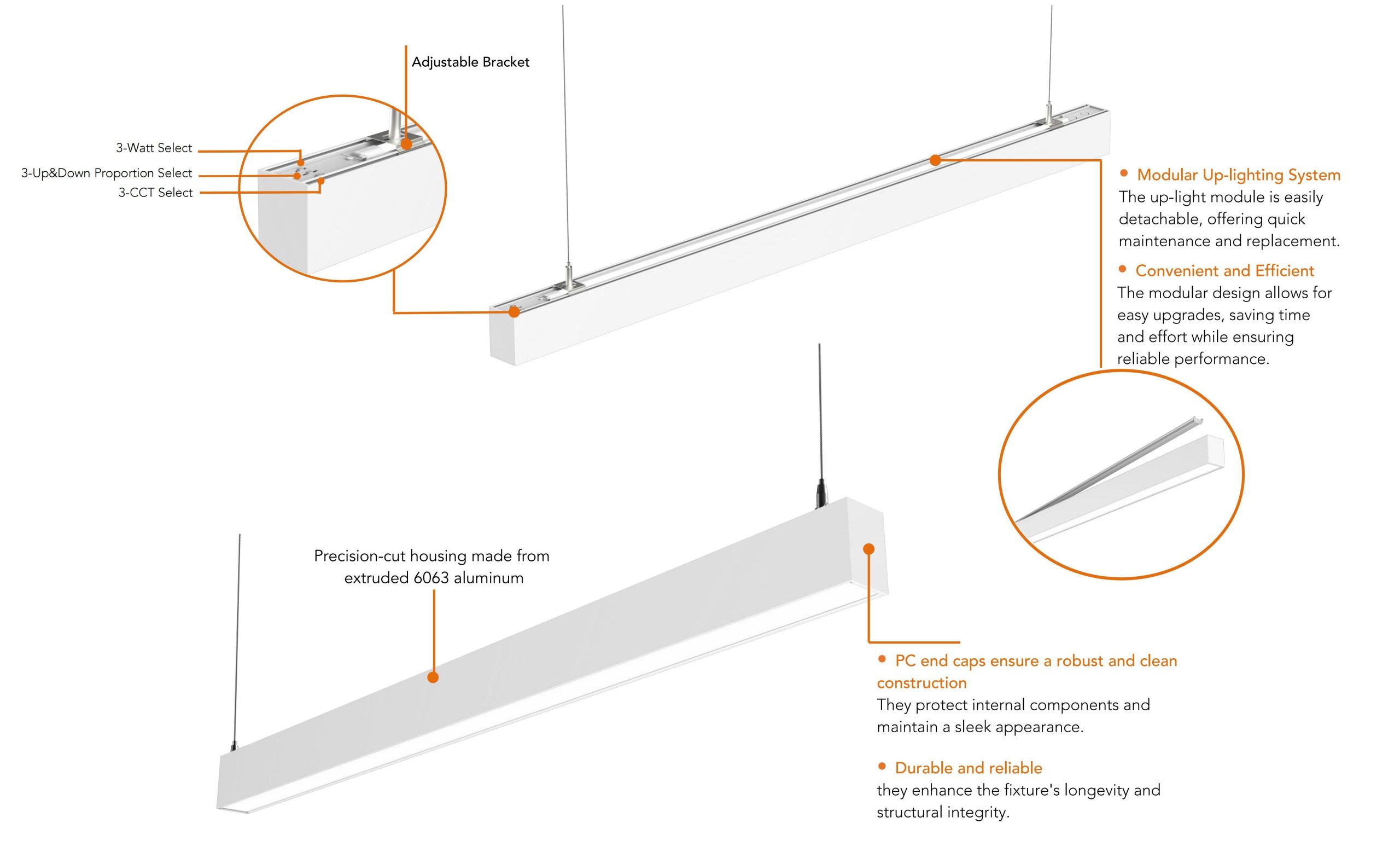

MODULAR UP-LIGHT DESIGN

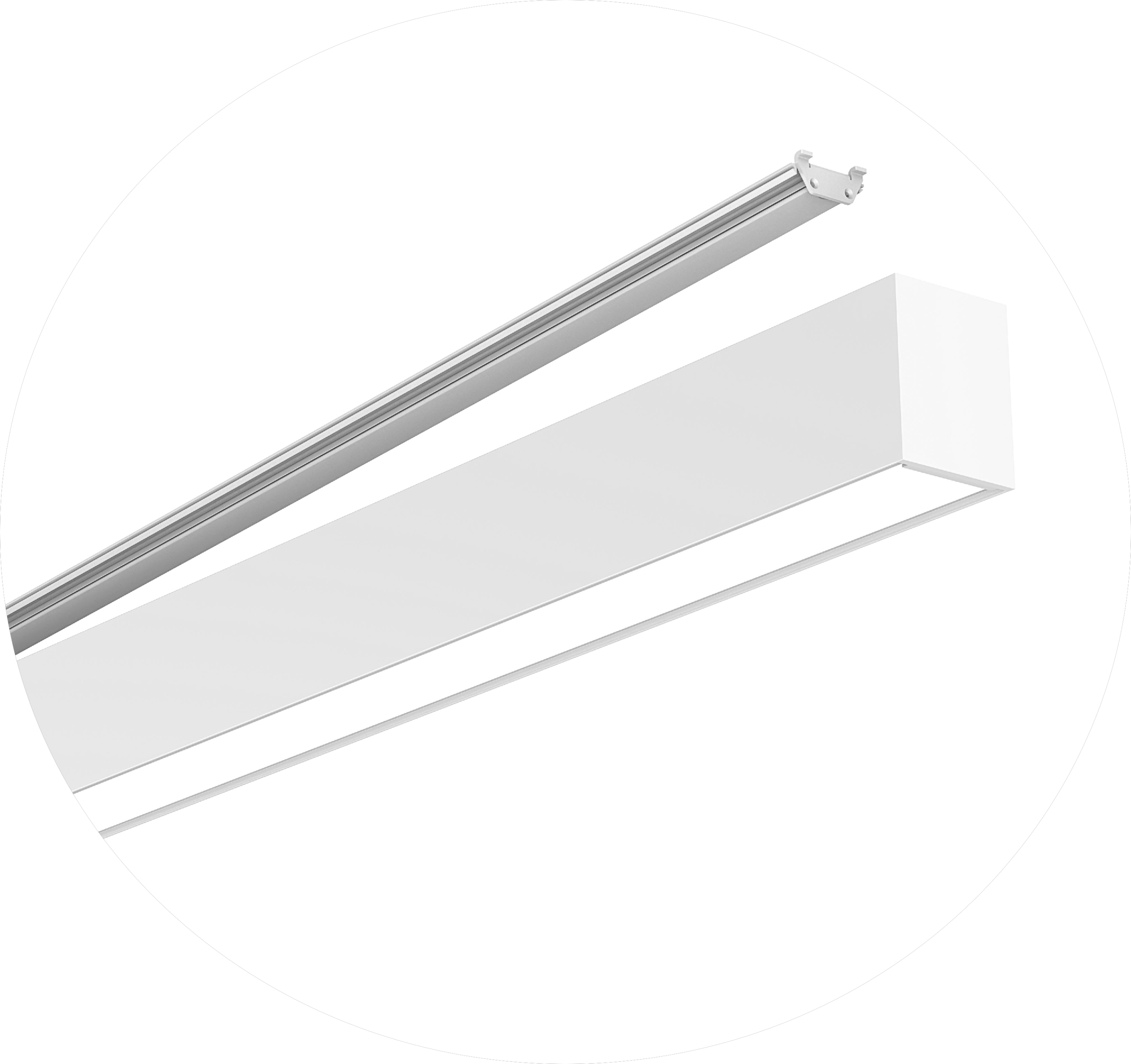

Adopting a modular design, the upper lighting section is engineered as an independently detachable module.
This allows maintenance or optical upgrades to be carried out without removing the entire fixture, while keeping the down-light system intact and undisturbed, significantly reducing on-site intervention.
HEXAGONAL FORMATION
Y-Shape lit connectors enable seamless hexagonal patterns with continuous illumination—ideal for sculptural ceilings and immersive installations.
GRID CONFIGURATION
Square layouts built with L-Shape connectors deliver a clean, organized aesthetic—ideal for structured, modular ceiling designs.

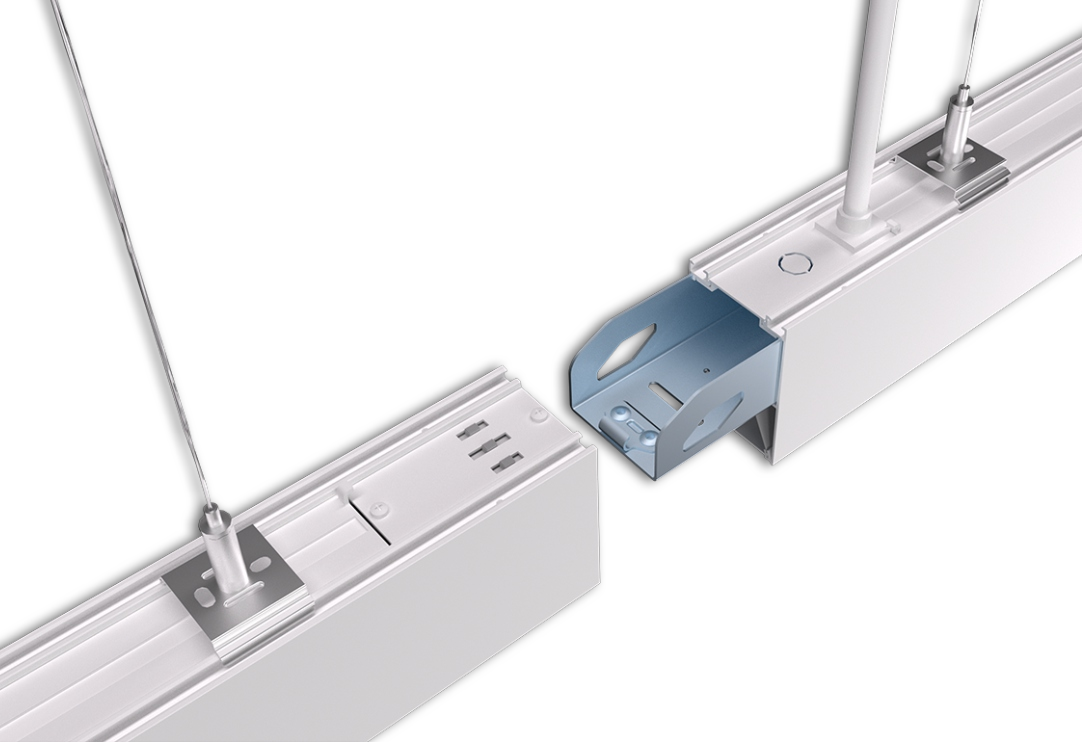

Quick linkable function
Run Length Limits
| Run Length Limits(ft) | 2FT | 4FT | 8FT |
| Max Linkable Units | 7 units | 7 units | 4 units |
| Total connected load:<420W at 120V & <960W at 277V |
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up50down50-4000K-White | |
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up50down50-3000K-White | |
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up30down70-4000K-White | |
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up30down70-3000K-White | |
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up0down100-4000K-White | |
| Sense 198 | IES | Sense-198-4FT-50W-CRI80-Up0down100-3000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up50down50-3500K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up50down50-4000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up50down50-3000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up30down70-4000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up30down70-3500K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up30down70-3000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up0down100-4000K-White | |
| Sense 198 | IES | Sense-198-2FT-25W-CRI80-Up0down100-3500K-White | |
| Sense 198 | V10-24 | Sense-198-V2.2-Specification-Sheet |
