Sense 275 (GEN 2)

Sense 275 embodies a deliberate, low-glare control system, featuring dual-level optical control for exceptional visual comfort through both indirect and direct lighting distributions — all with a built-in programmer.

It offers versatility with available lengths of 2', 3', 4', and 8', and supports continuous runs, providing a wide range of independently controllable direct/indirect distribution options.

Sense 275 is designed to significantly enhance the user experience while maintaining top-tier energy efficiency.

上下发光
Model Length/Pattem Wattage Select Efficacy UP 0% Down 100% MAX LUMEN UP 50% Down 50% MAX LUMEN UP 30% Down 70% MAX LUMEN CCT Select Voltage Dimming CRI
WL-2LSUD2FT25WEDHV2FT(606mm)25W/20W/10W115lm/W2875lm2845lm3000lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUD3FT38WEDHV3FT(906mm)38W/30W/22W115lm/W4370lm4320lm4560lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUD4FT50WEDHV4FT(906mm)50W/40W/30W115lm/W5750lm5700lm6000lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUD8FT100WEDHV8FT(2406mm)100W/80W/60W115lm/W11500lm11400lm12000lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUDL30WEDHVL Pattern30W/25W/20W115lm/W3450lm3420lm3600lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUDT50WEDHVT Pattern50W/40W/30W115lm/W5750lm5700lm6000lm30K/35K/40K120-347V0-10VRa>80
WL-2LSUDC60WEDHVX Pattern60W/50W/40W115lm/W6900lm6820lm7200lm30K/35K/40K120-347V0-10VRa>80

Sense 275 (GEN 2) Video

MULTIPLE OPTICS FOR PRECISE LIGHT CONTROL



Optimize glare control, visual comfort, and distribution with a wide range of optics — each engineered to deliver a unique lighting experience.

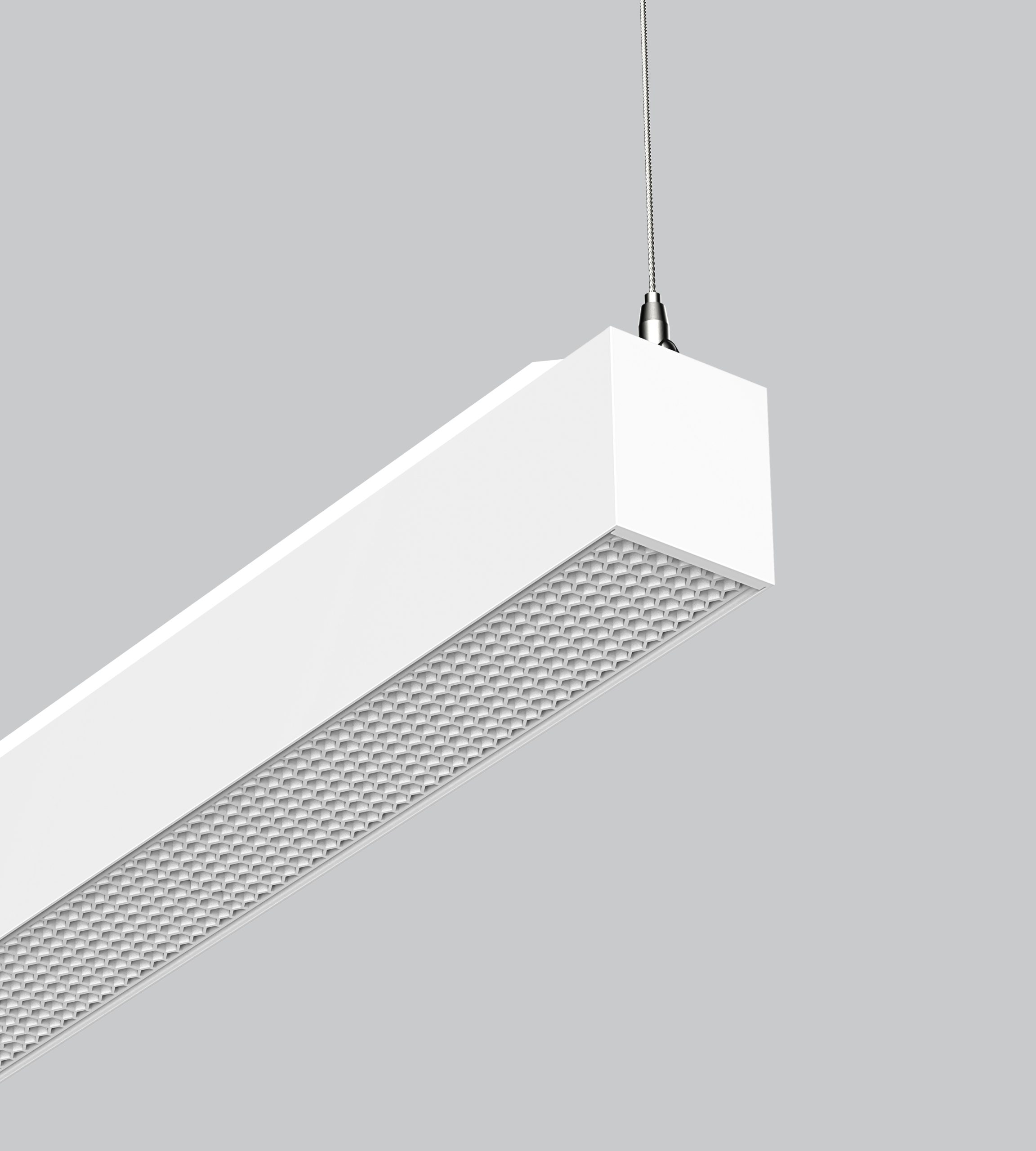

Hex louver
Hex louver

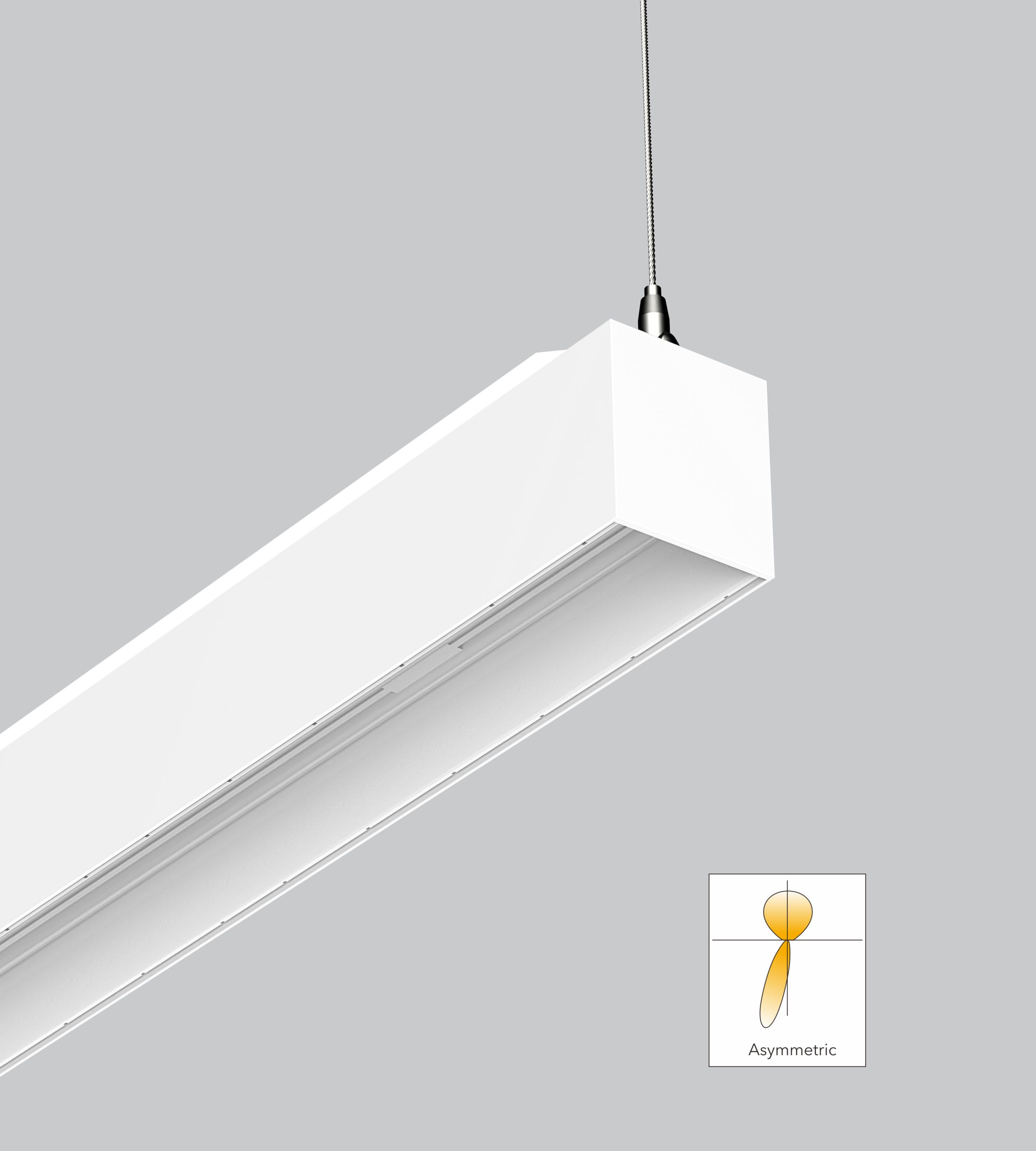

Asymmetric
Asymmetric

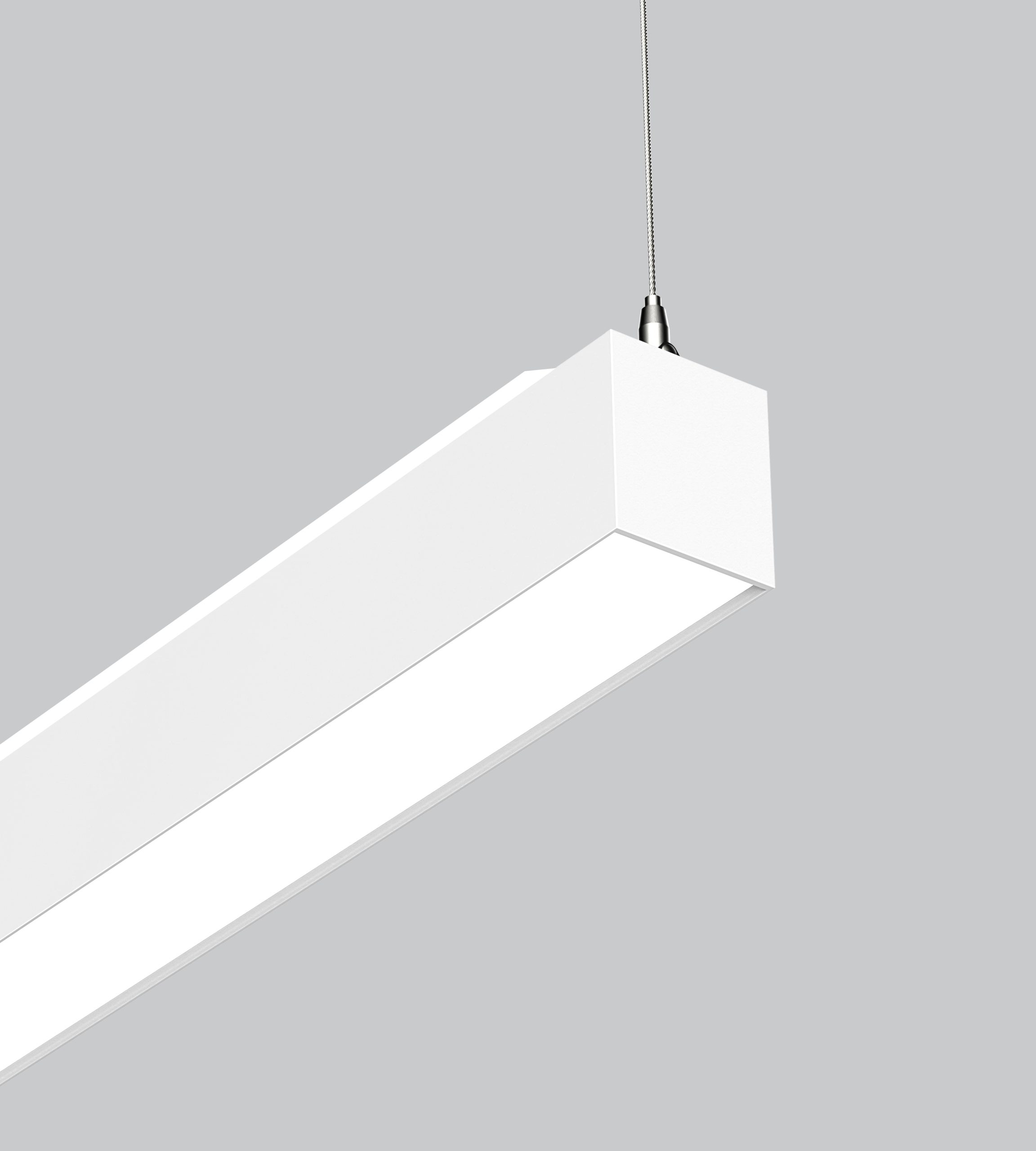

PC Spotless Diffuser
PC Spotless Diffuser

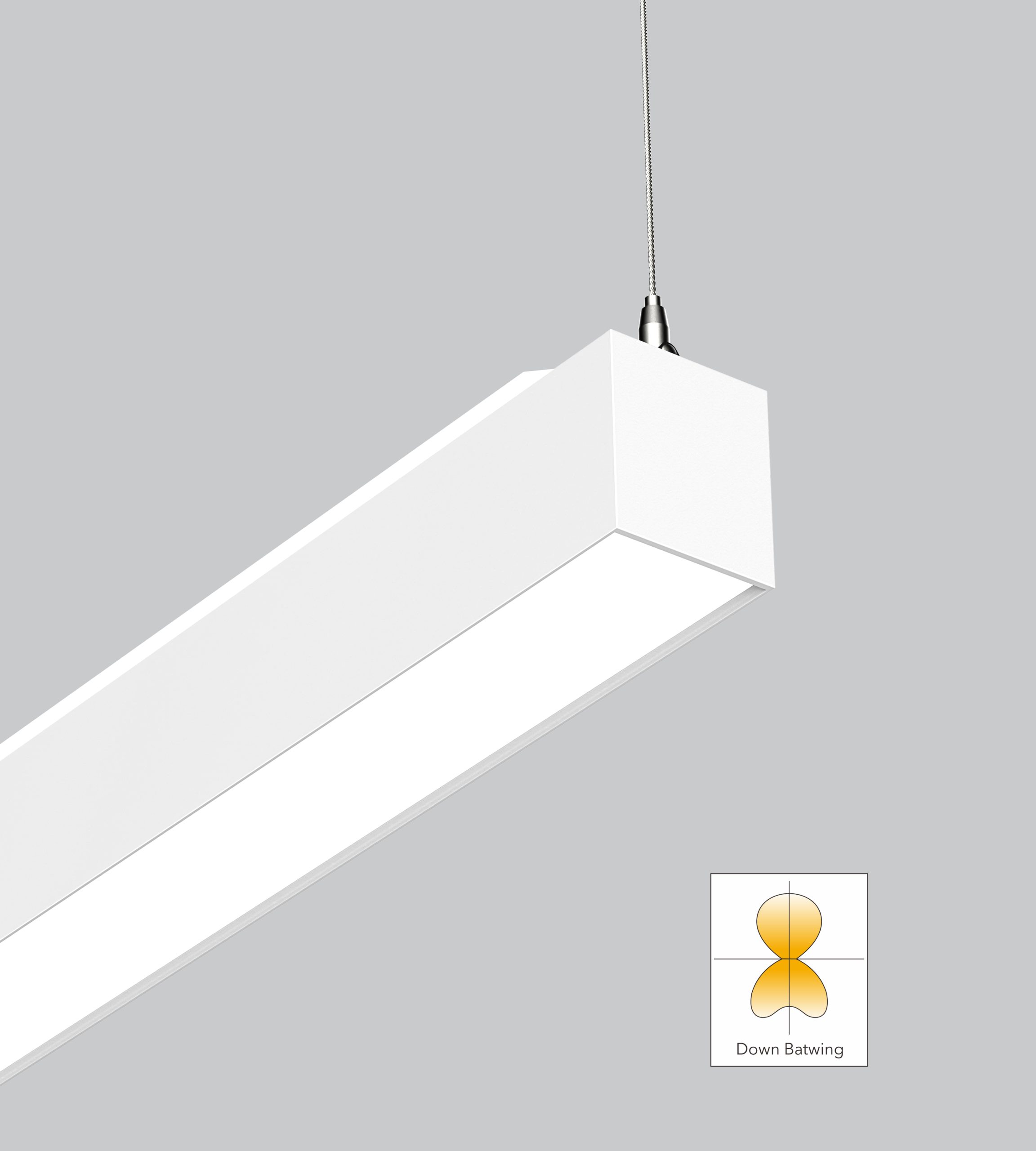

Batwing
Batwing
Dense 275-Parabolic Grill UGR
Parabolic Grill UGR<19

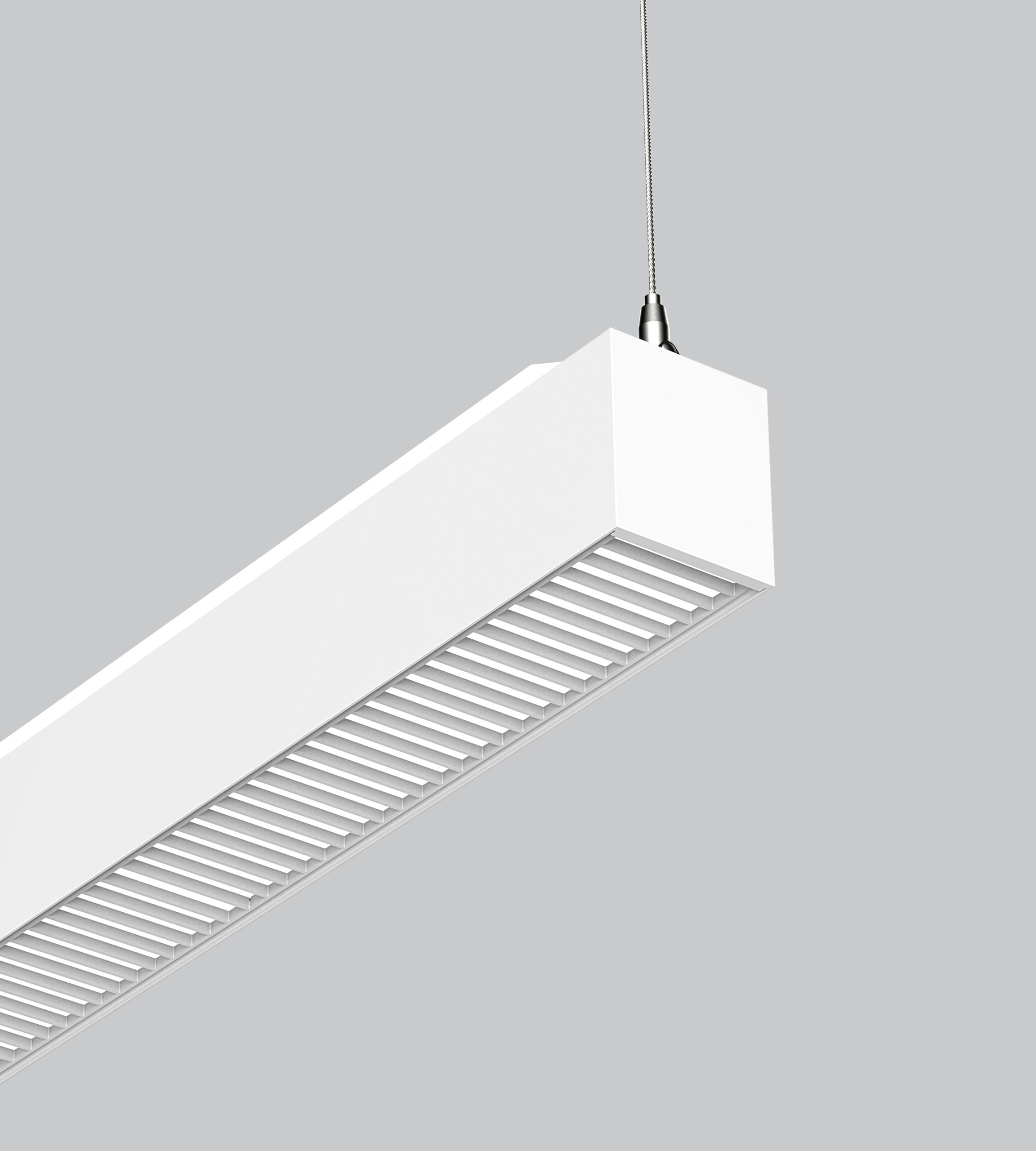

PC Louver
PC Louver

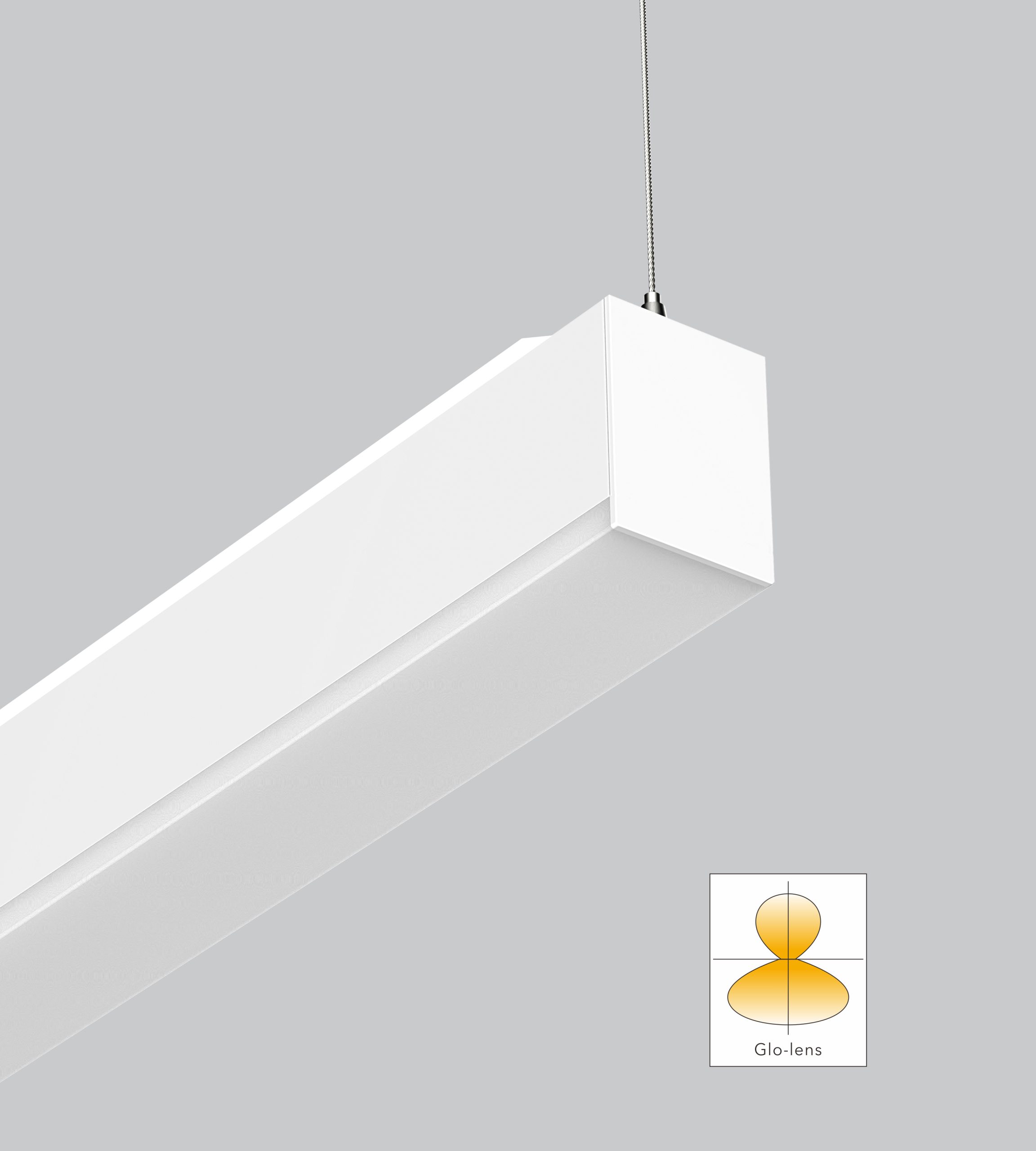

Glo-lens
Glo-lens

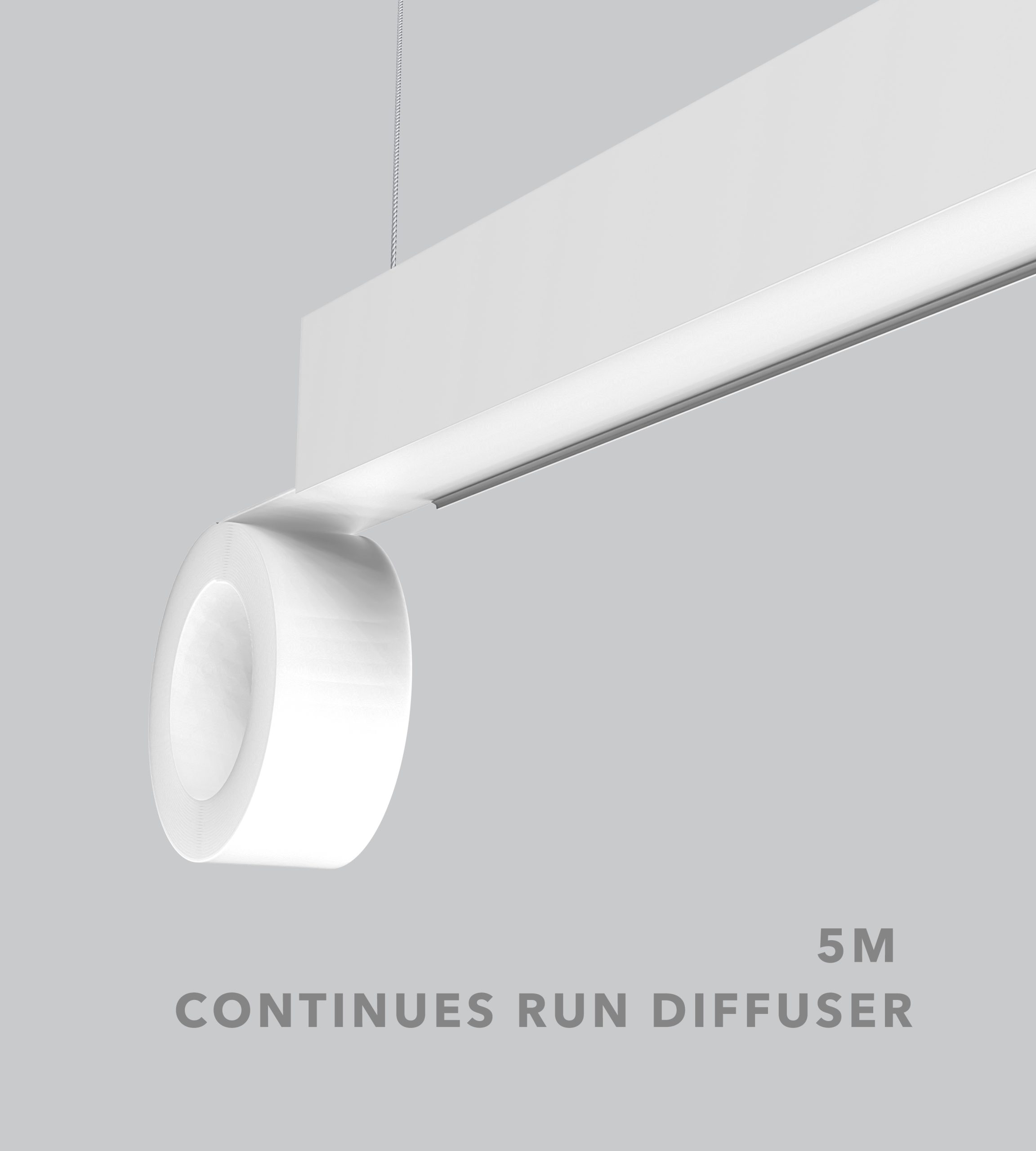

PC continous run lens
PC continous run lens

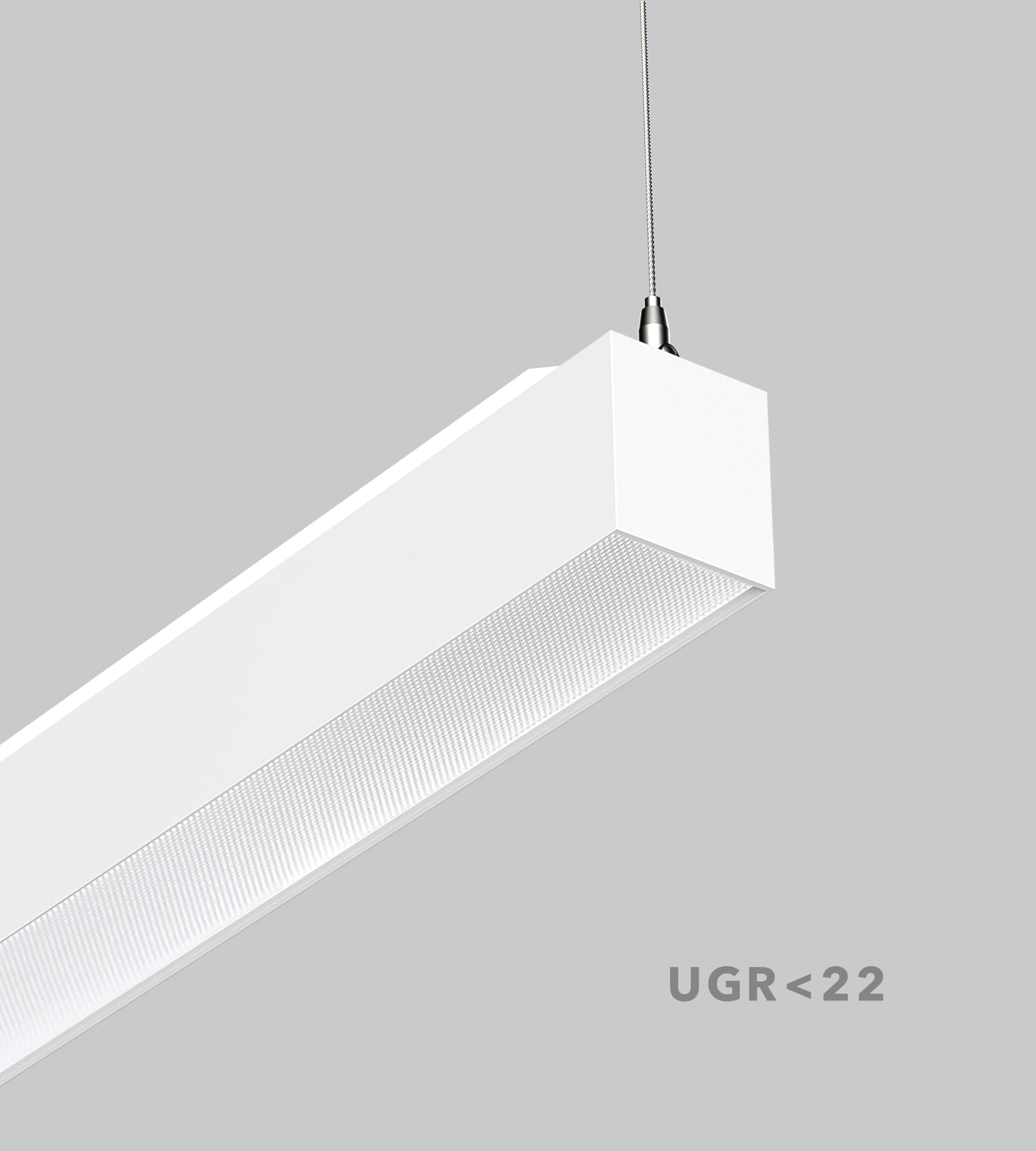

Prismatic PC Diffuser
Prismatic PC Diffuser

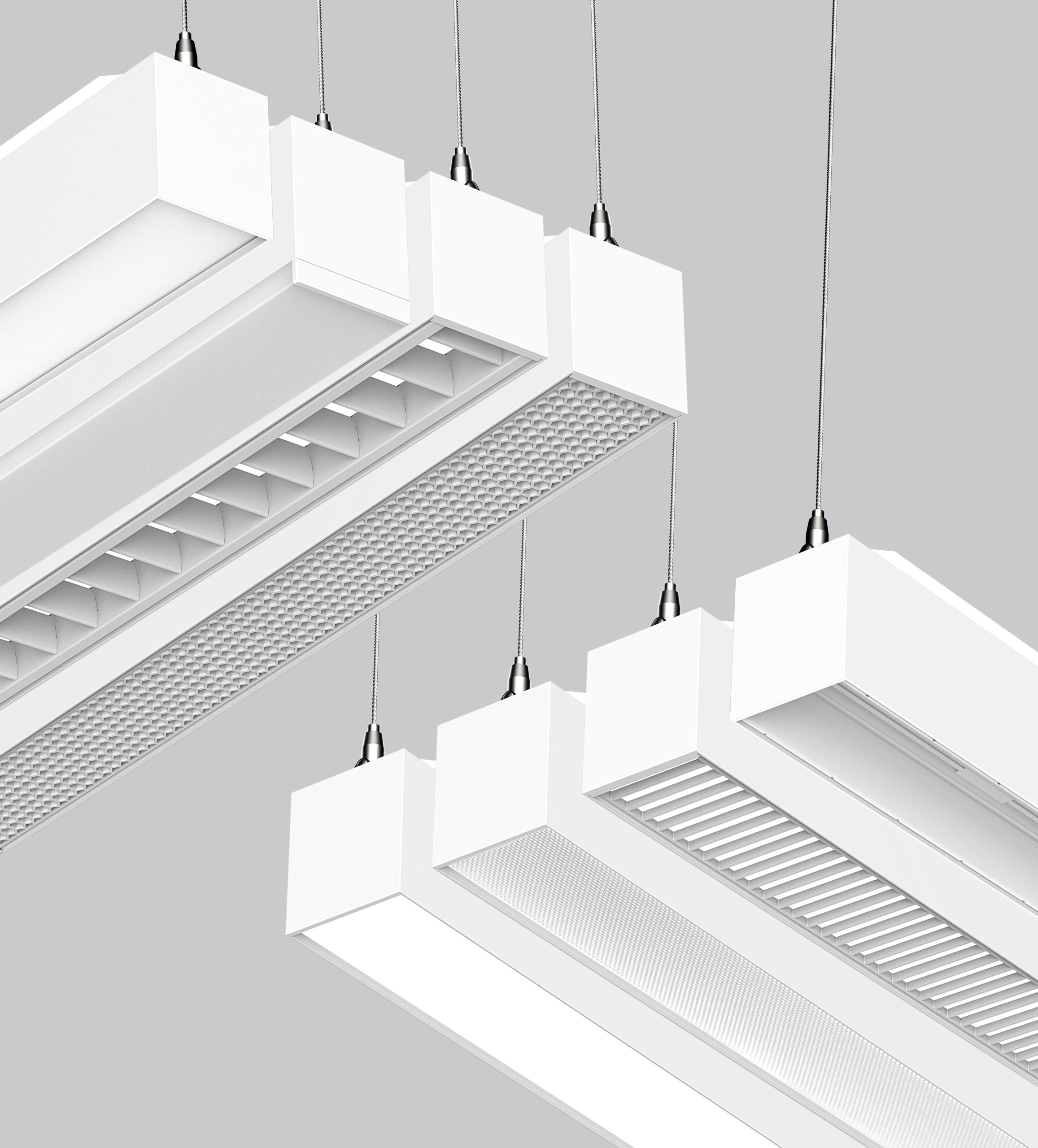

Sense 275-8 FAMILY

UNLOCK CREATIVE CONFIGURATIONS

Sense 275 offers a modular connector system that enables designers to explore bold, sculptural forms.

From geometric shapes to customized layouts, these accessories support seamless integration and endless design flexibility.

L-Shape(Lit-Pattern Connectors)
120°L-Shape(Lit-Pattern Connectors)
T-Shape(Lit-Pattern Connectors)
Y-Shape(Lit-Pattern Connectors)
X-Shape(Lit-Pattern Connectors)
L-Shape(Non Lit-Pattern Connectors)
Z-Shape(Non Lit-Pattern Connectors)
T-Shape(Non Lit-Pattern Connectors)
X-Shape(Non Lit-Pattern Connectors)
2 Head x 60°(Non Lit-Pattern Connectors)
3 Head x 60°(Non Lit-Pattern Connectors)
4 Head x 60°(Non Lit-Pattern Connectors)
5 Head x 60°(Non Lit-Pattern Connectors)
6 Head x 60°(Non Lit-Pattern Connectors)
1.Dense 275 120L Y 4FT

HEXAGONAL FORMATION

Y-Shape lit connectors enable seamless hexagonal patterns with continuous illumination—ideal for sculptural ceilings and immersive installations.

1.Dense 275 90L 120L Y X T

SUSPENDED SCULPTURE

With LYTX suspension, lighting becomes part of the architecture—lightweight, geometric, and spatially expressive.

1.Dense 275 90L

GRID CONFIGURATION

Square layouts built with L-Shape connectors deliver a clean, organized aesthetic—ideal for structured, modular ceiling designs.

TWO MOUNTING OPTIONS

Sense 275 supports Wall Mount and Pendant installations, with clean detailing and a cohesive design language.

1

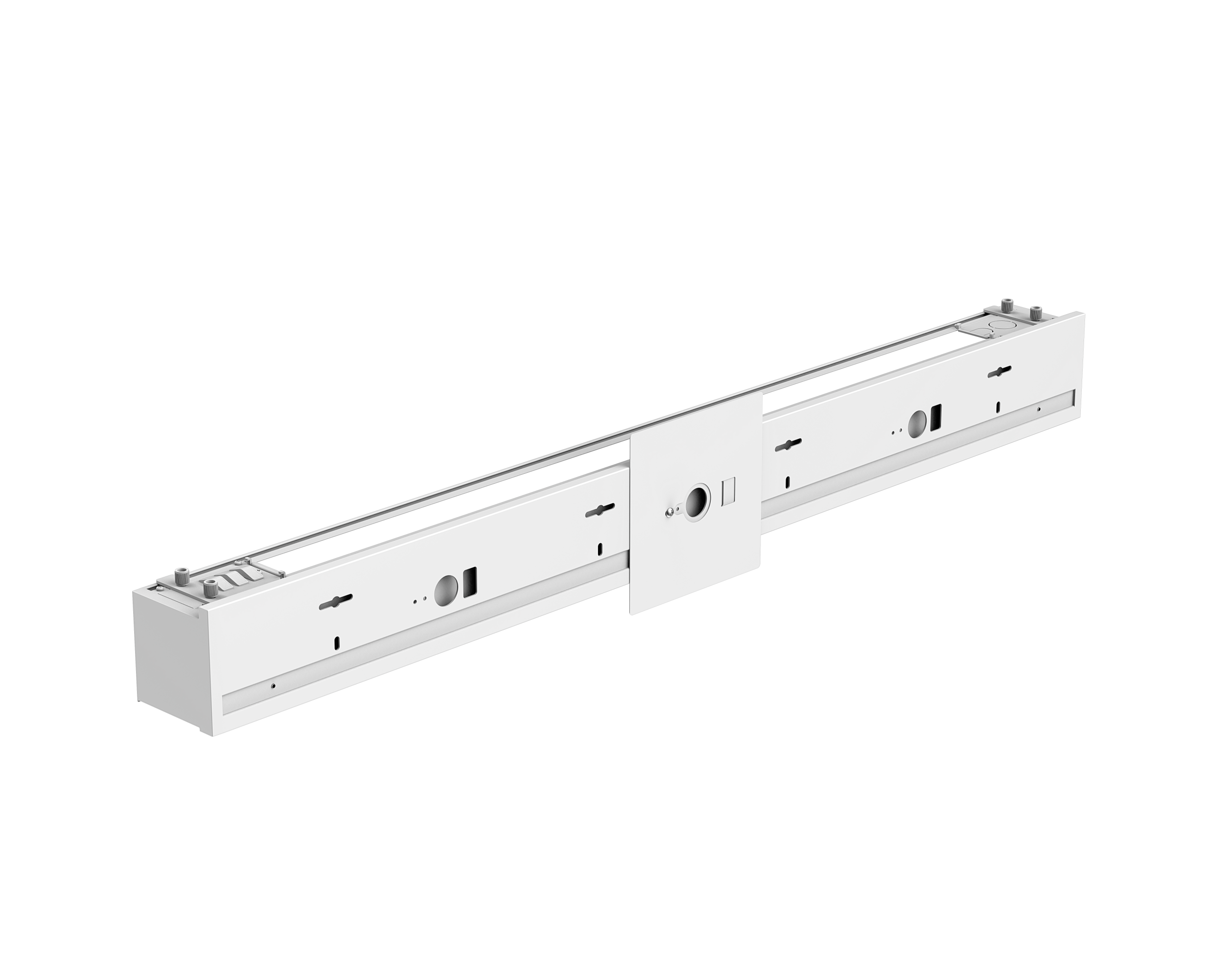

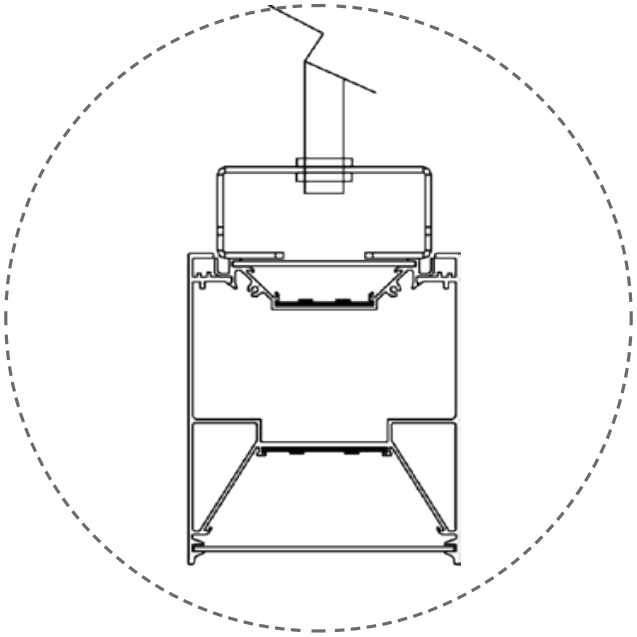

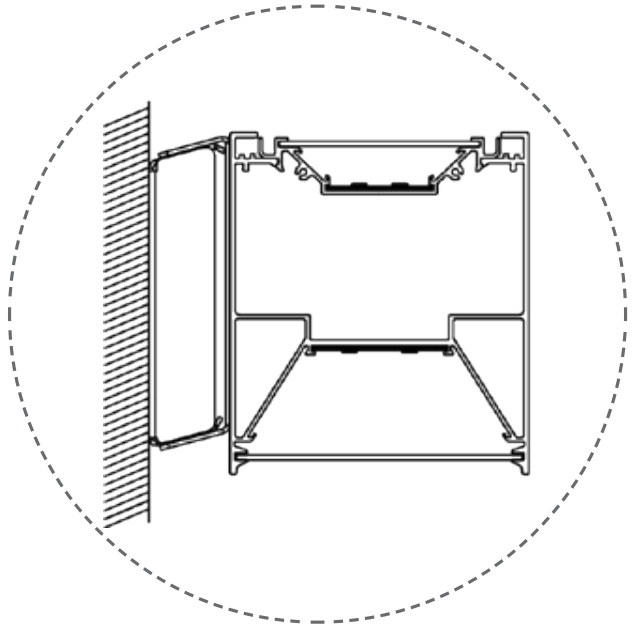

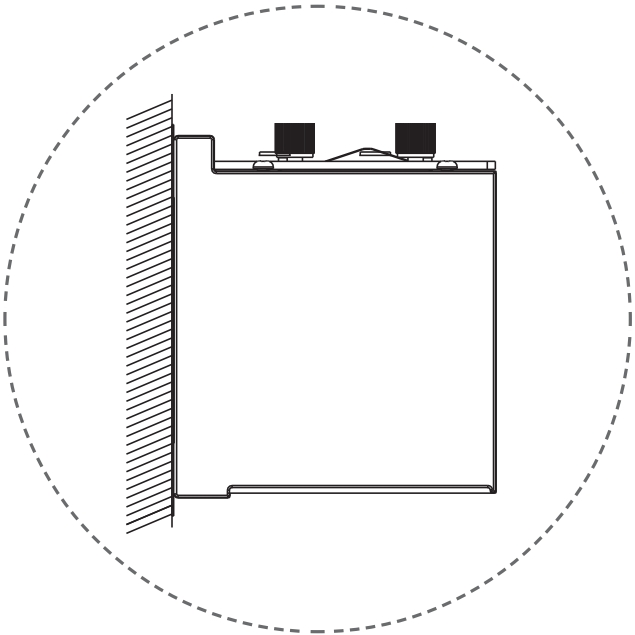

Wall Mount

4

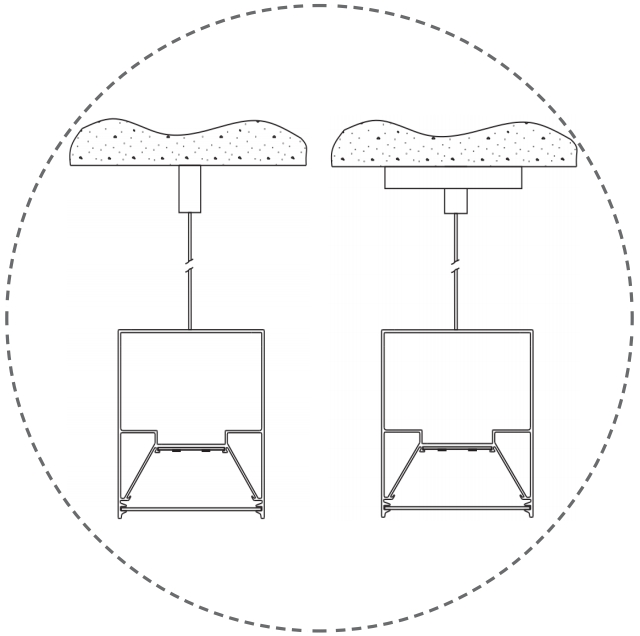

Pendant

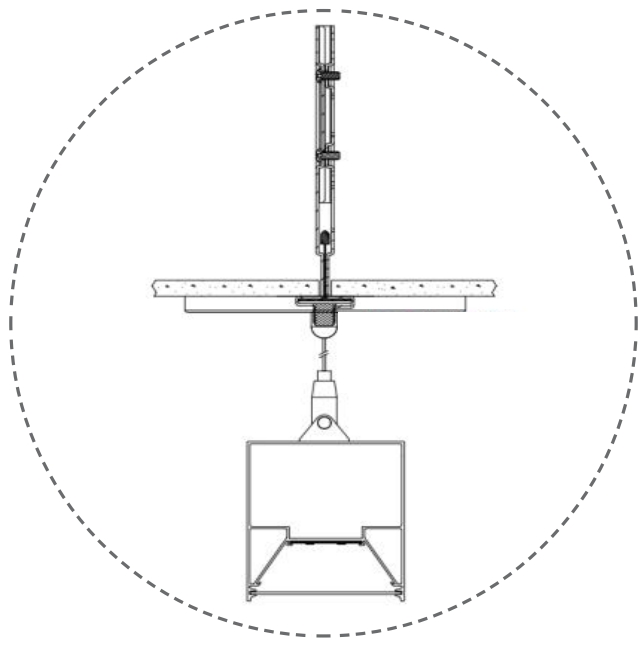

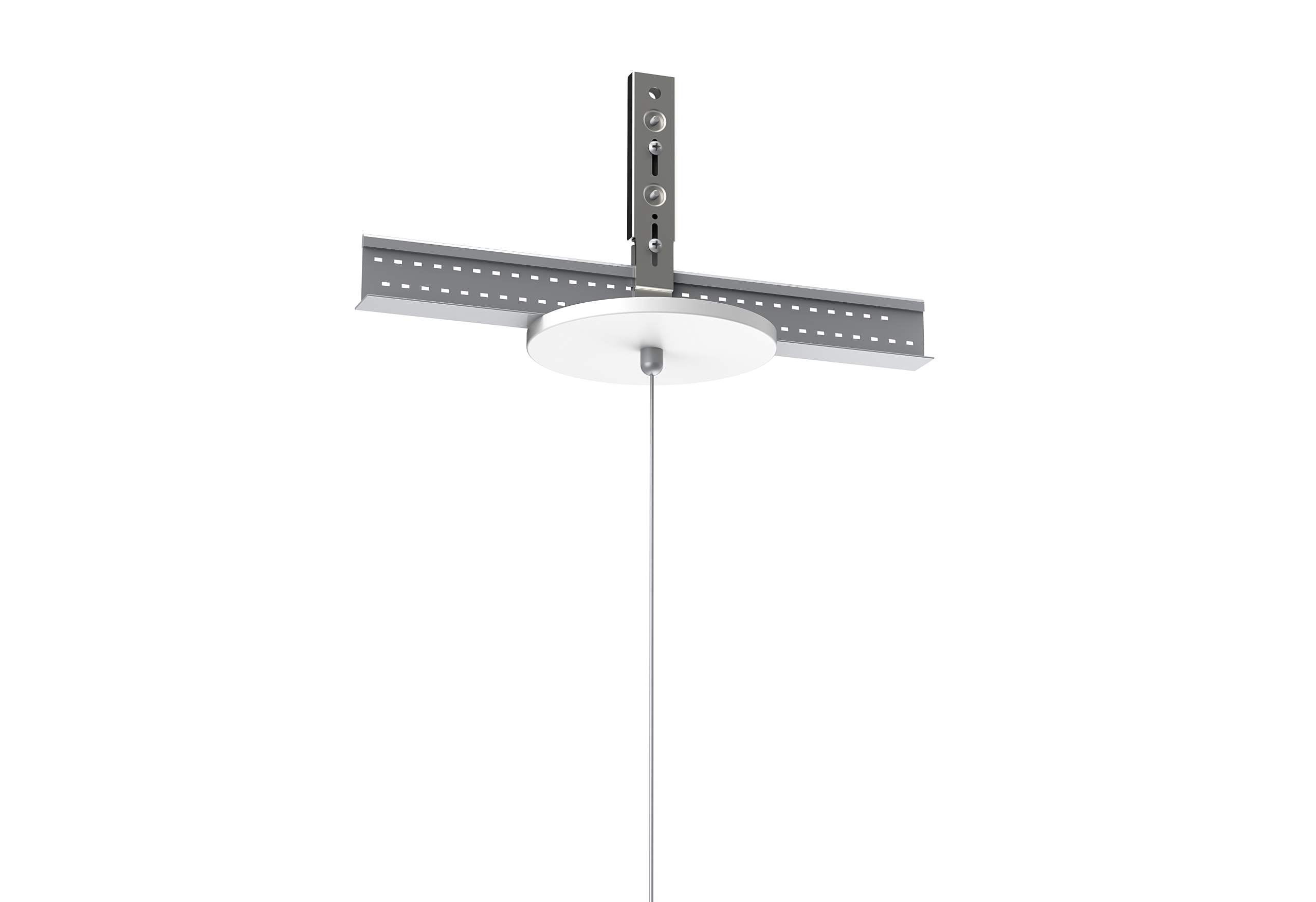

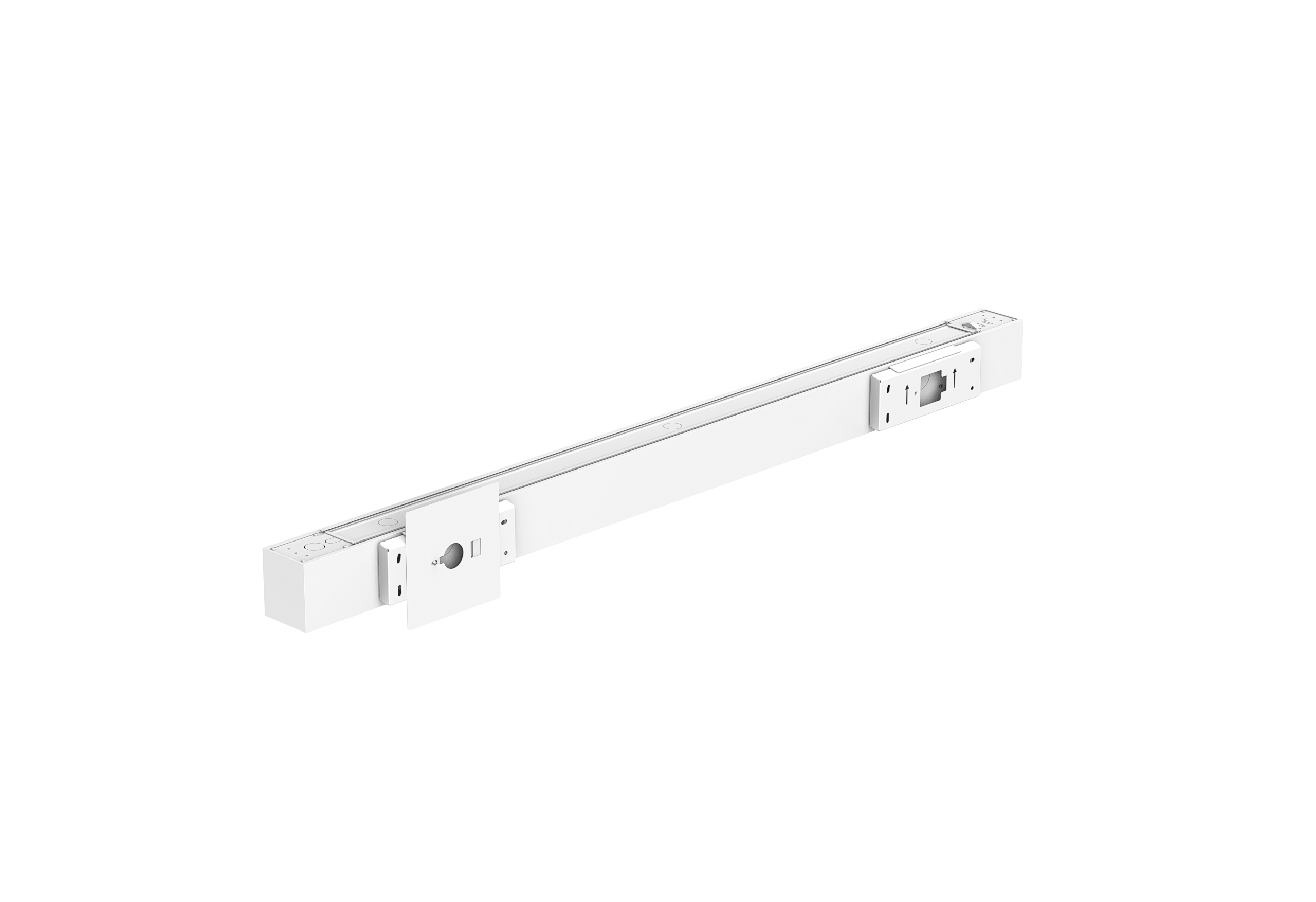

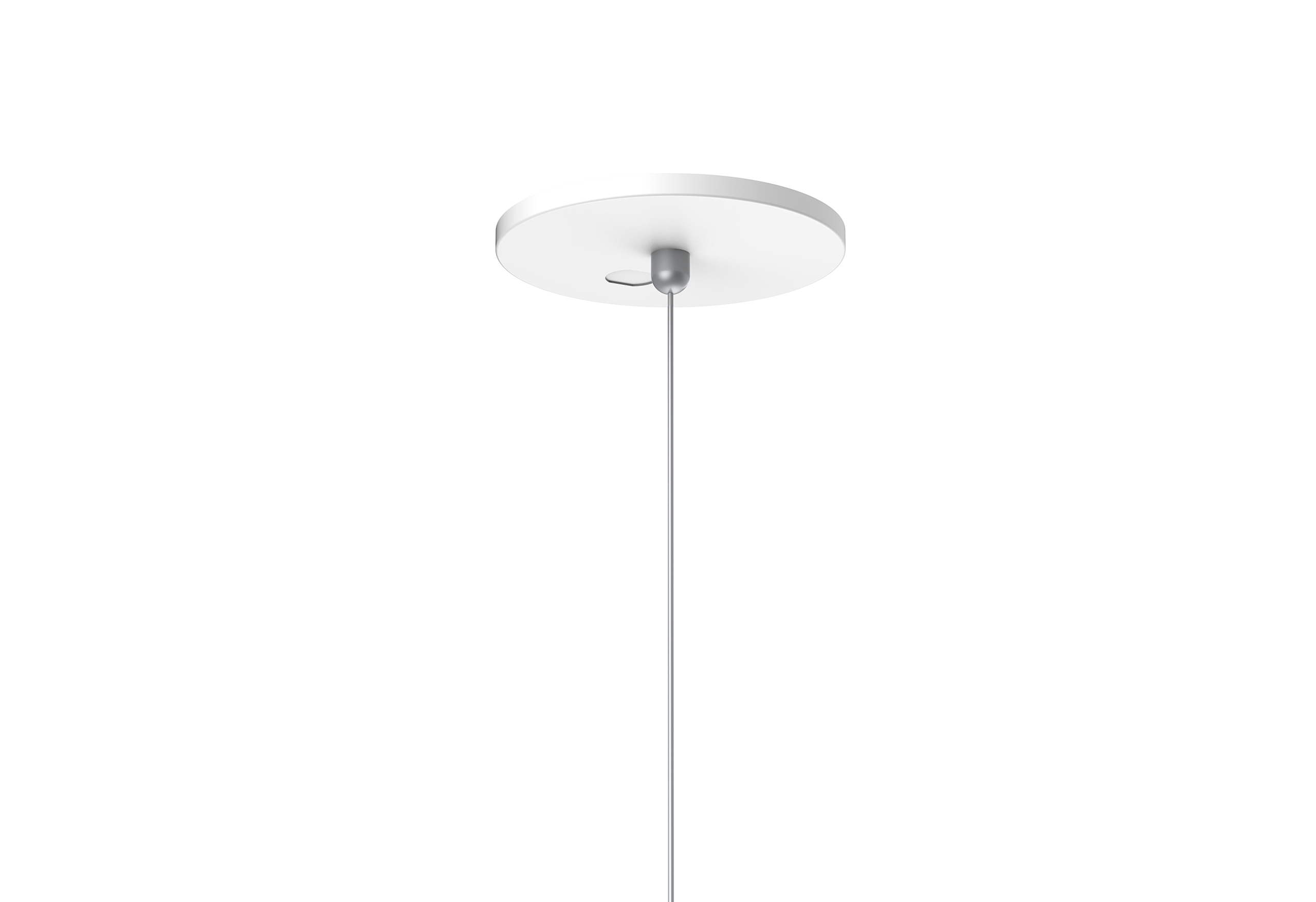

INSTALLATION ACCESSORIES

A full set of accessories is available for both mounting types, ensuring seamless installation across a variety of site conditions.

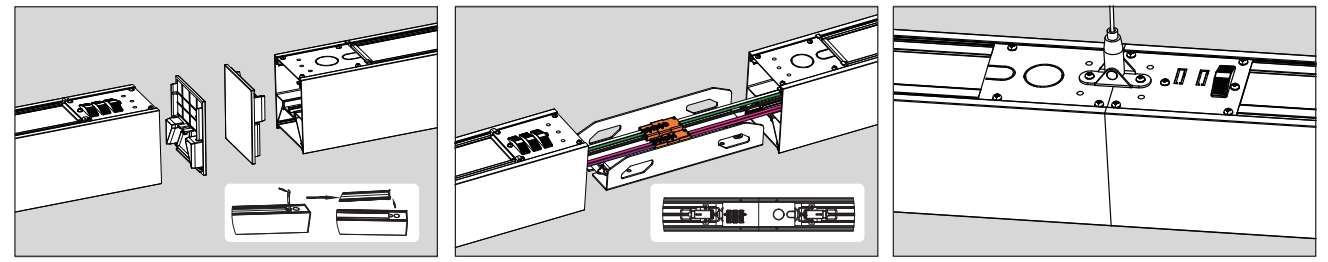

Quick linkable function

微信截图_20250606112611

Run Length Limits

Run Length Limits(ft)2FT4FT8FT
Max Linkable Units7 units7 units4 units
Total connected load:<420W at 120V & <960W at 277V & <1200W at 347V

Finishes

[BK] Black
[WH] White
[SR] SILVER
Custom

Run Lengths

Standalone fixtures are available in 2FT(606mm),3FT(906mm)，4FT(1206mm),6FT(1806mm) and 8FT(2406mm) nominal lengths.

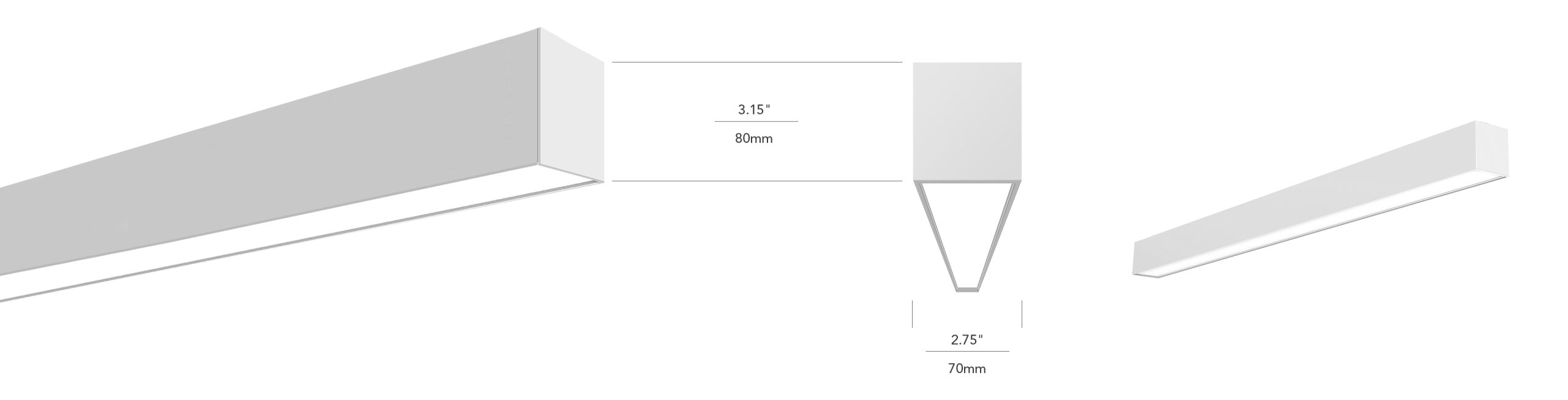

3.Dense Sense 275

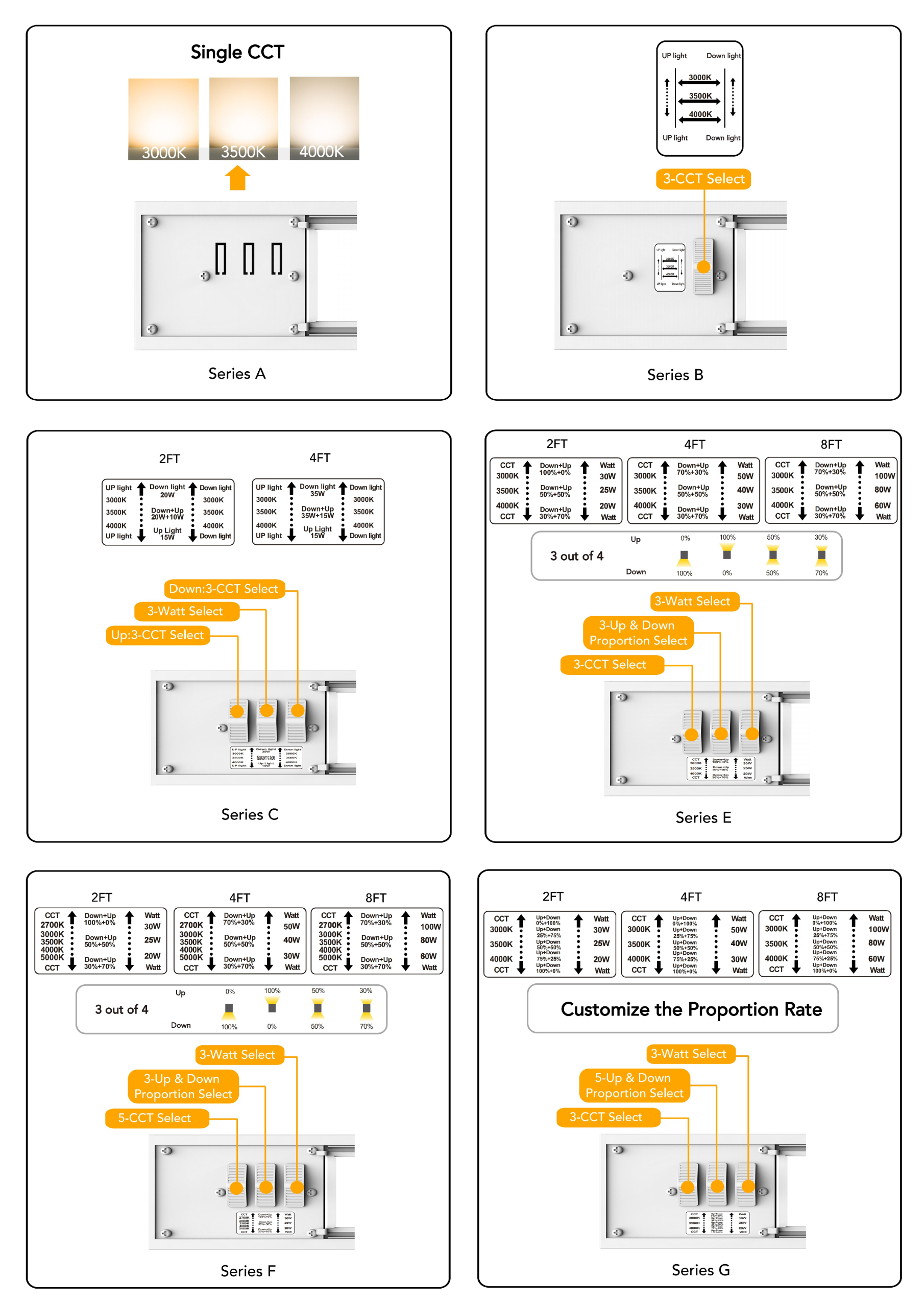

Customizable Dip Switch

Sense 275/2FT/25W/RA80/3000K
Sense 275/2FT/25W/RA80/3000K

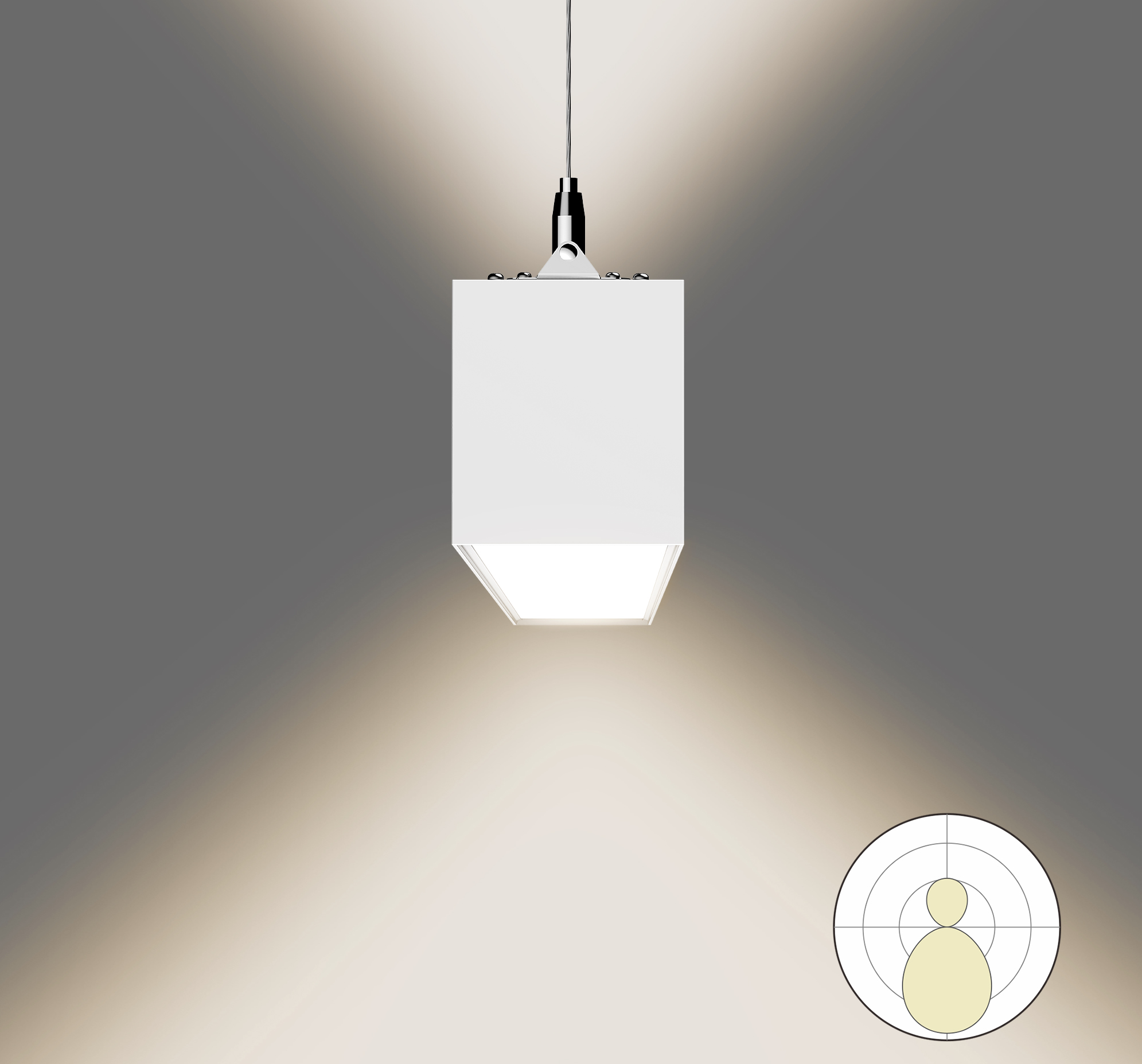

Sense 275/2FT/25W/RA80/3500K
Sense 275/2FT/25W/RA80/3500K

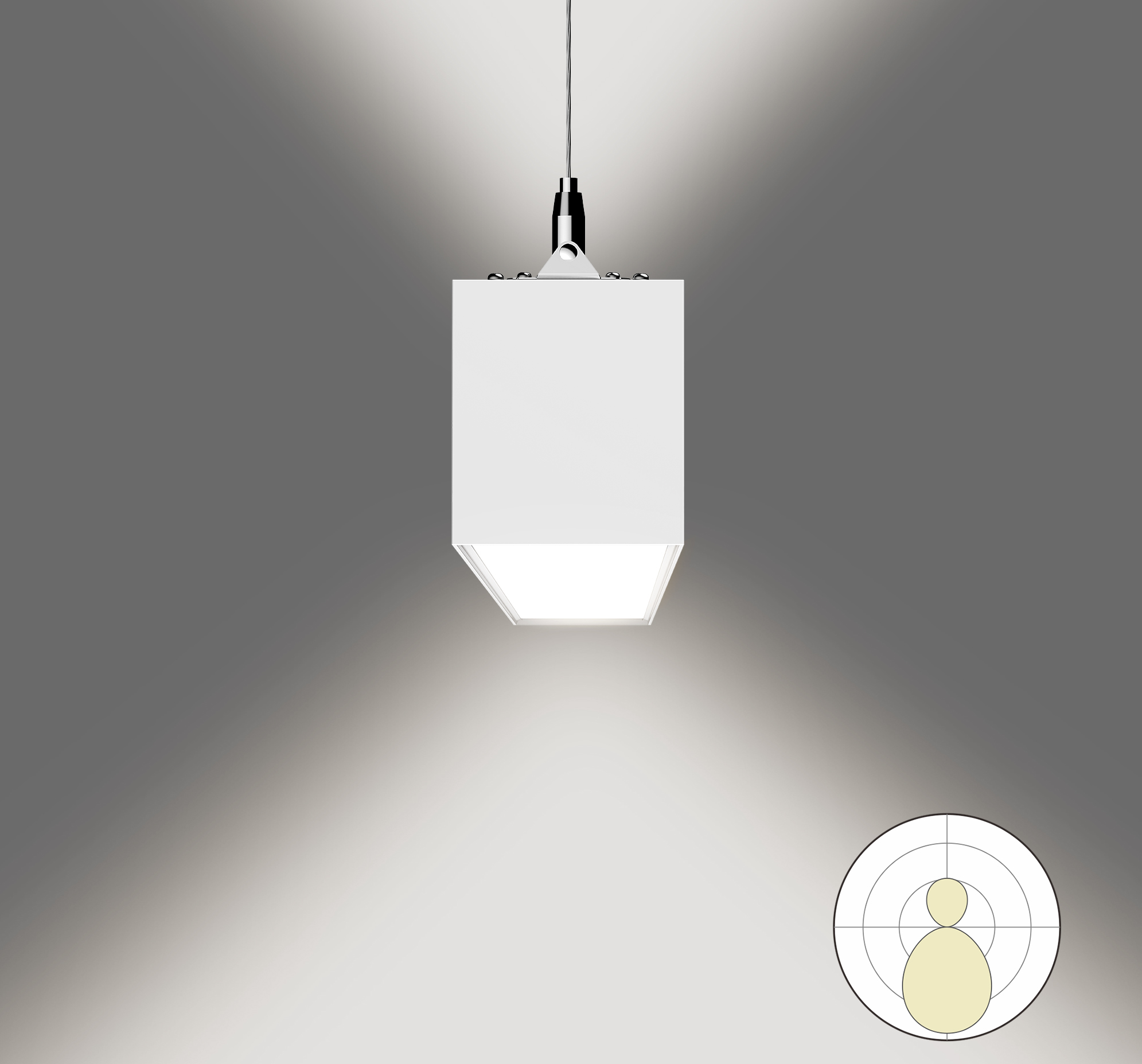

Sense 275/2FT/25W/RA80/4000K
Sense 275/2FT/25W/RA80/4000K

Documentation

Spec Sheets + Photometry

FamilyVersionContentDownload
Sense 275IESSense-275-B-4FT-50W-Diffuser-Up30Down70-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-B-4FT-50W-Diffuser-Up30Down70-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-C-4FT-50W-Diffuser-Up30Down70-CRI80-3000K-White-115LmW-IES
Sense 275IESSense-275-C-2FT-30W-Diffuser-Up30Down70-CRI80-4000K-White-115LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up0Down100-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up0Down100-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up0Down100-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up30Down70-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up30Down70-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up30Down70-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up50Down50-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up50Down50-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-30W-Diffuser-Up50Down50-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up0Down100-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up0Down100-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up0Down100-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up30Down70-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up30Down70-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up50Down50-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up50Down50-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-40W-Diffuser-Up50Down50-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up0Down100-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up0Down100-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up0Down100-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up30Down70-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up30Down70-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up30Down70-CRI80-4000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up50Down50-CRI80-3000K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up50Down50-CRI80-3500K-White-130LmW-IES
Sense 275IESSense-275-E-4FT-50W-Diffuser-Up50Down50-CRI80-4000K-White-130LmW-IES
Sense 275V10-24Sense 275 Specification Sheet

Install Docs

FamilyVersionContentDownload
Dense 275, Sense, Sense 275V10-24Dense + Sense Metal Non-luminous LX Connector Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense New T-bar Recessed Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Suspension Kits Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Louver Lens Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Sensor Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense T-grid Recesse Mount With Frange Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Linkable Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Link Pattern Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Suspension Mount(Type-B) Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drywall Recessed Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Drop Ceiling Suspension Mount Installation Instruction
Dense 275, Sense, Sense 275V10-24Dense + Sense Ceiling Wall Recessed Installation Instruction
