Sense Blade 091 - Pendant (GEN 12)

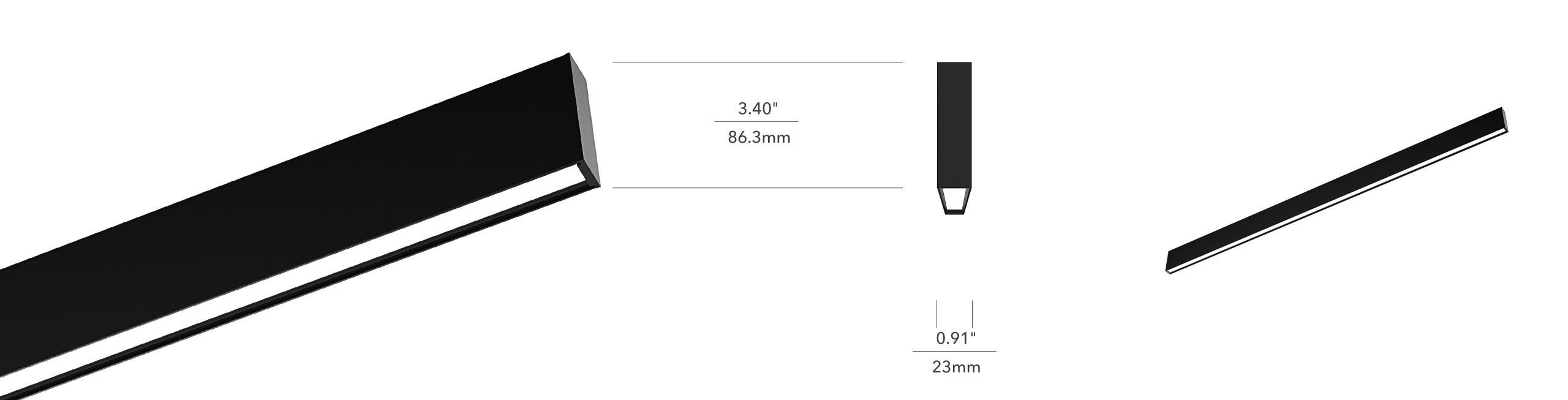

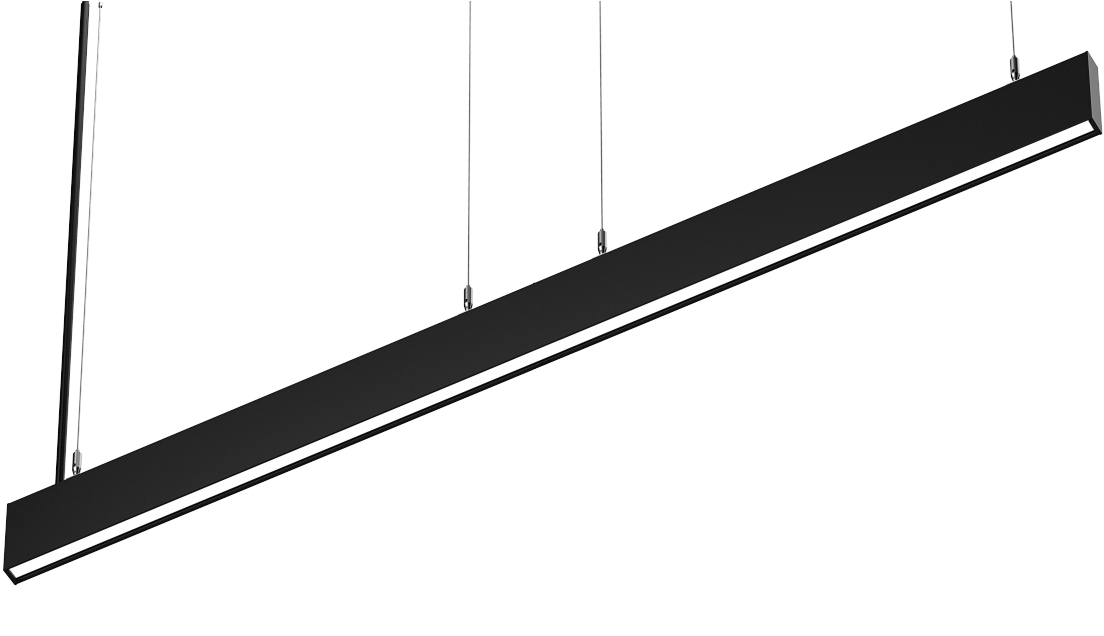

The Sense Blade 091 Series is an ultra-slim linear luminaire for pendant and wall-mount use. It features advanced LED optics with 120° uplight for ceiling uniformity and flush PMMA lenses (35×90°, 55×90°, 70×90°) or 110° PC diffuser for flexible downlight control.
Engineered optics ensure excellent cut-off and visual comfort. A seamless transition between frame and light surface creates a floating light effect, enhancing architectural integration.
| Model | Length | Wattage Select | Efficacy | Lumens | Beam Angle | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|---|
| WL-12LSUD2FT25WB2DHV | 2FT(606mm) | 15W/20W/25W | 100lm/W | 1500Lm/2000Lm/2500Lm | 110°/35×90°/55×90°/70×90° | 30K/35K/40K | 120-347V | 0-10V (10%-100%) | >90 |
| WL-12LSUD4FT50WB2DHV | 4FT(1206mm) | 30W/40W/50W | 100 lm/W | 3000lm/4000lm/5000lm | 110°/35×90°/55×90°/70×90° | 30K/35K/40K | 120-347V | 0-10V (10%-100%) | >90 |
| WL-12LSUD8FT50WB2DHV | 8FT(2406mm) | 60W/80W/100W | 100 lm/W | 6000lm/8000lm/10000lm | 110°/35×90°/55×90°/70×90° | 30K/35K/40K | 120-347V | 0-10V (10%-100%) | >90 |
RUN LENGTHS
Standalone fixtures are available in 2FT(606mm),4FT(1206mm)，and 8FT(2406mm) nominal lengths.

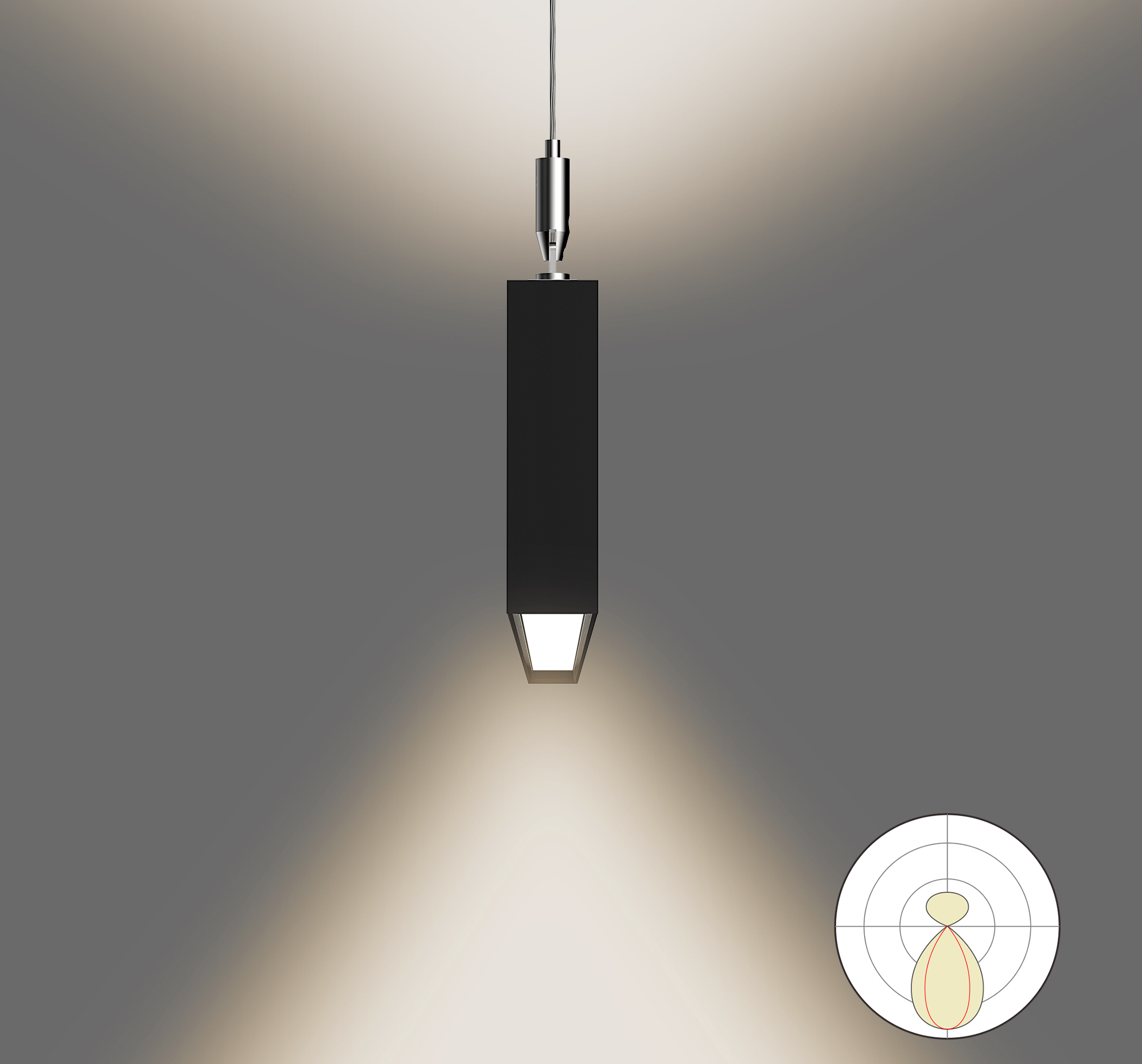

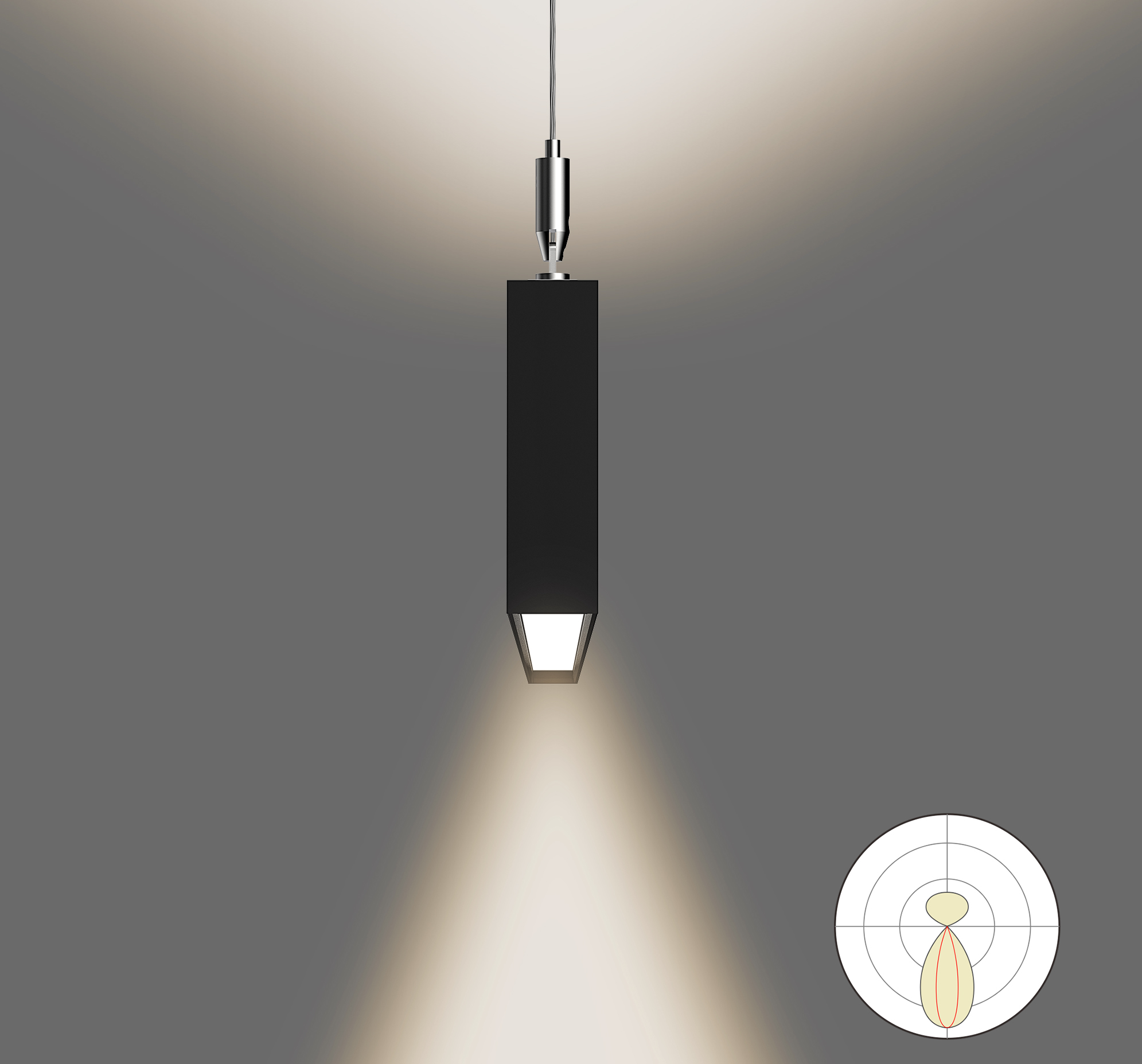

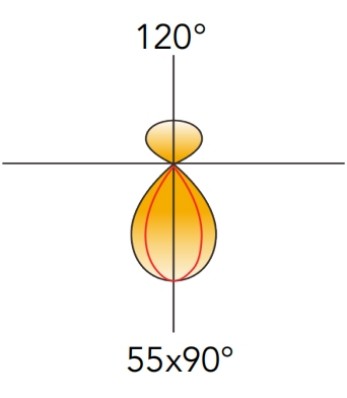

VERSATILE BEAM OPTIONS FOR EVERY DESIGN NEED

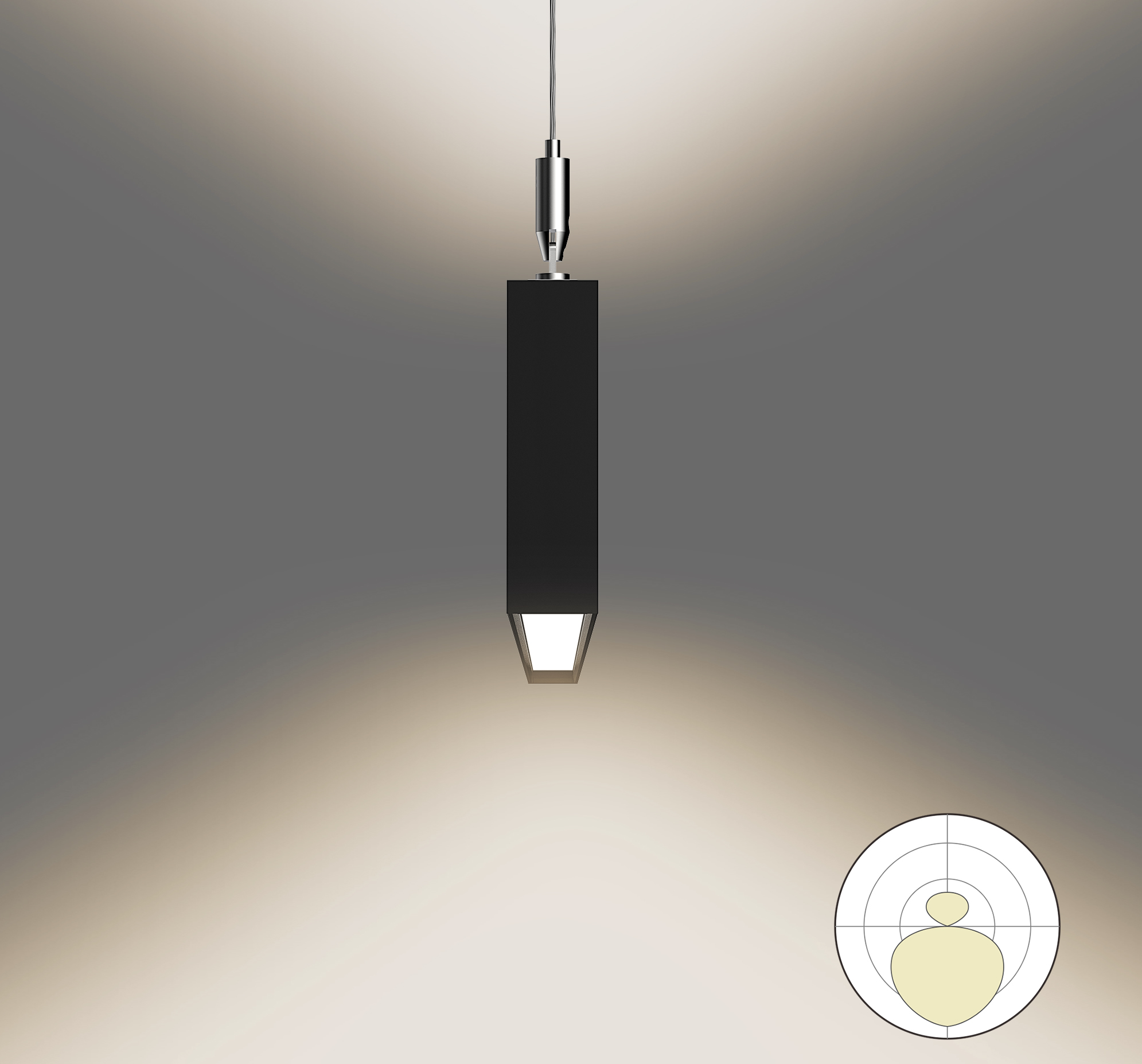

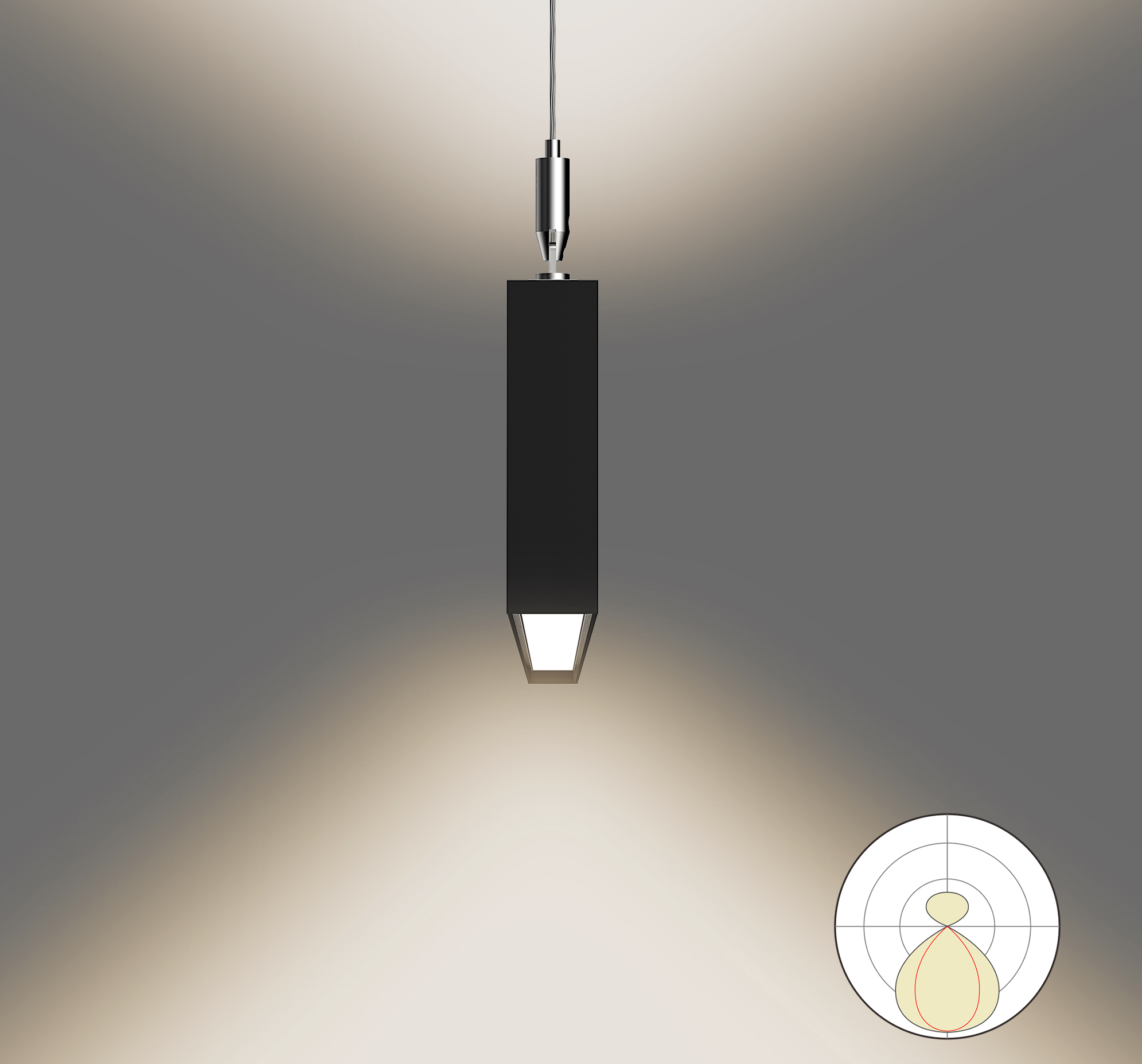

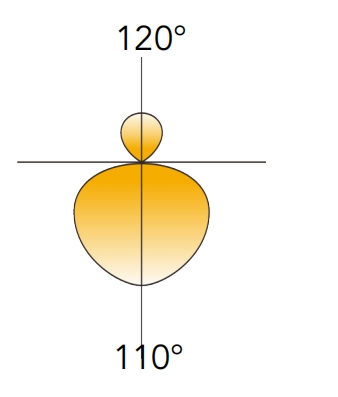

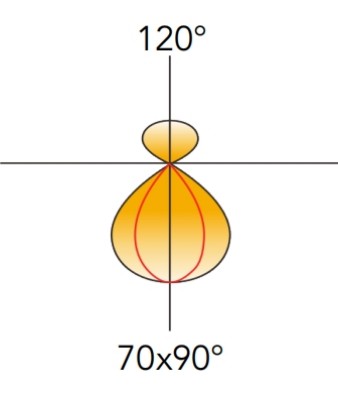

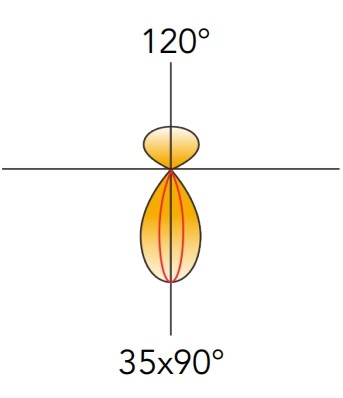

This fixture offers four downlight beam angles – 35x90°, 55x90°, 70x90°, and 110° – paired with a wide 120° uplight. From narrow highlights to broad ambient washes, it adapts seamlessly to diverse design intents, ensuring optimal visual comfort and spatial illumination.
SWITCHABLE CCT & WATTAGE

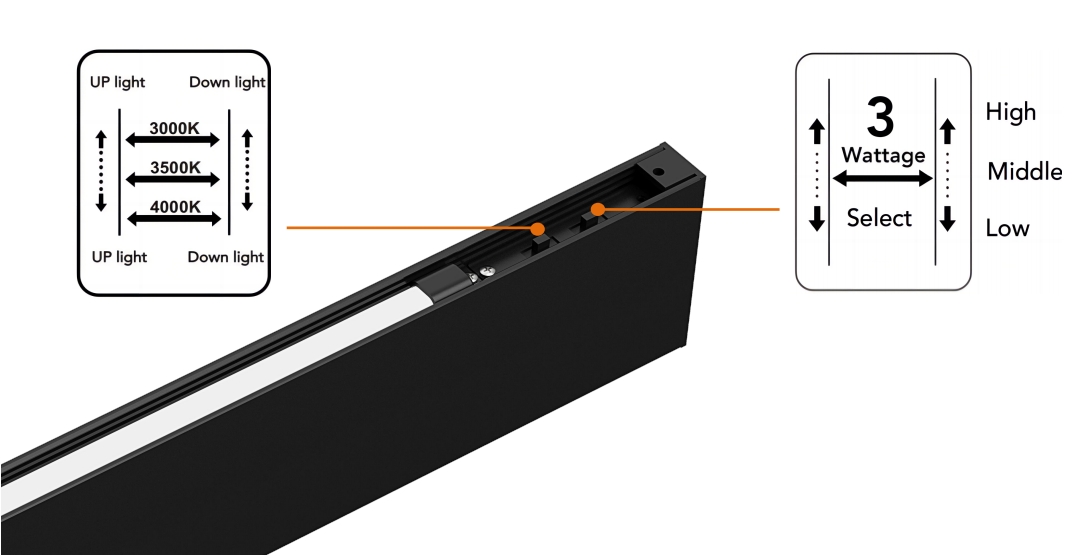

Equipped with two DIP switches at the base, this fixture offers easy on-site adjustment of three color temperatures (3000K, 3500K, 4000K) and three wattage levels. One versatile solution to meet diverse lighting requirements with ease.

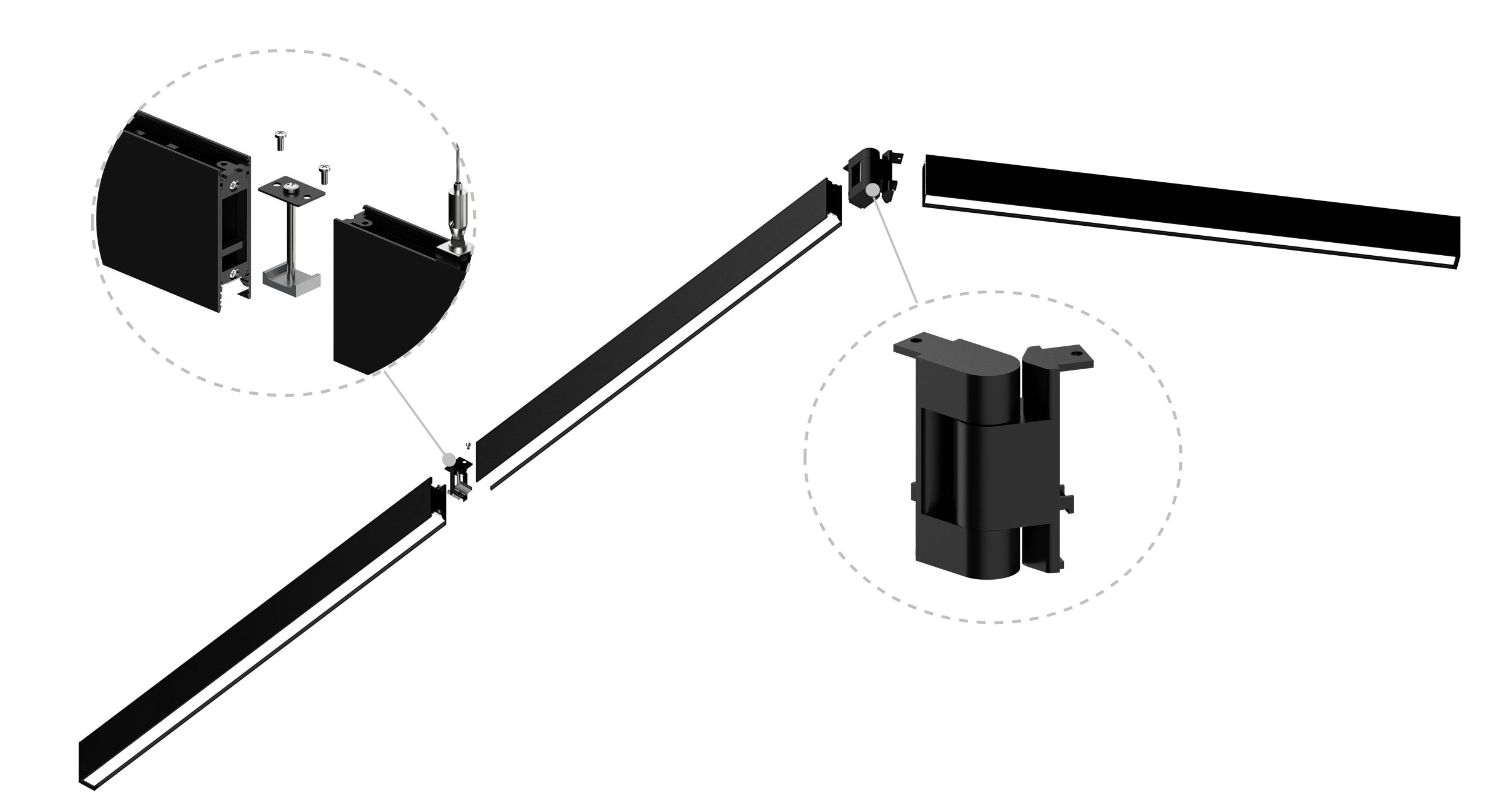

SEAMLESS CONNECTIONS, FLEXIBLE FORMS

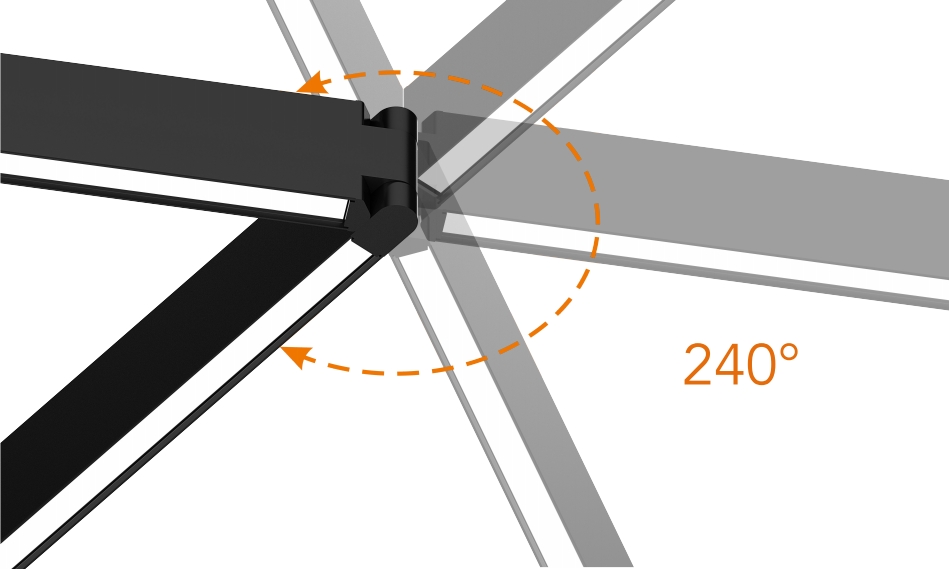

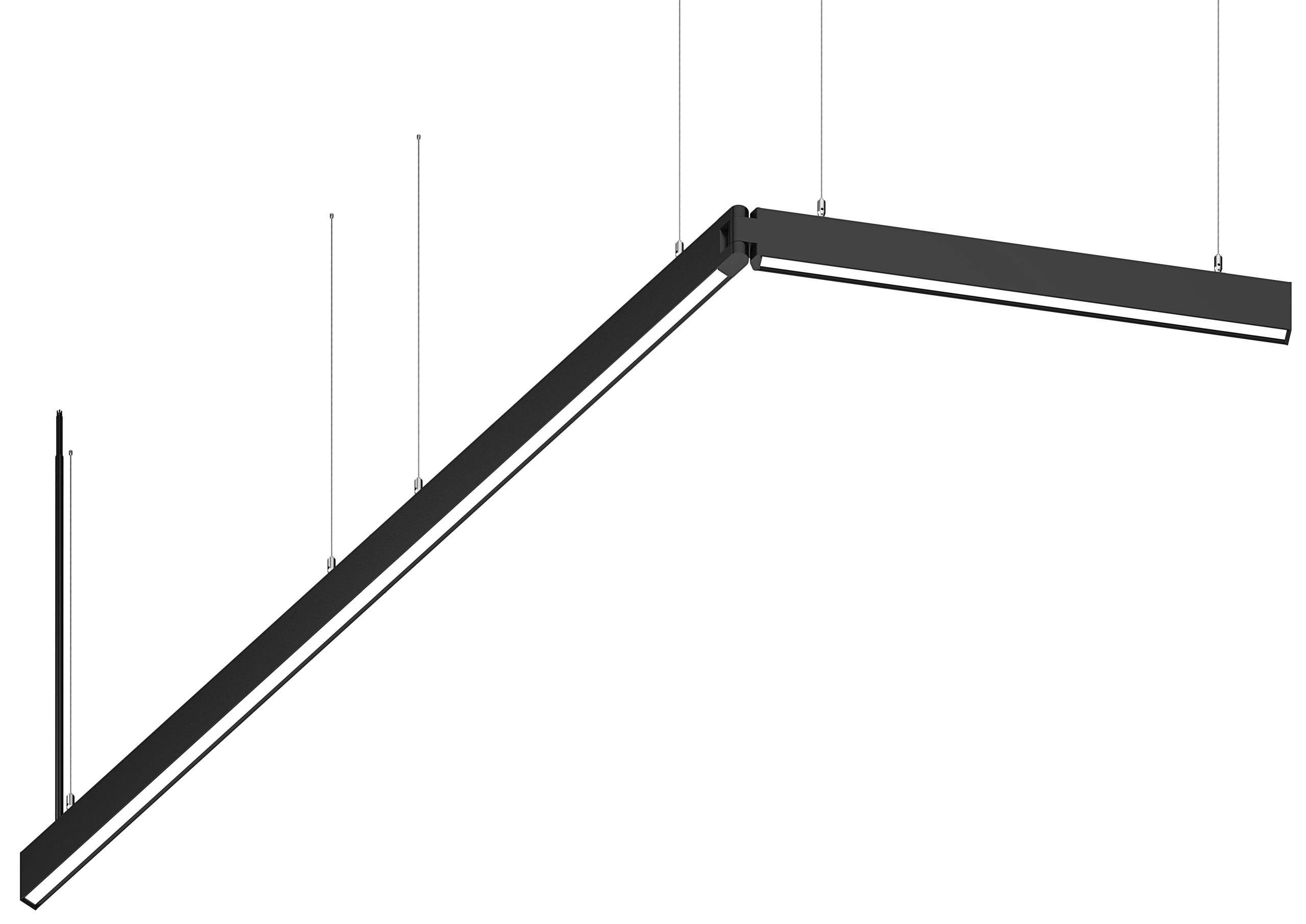

This fixture supports both linear and rotatable connections. Choose the straight connector for continuous linear runs,
or the flexible connector to create curves up to 240°, enabling creative layouts that adapt to any architectural need.

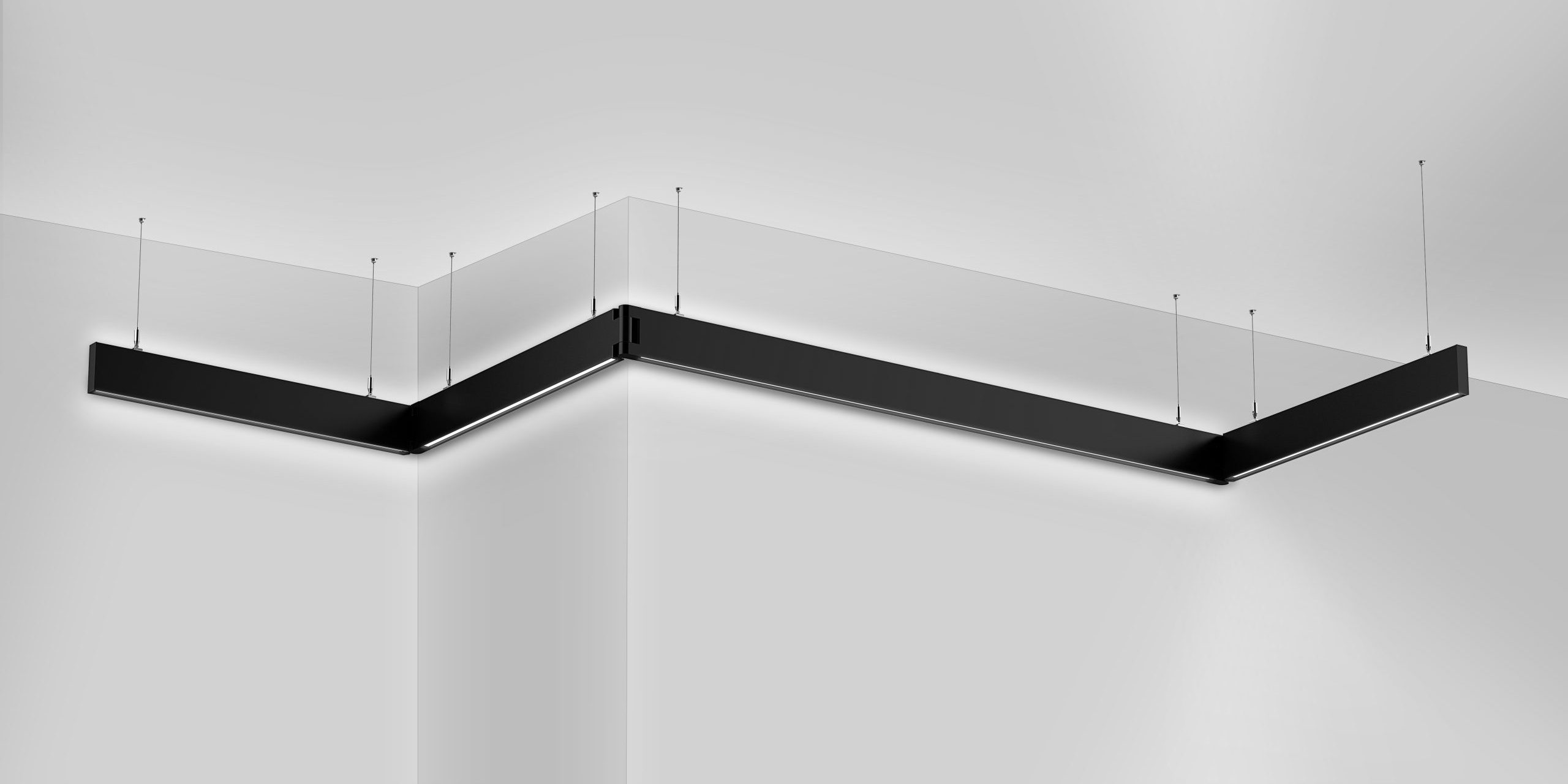

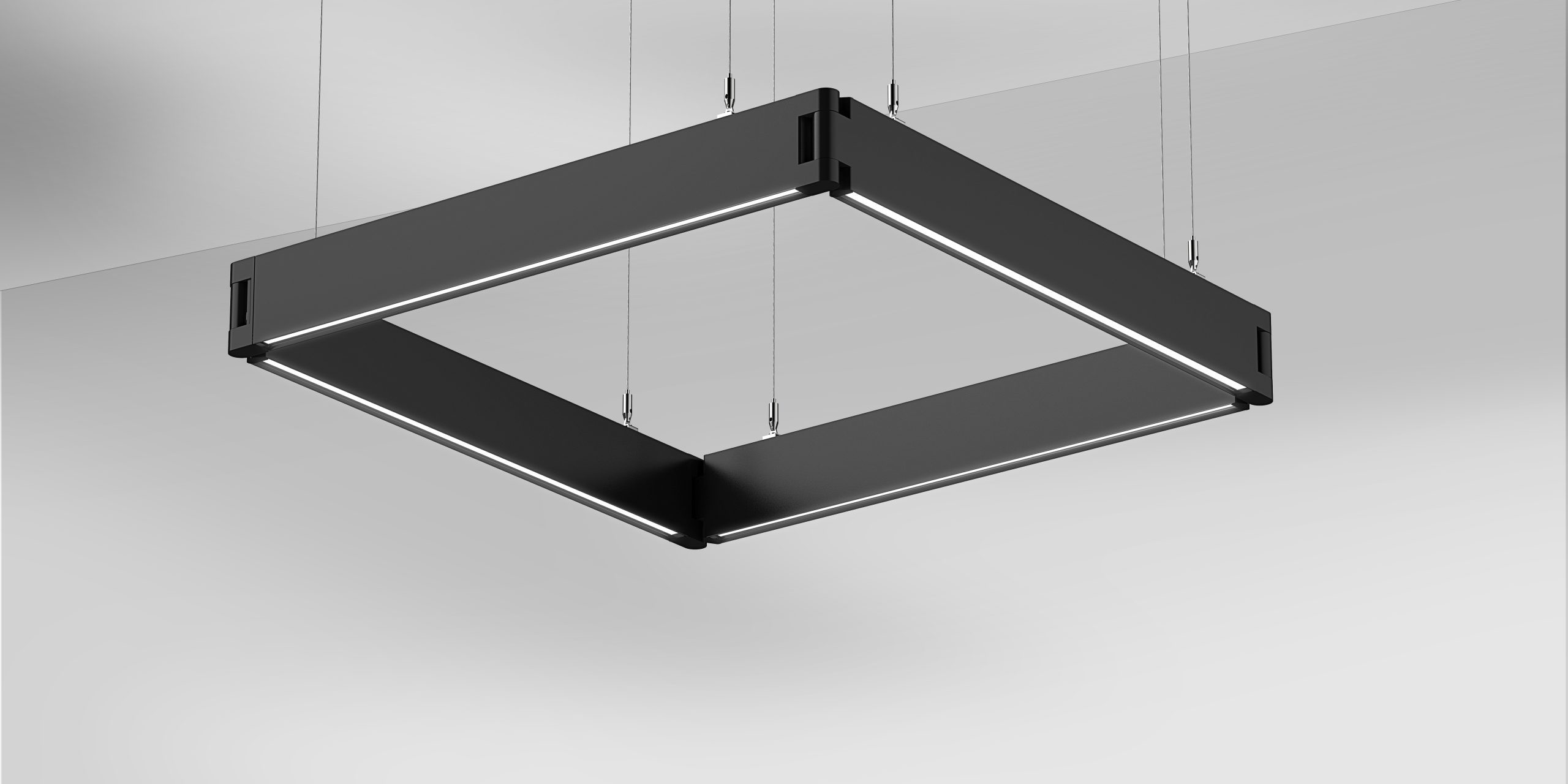

Form seamless geometric frames.

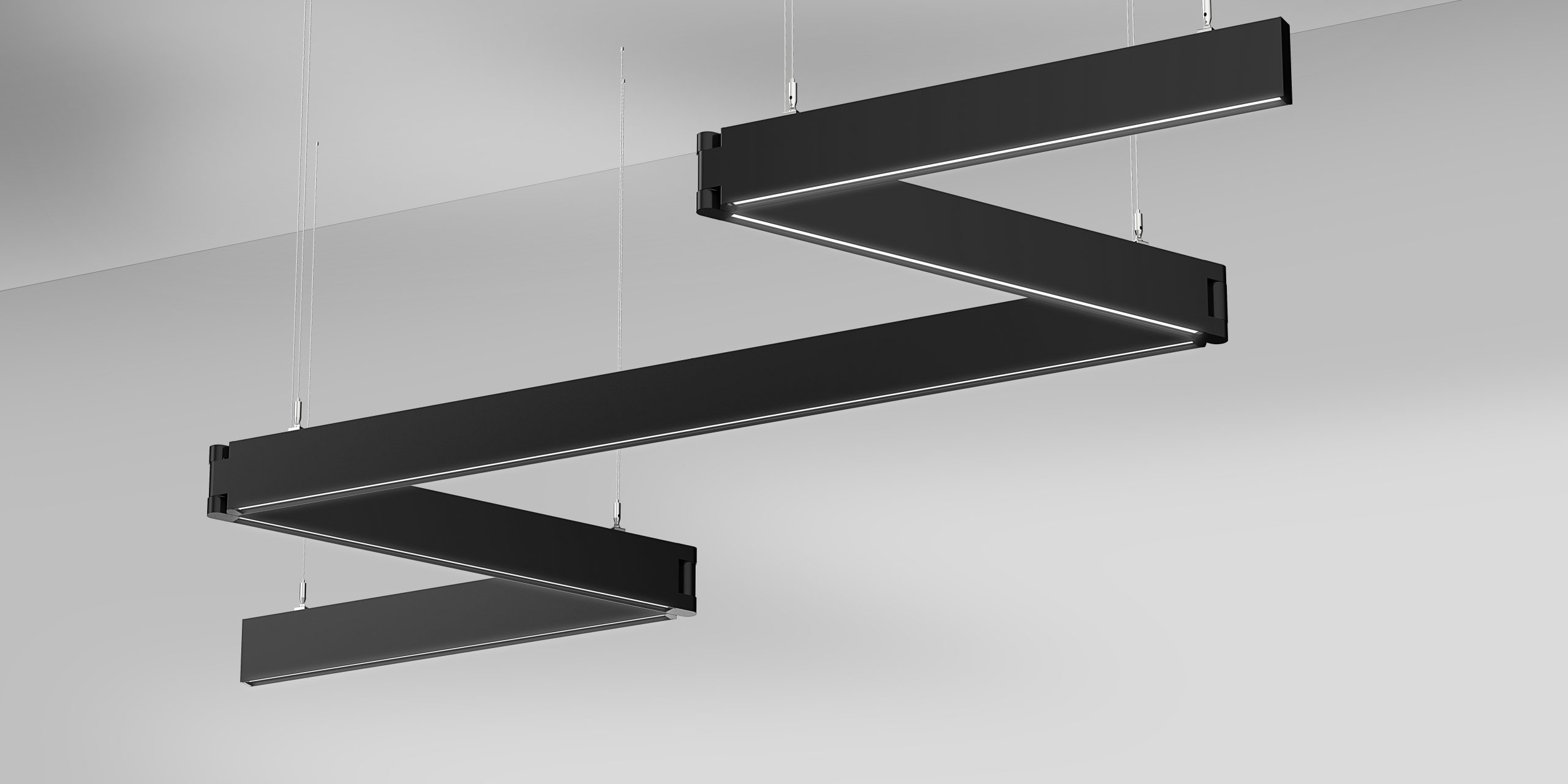

Create striking zigzag accents
Design interlaced linear patterns.
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Sense Blade 091-Pendant | V10-24 | Sense-Blade-091-Pendant-Spec-Sheet-V2.0 | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-15W-Up-120°-Down-55×90°-RA90-3000K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-15W-Up-120°-Down-55×90°-RA90-3500K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-15W-Up-120°-Down-55×90°-RA90-4000K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-20W-Up-120°-Down-55×90°-RA90-3000K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-20W-Up-120°-Down-55×90°-RA90-3500K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-20W-Up-120°-Down-55×90°-RA90-4000K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091Pendant-2FT-25W-Up-120°-Down-55×90°-RA90-3000K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091-Pendant-2FT-25W-Up-120°-Down-55×90°-RA90-3500K-Black | |
| Sense Blade 091-Pendant | IES | Sense-Blade-091-Pendant-2FT-25W-Up-120°-Down-55×90°-RA90-4000K-Black |
| Family | Version | Content | Download |
|---|

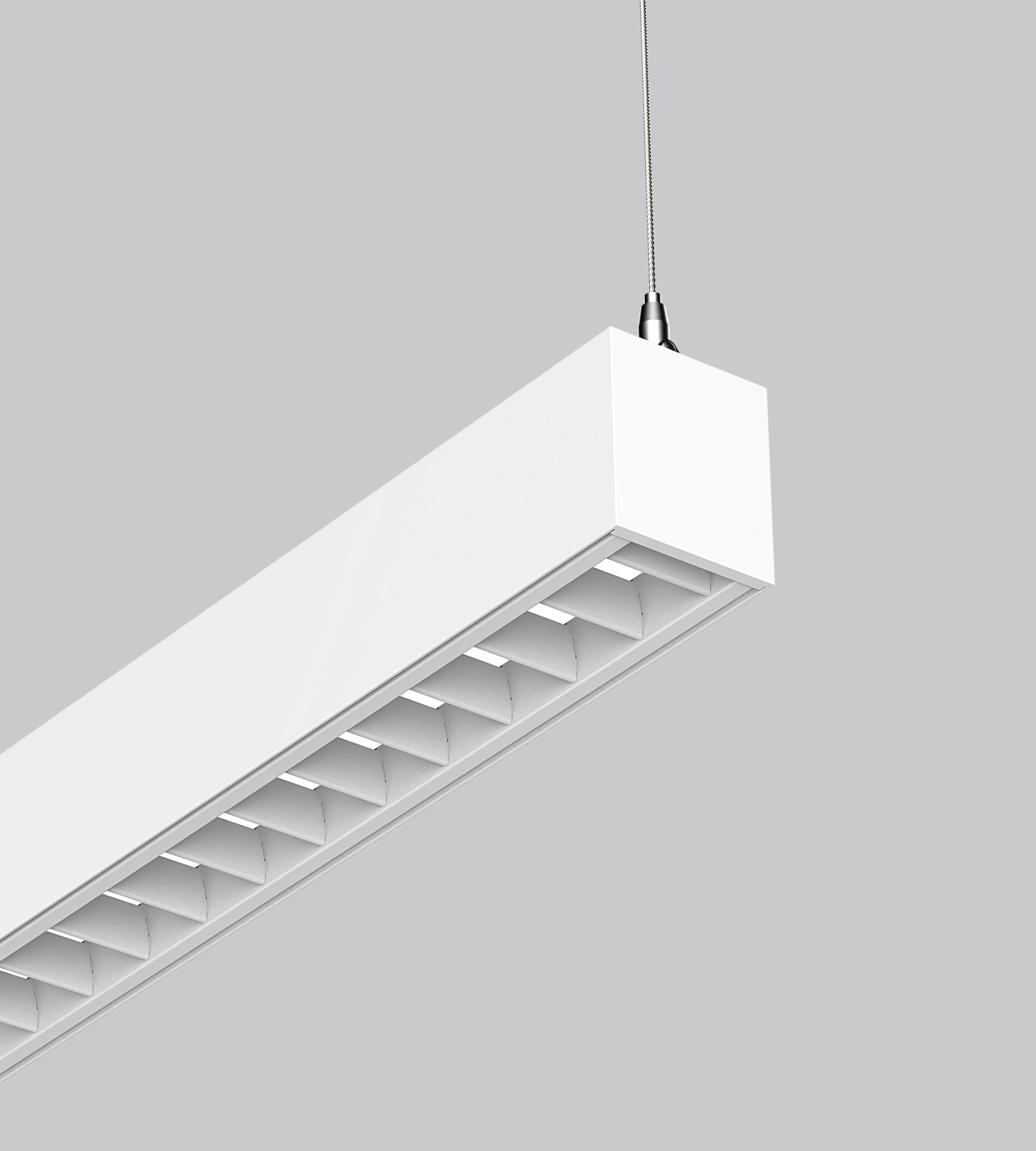

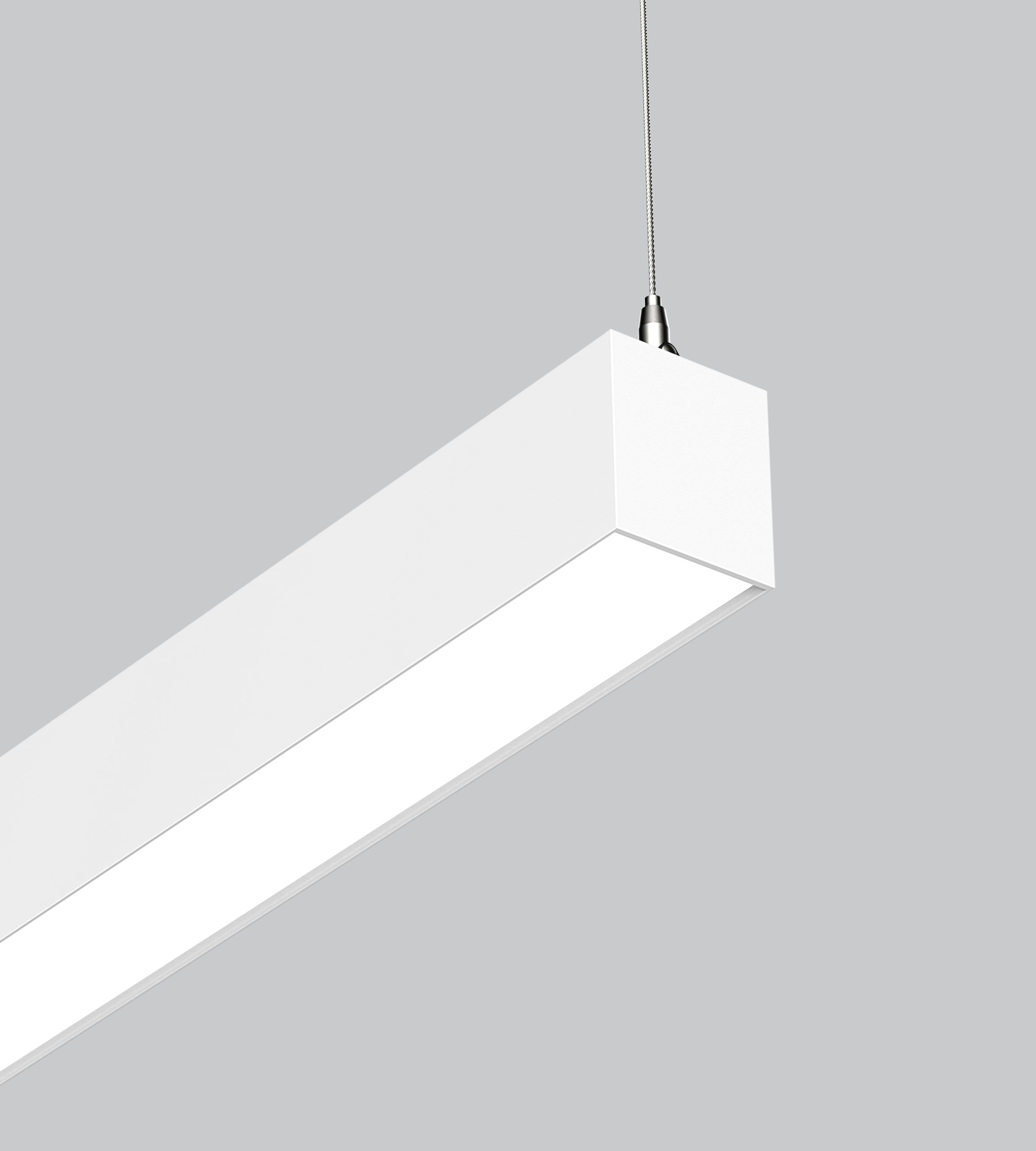

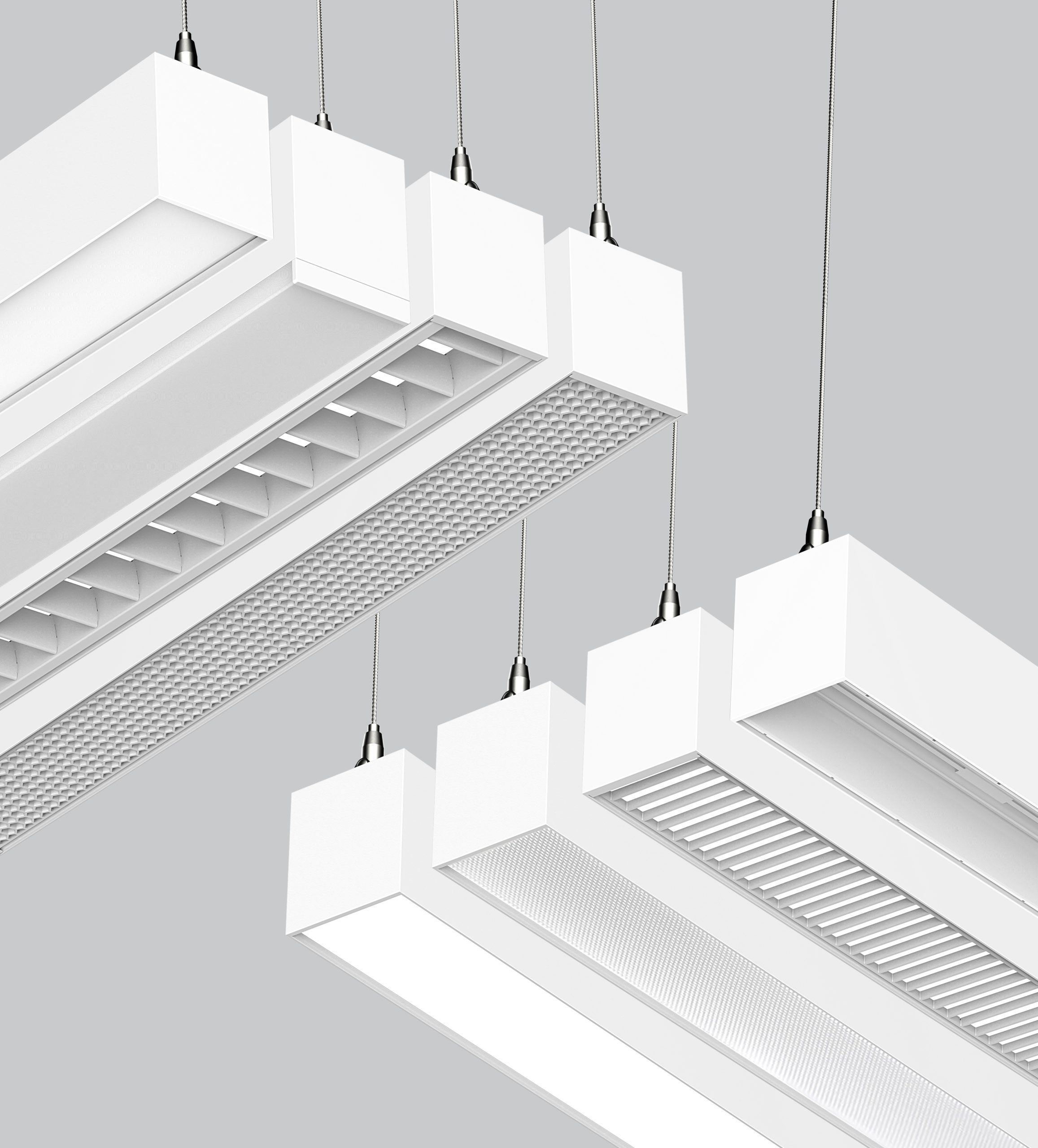

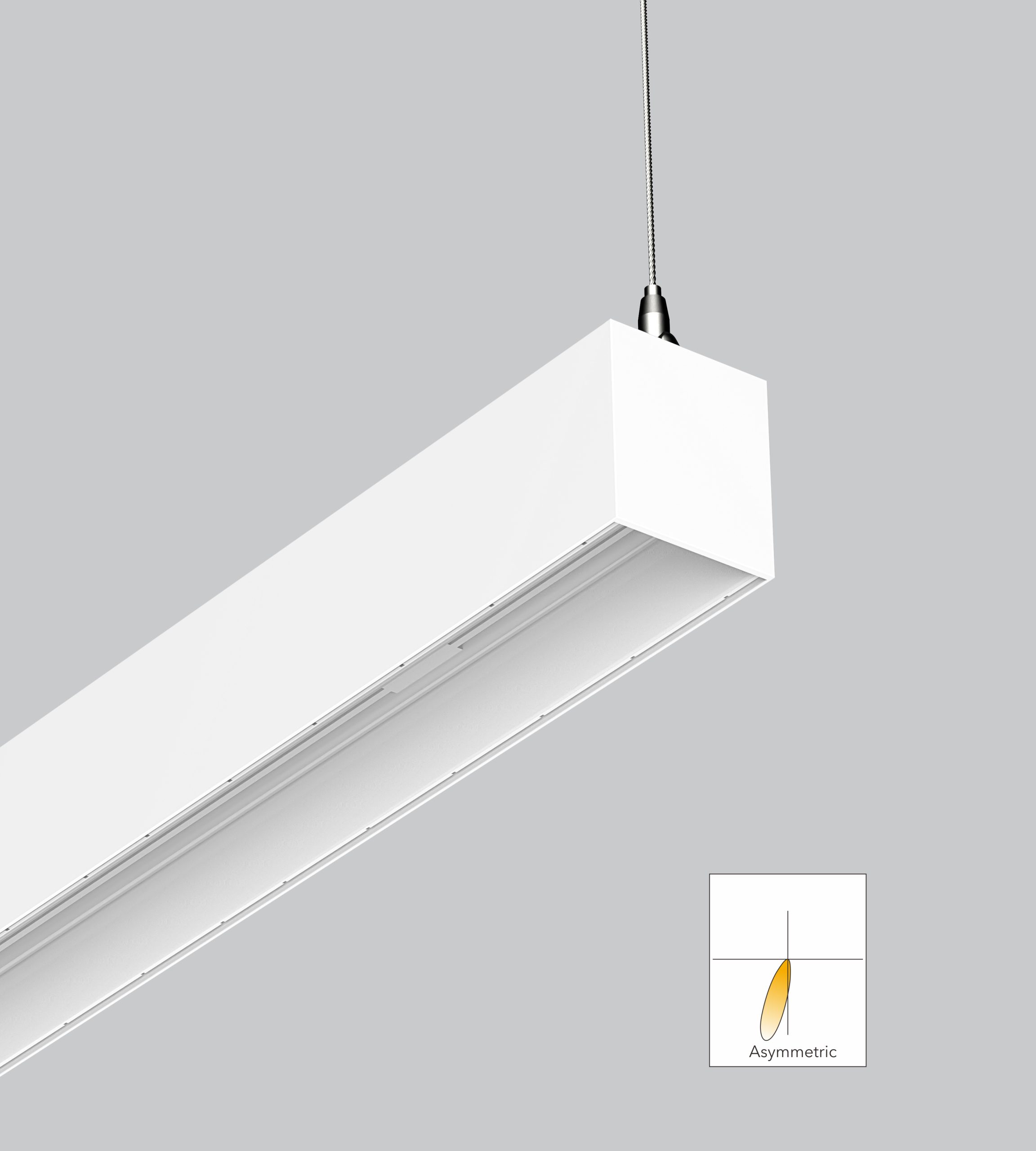

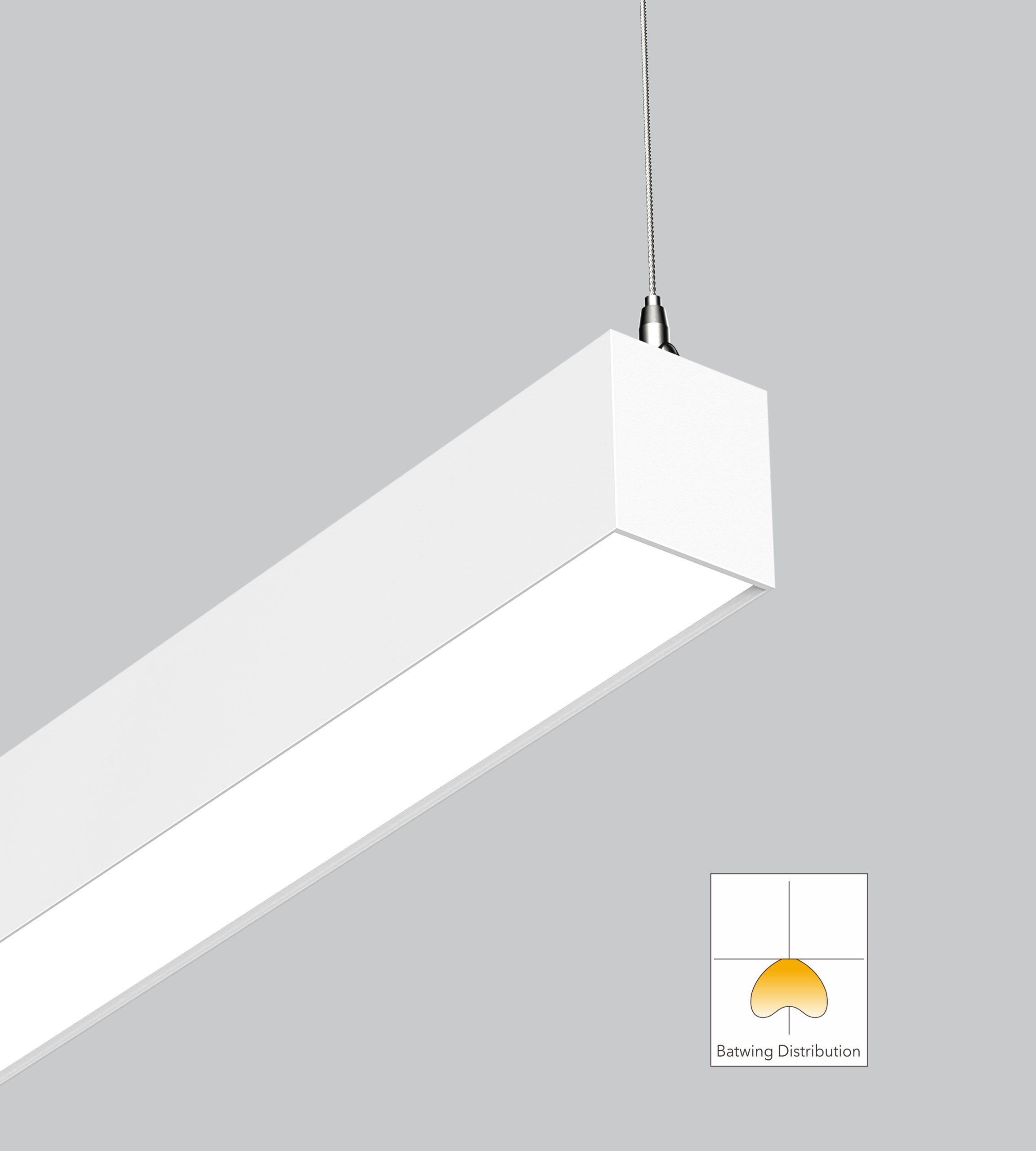

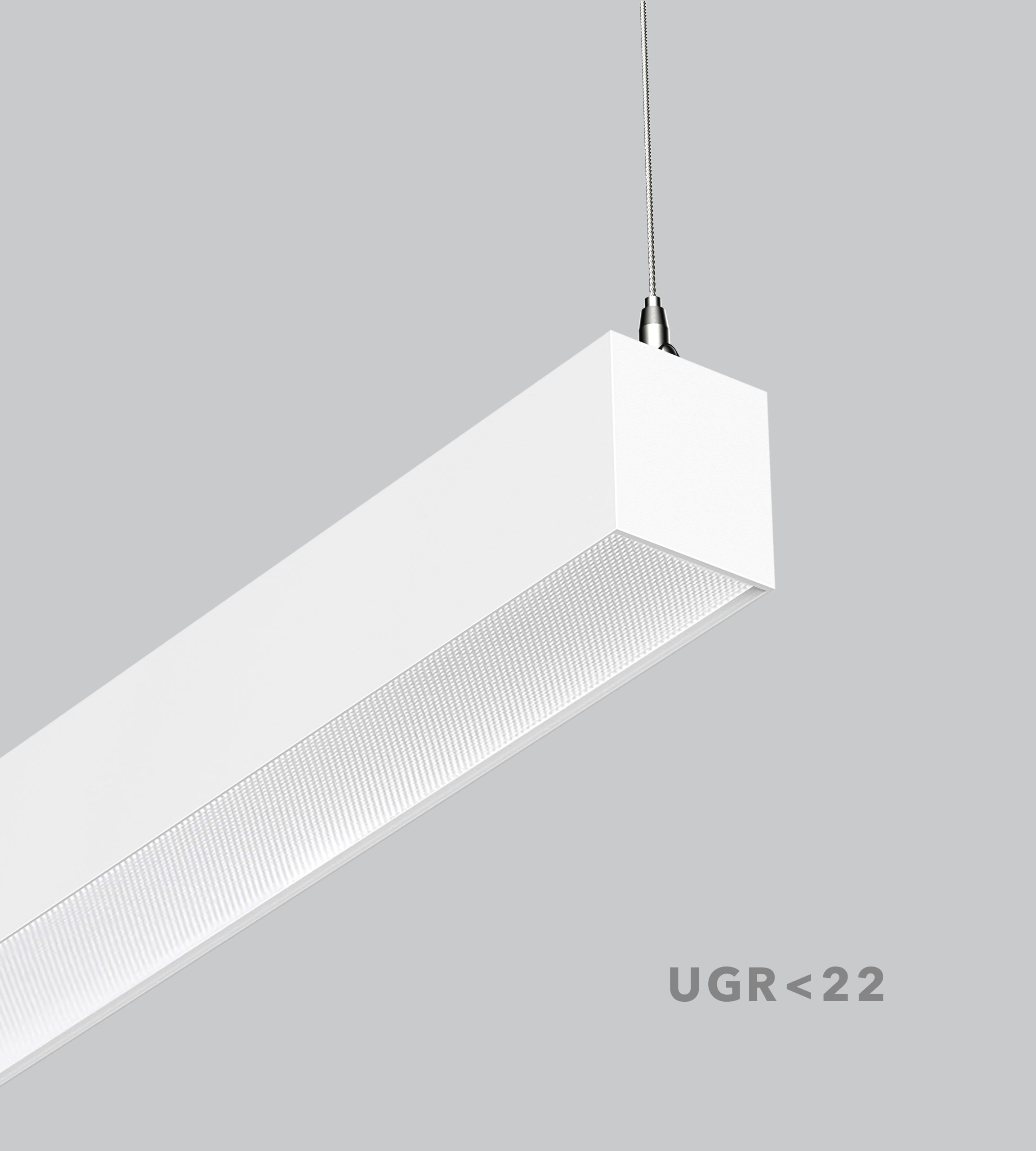

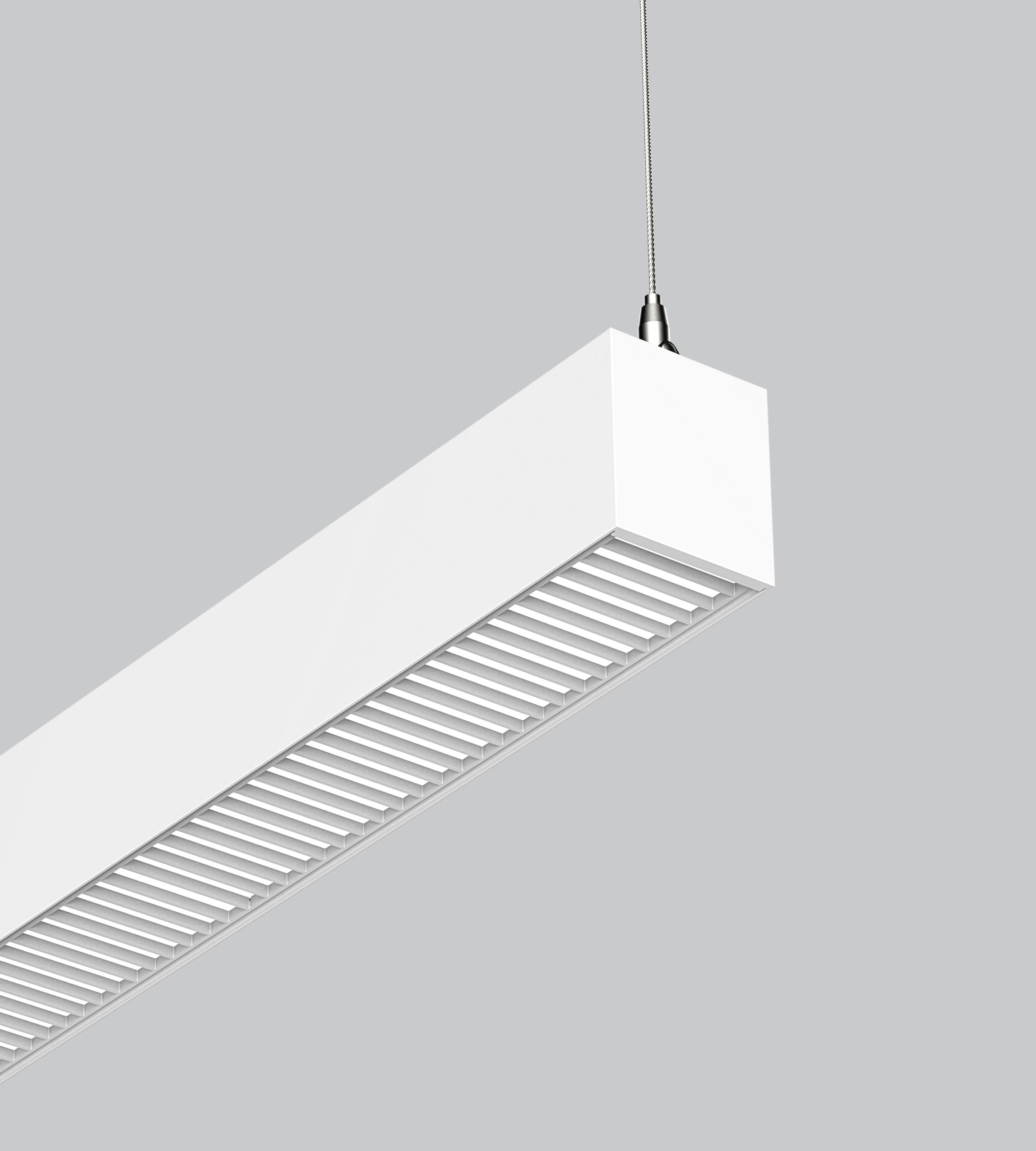

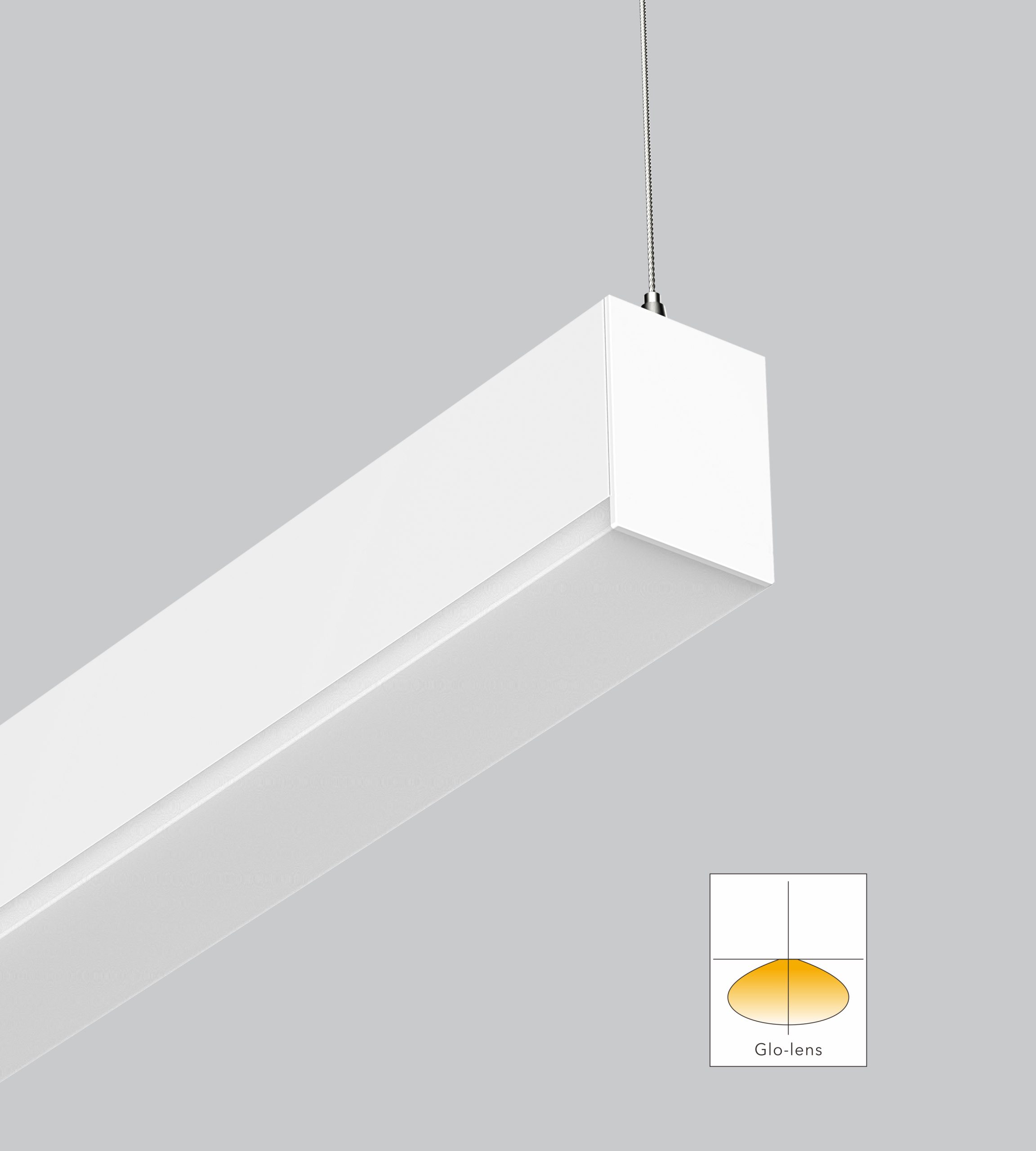

MULTIPLE OPTICS FOR PRECISE LIGHT CONTROL
Optimize glare control, visual comfort, and distribution with a wide range of optics — each engineered to deliver a unique lighting experience.
FOUR MOUNTING OPTIONS
Dense275 offers four installation methods—Wall Mount, Surface, Recessed, and Pendant—each with clean detailing and a consistent visual language.
Wall Mount
Surface
Recessed
Pendant
Quick linkable function
Run Length Limits
| Run Length Limits(ft) | 2FT | 4FT | 8FT |
| Max Linkable Units | 7 units | 7 units | 4 units |
| Total connected load:<420W at 120V & <960W at 277V & <1200W at 347V |
