The Sense E product line is a cost-effective linear family that provides both indirect and direct lighting distributions, complete with a built-in programmer.
Offering versatility, it comes in 4’ and 8’ lengths and supports continuous runs.

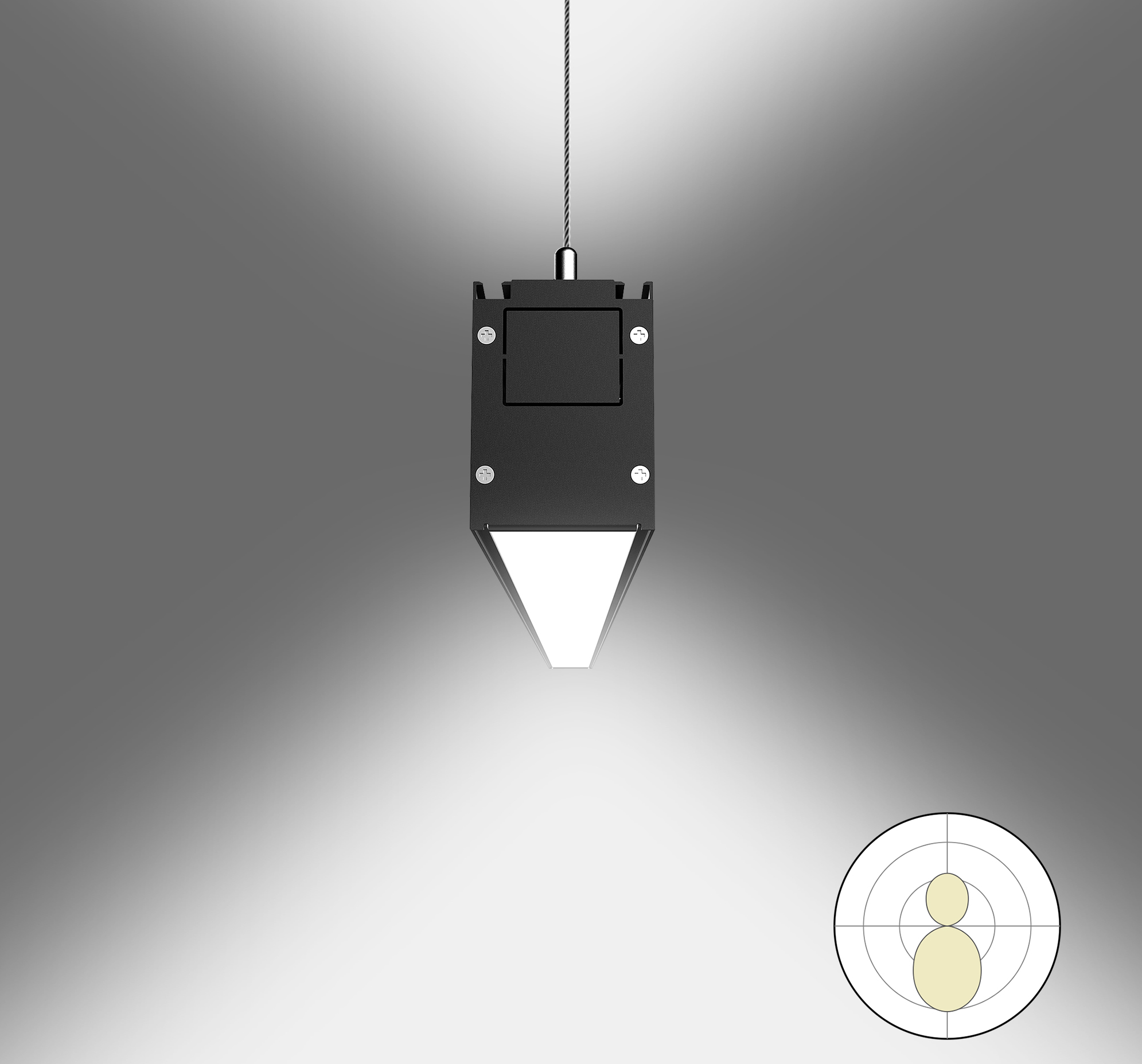

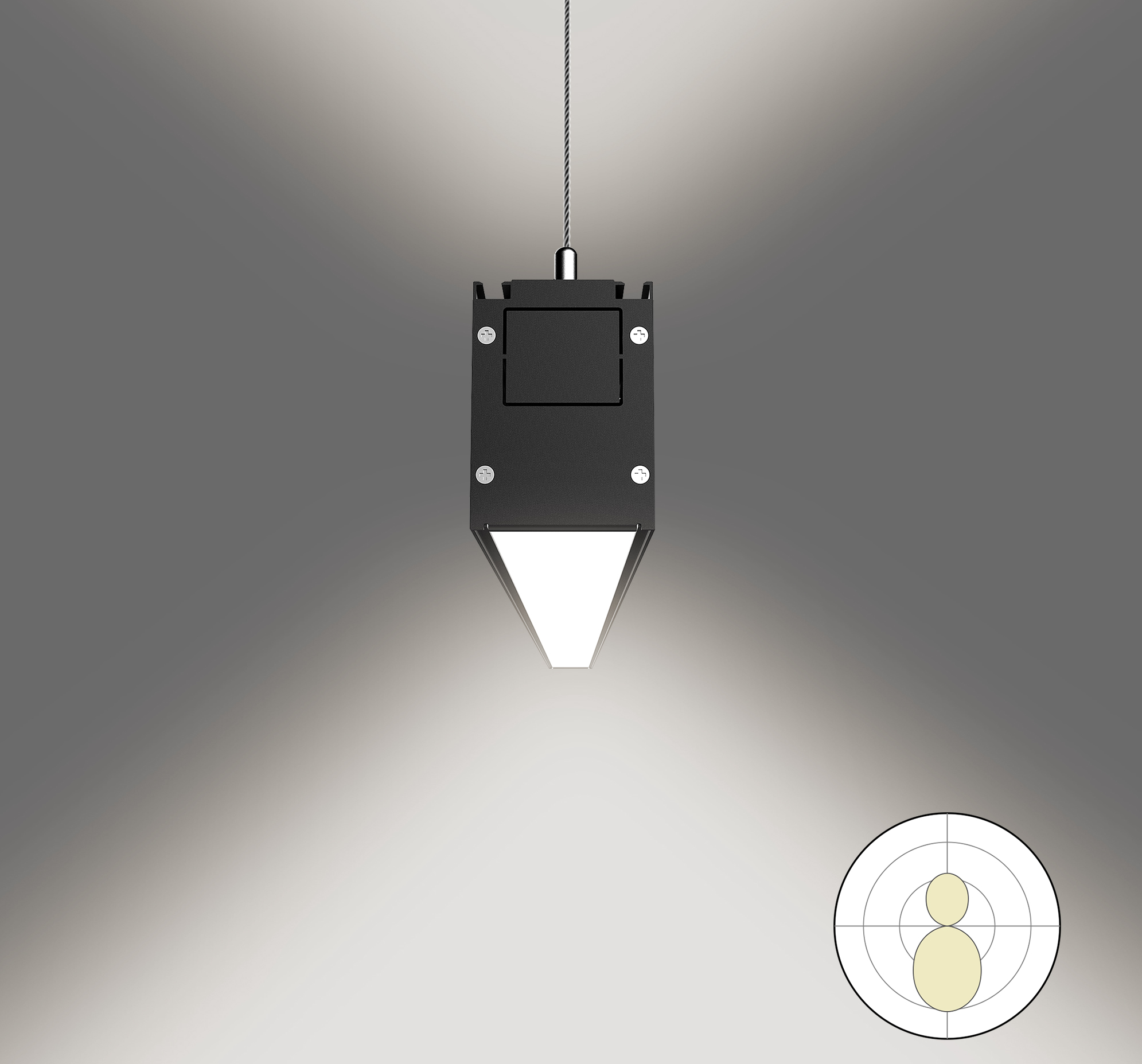

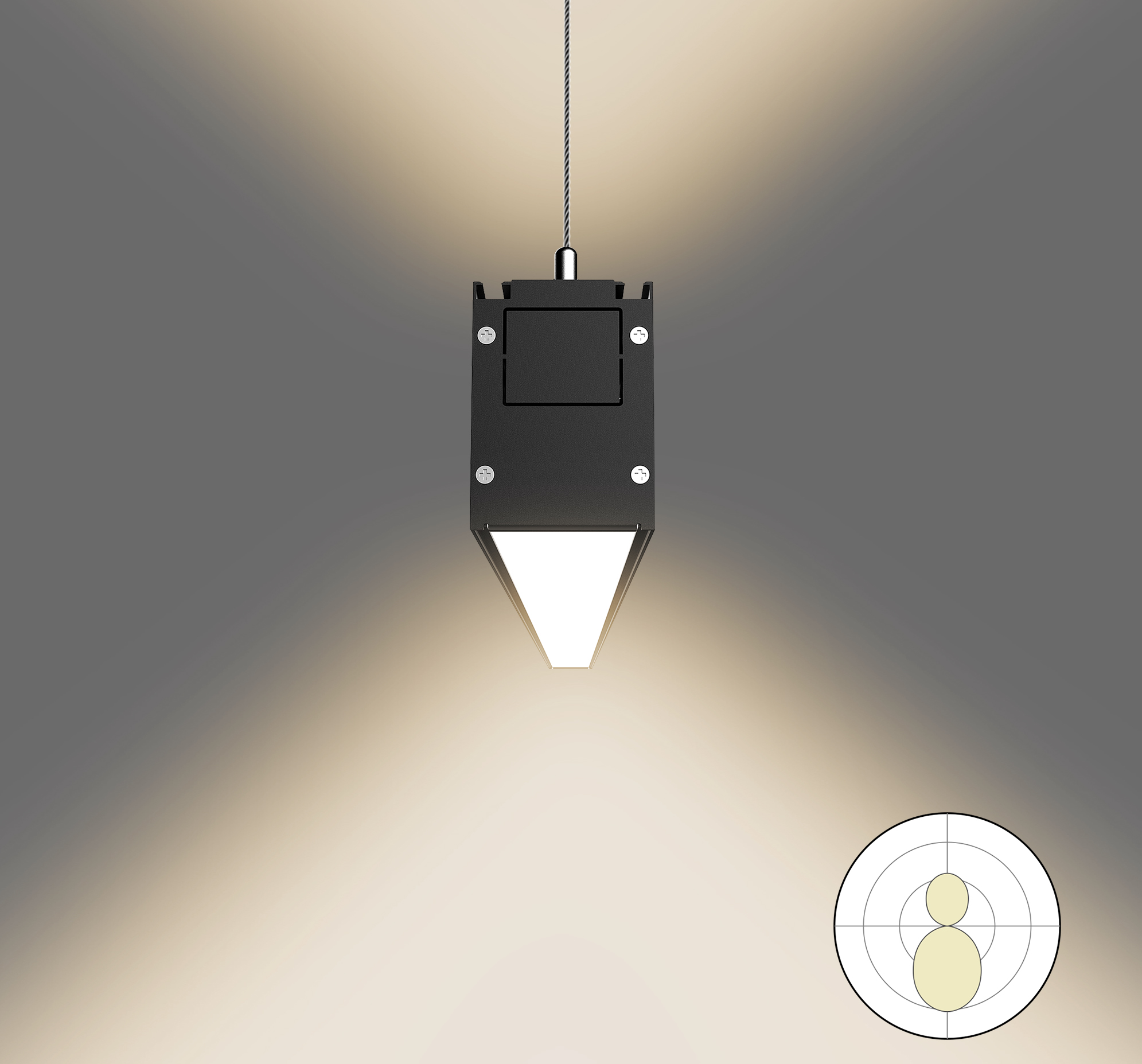

The Sense E197 simplifies everyday up/down linear lighting needs and elevates the user experience without compromising energy efficiency.
| Model | Length/Pattem | Wattage | Efficacy | Lumen | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-3LSUD4FT50WBDUV(30K-40K-50K-T) | 4FT(1130mm) | 50W | 115lm/W | 5750lm | 30K/40K/50K | 120-277V | 0-10V | >80 |
| WL-3LSUD8FT100WBDUV(30K-40K-50K-T) | 8FT(2400mm) | 100W | 115lm/W | 11500lm | 30K/40K/50K | 120-277V | 0-10V | >80 |
SENSE 197 (GEN 3) Product Introduction Video
Run Lengths
Standalone fixtures are available in4FT(1130mm) and 8FT(2400mm) nominal lengths.
UNLOCK CREATIVE CONFIGURATIONS
Dense 197 offers a modular connector system that enables designers to explore bold, sculptural forms.
From geometric shapes to customized layouts, these accessories support seamless integration and endless design flexibility.
ENGINEERED FOR PERFECT CORNERS
Achieve flawless L-shaped transitions with architectural precision. The LTX connector keeps every angle aligned, refined, and visually consistent—ideal for perimeter and structured layouts.
UNLOCK CROSS-LINEAR FREEDOM
Seamlessly connect four directions with a clean X-shaped junction.Designed for creative planning in open spaces, the LTX system supports complex intersections without compromising visual clarity.
SEAMLESS LIGHT, UNBROKEN LINES
From structure to illumination, corners glow without interruption.Thanks to precisely engineered optics and connections, the light remains uniform—even through directional shifts.
