Windows 787(GEN14)
Windows 787(GEN14)

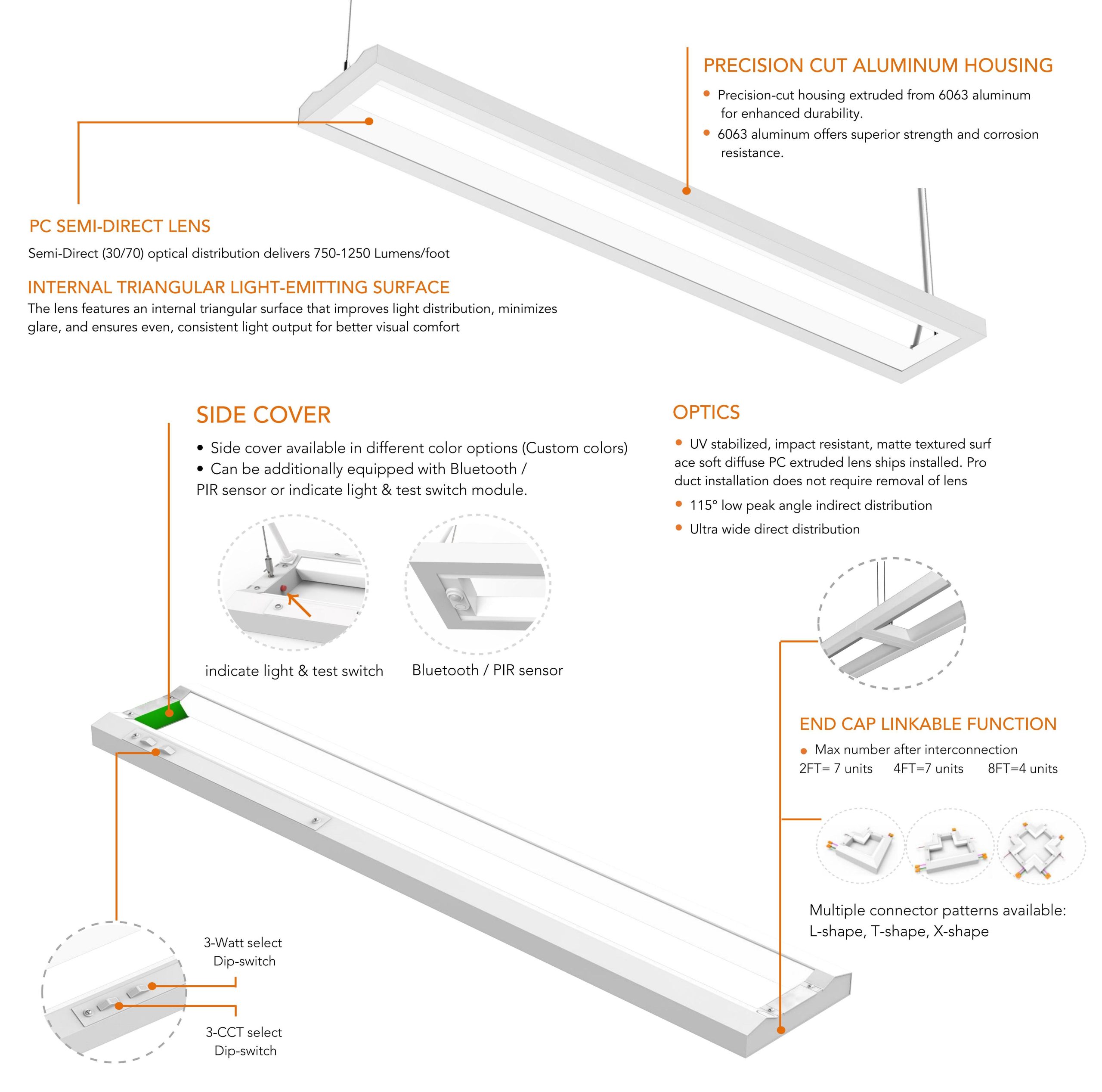

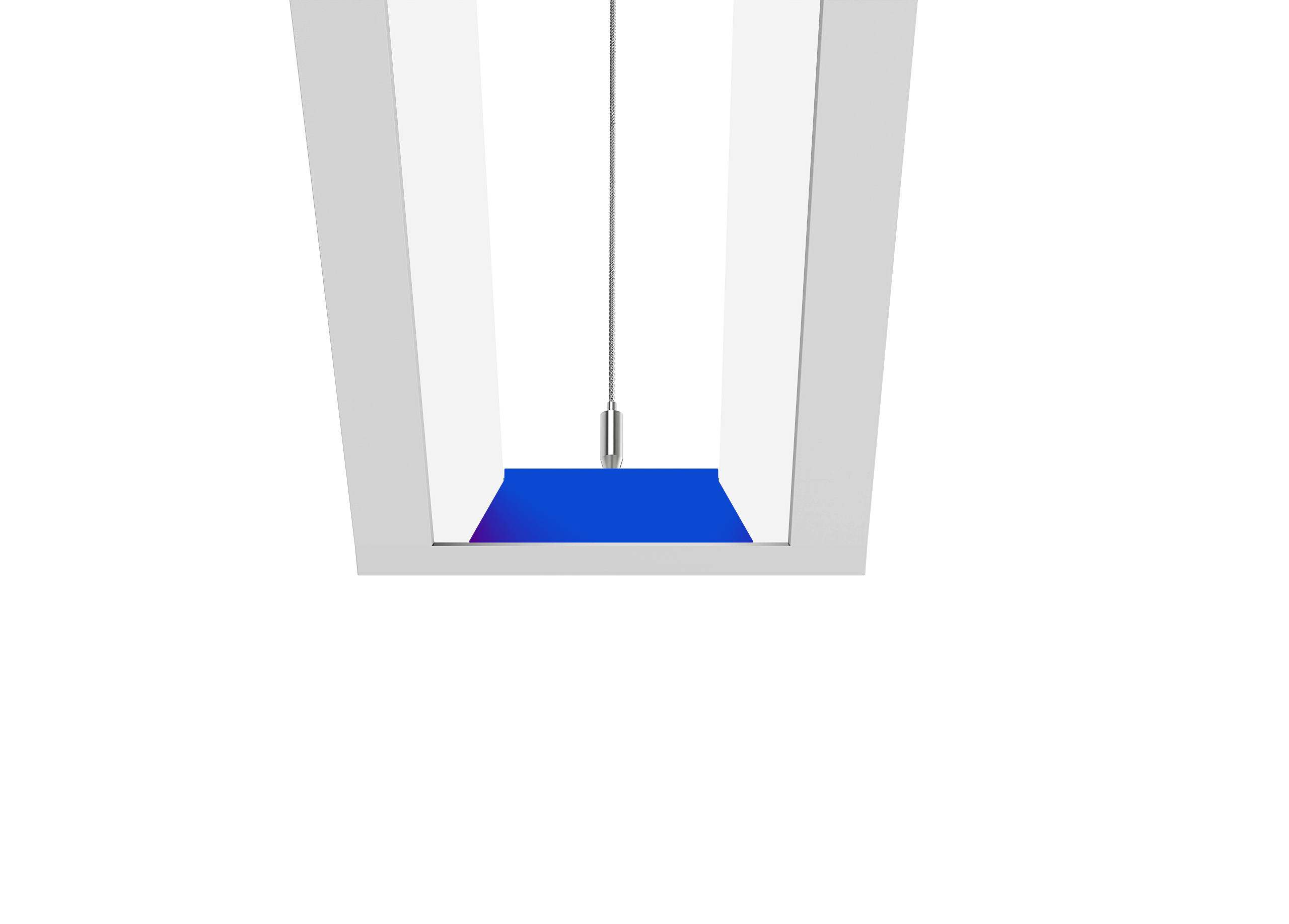

Refined aesthetic with a center-through design provides scale without overhead bulk.

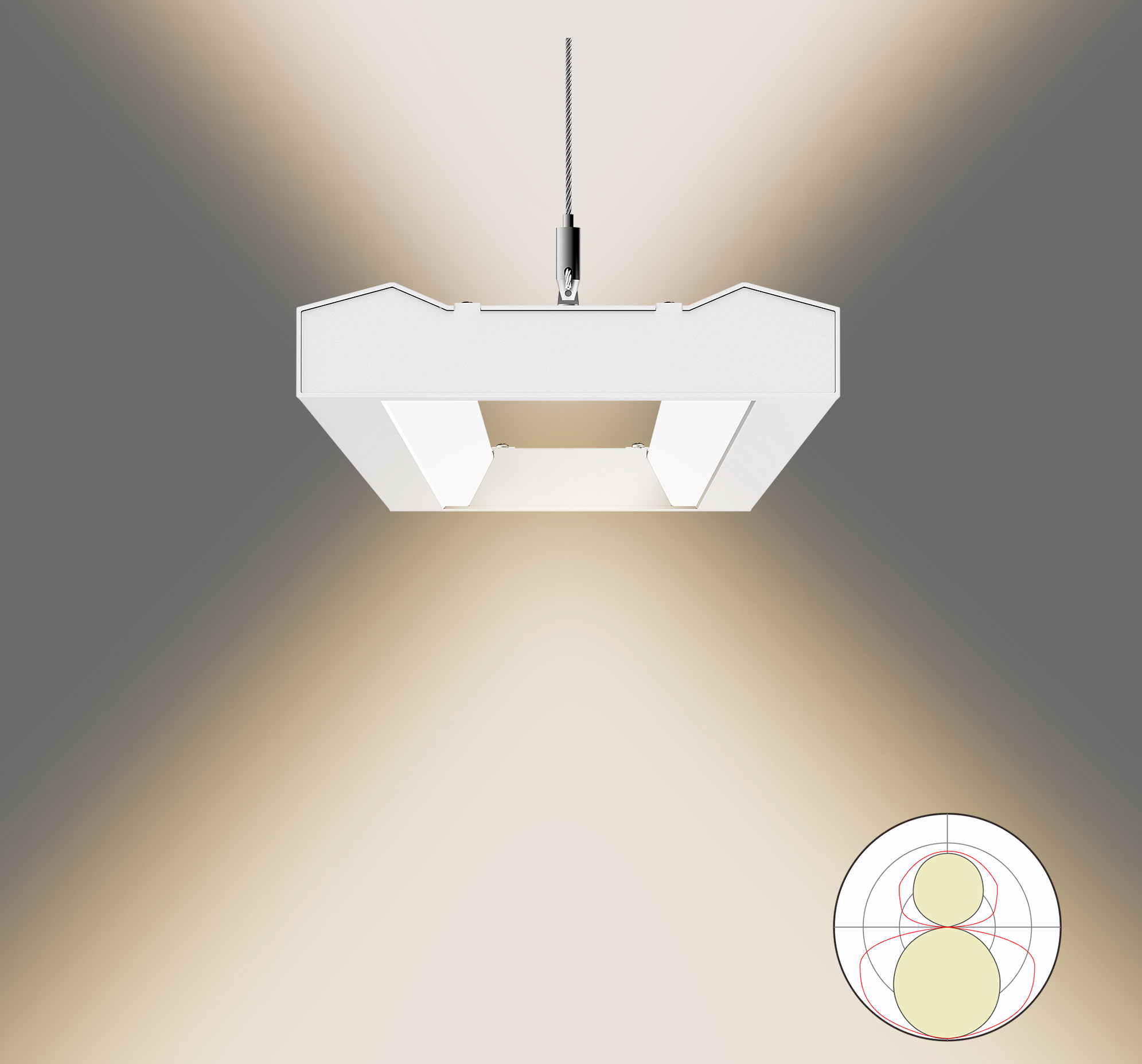

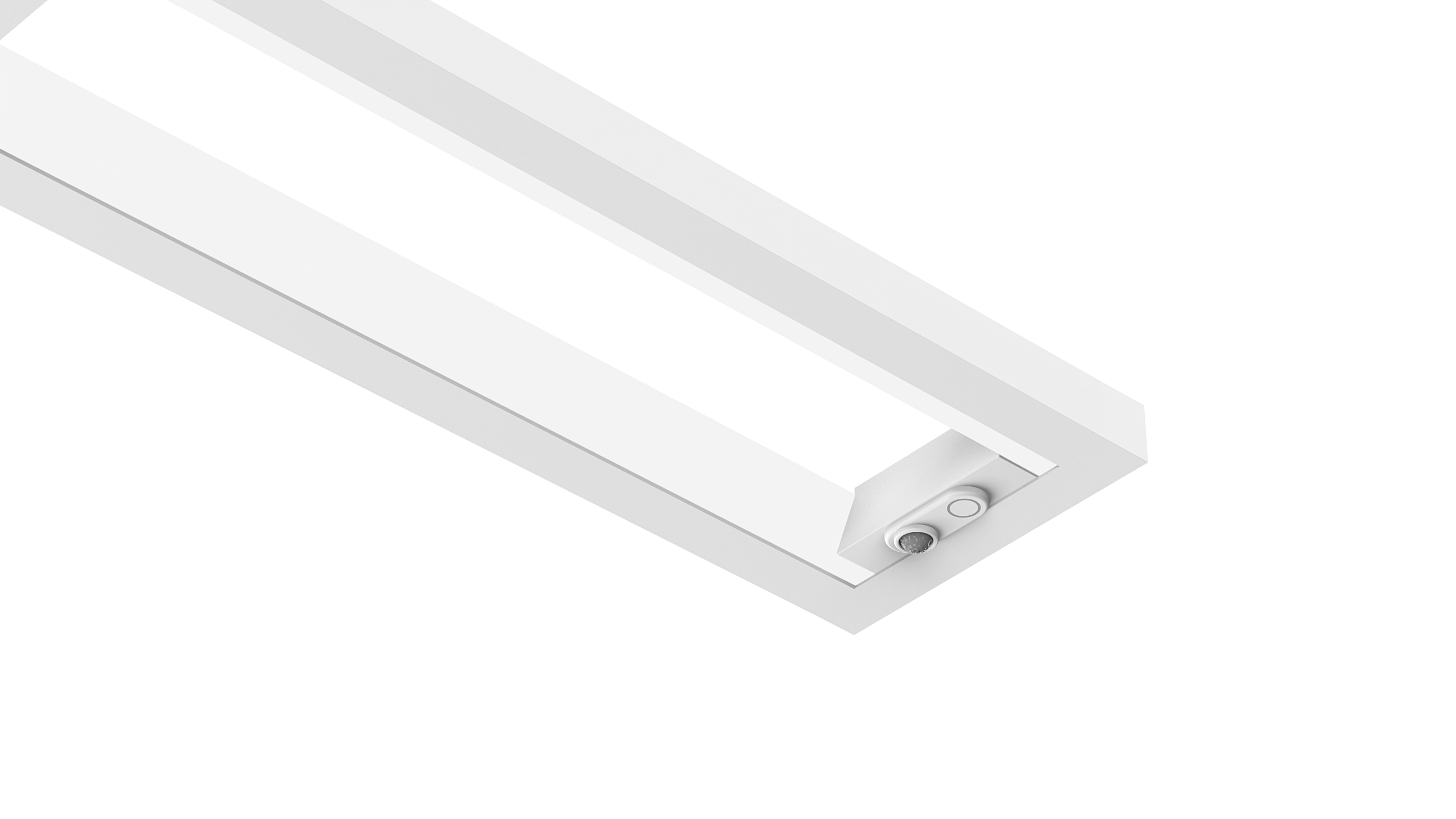

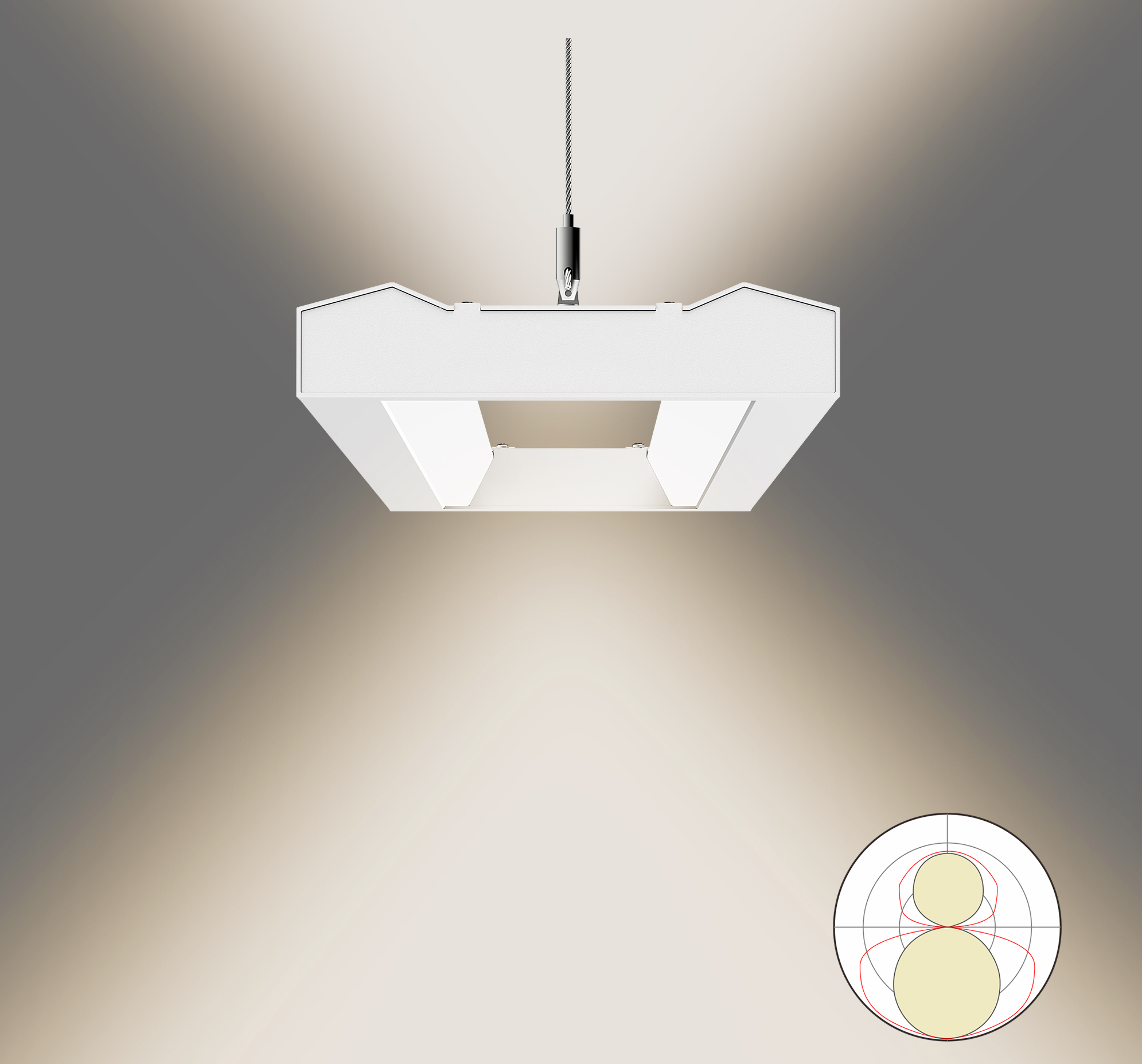

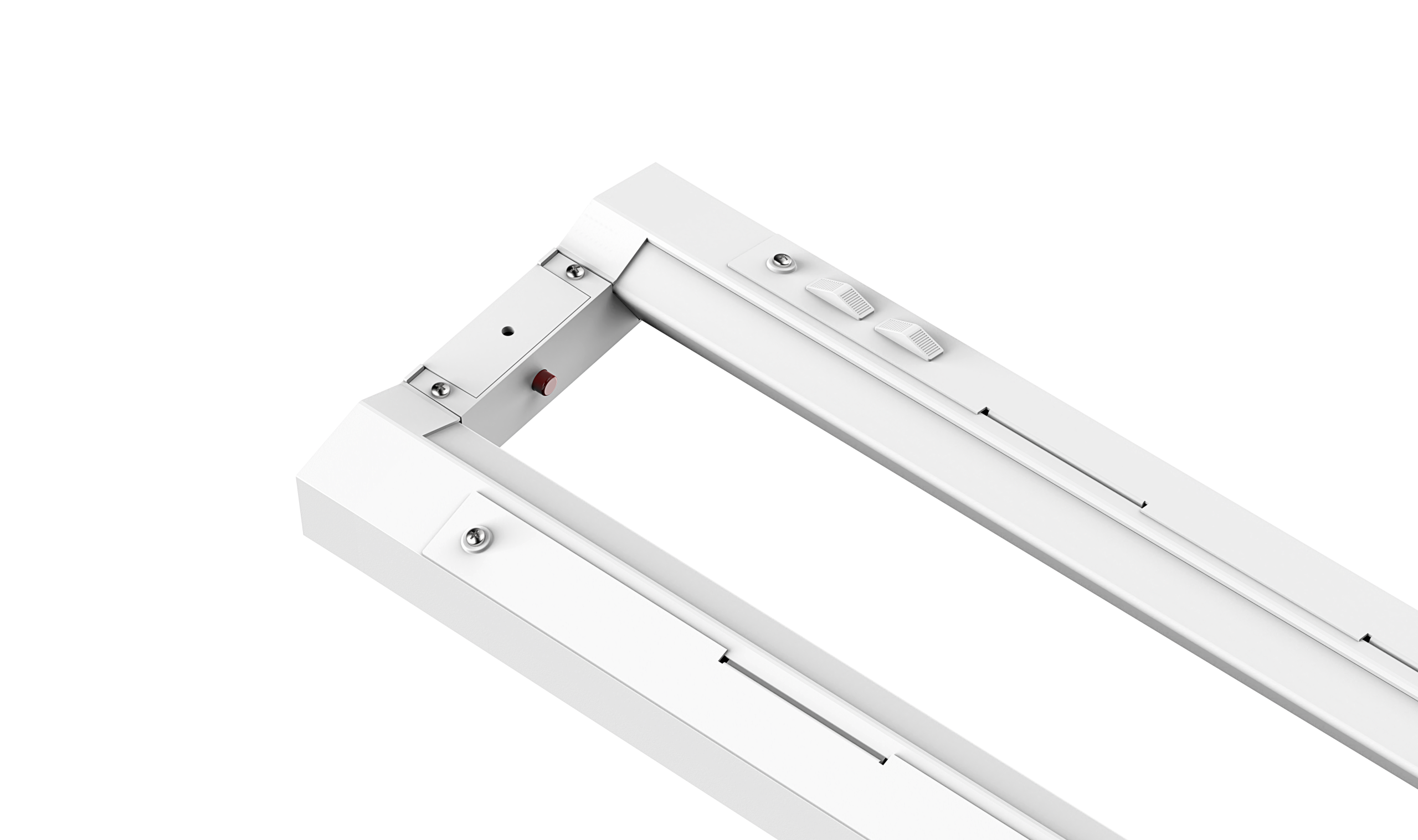

Semi-direct (30/70) distribution delivers extra-wide direct and soft indirect light, allowing wider spacing and better lighting power density. Integral driver, battery, sensor, and control options simplify installation and enable smart/emergency functionality.

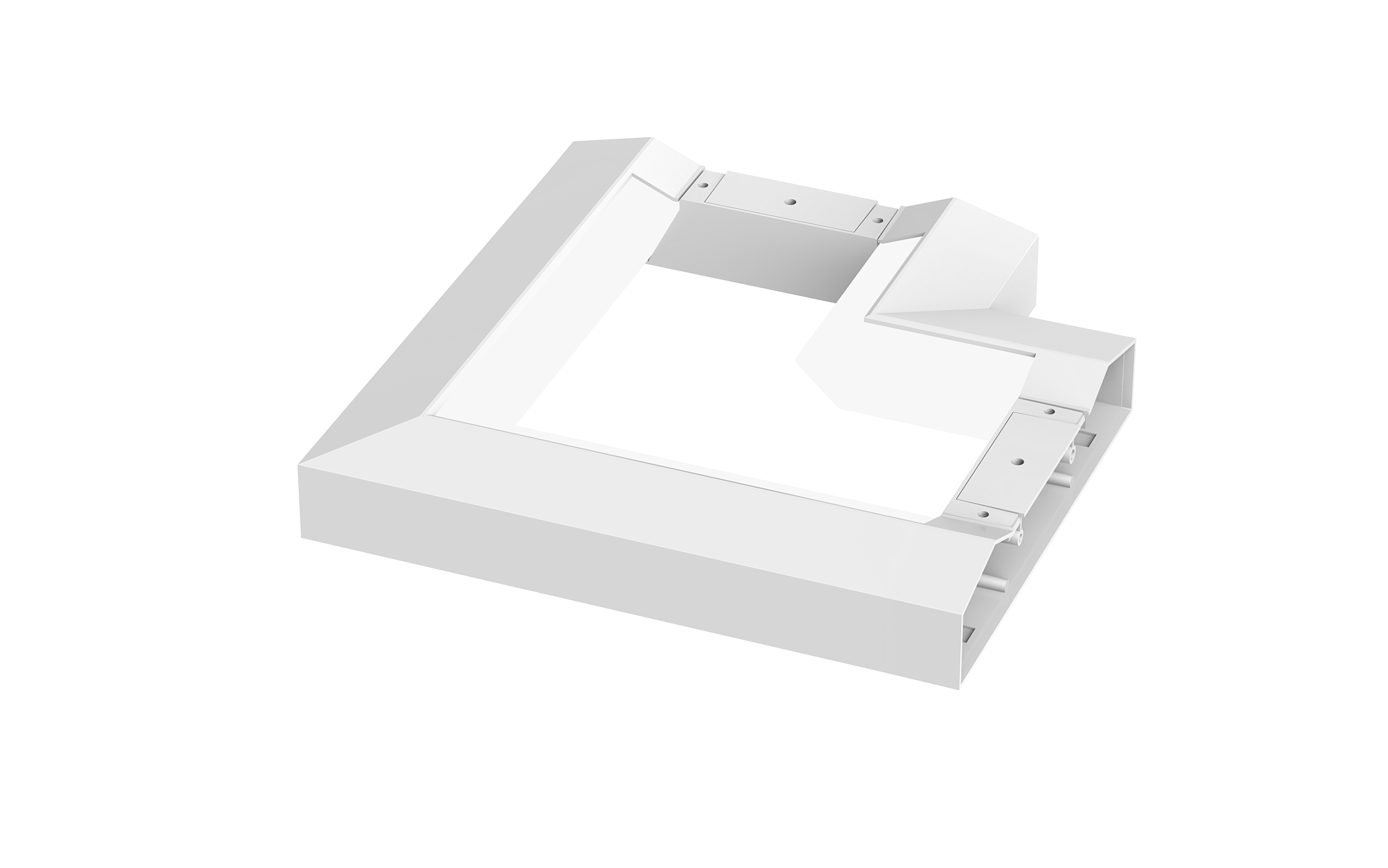

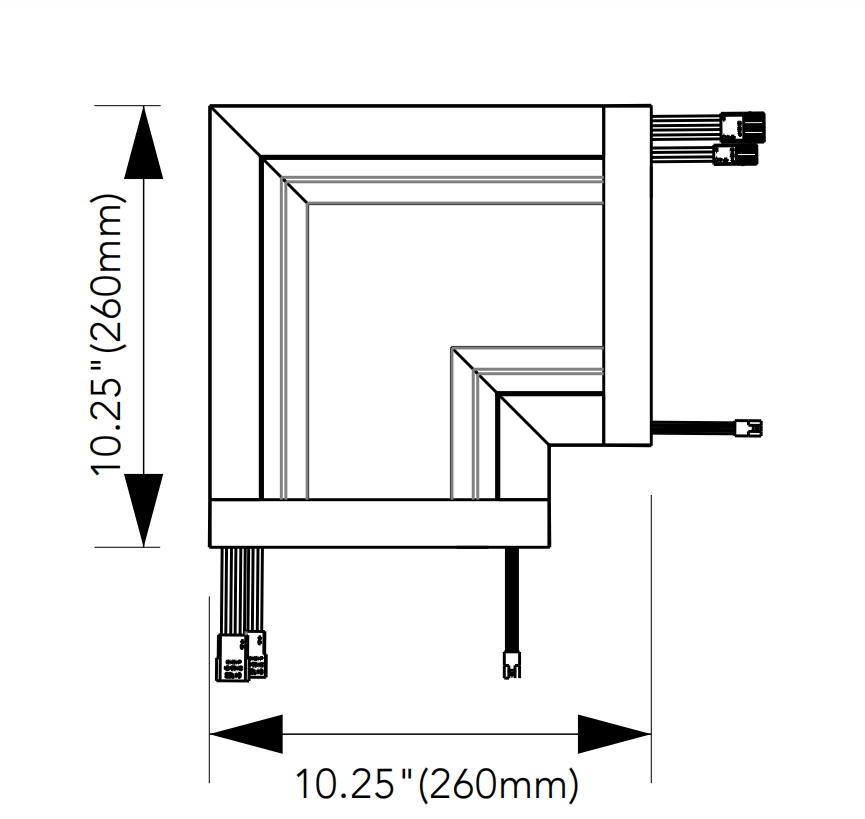

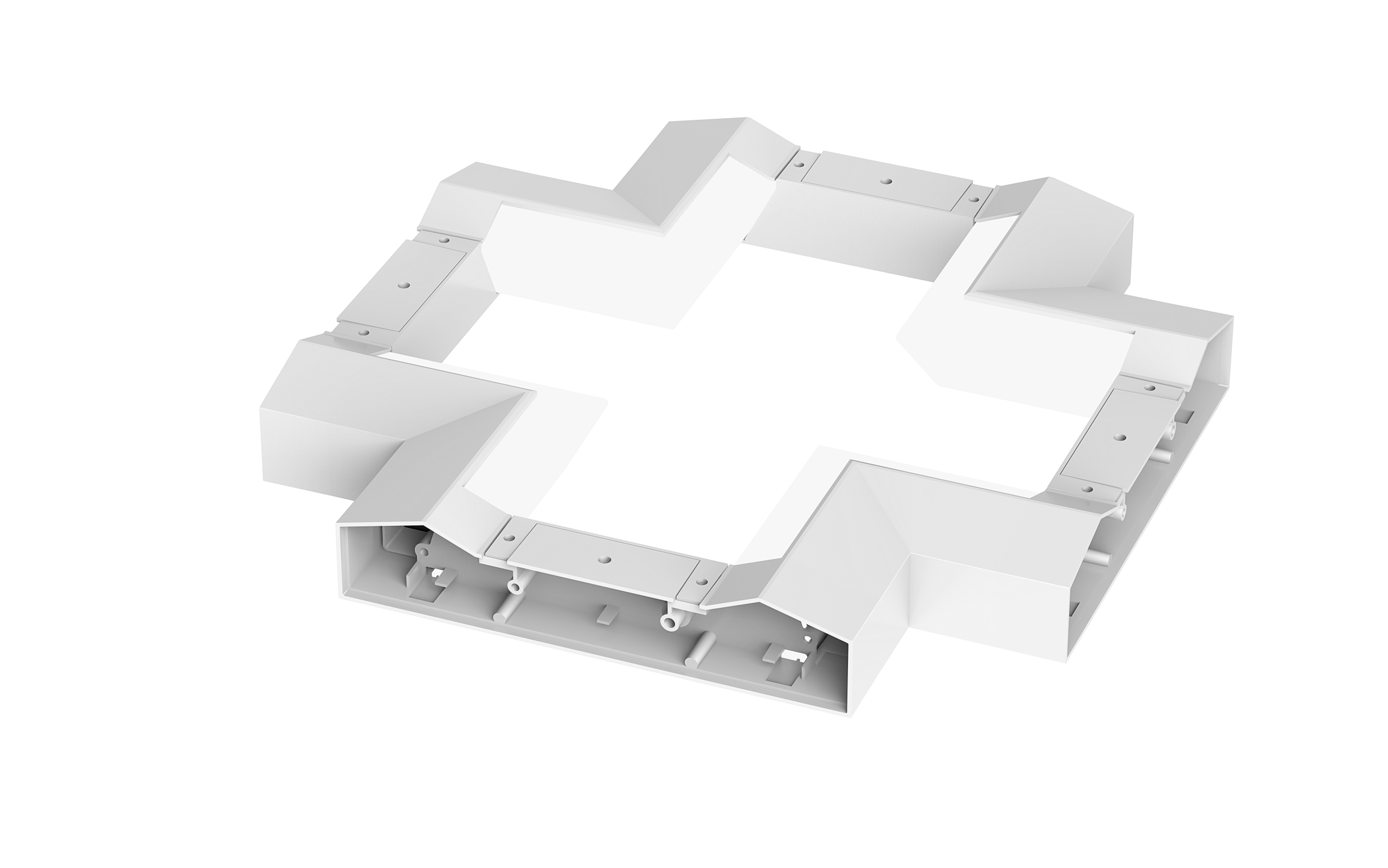

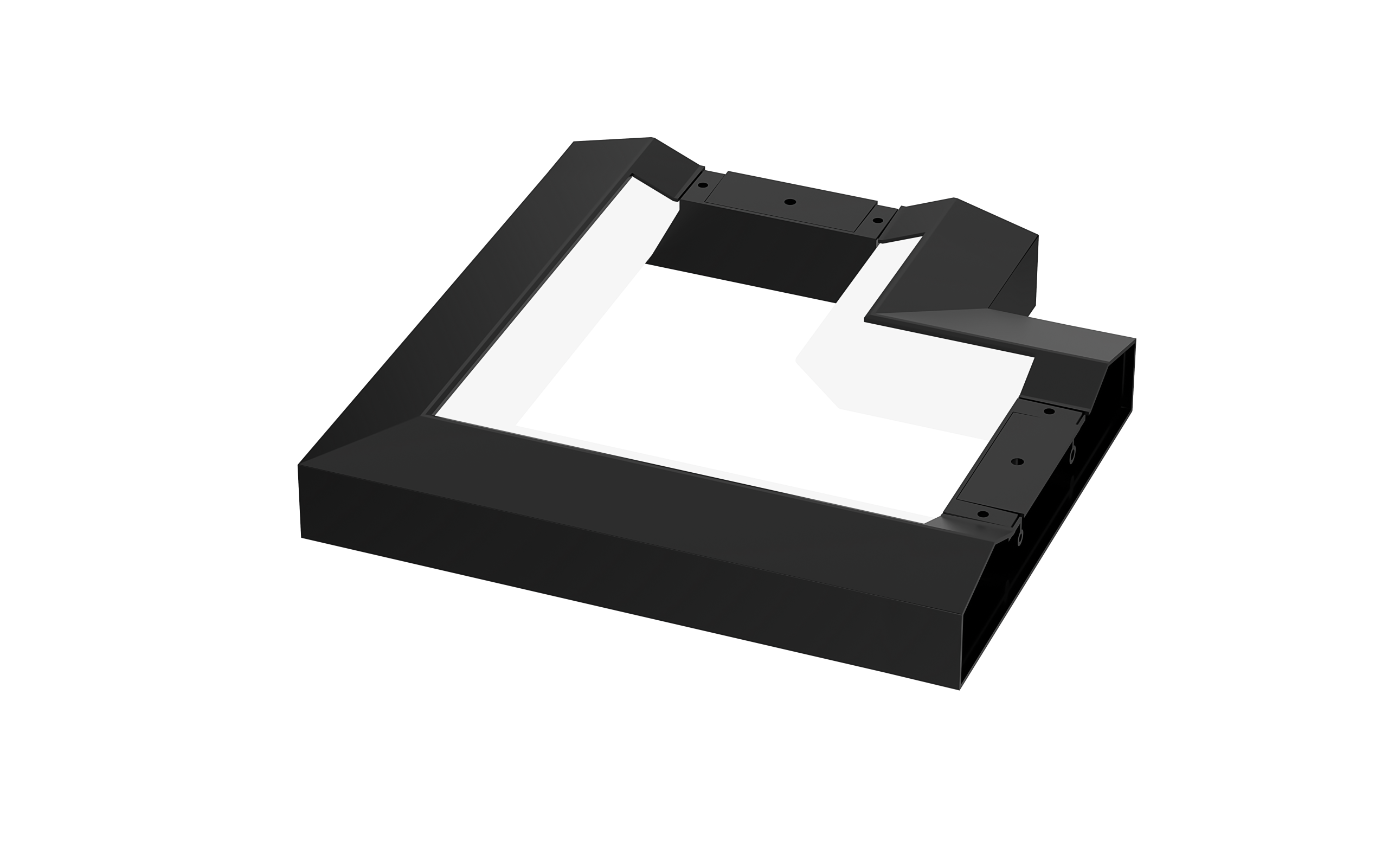

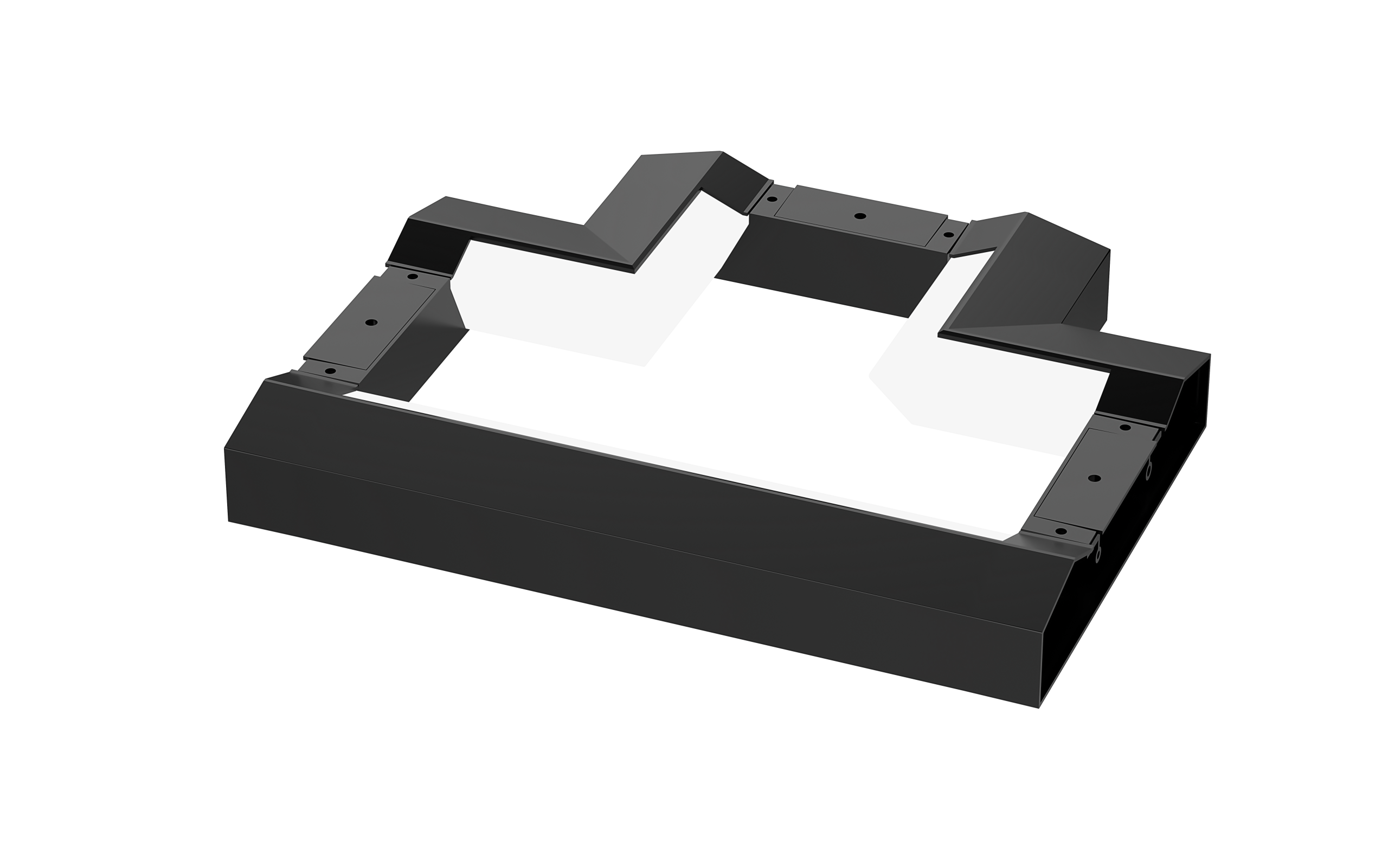

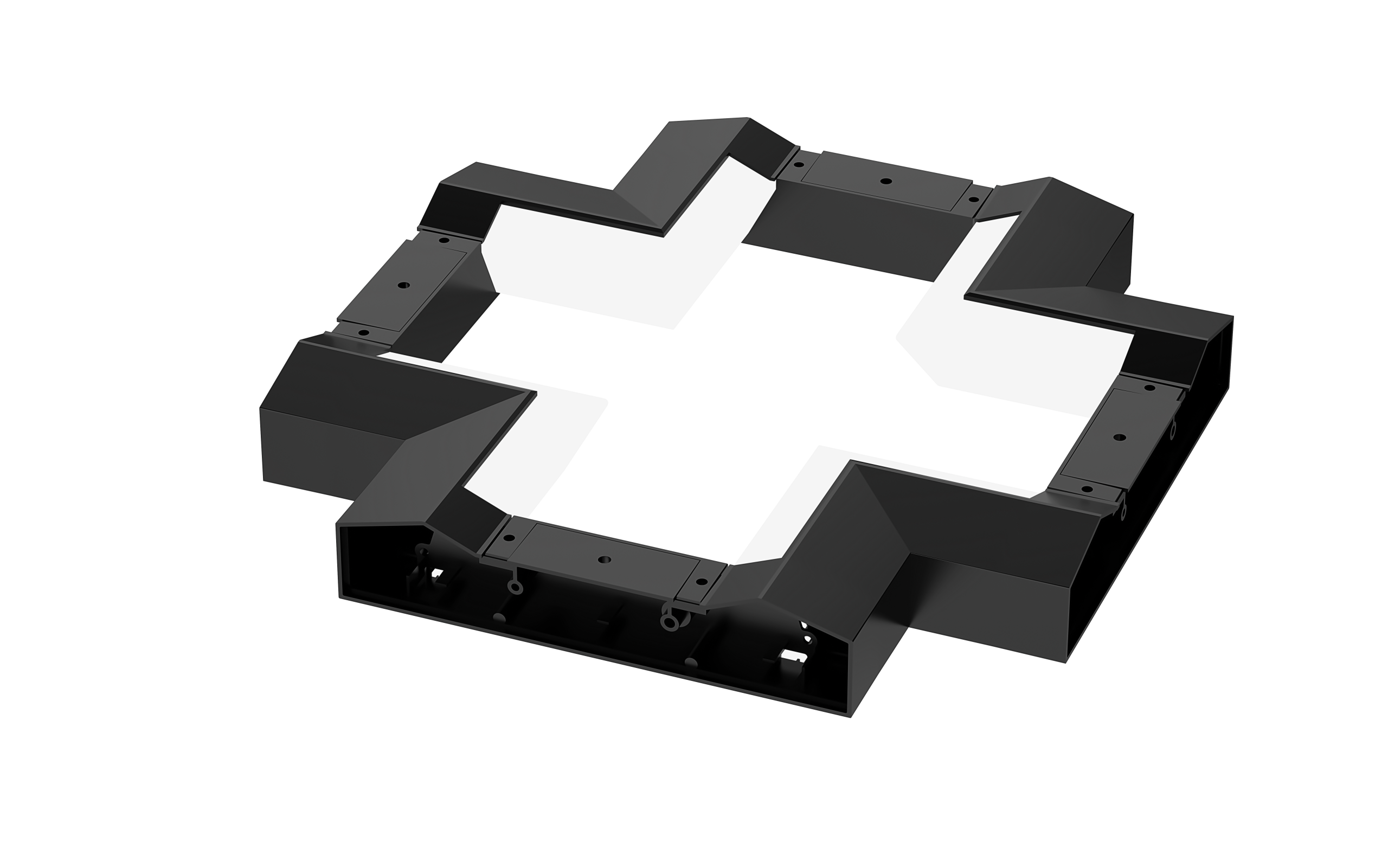

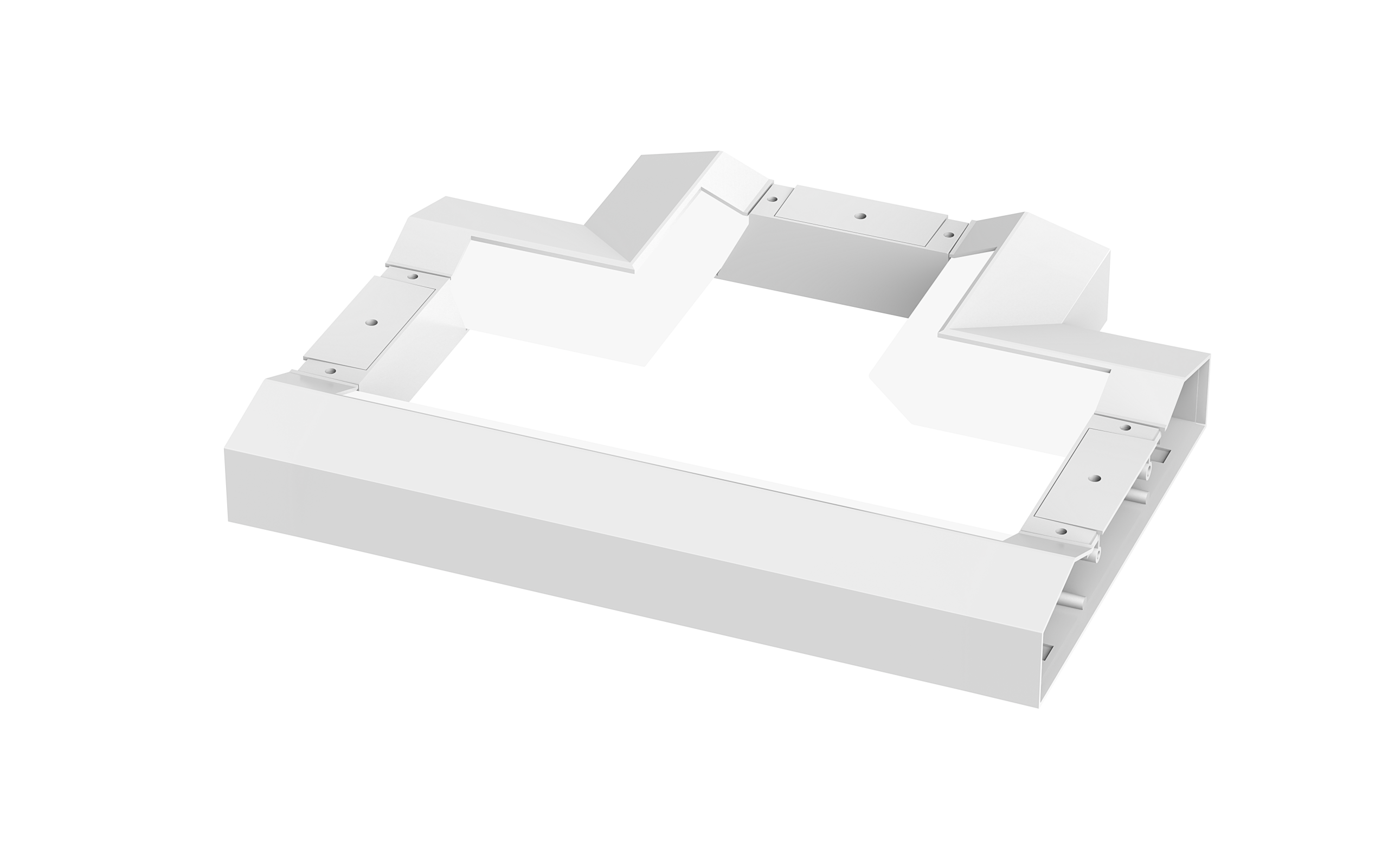

L, T, and X corner connectors offer flexible, linkable layouts. Custom-colored end caps are available to match design palettes. A complete solution for both performance and style.
| Model | Dimension | Watt Select | Efficacy | Lumens | CCT Select | Voltage | Dimming | CRI |
|---|---|---|---|---|---|---|---|---|
| WL-14LSUD2FT25WB2D1HV | 2FT(600mm) | 15W/20W/25W | 115lm/W | 1725/2300/2875Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |
| WL-14LSUD4FT50WB2D1HV | 4FT(1200mm) | 30W/40W/50W | 115lm/W | 3450/4600/5750Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |
| WL-14LSUD8FT100WB2D1HV | 8FT(2400mm) | 60W/80W/100W | 115lm/W | 6900/9200/11500Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |
| WL-14LSUDL10WB2D1HV | L Pattern | 6W/8W/10W | 115lm/W | 690/920/1150Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |

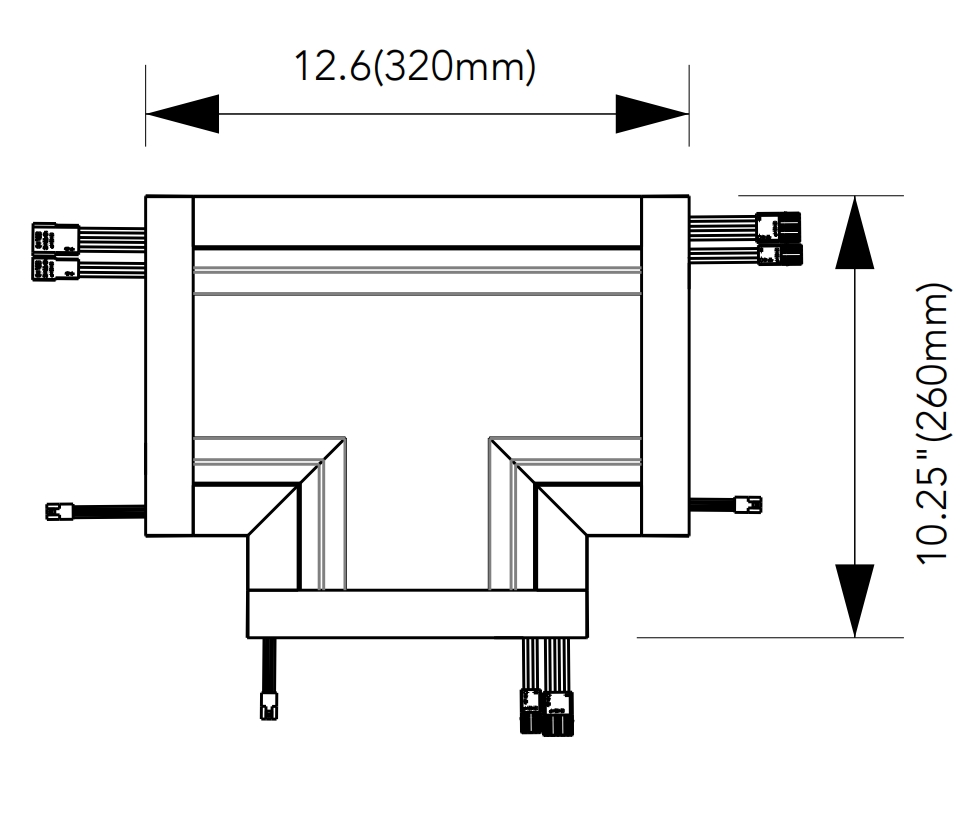

| WL-14LSUDT10WB2D1HV | T Pattern | 6W/8W/10W | 115lm/W | 690/920/1150Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |

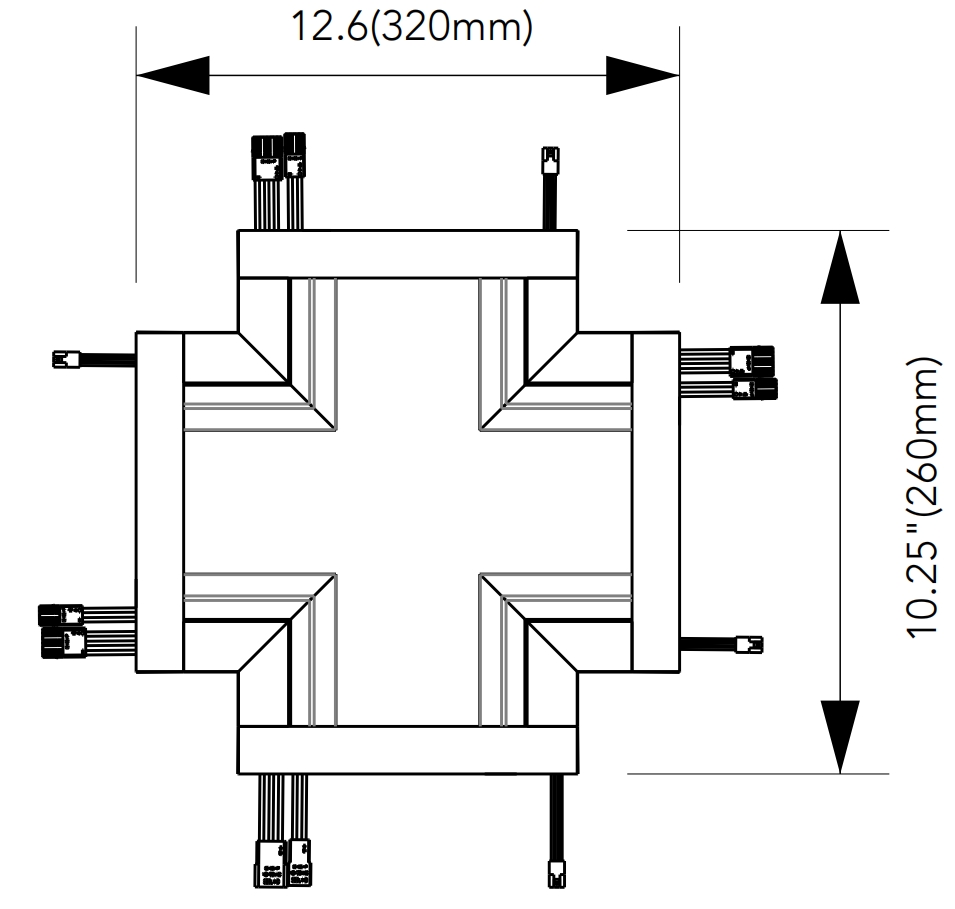

| WL-14LSUDC12WB2D1HV | X Pattern | 8W/10W/12W | 115lm/W | 690/920/1150Lm | 30K/35K/40K | 120-347V / 120-277V | 0-10V(1%-100%) | >90 |
Windows 787 （GEN14) — Product Introduction Video
Run Lengths

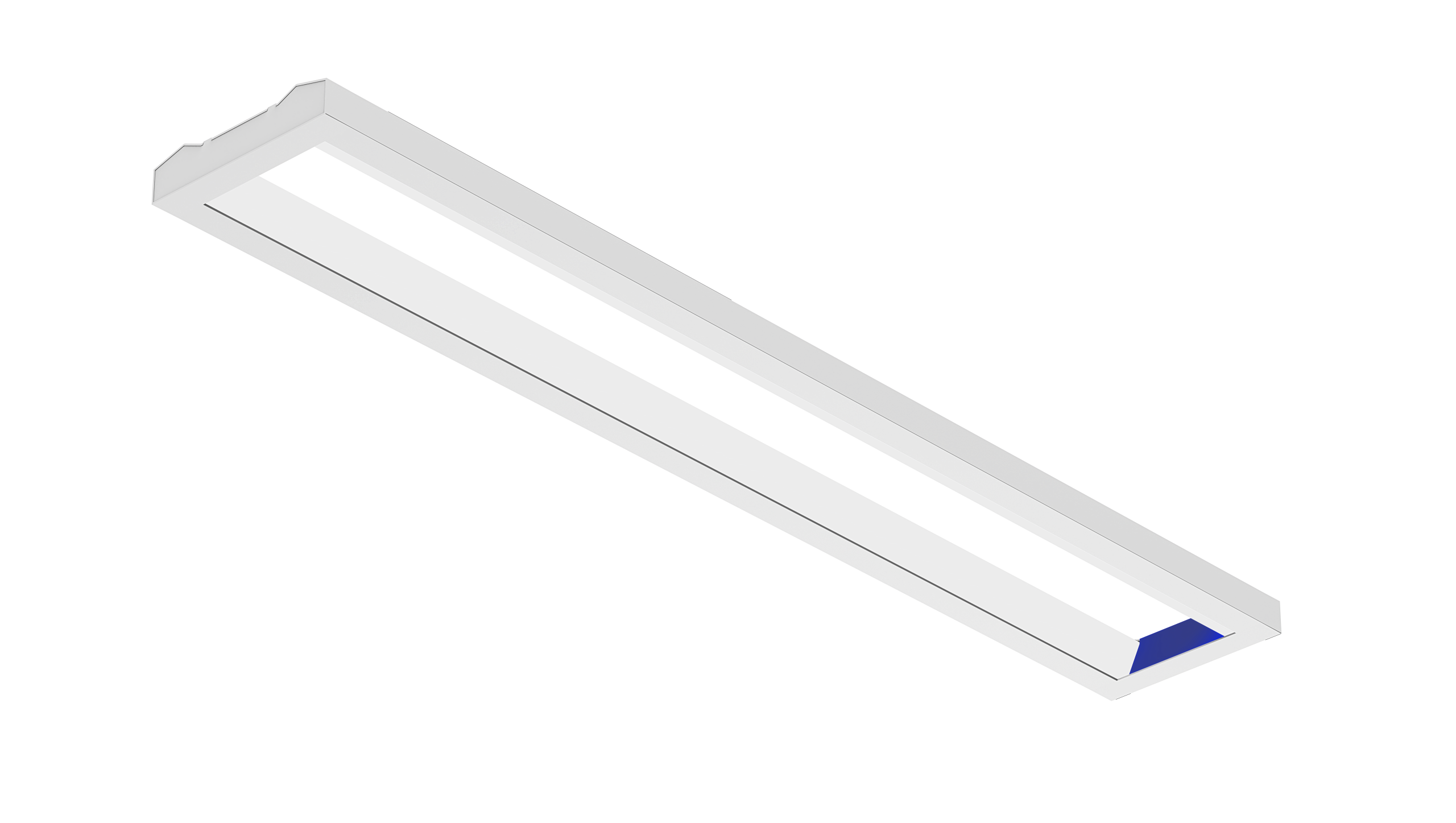

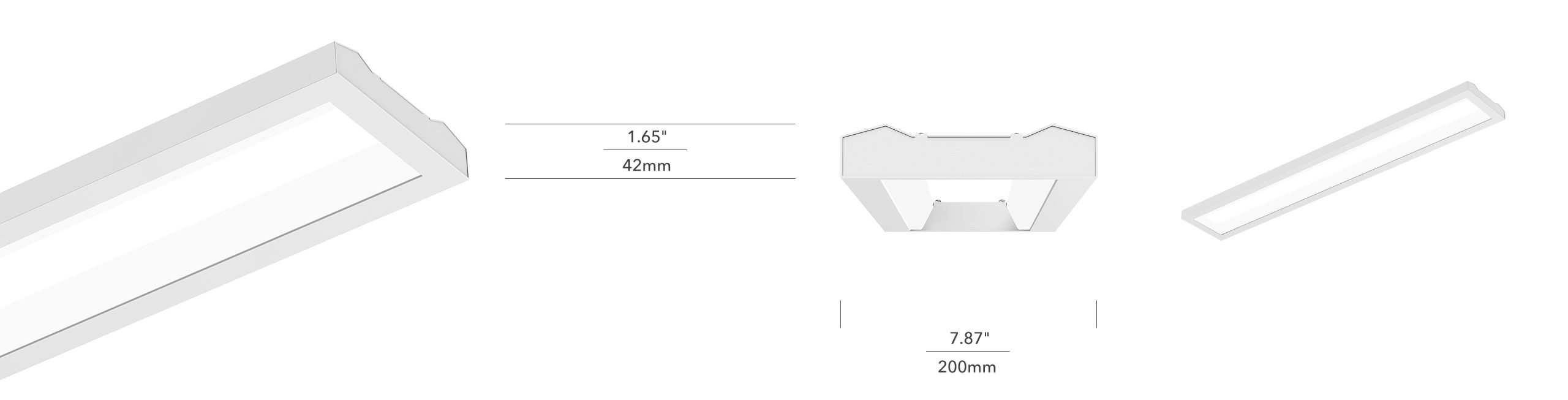

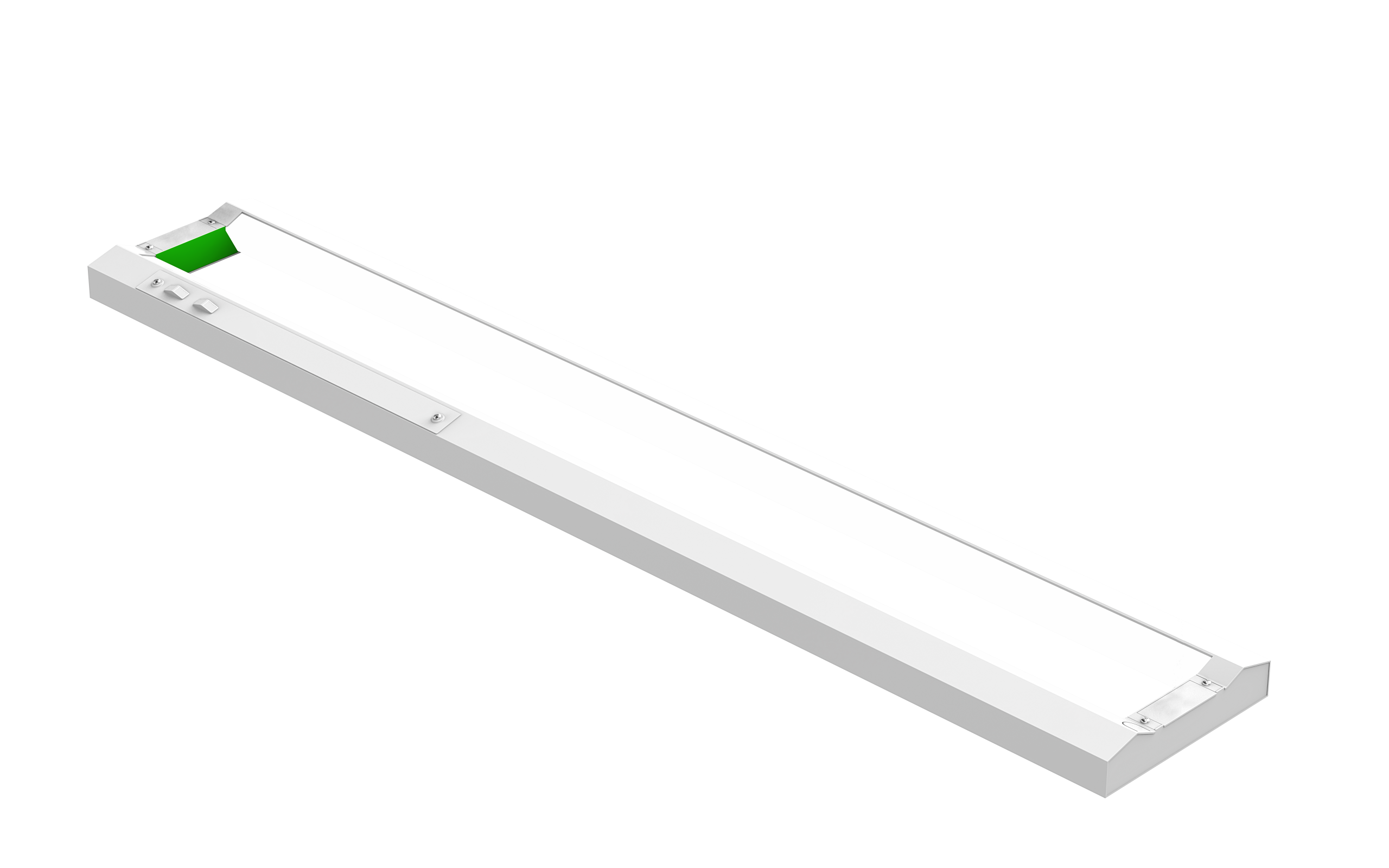

Standalone fixtures are available in 2FT(600mm),4FT(1200mm),and 8FT(2400mm) nominal lengths.
FLEXIBLE DESIGN

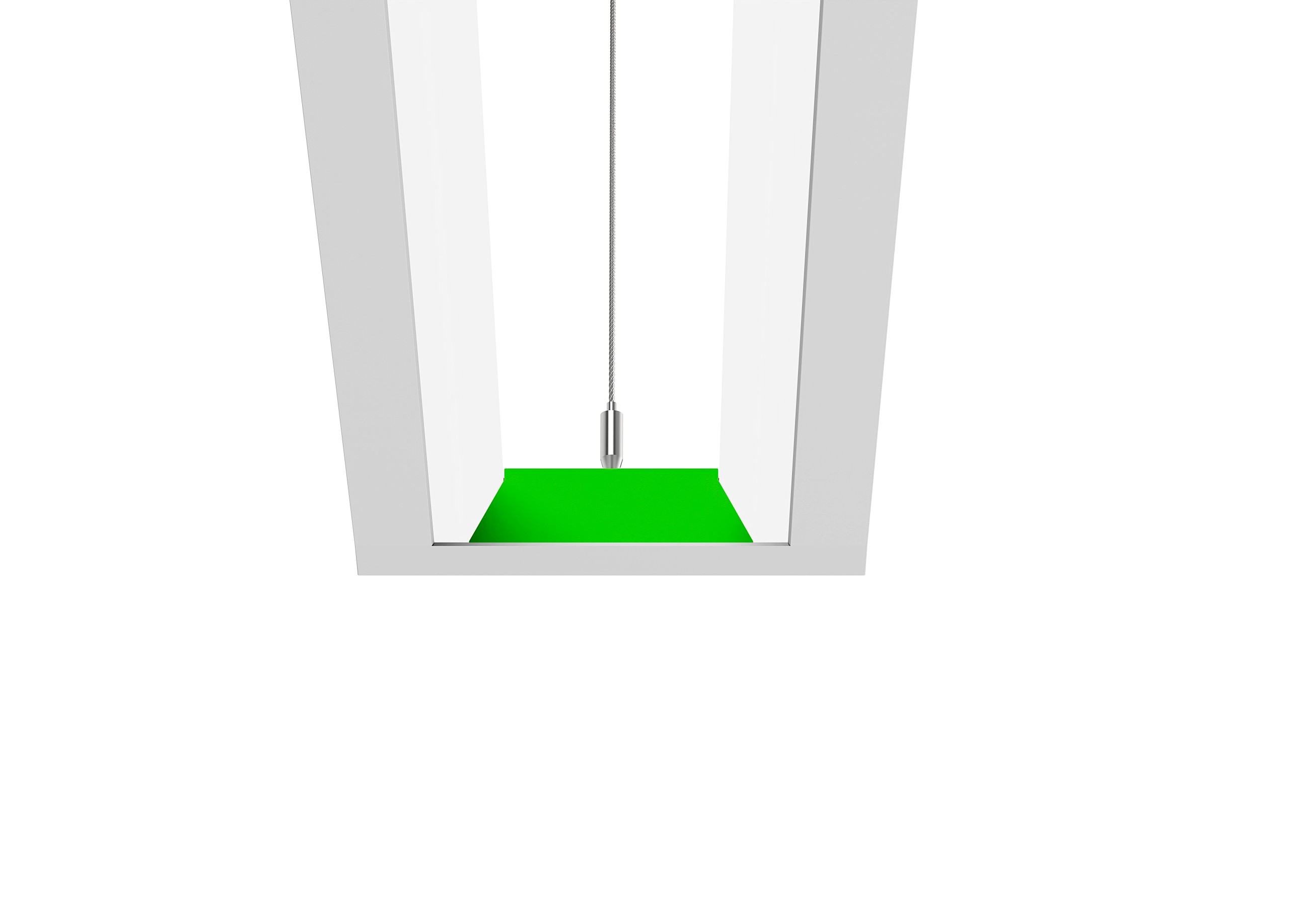

Interior side covers are available in customizable colors to match your project style. Standard finishes are also offered for seamless coordination.
UNLOCK CREATIVE CONFIGURATIONS

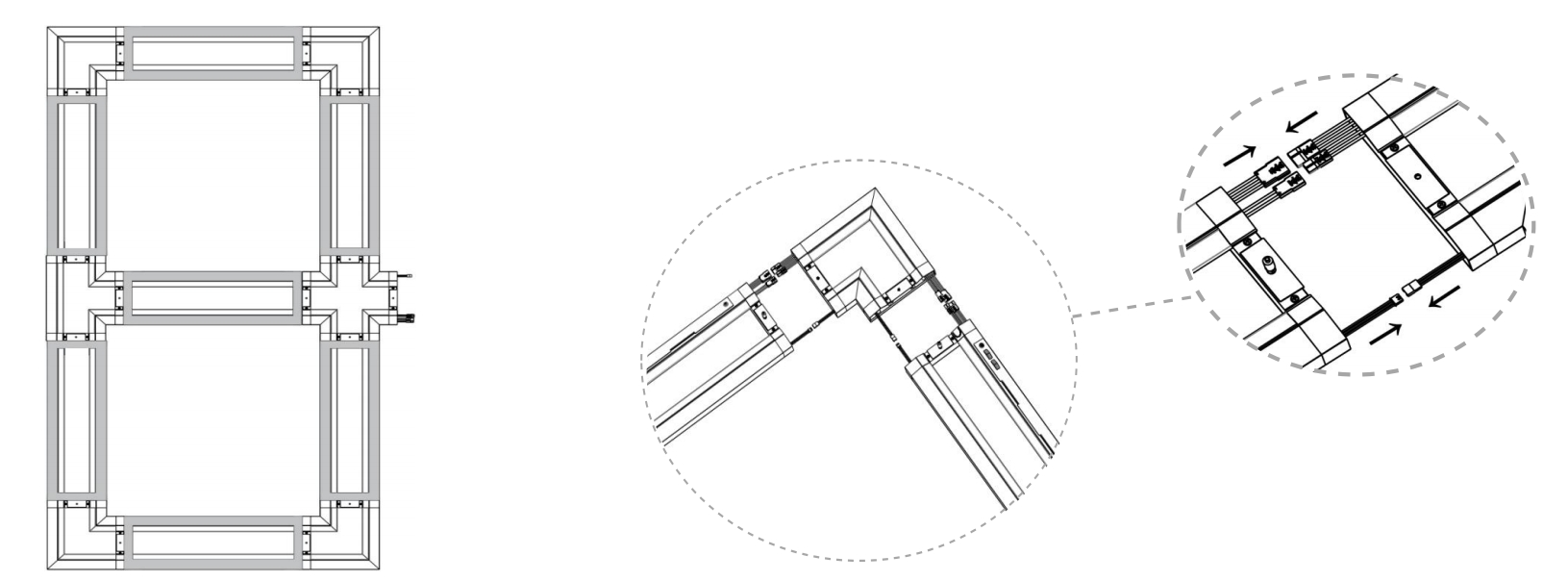

Windows 787 (GEN14) offers a modular connector system that enables designers to explore bold, sculptural forms.
From geometric shapes to customized layouts, these accessories support seamless integration and endless design flexibility.

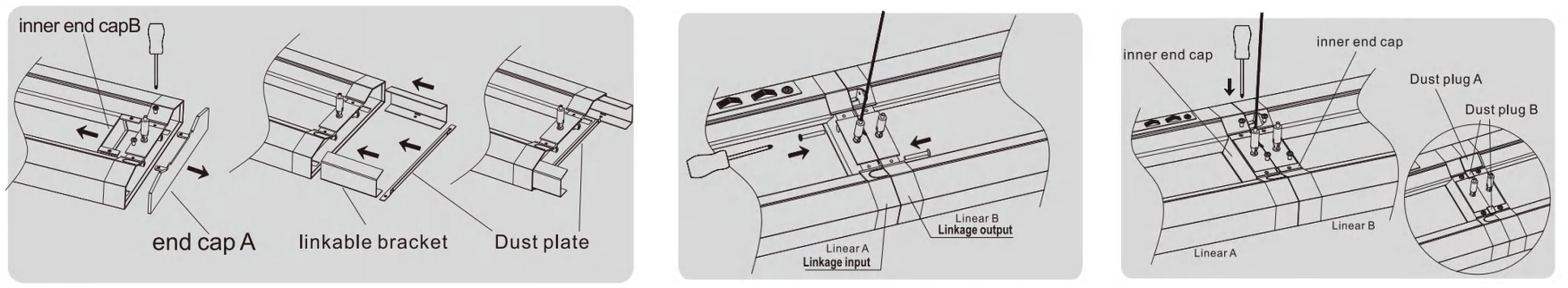

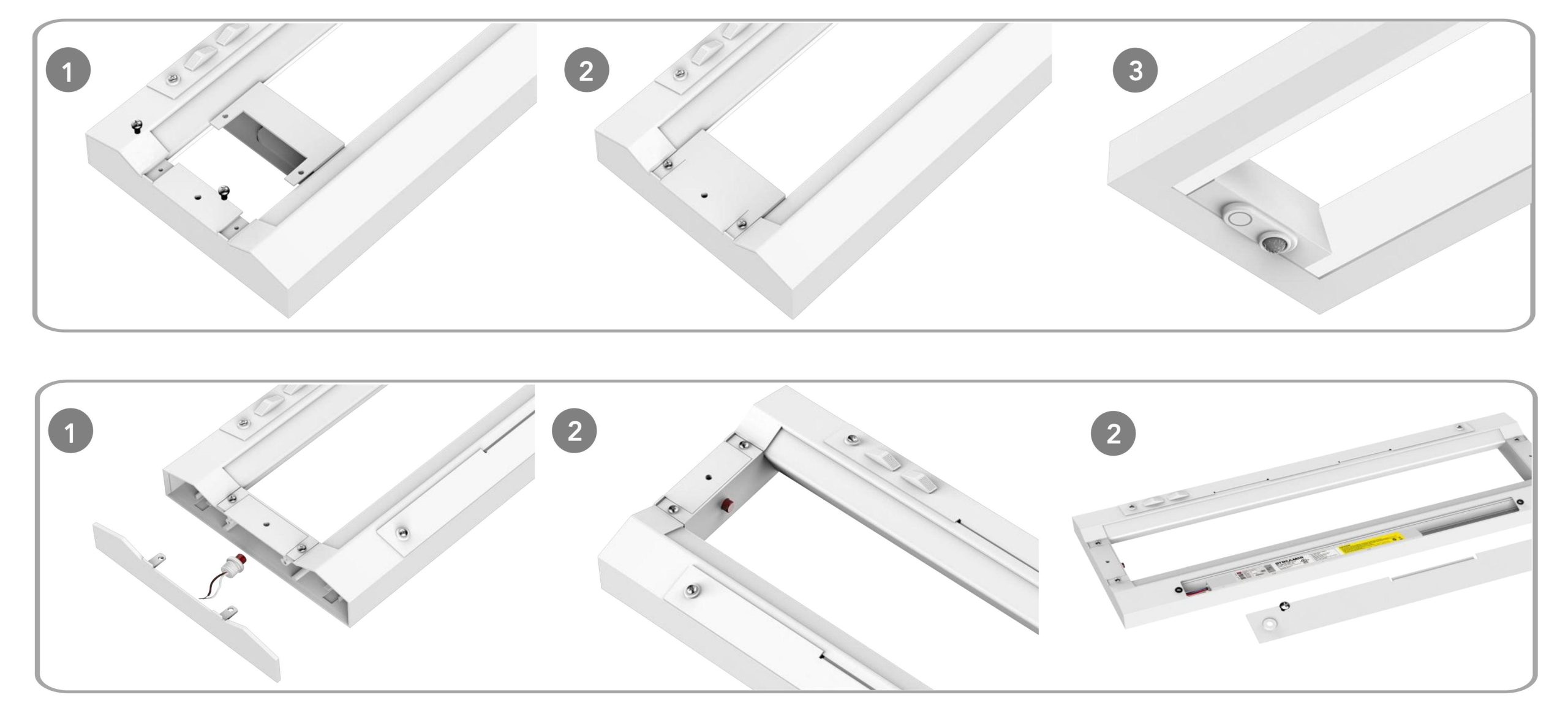

Quick linkable function
Run Length Limits
| Run Length Limits(ft) | 2FT | 4FT | 8FT |
| Max Linkable Units | 7 units | 7 units | 4 units |
| Total connected load:<420W at 120V & <960W at 277V & <1200W at 347V |

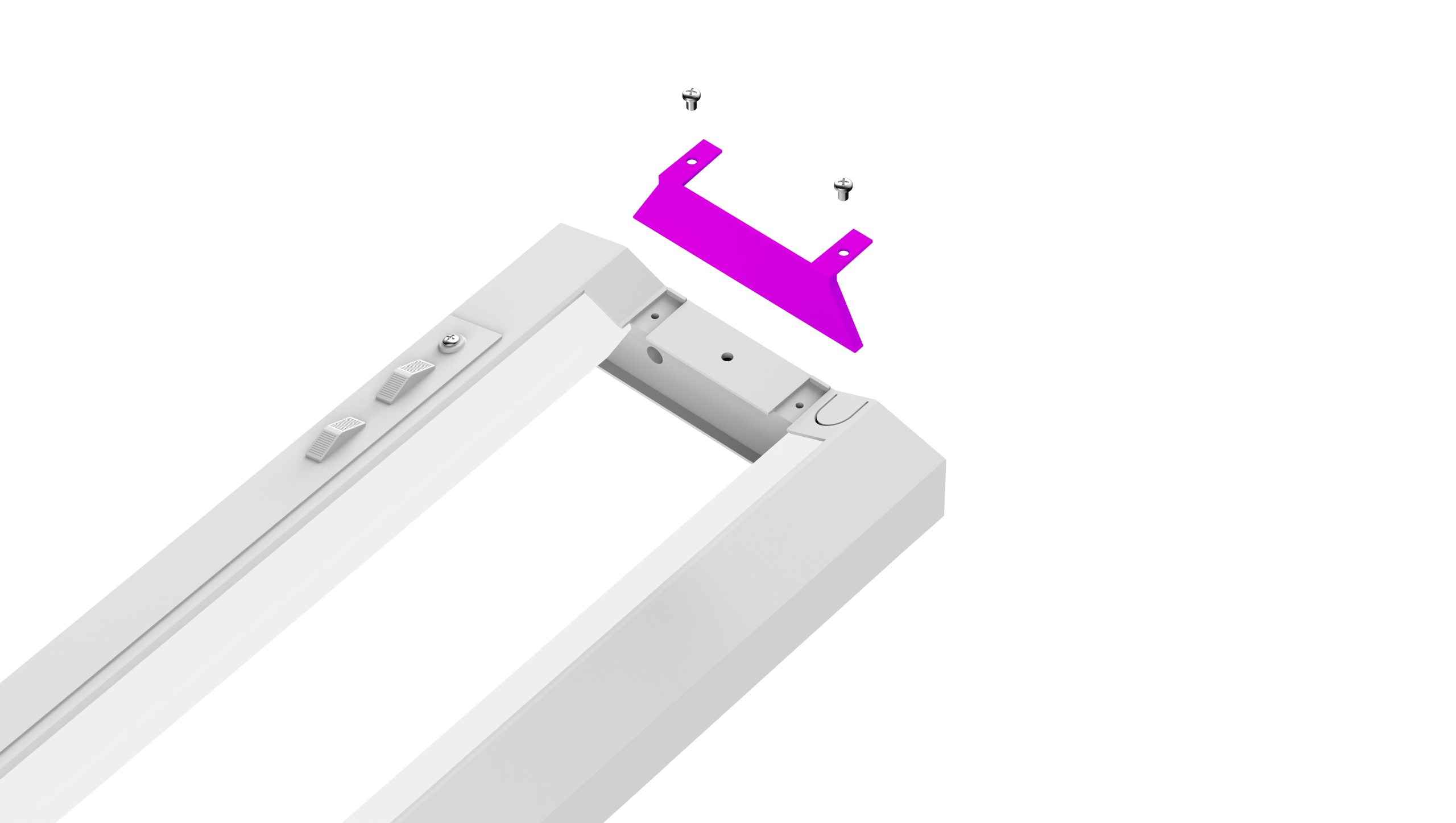

Flexible Design
Customizable lnterior Side Cover Options
Interior side covers are available in customizable finishes to align with your architectural vision.
Standard options are also provided to ensure seamless design integration.
ELEGANT FINISHES TO SUIT ANY SPACE
Available in classic Black, White, and Silver finishes,with custom colors on request. Effortlessly blends into diverse interiors while reflecting your unique design vision.
Documentation
| Family | Version | Content | Download |
|---|---|---|---|
| Windows 787 | IES | Windows-787-8FT-100W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | IES | Windows-787-8FT-100W-Up30Down70-CRI90-3500K-White | |
| Windows 787 | IES | Windows-787-8FT-100W-Up30Down70-CRI90-3000K-White | |
| Windows 787 | IES | Windows-787-8FT-80W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | IES | Windows-787-8FT-80W-Up30Down70-CRI90-3500K-White | |
| Windows 787 | IES | Windows-787-8FT-80W-Up30Down70-CRI90-3000K-White | |
| Windows 787 | IES | Windows-787-8FT-60W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | IES | Windows-787-8FT-60W-Up30Down70-CRI90-3500K-White | |
| Windows 787 | IES | Windows-787-8FT-60W-Up30Down70-CRI90-3000K-White | |
| Windows 787 | IES | Windows-787-4FT-40W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | IES | Windows-787-4FT-40W-Up30Down70-CRI90-3500K-White | |
| Windows 787 | IES | Windows-787-4FT-40W-Up30Down70-CRI90-3000K-White | |
| Windows 787 | IES | Windows-787-4FT-30W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | IES | Windows-787-4FT-30W-Up30Down70-CRI90-3500K-White | |
| Windows 787 | IES | Windows-787-4FT-30W-Up30Down70-CRI90-3000K-White | |
| Windows 787 | IES | Windows-787-2FT-25W-Up30Down70-CRI90-4000K-White | |
| Windows 787 | V10-24 | Window-787-Spec-Sheet-V2.2 | |
| Windows 787 | IES | Windows-787-2FT-15W-Up30Down70-CRI90-3000K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-15W-Up30Down70-CRI90-3500K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-15W-Up30Down70-CRI90-4000K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-20W-Up30Down70-CRI90-3500K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-20W-Up30Down70-CRI90-3000K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-20W-Up30Down70-CRI90-4000K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-25W-Up30Down70-CRI90-3000K-White-IES | |
| Windows 787 | IES | Windows-787-2FT-25W-Up30Down70-CRI90-3500K-White-IES | |
| Windows 787 | IES | Windows-787-4FT-50W-Up30Down70-CRI90-3000K-White-IES | |
| Windows 787 | IES | Windows-787-4FT-50W-Up30Down70-CRI90-3500K-White-IES | |
| Windows 787 | IES | Windows-787-4FT-50W-Up30Down70-CRI90-4000K-White-IES |
